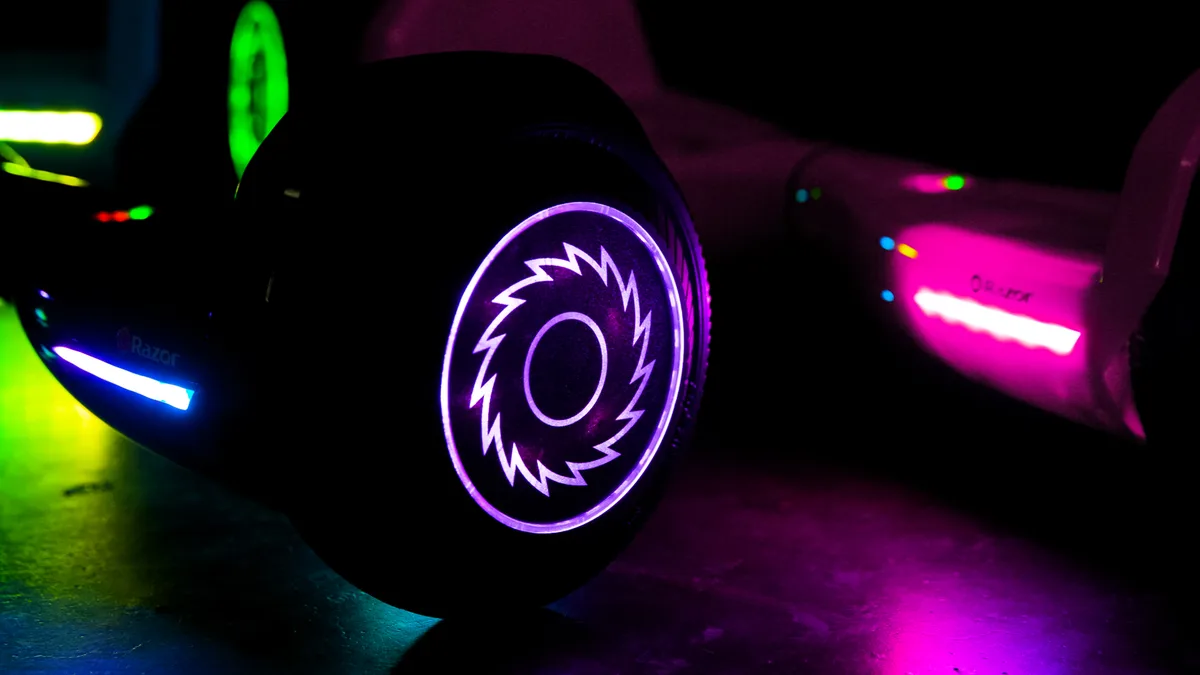

Razor Hovertrax Prizma Wheel Problem

That grinding noise often signals a Razor Hovertrax Prizma wheel problem. It shows up as a wobble, a click, or a wheel that just stops spinning. The good news is you might be able to fix it in under 30 minutes with a common bearing and a socket wrench.

Manufacturer specs for the Hovertrax Prizma include a 220-pound weight limit, an 8 mph top speed, and 6.5-inch solid rubber tires. That makes a wheel failure more likely to come from dirt or impact than from normal wear. We'll break down what's inside the wheel, what the sounds mean, and when to repair versus replace.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

If one wheel on the Razor Hovertrax Prizma grinds, wobbles, or stops, the usual cause is a seized 608RS bearing or a damaged hub motor. Start by inspecting the wheel for side-to-side play. If the wheel spins unevenly, replace the bearing.

If the motor itself feels dead, replace the entire wheel assembly.

Is Your Prizma Grinding, Wobbling, or Dead on One Side?

If you're here, something's off. The Prizma doesn't fail without warning signs. Let's match your symptom to the likely culprit.

Common symptoms:

• Grinding noise while riding: usually the wheel bearing, not the motor.
• Strong wobble at speed: a bent axle or loose axle nut.
• Wheel refuses to spin at all: seized bearing, or the hub motor is shot.
• One side tilts or drops: the motor on that side lost torque.

Here's a quick decision table.

| Symptom | Likely Cause | First Step | | Grinding or clicking | Worn or dirty bearing | Remove wheel and spin the hub | | Wobble or side-to-side play | Loose axle nut or bent axle | Check and torque the axle nut | | Wheel locked | Seized bearing or failed motor | Inspect bearing before motor | | Sudden cutout mid-ride | Hub motor wiring fault | Check the cable connection |

Manufacturer documentation for the Hovertrax series uses identical 6.5-inch wheels on both sides. That means you can swap a good wheel side to side to confirm the fault. If the problem follows the wheel, it's the wheel.

If the problem stays on the same side, it's the electronics.

What's Actually Inside That Wheel? (And What Breaks)

Before you start opening things up, it helps to know what you're looking at.

The Prizma wheel is a single integrated unit. There's no inner tube, because the tire is solid rubber. Inside the hub sits a brushless DC motor that drives the wheel directly.

An axle runs through the center, and two 608RS ball bearings support the rotating hub on that axle. The whole assembly bolts onto the motor shaft extending from the hoverboard frame.

Image source: Bing (Web (fair-use with source credit))

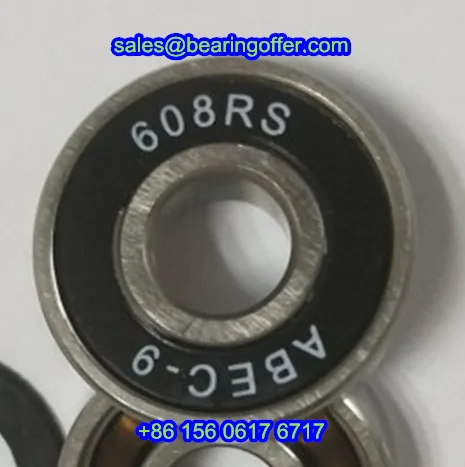

The bearing is the weak link. It's an 8 mm inner diameter, 22 mm outer diameter, 7 mm wide sealed bearing. Dirt and moisture can sneak past the rubber seal and turn the grease into grinding paste.

Once that happens, the wheel drags, vibrates, or locks up entirely.

The LED light ring is attached to the wheel cover, not the motor. A cracked cover can make it flicker, but that's mostly cosmetic. The hub motor itself is sealed and rarely fails, unless a seized bearing overheats the shaft.

Aggregate owner reports point to bearing failure as the most common Prizma wheel issue. Motor failure is less common and typically follows a hard impact or water exposure.

The Noise-Based Diagnostic Tree: What That Sound Really Means

Sound is your best diagnostic tool. Each noise points to a different part.

If you hear a low grinding that gets louder with speed, that's the bearing. The metal balls are scored and the race is rough. Try to spin the wheel in the air.

A rough or gritty spin means the bearing is the problem.

If you hear a rhythmic click with every rotation, check the axle nut first. A loose axle can let the wheel shift slightly, causing a click. Tighten it to around 15 to 20 foot-pounds.

If the click persists, inspect the wheel cover for cracks or debris.

If you hear a high-pitched squeal, that's the bearing's rubber seal rubbing against the inner race. It often means the bearing is dry or contaminated. Some riders try to repack grease, but a $5 replacement is faster and more reliable.

If you hear nothing but the motor runs rough or hesitates, suspect wiring. A broken hall sensor wire can cause the motor to stutter. In that case, test the cable connection before buying anything.

A quiet wheel that won't move points to a dead hall sensor or a blown motor controller, not the wheel itself. That's an electronics issue, not a wheel issue.

How to Fix It Yourself (Step-by-Step)

You'll need a few basic tools:

• Socket wrench with a long extension
• 10 mm socket or the correct axle nut socket
• Flathead screwdriver
• Replacement 608RS bearing or a complete wheel

Step 1: Power the board down and unplug the battery. Seriously, do this first.

Step 2: Lay the board on a soft surface with the problem wheel facing up.

Step 3: Remove the axle nut. It sits on the outside of the wheel hub. Use the socket wrench to break it loose.

Note the washer and spacer, and don't lose them.

Image source: Bing (Web (fair-use with source credit))

Step 4: Pull the wheel straight off the motor shaft. If it's stuck, tap the axle with a rubber mallet from the inside.

Step 5: Pop off the wheel cover. You'll see the hub motor and the bearing. Remove the bearing by pushing it out from the opposite side.

Step 6: Press the new bearing in. A socket that matches the outer diameter works as a press tool.

Step 7: Reassemble and hand-tighten the axle nut. Then torque it to 15 to 20 foot-pounds.

Test the spin. It should feel smooth and silent. If it still grinds, the hub motor is damaged and you'll need a new wheel assembly.

The Repair vs. Replace Decision: When to Fix and When to Walk Away

Not every wheel problem deserves a full repair. Sometimes it's smarter to replace the whole wheel or even the board.

| Option | Cost | Time | Skill Needed | | Bearing replacement | $5–$10 | 30 min | Basic | | Full wheel assembly | $25–$50 | 20 min | Minimal | | Entire hoverboard | $150–$200 | 10 min | None |

If the bearing is the only issue, fix it. That's the cheapest route. But if the hub motor is dead, buying a new wheel assembly is the smarter play.

A replacement motor alone costs nearly as much as a full wheel.

Walk away from the repair when:

• The motor shaft is bent.
• The wiring harness is damaged.
• The board has been through water and rusted inside.
• The cost of two repairs exceeds half the price of a new board.

As of 2026, Razor's standard warranty covers manufacturing defects for 90 days. If you're inside that window, contact Razor's official support page before touching anything. Per manufacturer documentation, unauthorized disassembly can void that protection.

Common Mistakes That Cost You Time or Money

Some repairs go wrong because of simple oversights. Avoid these.

Over-tightening the axle nut. That bearing needs to spin freely. Crank the nut too hard and you crush the bearing or bend the axle. Hand-tighten plus a quarter turn is enough.

Ignoring the second wheel. When one bearing fails, the other side is often close behind. Check both wheels. Replace both bearings at the same time for about $10.

You save yourself another repair session in two weeks.

Using the wrong bearing. The Prizma takes a 608RS bearing. That's an 8 mm bore, 22 mm outer diameter, 7 mm width. A 608ZZ bearing looks similar but has a metal shield instead of rubber.

The metal shield lets grit in easier. Stick with the RS version.

Skipping the washers and spacers. When you pull the wheel off, note the exact order of every washer and spacer. Lose one and the wheel sits crooked. Take a photo before disassembly.

Riding through standing water. The Prizma is not waterproof. Water seeps past the wheel cover into the bearing. Once inside, it rusts the bearing race and kills the motor over time.

Dry pavement only.

Thinking a wobble will fix itself. A loose axle nut or bent shaft only gets worse. Each ride loosens it more. Catch it early and it's a ten minute fix.

For riders under 10, you might want to check out age appropriate hobby-grade hoverboards as an alternative. A Prizma works great for older kids, but smaller riders often have trouble with the weight.

Frequently Asked Questions

Can I replace just one wheel on the Prizma?

Yes. The left and right wheels are identical. You can replace a single wheel assembly or just the bearing in one wheel.

If the other wheel shows similar wear, replace both bearings at the same time.

What size bearing does the Razor Hovertrax Prizma use?

It uses a standard 608RS bearing. That measures 8 mm inner diameter, 22 mm outer diameter, 7 mm wide. The RS suffix means it has a rubber seal on both sides.

You can find them at any bearing supply shop for a couple dollars each.

Why is my Prizma wheel wobbling at speed?

A wobble usually means the axle nut is loose. Check it first. If the nut is tight, the axle shaft might be bent from a hard impact.

In that case, the entire wheel assembly needs replacing. A loose wheel is dangerous at 8 mph.

How much does it cost to fix a Prizma wheel?

A bearing costs $2 to $5. A full wheel assembly runs $25 to $50. A new Prizma hoverboard costs around $150 to $200.

If the motor is dead and you need a wheel, buying the assembly is cheaper than a bearing only repair.

Should I let my kid ride with a grinding wheel?

No. A grinding wheel indicates bearing damage. Riding on it further damages the motor shaft.

The board could also shake unexpectedly and throw the rider off. Fix it first. Best hoverboards for kids in this price range all use similar bearings, so the fix applies across brands.
