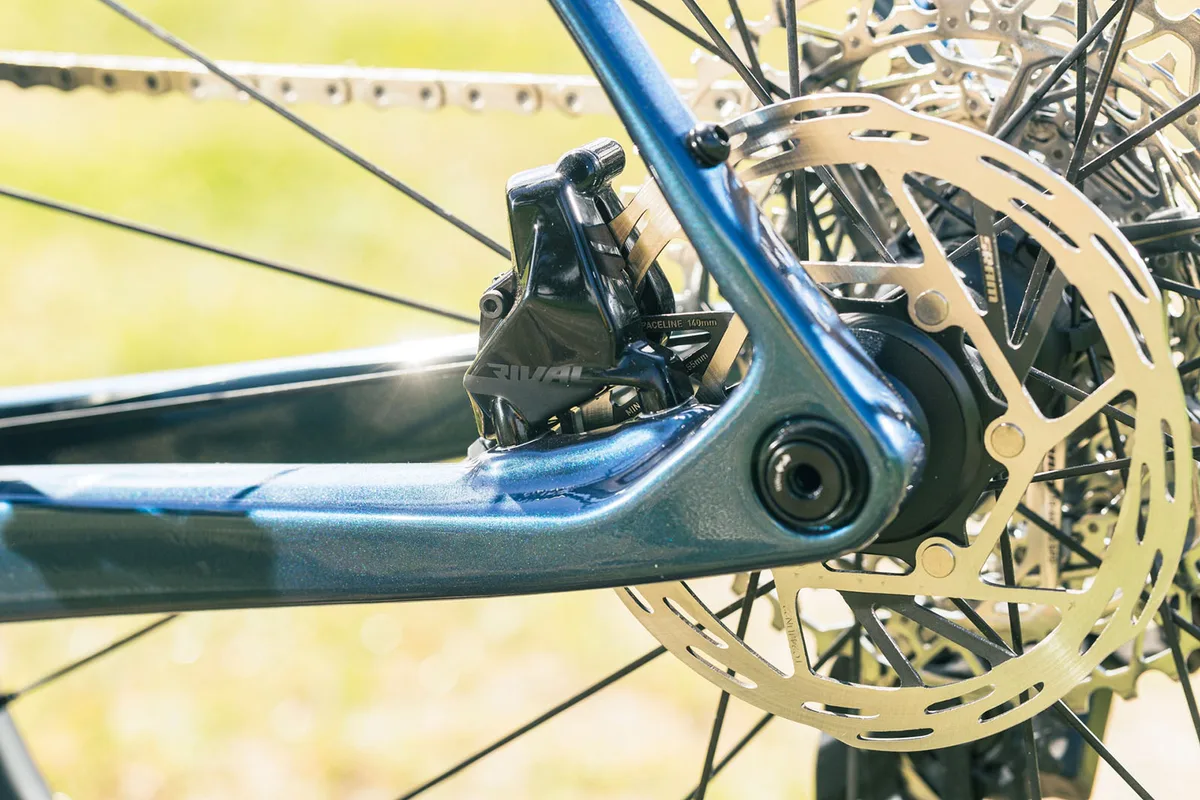

Road Bike Vibrating While Braking

Your road bike is vibrating while braking, and it's driving you crazy. That shudder through the handlebars isn't just annoying, it's telling you something is wrong. The good news is the fix is usually simple and cheap if you know what to look for.

Manufacturer specifications from both SRAM and Shimano indicate that rotor runout exceeding 0.2 to 0.3 millimeters is enough to cause noticeable vibration. That's roughly the thickness of two sheets of paper. Before you start replacing parts, let's walk through a proper diagnosis.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your road bike vibrates while braking because something is out of alignment. The most common cause is a warped disc rotor. A loose headset is the second most common culprit.

Contaminated brake pads are third. Each has a different fix. Diagnose before you replace anything.

Why Your Road Bike Shudders Under Braking (And Why Guessing Costs You Money)

Braking vibration feels worrying because it travels straight through your hands and frame. Your brain interprets it as instability. That makes you want to brake harder or let go.

Neither reaction helps.

The physics is straightforward. Braking force is massive. A 180-pound rider decelerating from 25 mph generates several hundred pounds of force at the caliper.

Any irregularity in that contact patch gets amplified. A rotor that wobbles just a hair will pulse against the pads once per wheel revolution. You feel that as a rhythmic shudder.

Here's what that pulsing actually is. The brake pads clamp down on a rotor that isn't perfectly flat. As the high spot passes through the caliper, it pushes the pads apart.

Then the low spot lets them snap back together. That cycle repeats dozens of times per second at speed.

As of 2026, the vast majority of road bikes sold new come with disc brakes. That makes rotor truing an essential skill. Rim brake vibration is a separate issue involving wheel trueness and pad glazing.

Many riders jump straight to "my rotor is warped" and buy a new one. That's often right. But it's also often wrong.

We've seen cases where the rotor was perfectly straight and the real problem was a loose headset bearing or a sticky caliper piston. Replacing the rotor in those cases fixes nothing.

What You Should Not Do First

Don't buy a new rotor. Don't buy new brake pads. Don't take it to a shop and say "fix the brakes." Take two minutes to diagnose, then decide.

The difference between a $0 fix and a $60 parts bill is knowing which branch of the decision tree you're on.

First, Let's Rule Out the Two Most Common Culprits (That Aren't the Rotor)

Image source: Bing (Web (fair-use with source credit))

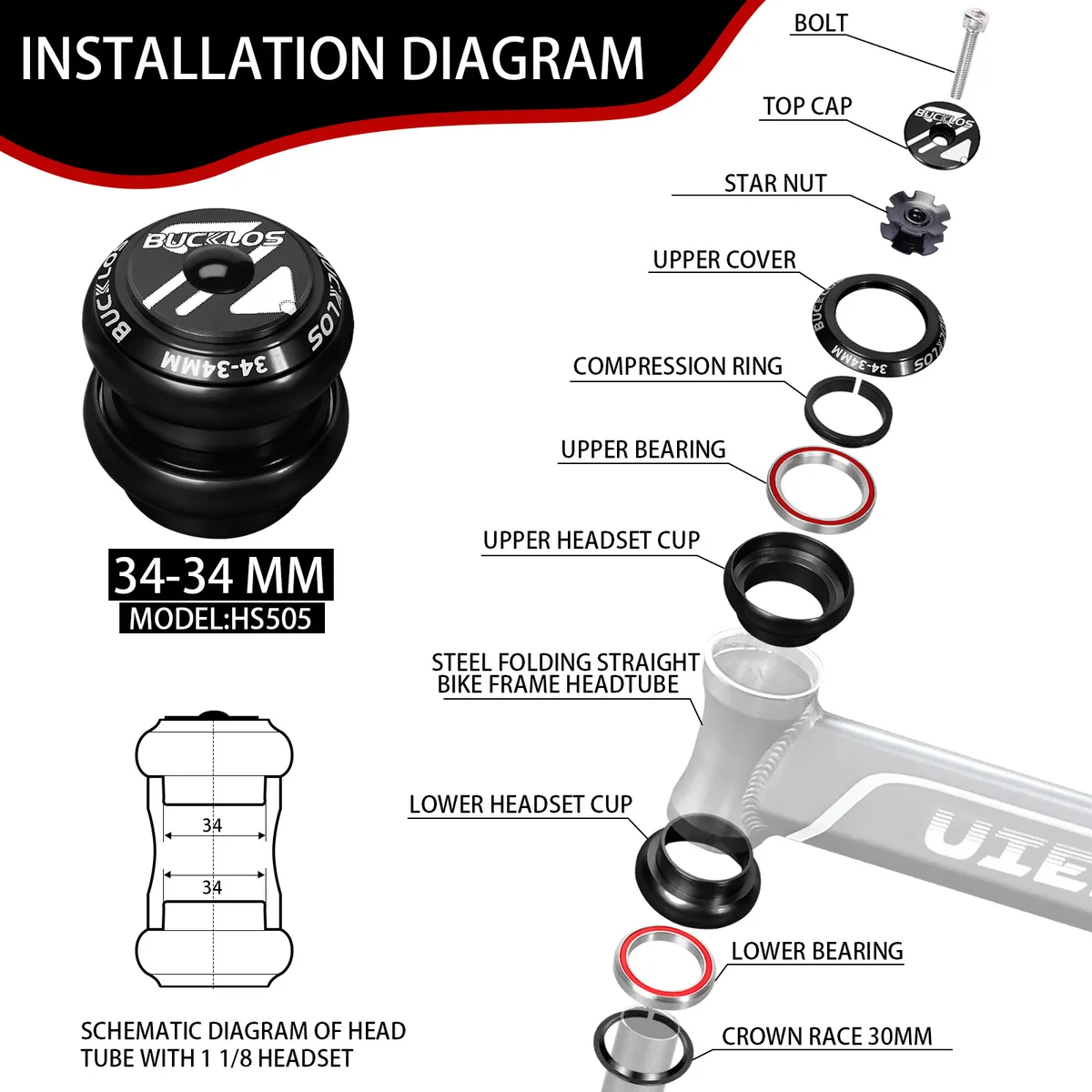

Is It a Loose Headset?

This is the most overlooked cause of road bike brake vibration. A loose headset allows the fork to knock forward and backward inside the frame. Under braking, that play turns into a shudder that feels exactly like a warped rotor.

Here's how to check. Stand next to your bike. Squeeze the front brake lever firmly.

Rock the bike forward and backward. If you feel a knock or clunk in the headset area, that's your problem.

The fix takes 30 seconds. Loosen the stem bolts. Tighten the top cap bolt slightly, usually an eighth to a quarter turn.

Retighten the stem bolts. Test again. The knock should be gone.

You can do this with a 4mm and 5mm hex wrench. No special tools needed. No parts to buy.

Is It Wheel Quick Release or Thru-Axle Play?

A loose wheel can cause vibration that mimics a warped rotor. This is especially common on quick-release bikes where the skewer wasn't tight enough.

Check by grabbing the top of the wheel and trying to wiggle it side to side inside the frame. Any movement means the wheel isn't seated properly. Open the quick-release, push the wheel fully into the dropouts, and close the lever firmly.

For thru-axles, make sure they're torqued to spec, usually 10 to 12 Nm.

What If Both Are Tight?

Good. Now you move to the rotor.

The Decision Tree: Diagnose by Symptom

Here's the decision tree for road bike brake vibration. Read it carefully. Your exact symptoms determine which branch to follow.

Branch 1: The Vibration Is Rhythmic and Happens with Every Wheel Revolution

Spin the front wheel and look at the rotor gap. Use a flashlight. Squat down and sight along the rotor, watching the gap between the rotor and the brake pad.

If you see the rotor wobble side to side as it spins, you have a warped rotor. This is the most common diagnosis. It's also the easiest to fix.

Branch 2: The Vibration Happens Only During Hard Braking

This suggests brake pad contamination or glazing. Hard braking heats the pads and rotor. If the pads have oil, grease, or old resin deposits on them, the heat makes them slippery.

The pads chatter against the rotor instead of gripping.

Check by looking at the pad surface. If it looks shiny or has a glassy crust, that's glazing. If it has dark streaks or spots, that's contamination.

Branch 3: The Vibration Is Accompanied by a High-Pitched Squeal

Dirty pads and rotors. The squeal comes from high-frequency vibration between the pad and rotor. It's often caused by contamination or incorrect bedding.

Fix this first. Clean everything. Then re-bed your pads.

Branch 4: The Vibration Is a Low-Frequency Thrum, Not a Sharp Pulse

This one points to frame or fork flex under braking. Some lightweight carbon forks have more flex than metal ones. You'll feel a slow, spongy vibration that gets worse the harder you brake.

This is harder to fix. It may require a stiffer fork, a sturdier wheel, or a larger rotor to reduce the force needed to stop.

Branch 5: The Vibration Disappears When You Brake with Only the Rear Brake

That confirms the problem is on the front brake system. The front brake handles most of the stopping force. If the rear feels fine and the front shudders, you're isolating the issue to the front rotor, pads, caliper, or fork.

Step-by-Step Fixes for Each Branch

Image source: Bing (Web (fair-use with source credit))

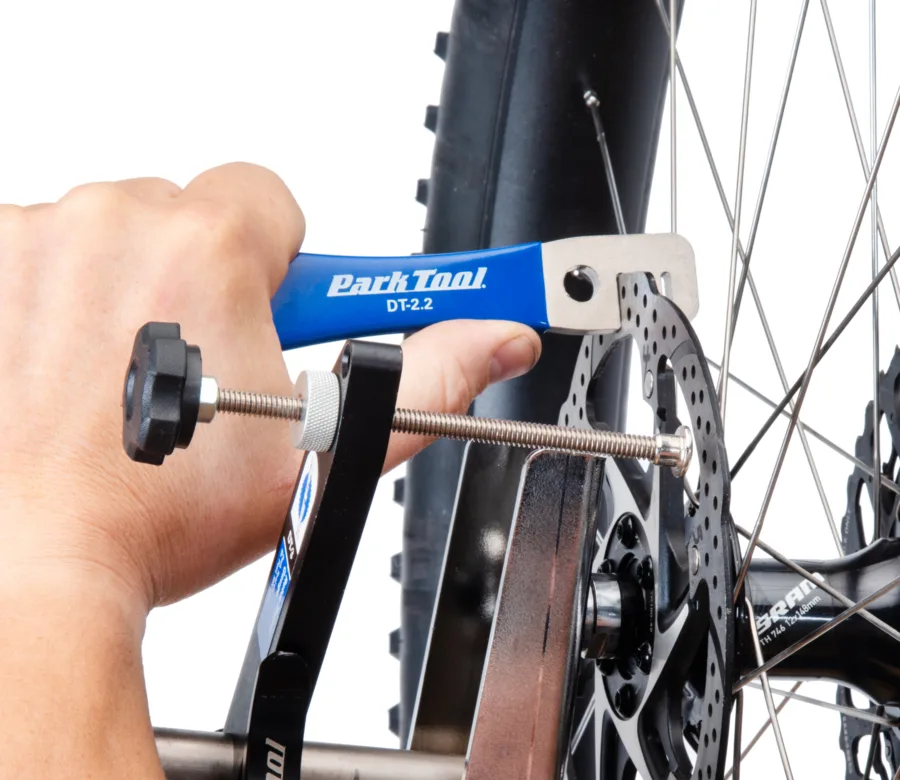

Fixing a Warped Rotor

This is your most likely fix. A warped rotor doesn't mean it's bent badly. Even a 0.3mm wobble causes noticeable vibration.

You need a rotor truing tool or a clean adjustable wrench. Park Tool makes a dedicated truing tool, but a crescent wrench works fine if it's clean. Oil on the rotor ruins the pads.

Here's the process:

1. Spin the wheel and mark where the rotor rubs. Use a zip tie attached to the frame as a stationary reference point. Slide it close to the rotor until it just barely touches the high spot.

2. Identify the bend. If the rotor moves toward the caliper when it hits the high spot, it's bent inward. If it moves away, it's bent outward.

3. Apply gentle counter-pressure. Place the truing tool or wrench on the rotor. For an inward bend, pull the rotor outward slightly. For an outward bend, push it inward. Use small adjustments. A millimeter of bending at the tool translates to a fraction of that at the contact point.

4. Recheck. Spin the wheel again. The wobble should be reduced. Repeat until the rotor barely misses the zip tie throughout the full rotation.

5. Test ride. If the vibration is gone, you're done. If it persists, the rotor may need professional truing or replacement.

Warped rotors often get damaged during installation. The most common cause is overtightening the six bolts on a 6-bolt rotor. The spec is 6 Nm.

That's not very tight. Use a torque wrench. Hand-tightening with a hex key is almost always too much.

Fixing Contaminated Brake Pads

Glazed or contaminated pads need to be addressed before they ruin your rotors.

Start with the simplest fix. Remove the pads from the caliper. Lightly sand the surface with fine-grit sandpaper (200 grit or higher).

This removes the shiny glazed layer. Wipe them clean with isopropyl alcohol. Let them dry completely.

If the pads were contaminated with oil or grease, sanding might not be enough. The contamination soaks into the pad material. In that case, replace the pads.

Resin pads are quieter and cheaper. Sintered pads last longer and handle heat better. For road bikes, resin pads are usually the better choice.

Clean the rotors too. Spray isopropyl alcohol onto a clean rag, never directly onto the rotor. Wipe the rotor surface thoroughly.

Handle the rotor with clean hands or gloves. Finger oil transfers easily and contaminates fresh pads.

Fixing Caliper Misalignment

Sometimes the caliper itself isn't centered over the rotor. You can see this if the rotor rubs one pad more than the other.

Loosen the two caliper mounting bolts slightly, just enough that the caliper can wiggle. Squeeze the brake lever firmly and hold it. While holding the lever, tighten the bolts.

This centers the caliper over the rotor automatically.

Release the lever. Spin the wheel. If the rubbing is gone, you're done.

If not, repeat.

Fixing Sticky Caliper Pistons

A piston that doesn't retract fully will drag on one side of the rotor. That drag causes heat buildup and can lead to vibration.

Remove the pads. Squeeze the brake lever gently and watch the pistons move. They should move together.

If one sticks, clean around it with isopropyl alcohol and a soft brush. Apply a tiny amount of disc brake piston lubricant, nothing else. Push the pistons back in with a plastic tire lever or a piston press.

Cycle them a few times until they move evenly.

When to Replace Instead of Fix

Some rotors can't be trued. If you see cracks, deep gouges, or a rotor that's below the minimum thickness (usually stamped on the rotor, often 1.5mm), replace it. A cracked rotor is dangerous.

Replace it immediately.

Pads should be replaced when the pad material is less than 1mm from the backing plate. Below that, the metal backing plate contacts the rotor, which damages both and reduces braking power sharply.

Mistakes That Will Waste Your Time or Ruin Parts

Mistakes happen. Some cost time. Some cost money.

Here are the ones we see most often.

Overtightening Rotor Bolts

Six-bolt rotors are torqued to 6 Nm. Going over that warps the rotor. Use a torque wrench.

A beam-style torque wrench costs about $20. It pays for itself the first time it saves a rotor.

Using the Wrong Cleaner

Never use WD-40, degreaser, or any petroleum-based cleaner on your rotors or pads. These leave a residue that ruins braking performance. Stick to isopropyl alcohol.

It evaporates cleanly and leaves nothing behind.

Ignoring the Headset

We said it earlier. We'll say it again. A loose headset feels exactly like a warped rotor.

Check the headset before you touch the rotor. It takes 30 seconds and costs nothing.

Bedding In Pads Incorrectly

New pads need a break-in procedure. Ride to a flat stretch of road. Accelerate to about 20 mph.

Brake firmly to about 5 mph without coming to a complete stop. Repeat 20 to 30 times. This transfers an even layer of pad material to the rotor.

Skipping this step leads to vibration and poor braking.

Mixing Old and New Pads

Replace pads in pairs. Putting one new pad with one old pad creates uneven pressure on the rotor. That causes vibration and uneven wear.

Touching the Rotor Surface

Finger oil transfers easily. Even clean-looking fingers leave enough oil to contaminate the rotor. Handle rotors by the edges or the center carrier.

If you do touch the surface, wipe it down with isopropyl alcohol.

When Vibration Means Danger (Not Just Annoyance)

Most brake vibration is a minor problem. But some cases require immediate attention.

Cracked Rotor

A crack in the rotor is a safety hazard. It can fail completely under braking. Replace a cracked rotor immediately.

Do not try to tru it. Do not ride with it.

Worn-Out Pads

Pads below 1mm of material thickness contact the backing plate against the rotor. That damages the rotor and reduces braking power dramatically. Replace pads before they reach this point.

Overheated Brake Fluid

If your brakes feel spongy along with the vibration, you may have overheated the brake fluid. This causes the fluid to boil, creating air bubbles in the system. Air compresses.

That means your brake lever pulls to the bar before the pads engage. Bleed the brakes. This requires a bleed kit and fresh mineral oil or DOT fluid, depending on your brake brand.

Fork Damage

A cracked or damaged fork can cause braking vibration. This is rare but serious. Inspect your fork for cracks, especially around the crown and dropouts.

If you see damage, replace the fork before riding.

When in doubt, take the bike to a professional mechanic. Brake failure at speed is not worth saving $50.

Real-World Examples: What Other Riders Found

These examples come from aggregate user reports and shop mechanic forums. They show how the decision tree plays out in real situations.

Case 1: The $0 Fix

A rider reported front brake shudder on a 2023 carbon road bike. He bought a new rotor and new pads. The vibration continued.

A shop mechanic checked the headset and found 2mm of play. Tightening the top cap bolt eliminated the vibration completely. Cost: zero.

Lesson: check the headset first.

Case 2: The Six-Bolt Trap

A rider installed new 160mm rotors and tightened the bolts with a hex key. The brakes vibrated immediately. The rotor runout measured 0.5mm.

The bolts were torqued to roughly 12 Nm. A new rotor installed with a torque wrench at 6 Nm cured the problem. Lesson: use a torque wrench on rotor bolts.

Case 3: Contamination from Factory

A new bike had brake vibration from the first ride. The pads were glazed from the factory bed-in process. Sanding the pads and cleaning the rotors with isopropyl alcohol fixed it.

Lesson: new bikes sometimes need a proper bed-in.

Case 4: The Impossible Vibration

A rider on a lightweight climbing bike felt vibration under hard braking. The rotor was true. The headset was tight.

The pads were new. The problem was fork flex. The carbon fork on that model was designed for weight savings, not stiffness.

A stiffer aluminum fork or a larger rotor (180mm front) solved it. Lesson: frame and fork flex is real and hard to fix cheaply.

Frequently Asked Questions

Can I true a rotor without a special tool?

Yes. A clean adjustable crescent wrench works well. Just make sure it's free of oil or grease.

A Park Tool rotor truing tool is easier to use but not required.

How do I know if my rotor is warped or my pads are contaminated?

Spin the wheel and look at the rotor gap. If the rotor wobbles side to side, it's warped. If it runs straight but the brakes still vibrate, the pads are likely contaminated or glazed.

Can vibration damage my bike over time?

Yes. Persistent vibration can loosen headset bearings, wear caliper pistons unevenly, and cause fatigue cracks in the fork or frame. Fix it sooner rather than later.

Should I upgrade to larger rotors to stop vibration?

Larger rotors provide more braking power and better heat dissipation. They can help if the vibration is caused by overheating or fork flex. But they won't fix a warped rotor, contaminated pads, or a loose headset.

How often should I replace brake pads?

Replace pads when the material thickness is below 1mm. For most road riders, that's every 1,000 to 2,000 miles depending on conditions. Wet and hilly riding wears pads faster.

Is it safe to ride with brake vibration?

Mild vibration is usually safe in the short term. But it indicates a problem that will get worse. Cracked rotors, worn pads, and overheated fluid are safety hazards.

Address the issue promptly.
