RoyalBaby Freestyle Brake Cable Problem

Your RoyalBaby Freestyle brake cable problem likely falls into one of three categories: the cable is stretched, it's misadjusted, or it's damaged. The good news is that none of these require a bike shop visit. These brakes use a standard 1.5mm inner cable and a side-pull caliper system that's designed for simple, at-home fixes.

The process involves diagnosing the specific symptom, then following the matching repair path. Per CPSC 16 CFR 1512 standards, all bicycle brakes must provide reliable stopping force, and maintaining your child's brakes is a critical safety step.

Image source: Bing (Web (fair-use with source credit))

Your Brakes Aren't Working — Here's What's Actually Going On

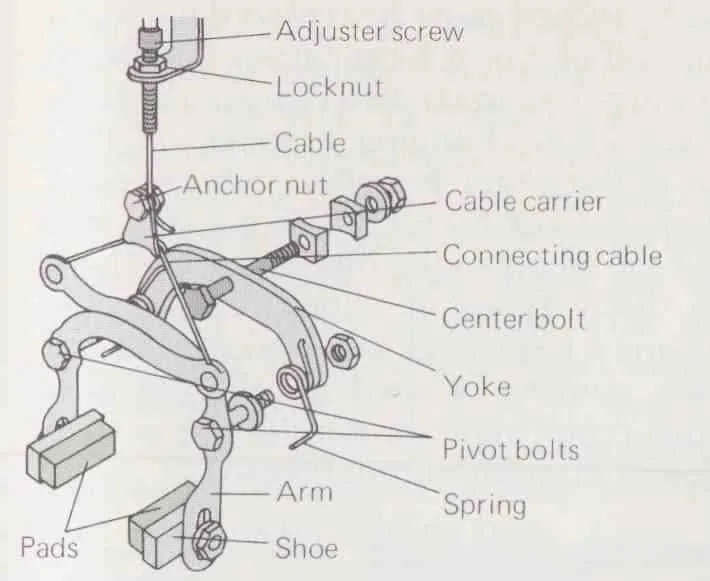

This section helps you pinpoint the exact issue. The RoyalBaby Freestyle uses side-pull caliper brakes on both wheels. When you squeeze the lever, the cable pulls the caliper arms together, pressing the rubber brake pads against the wheel rim.

A problem occurs when this system fails to engage properly or doesn't release. The cause is almost always in the cable and its tension. Before you grab any tools, answer these questions:

• What happens when you squeeze the lever? Does it go all the way to the handlebar with no resistance? Or do the brakes engage but the lever feels spongy?
• What happens when you release the lever? Do the pads stay pressed against the rim? Does the wheel drag or make a rubbing sound?
• Look at the cable itself. Is it visibly frayed where it connects to the brake caliper? Is the outer housing cracked or kinked near a bend?

Your answers point to one of three common failure paths. A lever that bottoms out means the cable is too loose. A lever that feels mushy often points to cable housing compression.

Rubbing means the brake is too tight or misaligned. Frayed wire means the cable needs replacement.

Before You Touch Anything: What to Check First

Image source: Bing (Web (fair-use with source credit))

Before adjusting anything, do this quick visual inspection. It takes one minute and can save you time by confirming the problem isn't something more serious like a broken component.

1. Check the cable anchor bolt. This is the small bolt on the brake caliper arm that clamps the inner cable. Ensure it's snug. If it's loose, the cable will slip and never hold tension.
2. Inspect the cable ends. The inner cable should be cleanly cut with a metal end cap crimped on. A frayed end will not thread properly and can poke fingers.
3. Follow the cable housing. The outer black housing should sit firmly in the barrel adjuster cup at the lever and the receiving cup on the caliper. If it's popped out of either cup, the brakes will feel wrong.
4. Squeeze and release each brake independently. Watch the caliper arms. They should move evenly and return fully to their starting position when you let go. One arm moving more than the other indicates a spring tension issue.

This basic check often reveals the simple fix. If the housing is unseated, just pop it back in. If the anchor bolt is loose, a quick turn of a wrench may solve it immediately.

For other common bike issues like wheels not rolling smoothly or unwanted shaking, our guides on getting Razor scooters to roll properly and addressing vibration problems offer similar diagnostic approaches.

Path A: Brakes Feel Loose and Don't Stop the Bike

This is the most common issue on new bikes or after assembly. The inner steel cable naturally stretches during its first few uses. Manufacturer specifications often note that initial cable stretch of 2 to 5mm is normal and requires adjustment.

Symptom: You squeeze the brake lever, it moves a long way, and the pads barely touch the rim. There's little to no stopping power.

Fix It Step-by-Step:

Step 1: Use the Barrel Adjuster

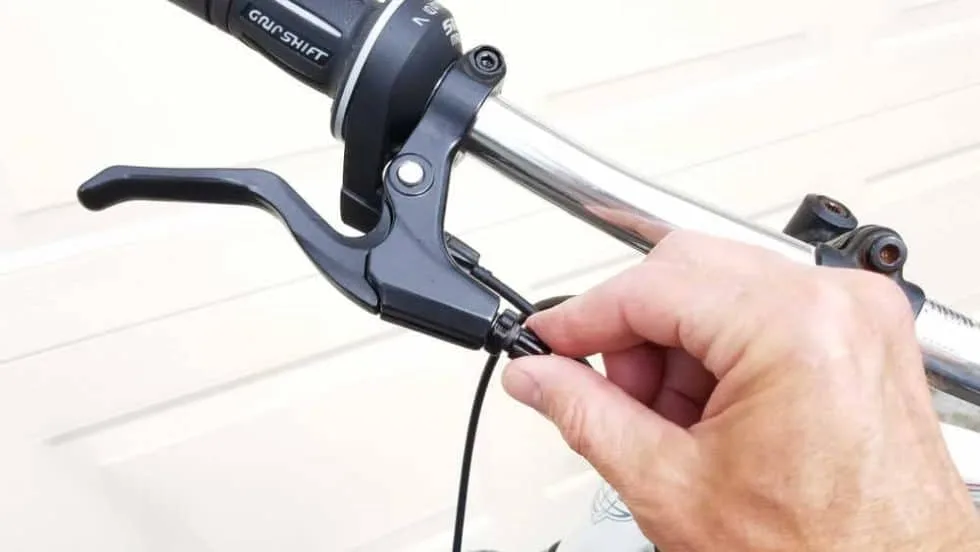

The barrel adjuster is the small, knurled barrel where the brake cable meets the lever. Turn it counterclockwise (outward) in quarter-turn increments. Each quarter-turn adds a small amount of tension to the cable.

After every turn, squeeze the lever to test. You're looking for the pads to contact the rim firmly when the lever is pulled halfway.

Image source: Bing (Web (fair-use with source credit))

Step 2: If the Adjuster Isn't Enough

If you've turned the barrel adjuster most of the way out and the brakes are still loose, you need to reset the cable tension at the caliper.

• Turn the barrel adjuster back all the way in (clockwise) to create slack.
• Loosen the cable anchor bolt on the caliper arm with a wrench (usually 9mm or 10mm).
• Pull the inner cable taut with pliers or your fingers to remove all slack.
• While holding the cable tight, re-tighten the anchor bolt securely.
• Now use the barrel adjuster again for fine-tuning.

Step 3: Verify the Fix

Spin the wheel. Squeeze the brake. The wheel should stop abruptly.

Release the brake. The wheel should spin freely with no rubbing. If it's right, you're done.

This fix is similar to tightening a loose brake on a scooter, where the core principle is restoring proper cable tension.

Path B: Brakes Are Rubbing the Rim and Won't Release

Symptom: The wheel drags. You hear a constant scraping sound even when you're not touching the brake lever. The pads are touching the rim.

This means there is too much tension in the cable, or the caliper is misaligned.

Fix It Step-by-Step:

Step 1: Introduce Slack

Turn the barrel adjuster clockwise (inward) in quarter-turns. This effectively shortens the housing and adds slack to the cable, allowing the caliper arms to spring apart. Test after each turn until the rubbing stops.

Step 2: Check Caliper Alignment

If adjusting the cable doesn't work, the caliper itself might be off-center.

• Loosen the main mounting bolt on the back of the fork or frame that holds the brake caliper. You'll need an appropriate wrench (often 10mm).
• Don't remove it completely, just loosen it enough so the caliper can move side-to-side.
• Squeeze the brake lever firmly. This will center the caliper over the rim as the pads clamp down.
• While holding the lever, tighten the mounting bolt. The caliper should now be centered.

Step 3: Check Spring Tension

Some calipers have small screws where the arms pivot. These adjust the spring tension on each side. If one pad is always closer to the rim, tightening the screw on the opposite side can balance the arms.

This is a finer adjustment, so make very small turns.

Path C: The Cable Is Frayed, Snapped, or Corroded

Symptom: You see broken wires at the anchor bolt. The cable is rust-colored. The cable snaps when you pull it.

No amount of adjustment will fix a compromised cable. It must be replaced for safety. A frayed cable can snap under sudden braking force.

A corroded cable will stick inside the housing, giving you unpredictable brake feel.

Replacement is straightforward. You'll need a new 1.5mm brake inner cable and a pair of wire cutters. It's often easiest to buy a universal brake cable kit that includes housing and end caps.

The Process:

1. Release the old cable. Loosen the anchor bolt and pull the inner cable free from the caliper. Disconnect it from the brake lever.
2. Check the housing. If the outer housing is cracked, kinked, or feels "crunchy" when you compress it, replace it too. Match the length exactly, cutting new housing to the old piece's length. Ensure the cuts are square and clean.
3. Thread the new cable. Start from the brake lever end. Push the new inner cable through the lever, through the housing, and down to the caliper.
4. Set tension and secure. Follow Path A, Step 2 to set initial tension using the anchor bolt. Pull the cable taut, tighten the bolt, and trim the excess cable, leaving about an inch. Crimp a metal end cap onto the tip to prevent fraying.
5. Bed in the pads. Squeeze the brake lever firmly 10 to 15 times. This seats the cable and stretches it slightly. Re-check tension with the barrel adjuster and do a final test ride at walking speed. For guidance on tackling other replacement tasks, our article on fixing a wheel problem can be helpful.
