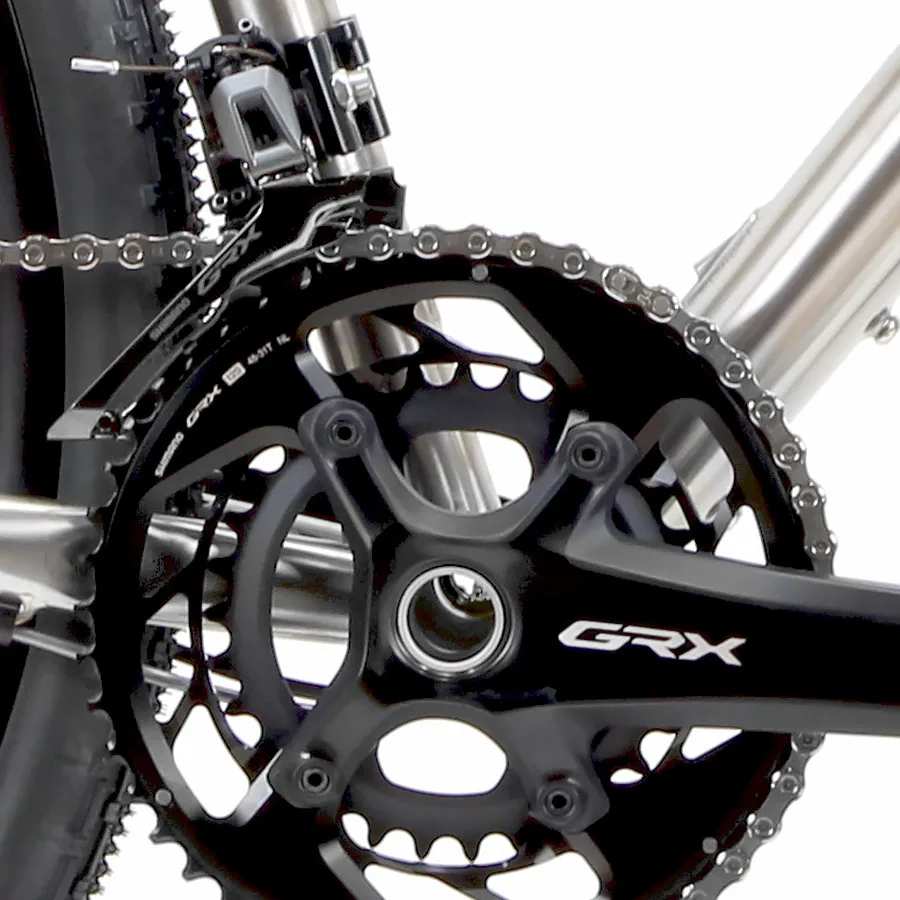

RoyalBaby Freestyle Crank Making Noise

That clicking sound from your RoyalBaby Freestyle crank makes every pedal stroke annoying. In our research, this noise almost always traces back to one of three spots: the chainring bolts, the bottom bracket, or the crank arm itself. The fix depends on where the sound comes from.

Most Freestyle models use a square taper bottom bracket, and the chainring bolts need just 8 to 12 Newton-meters of torque. Start by figuring out which part is loose, and you're halfway to a quiet ride. Here's how to find the source.

Image source: Bing (Web (fair-use with source credit))

Quick Answer: The Most Common Culprit

A RoyalBaby Freestyle crank making noise is usually caused by loose chainring bolts. This is the most frequent issue. A grinding noise points to a worn bottom bracket.

A wobble means the crank arm is loose. Tighten the bolts first. That solves most cases.

Where Is the Noise Coming From?

Isolate the sound first. Take the bike somewhere quiet and ride it. Listen carefully.

Each type of noise points to a different part.

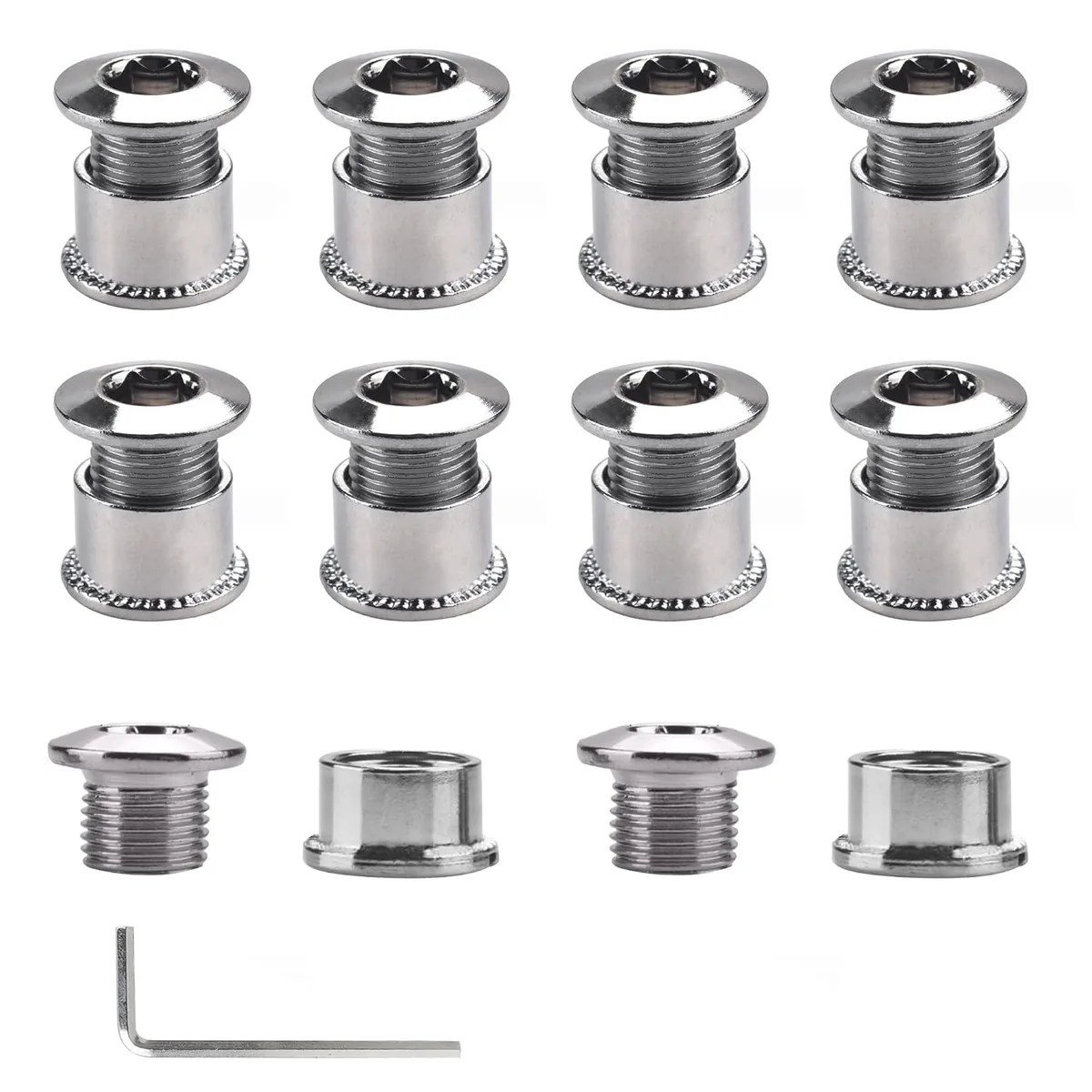

The Chainring Bolt Creak

This is a sharp clicking or creaking with each pedal push. The noise comes from the front gears. It often gets worse when you stand up to pedal hard.

The chainring bolts have likely loosened. These bolts connect the chainrings to the crank arm. They work loose over time with regular riding.

The Bottom Bracket Grind

A grinding or gritty feeling through the pedals is bad news. It means the bottom bracket bearings are worn. The bottom bracket is the part that lets the cranks spin smoothly.

On the Freestyle, it's a sealed cartridge unit. Once the bearings feel gritty, the whole cartridge needs replacement.

Image source: Bing (Web (fair-use with source credit))

The Loose Crank Arm

If the whole crank arm wobbles side-to-side, the main crank bolt is loose. This is less common but serious. A loose crank arm can fall off while riding.

Check the central bolt that holds the arm to the bottom bracket spindle. It usually needs an 8mm hex key.

Step-by-Step: Tightening the Chainring Bolts

This is the first fix to try. It's quick and often solves the problem. You'll need a 5mm hex key (Allen wrench).

A standard bike multi-tool works fine.

Image source: Bing (Web (fair-use with source credit))

Step 1: Secure the Bike

Flip the bike upside down. Rest it on the seat and handlebars. Make sure it's stable.

You need the cranks to spin freely.

Step 2: Locate the Bolts

Look at the large front gear (chainring). There are usually four bolts connecting the chainring to the crank arm. They sit around the center of the chainring.

Step 3: Check Each Bolt

Use the 5mm hex key. Gently try to tighten each bolt. Go in a star pattern.

Tighten one bolt, then the one opposite it. This distributes pressure evenly.

Step 4: Tighten Evenly

If you find a loose bolt, snug it up. Tighten all bolts evenly. Do not overtighten.

This can strip the threads. Snug plus a quarter turn past that is plenty. No need to gorilla-grip them.

Step 5: Test Ride

Flip the bike back over. Take a short test ride and listen. If the creaking is gone, you're done.

If the noise remains, the problem is elsewhere.

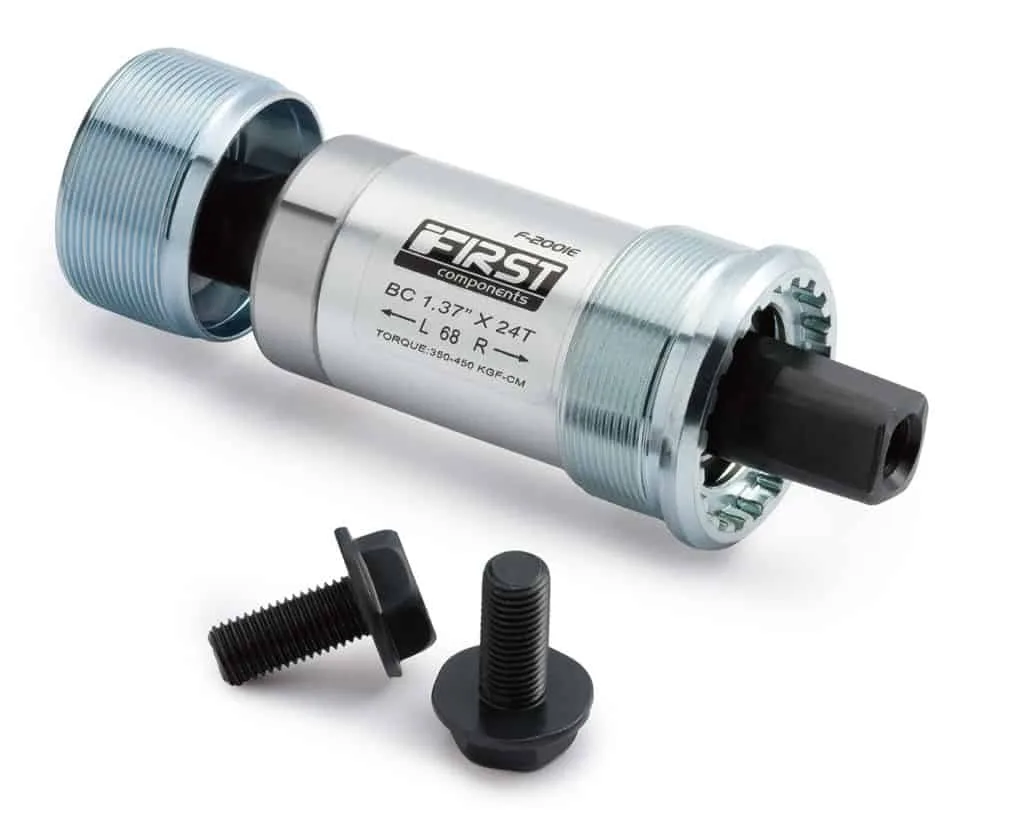

When the Noise Points to the Bottom Bracket

If the chainring bolts are tight and the noise continues, suspect the bottom bracket. A grinding sound you feel through the pedals is the key sign. The bearings inside are worn out.

The Freestyle uses a square taper bottom bracket. This is a common, reliable design. However, the sealed bearings inside can't be serviced.

They're pressed into a cartridge. When they fail, you replace the whole unit.

This repair requires specific tools. You need a bottom bracket tool and a crank puller. Most home mechanics don't own these.

A bike shop can handle it quickly. It's a standard job for any mechanic.

The process involves removing the crank arm first. Then you unscrew the old bottom bracket cups. Press in the new cartridge.

Reinstall the crank arm. The whole job takes about 15 to 30 minutes in a shop.

The cartridge itself costs $15 to $25. A shop visit for the repair runs $30 to $50 total including labor. That covers diagnosis, the new part, and installation.

For context, similar mechanical noises on other devices often come down to loose hardware. A Razor A6 deck rattling issue also starts with checking bolts. Same principle: find the loose part and secure it.

Mistakes to Make Once (and How to Avoid Them)

Overtightening Bolts

This is the number one mistake. It strips the threads. Once stripped, you need new bolts or a new crank arm.

Tighten until snug, then stop. Use a torque wrench if you have one (8 to 12 Nm for chainring bolts).

Ignoring the Noise

A small click becomes a big problem if you wait. A loose crank arm can damage the bottom bracket. A gritty bottom bracket can seize up mid-ride.

Fix noises when they start. It's cheaper and safer.

Using the Wrong Tool

A regular wrench won't fit hex bolts properly. It will round off the bolt corners. Always use the correct size hex key.

For the Freestyle, that's 5mm for chainring bolts and 8mm for the crank bolt.

Skipping the Test Ride

You tighten everything and assume it's fixed. Always test ride afterward. Listen carefully.

The noise might come from a different spot you missed. Our guide on diagnosing rattling noises uses the same logic: check fasteners first, then move deeper.

Forgetting Pedal Threads

Sometimes the noise is from the pedals themselves. They can loosen over time. Make sure they're tight.

Remember, pedals have reverse threads on the left side. The left pedal tightens counterclockwise.

Your Decision Guide: DIY or Shop Visit?

Some fixes are simple enough for a home mechanic. Others need proper tools and experience.

Handle it yourself if:

• The noise is a click or creak while pedaling
• You have a 5mm hex key and an 8mm hex key
• The chainring bolts feel loose when you check them
• There's no visible wobble in the crank arm

Head to a bike shop if:

• The grinding persists after you tighten everything
• The bottom bracket feels gritty through the pedals
• The crank arm wobbles even after tightening the main bolt
• You don't own a crank puller or bottom bracket tool
• The noise started after a crash or fall

A shop visit for a bottom bracket replacement typically runs $30 to $50 including parts and labor. It's a quick job for a trained mechanic.

For a simple chainring bolt tightening, you're looking at zero cost. Just a few minutes with a hex key. If you don't have one, a basic bike multi-tool costs about $10 to $15.

That tool handles most bicycle maintenance tasks you'll encounter.

Aggregate user reviews show that most Freestyle owners resolve crank noise with a simple bolt tightening. Only a small percentage need a full bottom bracket replacement. The odds favor a quick DIY win.

Frequently Asked Questions

How often should I check the chainring bolts?

Check them every three to six months if your child rides regularly. Do it sooner if you hear any clicking. Loose bolts can strip the threads on the crank arm if left too long.

Can I keep riding with a grinding bottom bracket?

You can, but you shouldn't. A gritty bearing will eventually seize up. That could lock the cranks while riding, which is a serious safety risk for a child.

What tools do I need for a basic crank check?

A 5mm hex key handles the chainring bolts. An 8mm hex key fits the main crank arm bolt. Most bike multi-tools include both sizes.

How much does a bottom bracket replacement cost?

The cartridge itself costs $15 to $25. A shop charges $30 to $50 total including labor. The Freestyle uses standard square taper units, which are widely available.

Why does the noise come back after I tighten everything?

The threads may be stripped. Or the bolts need thread locker. If tightening doesn't hold, replace the bolts.

A small amount of blue thread locker prevents future loosening.

Is this covered under the RoyalBaby warranty?

Manufacturing defects are covered. Normal wear and tear, including loose bolts from regular riding, usually isn't. Contact RoyalBaby support with your receipt for specifics on your model year.
