Santa Cruz Chameleon Bottom Bracket Noise

Image source: Bing (Web (fair-use with source credit))

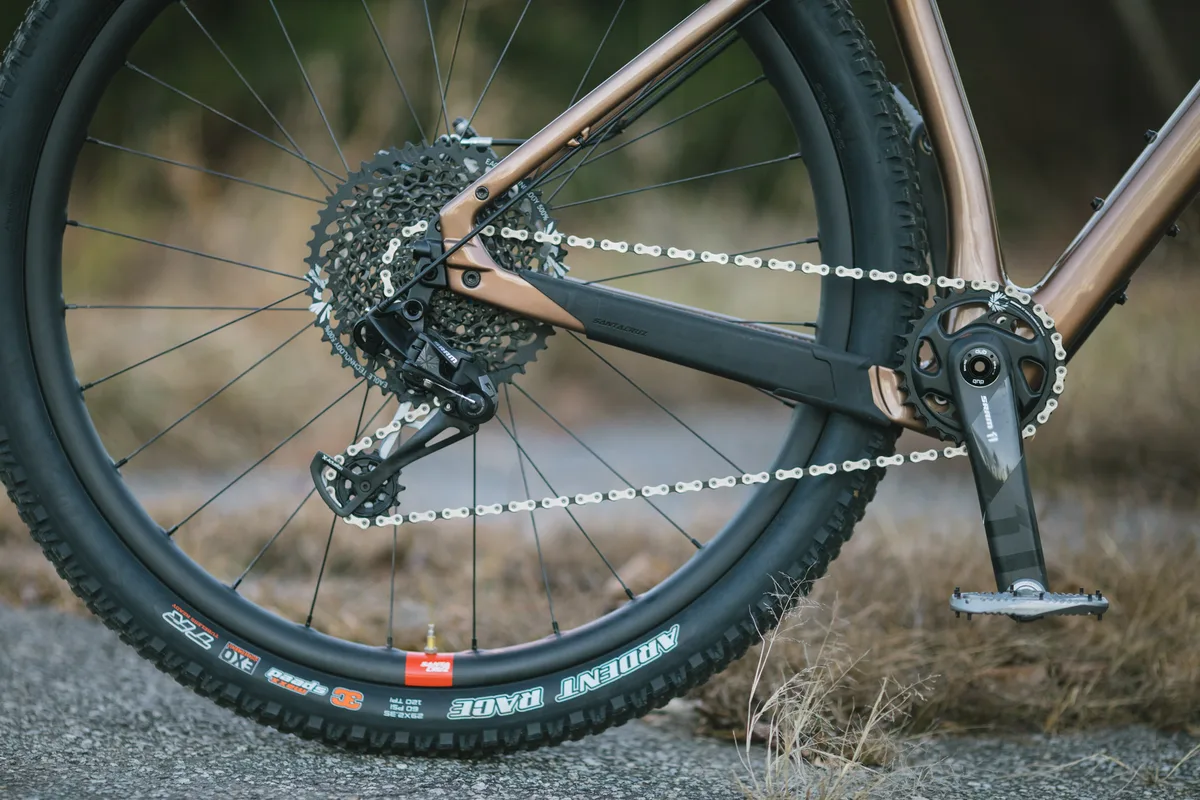

Chasing a creak on your Santa Cruz Chameleon is annoying, but the noise usually isn’t the frame. Santa Cruz Chameleon bottom bracket noise has a few specific causes you can pin down in about fifteen minutes.

The Chameleon uses a threaded BSA 73mm shell on most modern builds – good news because you can service it with basic tools. A creak in the bottom bracket area doesn’t always mean the bottom bracket itself is the problem. Loose chainring bolts, a dry derailleur hanger, or a loose rear axle can trick you. The carbon front triangle transmits sound differently than aluminum, so the noise often travels.

Most Chameleon creaks resolve with a re-torque and fresh grease, not a new part.

Quick Answer

Santa Cruz Chameleon bottom bracket noise most often comes from loose or dry threaded BSA cups. The shell is threaded, so the cups can back out slightly under load. Re-greasing the threads and torqueing the cups to 40 Nm fixes most cases.

Check chainring bolts and the rear axle before you touch the bottom bracket.

---

The Problem: That Creak Isn't Always the Bottom Bracket

A creak that sounds like it's coming from the bottom bracket often isn't. The Chameleon's carbon front triangle is stiff, sending vibrations straight to your ears. You'll hear a click that feels like it's under your feet, but the source could be inches away.

The most common fakes are chainring bolts – they work loose over time. A quick Torx check takes thirty seconds.

The second suspect is the rear axle – if slightly loose, you get a metallic click on every pedal stroke.

The third is the derailleur hanger. A dry or bent hanger can creak at the dropout, sounding exactly like a bottom bracket under load.

Check every drivetrain bolt before the bottom bracket: crank arm bolts, chainring bolts, rear axle. Santa Cruz torque values are printed on the frame near the BB. If everything is tight and noise persists, you likely have a bottom bracket issue.

---

The Chameleon-Specific Noise Quirks

The Chameleon has a few quirks. The frame uses a threaded BSA 73mm shell. If the cups weren't greased at install, they seize slightly and micro-movement creates a creak.

Another quirk is cable routing – cables run along the down tube past the BB. If a housing rubs the shell or guide, you get a high-pitched creak that sounds like the BB. A quick visual check reveals rub marks.

The third quirk is the BB variant. Some Chameleons ship with PF92 press-fit, some with BSA threaded. With PF92, a creak often means the press fit has loosened – that's a frame warranty claim or new BB, not just a re-grease. Check your build specs before starting, because the fix is very different.

---

The Diagnosis Workflow: 5 Steps to Isolate the Source

Image source: Bing (Web (fair-use with source credit))

This elimination game takes about fifteen minutes with basic tools. Grab a torque wrench, Allen keys, Torx key, grease, and a pedal wrench.

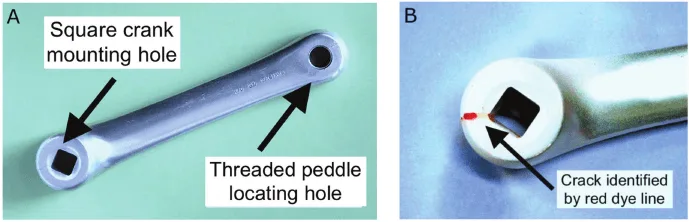

1. Crank arm bolts. Check torque first – 12-15 Nm for most cranks. A loose crank clicks on every stroke, feeling like a BB creak.
2. Chainring bolts. Use Torx T25/T30. Tighten to 10-12 Nm.
3. Derailleur hanger. Check two bolts where hanger meets frame. Torque to 8-10 Nm.
4. Rear axle. A slightly loose axle allows wheel movement, causing a pedal-stroke click. Torque to spec (15-20 Nm for 12mm thru-axle).
5. Bottom bracket itself. For threaded BSA, use spline tool. Check for rotational play. If loose, re-torque to 40 Nm.

If all five steps are done and the creak remains, the problem is internal to the BB – dry or worn bearings. Service if serviceable, or replace.

---

The Fix: Installation and Torque Specs

Image source: Bing (Web (fair-use with source credit))

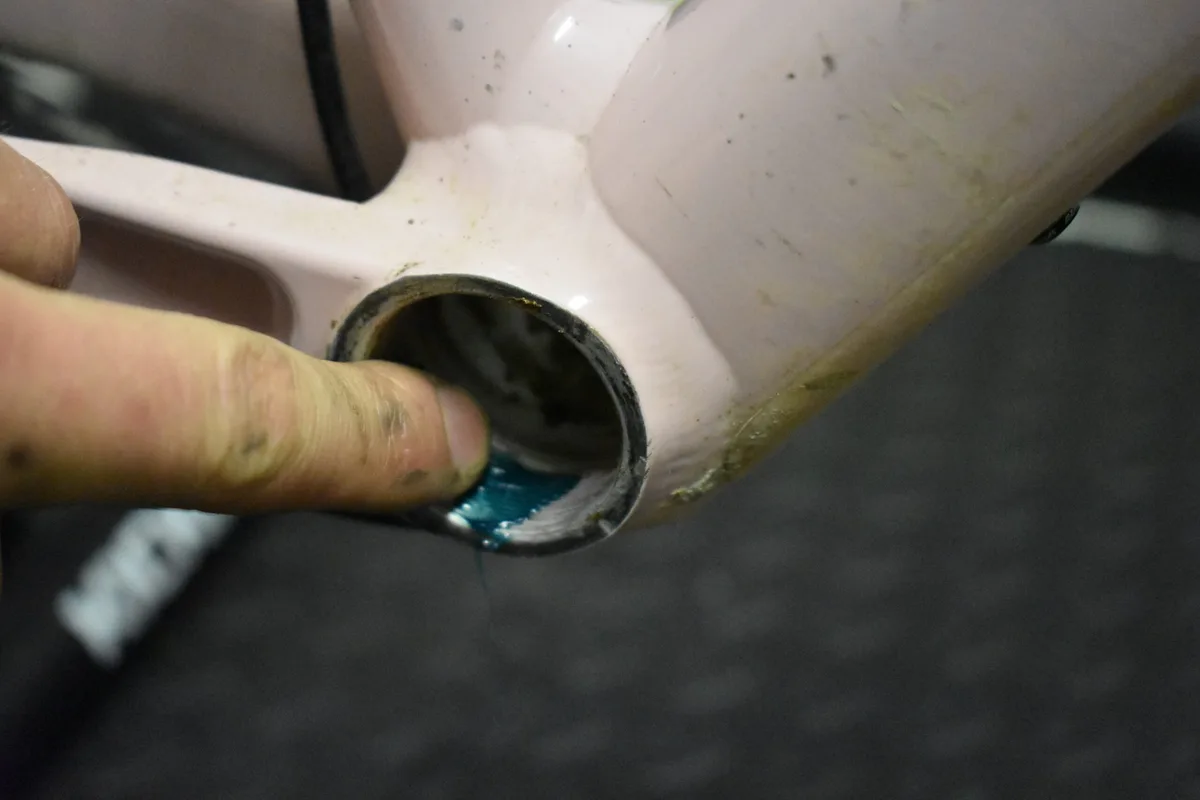

Once confirmed, the fix is straightforward. For threaded BSA, remove cranks, pull BB cups, clean, re-grease, reinstall with proper torque. You'll need a crank puller, BB spline tool, and torque wrench.

Start by removing crank arms (SRAM or Shimano need specific puller). Use spline tool to remove cups (counterclockwise; driveside is reverse-threaded – clockwise to remove). Clean threads with rag and degreaser. Apply fresh grease – a basic lithium or marine grease works; anti-seize also works for wet conditions. Torque cups to 40 Nm. Reinstall cranks and torque crank bolts to crankset spec. Reinstall chainring bolts if removed.

Grease Choice: What to Avoid

Don't use carbon assembly paste on BB threads – it's abrasive. Use regular grease or anti-seize.

---

Common Mistakes That Make the Creak Come Back

If the creak returns quickly, one of three mistakes: (1) Not cleaning threads properly – old grit prevents even seating, causing new creak. (2) Over-torquing – 40 Nm is spec; 60 Nm risks warping the carbon shell, potentially cracking it. (3) Skipping crank arm check after reassembly – loose crank clicks and you think the BB is loose again. Always re-torque every drivetrain bolt after BB service.

---

Maintenance Tips: Keeping It Quiet Year-Round

A quiet BB comes from routine. Service every three to six months. Monthly check: torque chainring bolts (10-12 Nm), crank bolts (12-15 Nm), BB cups (40 Nm). In wet/muddy conditions, service every three months. Avoid pressure-washing the BB shell directly.

When servicing, inspect bearings – spin cranks without chain; if gritty, bearings are tired. Serviceable BB: pop shields and re-grease. Non-serviceable: replace. Most Chameleon riders get a full season before rebuild, a couple seasons before replacement.

---

Frequently Asked Questions

What torque should the Santa Cruz Chameleon bottom bracket be?

The bottom bracket cups should be torqued to 40 Nm for a threaded BSA shell. This is the standard spec for most BSA bottom brackets. Over-torquing can warp the shell on a carbon frame, so use a torque wrench rather than guessing.

Does the Chameleon use a press-fit or threaded bottom bracket?

Depends on the build year and spec. Most modern Chameleon frames use a threaded BSA 73mm shell, which is easier to service. Some older or specific builds shipped with a PF92 press-fit setup.

Check your frame near the BB for a BSA or PF marking.

Why does my Chameleon creak when I pedal hard?

A creak under hard pedaling usually comes from the bottom bracket cups working loose, chainring bolts, or a loose rear axle. Check the drivetrain bolts first. If they're tight, the BB cups likely need re-greasing and re-torquing to 40 Nm.

How often should I service the bottom bracket on my Chameleon?

Every three to six months for regular trail riding. If you ride in wet or muddy conditions, do it every three months. A quick visual check of the chainring bolts and crank arms once a month is also a good idea.

Can I fix the creak without removing the crank arms?

Sometimes, if the creak comes from chainring bolts or the rear axle, you can fix it without touching the BB. But if the creak persists, the cups need servicing. That requires removing the cranks and the BB with a spline tool.
