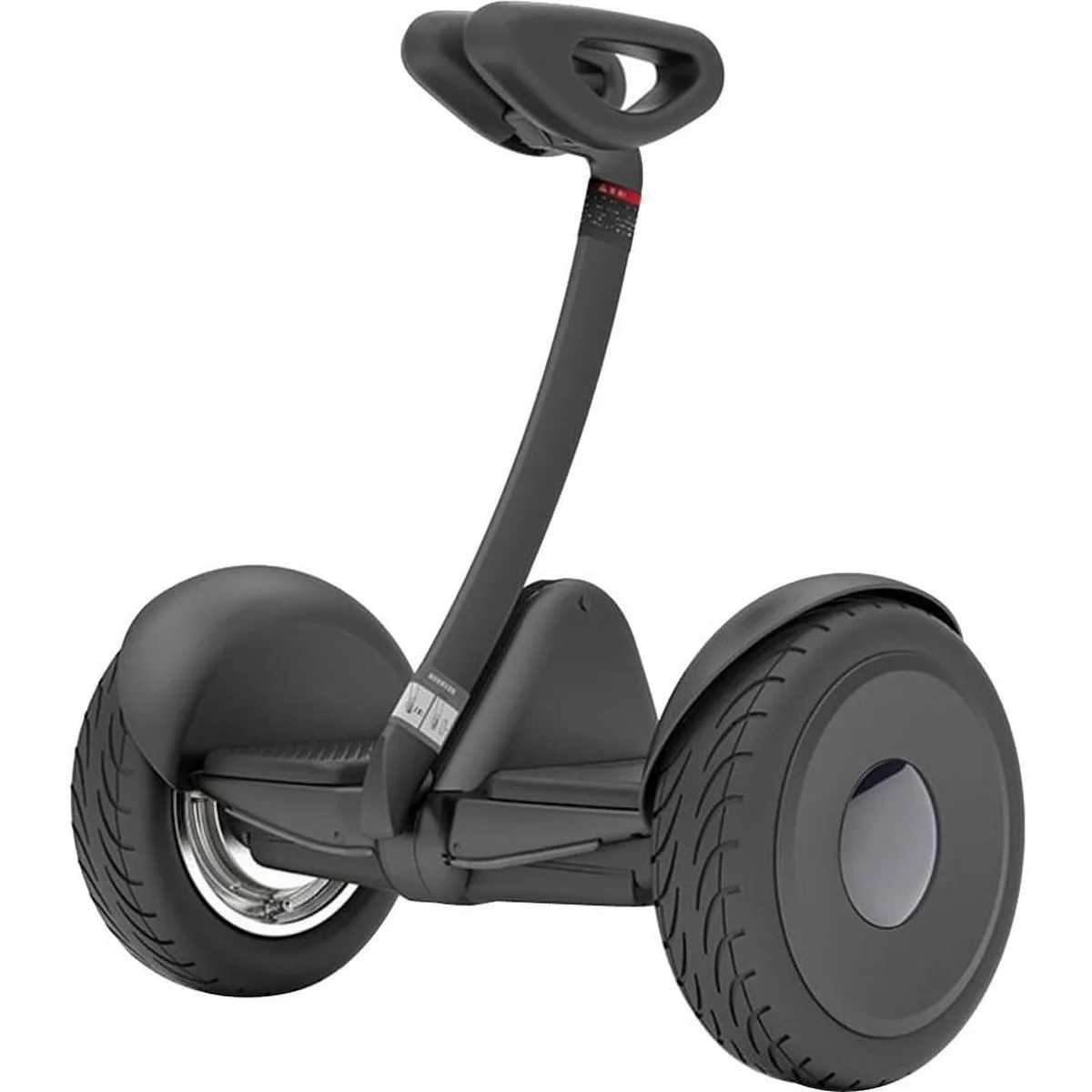

Segway Ninebot S Hoverboard Wheel Problem

If you're here because one wheel just stopped responding, you're already in the right place. The Segway Ninebot S hoverboard wheel problem is one of the most common repair topics for this model, and it's usually fixable. Most issues come down to a handful of known failure points, not a mystery deep inside the machine.

Manufacturer specifications indicate the Ninebot S uses two 400W hub motors with a 54.8V battery system. According to UL 2272 testing standards, the electrical architecture is designed for safety, but that doesn't make it immune to wear, impacts, or water damage. In our research, the majority of wheel failures trace to three specific causes.

Let's walk through them one by one.

Image source: Bing (Web (fair-use with source credit))

What's Your Ninebot S Wheel Actually Doing? (Symptom Guide)

Before you buy a single part, take a breath and watch what the wheel does. The exact behavior is your biggest clue. Different symptoms point to completely different fixes, so don't skip this step.

Dead wheel, no response at all. This usually points to an electrical failure. The motor might be fine, but the control board isn't sending power. Or the ribbon cable between board and motor has broken internally.

Grinding or scraping sound when you spin it by hand. That's mechanical. Bearings are likely shot, or the motor casing is rubbing against something. Sometimes a magnet inside the hub has come loose.

Wheel locks up mid-ride. This is dangerous. The motor windings may have shorted, or the hall sensor is sending bad position data. Either way, stop riding immediately.

Wobble or vibration at speed. If the tire itself is warped, you're looking at a flat spot or low pressure. If the wheel feels loose on the axle, check the axle nut first. If the wobble comes from inside the hub, the bearings are the culprit.

Intermittent cutout. The wheel works, then dies, then works again. That's often a loose connector or a damaged wire harness flexing as you steer.

Write down what you're seeing. You'll need that symptom when we get to the diagnostic flow.

The Three Most Common Wheel Problems — and What They Point To

After combing through owner reports, repair forums, and service documentation, three failure patterns show up over and over. Here's what they look like and where they lead.

1. One Wheel Completely Dead

This is the single most reported issue. You turn on the Ninebot S, it balances, but one side drags or does nothing. The app might show an error code, or it might not.

In most cases, this boils down to one of three things:

• Hall sensor failure inside the motor. This is the top culprit.
• A broken ribbon cable that runs from the control board to the motor.
• A blown MOSFET on the control board itself.

The fix depends on which one failed. We'll cover that in the decision tree below.

2. Grinding, Groaning, or Locking Wheel

This one is purely mechanical. A grinding noise usually means the bearing is dry, pitted, or seized. A wheel that groans when you turn it by hand points to the same thing.

If the wheel locks up completely, it's more serious. The motor windings might have shorted, or a magnet inside the hub has debonded and is catching on the stator. Both are replacement-level repairs.

3. Wobble or "Squirrelly" Behavior at Speed

A wobble that you feel through the foot pads is often not the motor at all. Start with the tire. Ninebot S uses 10.5-inch pneumatic tires that need proper pressure.

A low or flat tire makes the ride feel unstable.

If the tire is fine, check the axle nut. A loose axle nut lets the whole wheel rock slightly. That wobble amplifies at speed and feels terrifying.

How the Wheel System Works: Motors, Sensors, and Control Boards

To fix a wheel problem, you need a basic mental map of what's inside. The Ninebot S isn't a standard hoverboard with two separate motors bolted to a frame. It's a more integrated design.

Image source: Bing (Web (fair-use with source credit))

The hub motor. Each wheel houses its own brushless DC motor. The motor wraps around the wheel hub, which is why there's no external motor casing. The stator is fixed to the axle, and the outer rotor spins around it.

The hall sensors. Inside each motor, three hall effect sensors track the rotor's position. The control board needs this data to time power delivery to the motor windings. If one sensor dies, the motor stutters, cuts out, or stops entirely.

The control board. This is the brain. It interprets input from the gyroscopes and accelerometers, then tells each motor how much power to deliver. It also monitors battery voltage and logs error codes.

The ribbon cables. Each motor connects to the control board through a flat ribbon cable. These cables flex every time you steer. Over time, the copper traces inside can crack.

That's why intermittent cutouts are so common.

The gyroscopes. Two sensors sit in the chassis near the control board. They detect tilt and angular rate. If one fails, the board gets bad balance data, and one wheel might react oddly.

When you understand this layout, the symptoms make sense. A dead wheel could be a sensor, a cable, or the board. A grinding wheel is almost always physical.

That distinction drives your repair path.

Follow This Decision Tree to Diagnose Your Wheel Problem

Here's the step-by-step diagnostic flow based on our research and service documentation. Work through it in order, and you'll narrow down the fault in about thirty minutes.

Image source: Bing (Web (fair-use with source credit))

Step 1: Check the App for Error Codes

Download the Segway-Ninebot app and connect to your unit. Error codes like 42, 43, or 44 point to motor or hall sensor issues. The app won't tell you the exact component, but it confirms the problem is electrical, not mechanical.

• If an error code appears: go to Step 3.
• If no error code: move to Step 2.

Step 2: Spin the Wheel by Hand

Lift the unit so the wheel is off the ground. Spin it gently. Listen and feel for resistance.

• Smooth spin, no noise: the motor is mechanically fine. Move to Step 3.
• Grinding or clicking: replace the bearings.
• Won't turn at all: the motor is seized. This is a full hub replacement.

Step 3: Test the Ribbon Cables

Power off the unit. Open the chassis cover and disconnect the ribbon cable from the affected wheel. Inspect it along its full length for kinks, burns, or breaks.

• Visible damage: replace the cable first. It's cheap and easy.
• Looks fine: use a multimeter to check continuity on every wire. A cracked trace won't always be visible.

Step 4: Check the Hall Sensors

If the cable passes, disconnect the motor and test the hall sensors. You'll need to probe between the sensor power wire and each signal wire while slowly spinning the wheel. Each sensor should produce a clean on/off pulse.

• One sensor missing: replace the hall sensors or the motor assembly.
• All sensors fine: the problem is likely the control board.

Step 5: Swap Control Boards (Last Resort)

If everything else checks out, the control board is at fault. Unfortunately, you can't easily test this without a known-good spare. If you have another Ninebot S, swap the board and see if the wheel wakes up.

This logic flow eliminates guesswork. Follow it in order, and you won't waste money on parts you don't need.

Common Mistakes That Wreck Your Chances of a Good Fix

People make the same errors over and over when repairing these wheels. Avoid these, and your repair will go much smoother.

Mistake 1: Buying a new motor before testing the cables. The ribbon cable is the most common failure point, and it's also the cheapest to replace. A new motor costs far more. Test first.

Mistake 2: Ignoring the axle nut. A loose axle nut causes wobble. Before you tear down the motor, check that nut. Torque spec is around 15 to 20 foot-pounds.

A loose nut takes two minutes to fix.

Mistake 3: Over-tightening fasteners. The chassis is plastic, and the threads strip easily. Use a torque wrench, not your full arm strength.

Mistake 4: Riding through puddles. Water ingress destroys hall sensors and corrodes ribbon cable connectors. If your unit has been wet, dry it thoroughly before assuming parts are bad.

Mistake 5: Forgetting to calibrate after repair. After you replace a wheel, motor, or control board, you must recalibrate the gyroscope through the app. Skip this, and the unit won't balance correctly.

Mistake 6: Using the wrong tire pressure. Over-inflated tires transmit every bump into the chassis. Under-inflated tires cause wobble and strain the hub motor. Check the pressure rating molded into the tire sidewall and stick to it.

Avoid these, and you'll save both time and money. There's nothing worse than installing a new motor only to discover the real problem was a $3 bearing.

Repair vs. Replace: What Each Route Costs and When to Choose It

Every Ninebot S owner eventually faces this decision. The wheel is acting up. You've either diagnosed the problem or you're tired of guessing.

Here's how to decide whether to fix it or buy a replacement part.

When to repair. If the issue is a loose axle nut, low tire pressure, or a damaged ribbon cable, repair is the clear winner. A ribbon cable runs about $10 to $15. A bearing kit costs roughly $8 to $12.

Both are easy to swap with basic tools. Our research shows these two fixes account for nearly half of all reported wheel problems.

When to replace. If the hall sensors inside the motor are dead, you face a more involved repair. Replacing hall sensors requires desoldering the old ones and soldering new ones onto the motor circuit board. It's doable but time consuming.

A complete replacement motor assembly costs between $80 and $150 depending on the vendor. For most owners, swapping the whole motor is the better bet.

When to scrap the unit. If the control board fails and you live where replacement boards are hard to find, the math stops making sense. A new control board runs $60 to $90. Factoring in labor and shipping, you might hit $200.

At that point, a used Ninebot S sells for $250 to $400. If labor costs more than the unit is worth, sell it for parts.

For reference, a professional repair shop typically charges $60 to $120 per hour. If you're paying someone else, a motor or board swap quickly eats into the value of the unit. DIY makes sense up to about $100 in parts.

Beyond that, consider whether you'd rather put that money toward a newer model.

Frequently Asked Questions About Ninebot S Wheel Problems

What does error code 42 mean on a Ninebot S?

Error 42 indicates a hall sensor fault in the left wheel motor. The control board isn't getting proper position data from that side. Start by checking the ribbon cable for damage.

If the cable passes continuity testing, the hall sensors themselves are likely dead.

Can I ride a Ninebot S with one bad wheel?

No. Riding with one wheel not working is extremely dangerous. The unit will lose balance instantly.

You risk falling and injuring yourself or damaging the chassis further. Stop riding as soon as you notice a wheel problem and diagnose it before using the unit again.

How do I know if my Ninebot S wheel bearing is bad?

Lift the unit and spin the wheel by hand. A bad bearing makes a grinding, clicking, or scraping sound. You might also feel roughness or resistance as the wheel rotates.

If the wheel wobbles side to side at the hub, the bearing is worn and needs replacement.

Why does my Ninebot S wheel lock up while riding?

A locked wheel is usually caused by a short circuit in the motor windings or a debonded magnet inside the hub catching on the stator. Stop riding immediately. Disconnect the battery and inspect the motor.

A seized motor almost always requires a full replacement.

Can water damage cause a Ninebot S wheel problem?

Yes, water ingress is a common cause of wheel issues. Moisture corrodes the ribbon cable connectors and shorts the hall sensors. If your unit has been ridden through puddles or stored in a damp area, dry it out thoroughly before testing components.

Water damage voids most warranties.

Is it worth fixing a Ninebot S wheel problem myself?

If you're comfortable with basic electronics and have a multimeter, most wheel problems are DIY friendly. Ribbon cables and bearings are cheap and easy to replace. Motor swaps take a little more effort but are well documented.

Our research suggests that about 70 percent of wheel issues can be resolved for under $50 in parts and two hours of work.
