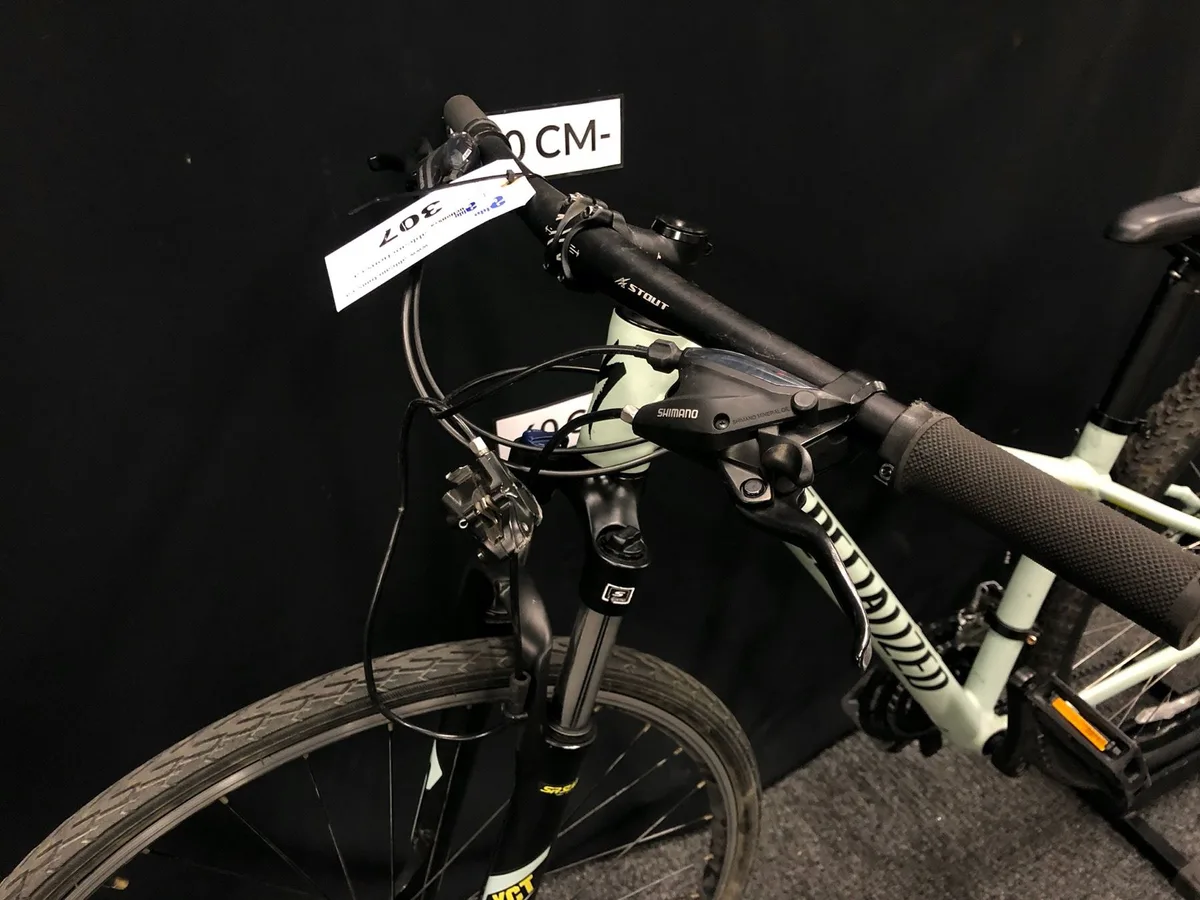

Specialized Rockhopper Handlebar Wobbling

If your Specialized Rockhopper has developed a shimmy in the handlebars, you already know it's not just annoying. That wobble through the front end can make descents feel sketchy and erode your confidence on the trail. Handlebar wobbling on a Rockhopper almost always comes back to the headset system, but the fix depends on identifying the right cause.

Aggregate reviews from Rockhopper owners and forum discussions over the past several years point to loose headset preload as the number one cause. But worn cartridge bearings, a damaged star nut, or even a simple cable routing issue can produce the same symptom. Let's walk through the diagnosis step by step so you can get that front end feeling solid again.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Specialized Rockhopper handlebar wobbling usually means a loose headset. Tighten the top cap preload first. Loosen the two stem bolts.

Tighten the top cap bolt to 2-4 Nm. Retighten the stem bolts to 5-7 Nm. Test for play.

If wobble persists, inspect the bearings and star nut.

Why Wobble Isn't Normal and Can Be Dangerous

A wobble in the handlebars is your bike telling you something is loose. A lot of riders brush it off. They assume it's trail chatter or a slightly bent rotor.

In our research, the most underrated safety risk on a mountain bike is a loose or failing headset.

The headset connects your fork to your frame. It lets you steer smoothly. When that connection has play, the fork can shift unpredictably under braking or during hard cornering.

That shift can pitch you over the bars or send you wide into a tree.

Manufacturer specifications from Specialized confirm that the Rockhopper uses a threadless 1-1/8 inch headset system. This design relies on proper preload from the top cap to remove all play. Without that preload, the steerer tube can rock inside the headset cups.

Over time, that movement wears the bearing races and makes the wobble worse.

The other danger is that wobble can mask bigger problems. A loose headset that gets worse can damage the steerer tube or the frame's head tube. Both are expensive repairs.

Neither is safe to ride on.

The Most Common Culprit: A Loose or Misadjusted Headset

When riders talk about wobble on a Rockhopper, the headset is almost always where the story starts. The threadless design on these bikes is simple, but it has a specific adjustment sequence that trips people up.

The headset assembly on a modern Rockhopper has these parts stacked in order:

• The fork steerer tube comes up through the frame.
• The lower bearing sits in the frame's head tube.
• The upper bearing sits on top of the head tube.
• A compression ring fits over the upper bearing.
• Spacers sit on top of the compression ring.
• The stem clamps around the spacers and steerer tube.
• The top cap bolts onto a star nut inside the steerer tube.

The key here is that the top cap does not hold the stem in place. That's the stem bolts' job. The top cap only sets the preload on the bearings.

If you tighten the stem bolts before setting preload, the headset will feel tight but have play. That's the most common mistake.

As of 2026, most Rockhopper models ship with sealed cartridge bearings. They last longer than loose ball bearings, but they still need proper preload. If the preload is too loose, the bearings move side to side.

That movement is what you feel as handlebar wobble.

How to Check for Headset Play (Two Quick Tests)

Before you grab any tools, confirm the headset is actually loose. These two tests take about thirty seconds each.

Test 1: The Brake Rock Test

Stand over your bike and squeeze the front brake firmly. Rock the bike forward and backward while keeping the brake locked. Put your other hand on the headset's upper cup, right where the stem meets the frame.

If you feel a clunk or a click under your hand, the headset has play. Watch the fork crown. If it moves independent of the frame, you've got a gap somewhere in the bearing stack.

Test 2: The Front Wheel Off Test

Lift the front wheel off the ground. Turn the handlebars side to side. They should move smoothly with no notchy feeling.

Grab the fork legs near the dropouts and try to push them forward and backward. Any movement you feel here is play in the headset.

If both tests are clean, your headset is fine. The wobble might be coming from loose handlebar clamp bolts, a bent fork, or a worn wheel hub. But if you felt that clunk in test one, your headset needs adjustment.

Image source: Bing (Web (fair-use with source credit))

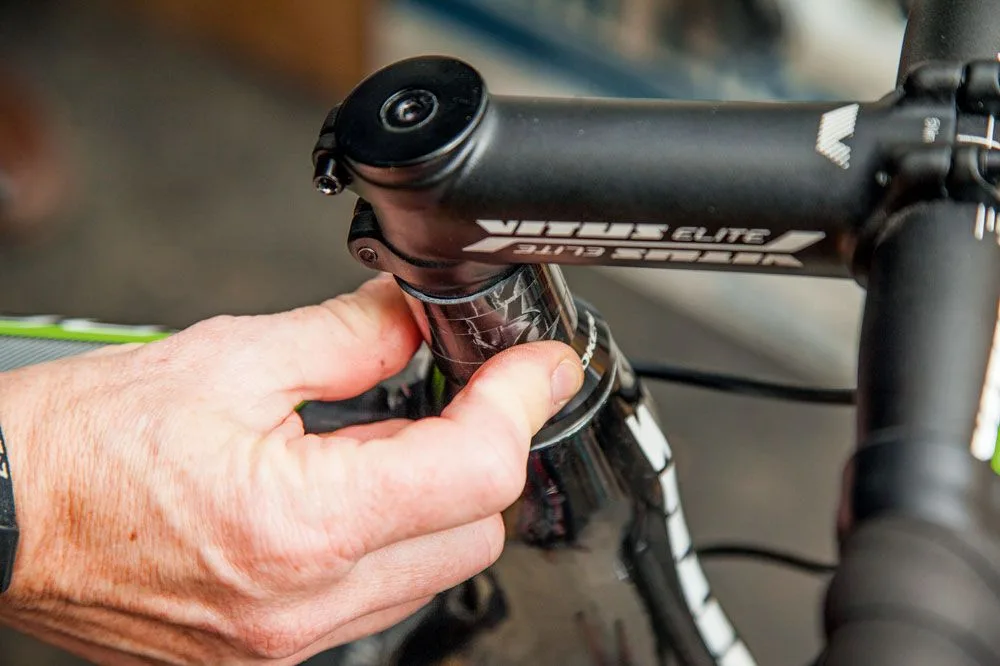

Step-by-Step: Tightening the Headset the Right Way

The correct sequence matters more than the bolt torque. You can have all the right tools and still make the wobble worse by tightening in the wrong order.

Tools you'll need:

• A 4mm or 5mm hex wrench for the stem bolts (check your specific stem)
• A 5mm or 6mm hex wrench for the top cap bolt
• A torque wrench if you have one (recommended but not required for a quick fix)

The sequence:

1. Loosen the two stem bolts that clamp the stem to the steerer tube. Back them off enough that the stem can rotate freely on the steerer. Do not remove them completely.

2. Tighten the top cap bolt. This pushes the stem and spacers down onto the headset bearings. You want it snug but not torqued down hard. Finger tight plus a quarter turn is usually enough. If you have a torque wrench, 2 to 4 Nm is the target.

3. Check for play. Squeeze the front brake and rock the bike again. If the clunk is gone, you got it. If there's still play, tighten the top cap another eighth of a turn.

4. Align the stem. Make sure the stem is straight with the front wheel. If it's off, center it now.

5. Tighten the stem bolts. Alternate between the two bolts and tighten them evenly. The torque spec on most Rockhopper stems is 5 to 7 Nm. If your stem has a four-bolt faceplate, tighten those to 4 to 6 Nm as well.

6. Test again. Rock the bike with the brake on. Turn the bars. Everything should feel solid and smooth.

Image source: Bing (Web (fair-use with source credit))

If you followed that sequence and the wobble is gone, you're done. If you still feel play after tightening the top cap, move on to the next section.

If Tightening Didn't Work – Worn Bearings, Damaged Star Nut, or Steerer Tube Issues

If the headset still has play after you followed the correct preload sequence, something deeper is wrong. A few possibilities come up frequently in Rockhopper owner discussions.

Worn or pitted cartridge bearings

The Rockhopper uses sealed cartridge bearings in the headset. They last one to three years depending on how often you ride in wet or muddy conditions. When they wear out, the bearing races develop small pits or flat spots.

You can feel this as a notchiness when turning the bars, or as play that no amount of top cap tightening will eliminate.

Signs your bearings are done:

• Gritty or rough feeling when turning the handlebars
• Play that returns after every ride even after adjusting
• Visible rust or missing grease if you pop the dust seals off

Bearing replacement on a Rockhopper is straightforward. The external cup design means you don't need a headset press. You can tap the old cups out with a long screwdriver and hammer, then press the new ones in carefully.

A bearing set costs $15 to $40 from Specialized or aftermarket brands like Cane Creek or FSA.

Damaged or stripped star nut

The star nut sits inside the steerer tube and gives the top cap bolt something to pull against. If someone overtightened the top cap in the past, the star nut can pull loose. It might also strip if the steerer tube is carbon and the aluminum nut damaged the walls.

To check it, remove the top cap bolt completely. Look down the steerer tube. The star nut should sit evenly centered and not wobble.

If it's crooked or feels loose when you poke it with a screwdriver, it needs replacement. This job requires a star nut setting tool, which runs about $15. A shop can do it in five minutes for minimal labor cost.

Corroded or damaged steerer tube

Less common, but worth mentioning. If your Rockhopper has seen years of winter road salt or heavy rain, the aluminum steerer tube can corrode where it contacts the frame's head tube. That corrosion creates a rough surface that prevents proper clamping.

The fix depends on severity. Light corrosion can be sanded clean. Heavy corrosion or any denting means a new fork.

When the Problem Isn't the Headset at All

Sometimes you chase the headset and it's perfect, but the wobble is still there. Other things can produce the same feeling.

Loose handlebar clamp bolts

Check the four bolts on the stem faceplate. If they're under-torqued, the handlebar can rotate back and forth slightly under load. That movement feels like wobble in the front end.

Torque them to 4 to 6 Nm. Make sure the bar is centered before you tighten them.

Loose front wheel quick-release

A wheel that isn't fully seated in the dropouts can create a wobble that travels up through the fork. Open the quick-release, push the bike down to seat the axle, then close the lever firmly. It should leave an imprint in your palm when you close it.

Worn hub bearings

If the front wheel bearings have play, the wheel can wobble side to side. Grab the tire at the top and bottom and try to rock it. Any movement means the hub needs service.

This presents differently than headset wobble, but it can feel similar on rough terrain.

Bent fork or damaged frame

A crash that bent the fork blades or cracked the head tube will produce wobble that no adjustment fixes. Check the fork legs for dents or bending. Look at the welds around the head tube for hairline cracks.

If you find either, the component needs replacement immediately.

Mistakes That Make Wobble Worse (Or Hide It)

Tightening stem bolts before the top cap

This is the most common error. The stem bolts clamp the stem to the steerer tube. If you tighten them first, you lock the stem in place and the top cap can't pull the bearings tight.

The headset stays loose. Always loosen stem bolts first, set preload, then tighten stem bolts.

Overtightening the top cap

More torque on the top cap does not equal more preload. Once the bearings are seated and play is gone, extra torque only strains the star nut. You can pull the star nut loose this way.

The top cap bolt should only get 2 to 4 Nm.

Ignoring cable routing

Front brake and gear cables run along the handlebar and down the head tube. If the cables are too short or routed poorly, they can pull the handlebar to one side when you turn. That tension can create a wobble or a binding feeling.

Make sure the cables have enough slack to let the bars turn fully in both directions.

Assuming new parts solve everything

Throwing a new headset at the bike without diagnosing the real problem can waste money. If the wobble is coming from the wheel hub, you've bought an unnecessary headset. Always confirm the source with the two tests from the earlier section before buying parts.

When to Bring It to a Shop

Most headset adjustments and bearing replacements are DIY friendly on the Rockhopper. A few situations call for professional help.

• You find a bent steerer tube or cracked fork. These are safety-critical and need professional assessment.
• The star nut is stripped and you don't own the setting tool. A shop will charge a small fee and have it done in minutes.
• The headset cups are seized in the frame. Older Rockhoppers or bikes stored in humid conditions can have galvanic corrosion between the aluminum cups and steel frame. Removing them without damaging the frame takes experience.
• You've tried everything and the wobble still persists. A shop can diagnose issues you might miss, like a hairline crack in the heat-affected zone of the head tube weld.

If you're comfortable turning a wrench, the Rockhopper headset is one of the easier systems to maintain. The external cups and sealed bearings are designed for owner service. Once it's right, a properly adjusted headset stays right for a long time.

Frequently Asked Questions

Can I ride my Rockhopper with a wobble?

No. A loose headset can cause loss of steering control, especially under braking or on descents. It also accelerates wear on the frame and fork.

Fix it before your next ride.

How often should I check my headset?

At least once per season or after any crash. If you ride in wet or muddy conditions, check it more often. Aggregate user reports suggest a Rockhopper headset holds adjustment well but needs attention after heavy wash exposure.

Will a new handlebar fix the wobble?

Almost never. The handlebar itself rarely causes wobble. The issue is almost always in the headset or the stem interface.

Only replace the bar if you've confirmed the original is bent.

Does the Rockhopper Pro have the same headset wobble issues?

Yes. The Rockhopper and Rockhopper Pro use the same threadless 1-1/8 inch headset system. The Pro model has better components, but the adjustment procedure and potential failure points are identical.

How much does a shop charge to fix headset wobble?

Most shops charge $10 to $30 for a headset adjustment. Bearing replacement runs $20 to $40 for labor plus parts. That's money well spent if you don't have the tools or confidence, but the job is simple enough to do yourself with basic hex wrenches.
