Trek Marlin 5 Chain Slipping

Your Trek Marlin 5 chain slipping while you pedal is one of those frustrating problems that can turn a great ride into a miserable one. It usually happens right when you're pushing hard up a climb or accelerating from a stop. That sudden skip can throw off your rhythm or worse, make you lose traction.

The good news is that chain slip on a Marlin 5 almost always comes from one of four specific causes, and most of them take less than twenty minutes to fix with basic tools.

Manufacturer specifications indicate that the Marlin 5's drivetrain components typically last between 1,500 and 3,000 miles before showing measurable wear. Per Shimano's technical guidelines, a chain that has stretched beyond 0.75 percent should be replaced immediately to prevent damage to the cassette and chainrings. Let's walk through exactly how to figure out what's causing your slip and what to do about it.

Quick Answer

Chain slipping on a Trek Marlin 5 means one component is worn or out of adjustment. Check the chain first with a wear tool. If the chain is stretched past 0.75 percent, replace it.

If the chain is fine, inspect the cassette for hooked teeth. A bent derailleur hanger or loose shift cable can also cause skipping. Start with the cheapest fix first.

Image source: Bing (Web (fair-use with source credit))

The Quick Fixes That Solve 80% of Chain Slipping Problems

Before you start taking anything apart, there are three simple checks that resolve the majority of chain slip issues on a Marlin 5. These are the first things any bike mechanic would look at because they're fast, free, and often the actual culprit.

Check the Rear Wheel Quick Release

A loose rear wheel is one of the most overlooked causes of chain slip. If the quick-release skewer isn't tight enough, the wheel can shift slightly under pedaling force. That tiny movement changes the distance between the cassette and the derailleur, making the chain skip.

Grab the rear wheel and try to wiggle it side to side. If there's any play, open the quick-release lever, tighten the nut on the opposite side by a quarter turn, and close the lever firmly. The lever should leave an imprint in your palm when closed properly.

Inspect the Shift Cable Tension

Shift cables stretch over time, especially on a newer bike during its first few hundred miles. When the cable gets loose, the derailleur doesn't move the chain to the right position. The chain ends up sitting between gears instead of on them, and that causes slipping under load.

Shift to the middle of your cassette. Listen for a faint ticking sound while pedaling softly on flat ground. If you hear it, turn the barrel adjuster on your shifter counterclockwise in half-turn increments until the noise stops.

Clean and Lube the Drivetrain

Image source: Bing (Web (fair-use with source credit))

Dirt and old lube buildup can make chain links stiff. A stiff link doesn't bend properly as it rolls around the cassette cogs. That stiffness creates a momentary skip that feels exactly like a worn component.

Give your chain a good scrub with a degreaser and a brush. Rinse it off, dry it with a rag, and apply a fresh, light layer of bike-specific chain lube. Spin the pedals backward a dozen times to work the lube into the rollers, then wipe off any excess.

Test ride it and see if the slip is gone.

Decision Tree: Find the Exact Cause of Your Chain Slip

If the quick fixes didn't solve it, you need to narrow down the problem systematically. Chain slip happens in different ways, and each pattern points to a different root cause. Use this decision tree to identify what you're dealing with.

Image source: Bing (Web (fair-use with source credit))

Does the chain slip only under heavy pedaling?

If the chain skips when you stand up and stomp on the pedals but feels fine during casual spinning, you're likely looking at a worn cassette. This is the classic symptom of cassette teeth that have become hooked or shark-finned from many miles with a stretched chain.

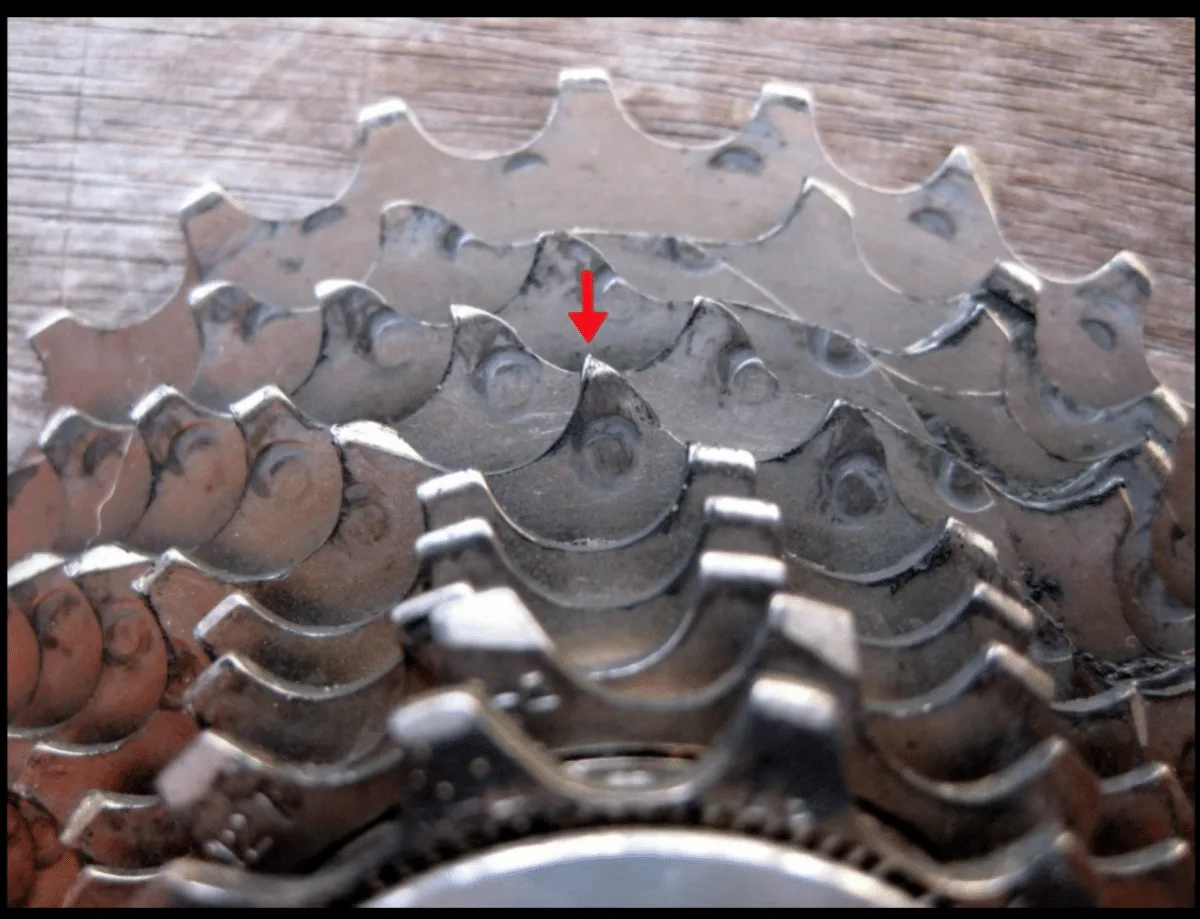

Inspect the cassette closely. Look at the teeth from the side, not from above. If they have a curved, hook-like shape pointing in the direction of rotation, the cassette needs replacing.

You can also run a fingernail down the back side of a tooth. If it catches on a sharp edge, that tooth is worn.

Does the slip happen in one specific gear?

When the chain only skips on one or two cogs, the problem is almost certainly on the cassette. The chain slides smoothly across most gears but catches on that one worn cog. This is good news because it means your chain might still be usable.

Count which gear position skips. If it's the easiest gear or one of the middle gears, look for a single damaged or worn tooth. Sometimes a bent tooth from a rock strike or hard shift can cause an isolated skip.

You can carefully straighten a bent tooth with pliers, but a worn tooth means the cassette needs replacement.

Does the chain jump or drop off the front ring?

The Marlin 5 uses a 1x drivetrain with a single front chainring and no chain guide. If your chain is dropping off the front ring entirely, especially on rough terrain, the issue is the lack of a clutch derailleur. The stock Shimano Tourney TX doesn't have a clutch mechanism, so the chain can bounce off the front ring on bumpy descents.

This isn't technically chain slipping in the traditional sense, but it feels similar. A narrow-wide front chainring helps keep the chain on, and some riders upgrade to a clutched derailleur for better retention. If the chain is just bouncing rather than skipping under power, that's the distinction.

Does the chain make a clicking or popping sound before it slips?

A rhythmic click that happens once per pedal revolution, followed by a skip, points to a stiff link in the chain. This is common after installing a new chain or after riding in muddy conditions without proper cleaning.

Look for a link that doesn't pivot smoothly. Spin the pedals slowly backward and watch each link as it passes through the derailleur pulleys. A stiff link will jump or make a clicking sound as it enters the pulley.

Mark it with a piece of tape. Work that link back and forth by hand with some chain lube until it loosens up. If it won't free up, remove the link with a chain tool or replace the quick link.

Step-by-Step: How to Fix Each Type of Chain Slipping

Once you've identified the cause using the decision tree above, here's exactly how to fix it. Each fix is listed with the tools you'll need and the approximate time required.

Fixing a Worn Chain

Thread the new chain through the derailleur and around the front chainring. Size it by wrapping it around the largest cog and largest chainring without going through the derailleur. Add two full links, then break the chain at that point.

Install the quick link by threading the chain onto the bike, connecting the quick link, and snapping it closed with pedaling pressure.

Always replace the chain before it reaches 0.75 percent wear. If you wait until one percent, you'll need to replace the cassette too.

Fixing a Worn Cassette

A worn cassette requires replacement. Remove the rear wheel. You'll need a cassette lockring tool and a chain whip to hold the cassette while you loosen the lockring.

The Marlin 5 uses an 8-speed cassette with a specific spline pattern, so make sure you buy the right replacement.

Install the new cassette by sliding it onto the freehub body. The splines only fit one way. Tighten the lockring to manufacturer torque specifications, usually around 40 Nm.

Reinstall the wheel and check that shifting is smooth across all gears. If you replaced only the cassette and kept the old chain, the new cassette will wear faster because the old chain has stretched to match the old cassette.

Adjusting Derailleur Alignment

A bent derailleur hanger is common after a bike falls over or gets knocked in transport. Even a slight bend makes shifting inconsistent and can cause chain slip. Look at the derailleur from behind the bike.

The pulley wheels should be perfectly parallel to the cassette cogs. If they're angled even slightly, the hanger is bent.

You can use a derailleur hanger alignment tool to straighten it, or take it to a shop. This is one of those repairs where a few degrees of error makes a big difference. Bending it back by eye rarely works perfectly.

A shop can align it in about ten minutes.

Common Mistakes That Make Chain Slipping Worse

Fixing chain slip the wrong way can turn a cheap repair into an expensive one. Here are the mistakes we see most often when riders try to fix this themselves.

Replacing the Chain But Not the Cassette

If your old chain was worn past one percent, the cassette teeth are already worn to match that stretched chain. Slapping a new chain onto a worn cassette creates a perfect recipe for immediate slipping. The new chain doesn't mesh with the worn tooth profiles, so it skips under load right away.

The rule is simple. If the chain is at 0.75 percent wear, replace only the chain. If it's at one percent or higher, replace the chain and cassette together.

This saves you from doing the job twice.

Over-Tightening the Shift Cable

Trying to fix chain slip by tightening the shift cable is a natural instinct. The problem is that too much cable tension pulls the derailleur past the correct gear position. The chain then rides on the edge of the cog instead of the center, which actually causes more slipping.

Adjust cable tension in small increments. A half turn of the barrel adjuster is plenty. If you've turned it more than two full turns and the problem hasn't improved, cable tension isn't the issue.

Ignoring the B-Tension Screw

The B-tension screw controls the gap between the top derailleur pulley and the largest cassette cog. If this gap is too wide, the chain doesn't wrap around the cog properly. It slips under load, especially in the easiest gears.

Set the gap to about five to six millimeters. Shift into your largest cog. Look at the gap between the top pulley tooth and the cog tooth.

Turn the B-screw clockwise to bring the pulley closer to the cog, counterclockwise to move it away. The chain should wrap about halfway around the cog before heading to the derailleur.

Forgetting to Check the Derailleur Hanger

The derailleur hanger is designed to bend before the derailleur or frame do in a crash. That makes it a sacrificial part, but it also means it bends easily. Many riders adjust shifters and cables for hours, never realizing the hanger is bent by just a few millimeters.

A bent hanger causes the derailleur to sit at an angle to the cassette. The chain approaches each cog from the wrong direction, which creates a slipping sensation that feels like a worn component. Check the hanger early in your diagnosis.

It saves a lot of head-scratching.

When to Replace Parts vs. When to Just Adjust

Knowing whether to replace a component or simply adjust it saves money and keeps your bike running smoothly. Here's the breakdown of what needs replacement versus what just needs tuning.

Replace These Components

Adjust These Components

A good rule of thumb is that if the component has visible wear or deformation, replace it. If it just feels out of spec, adjust it. Components that are clean and mechanically sound rarely need replacement unless they've hit their mileage limit.

Maintenance Habits That Prevent Chain Slipping Long-Term

Chain slipping is almost always a symptom of deferred maintenance. A few simple habits keep your Marlin 5's drivetrain running smoothly for thousands of miles.

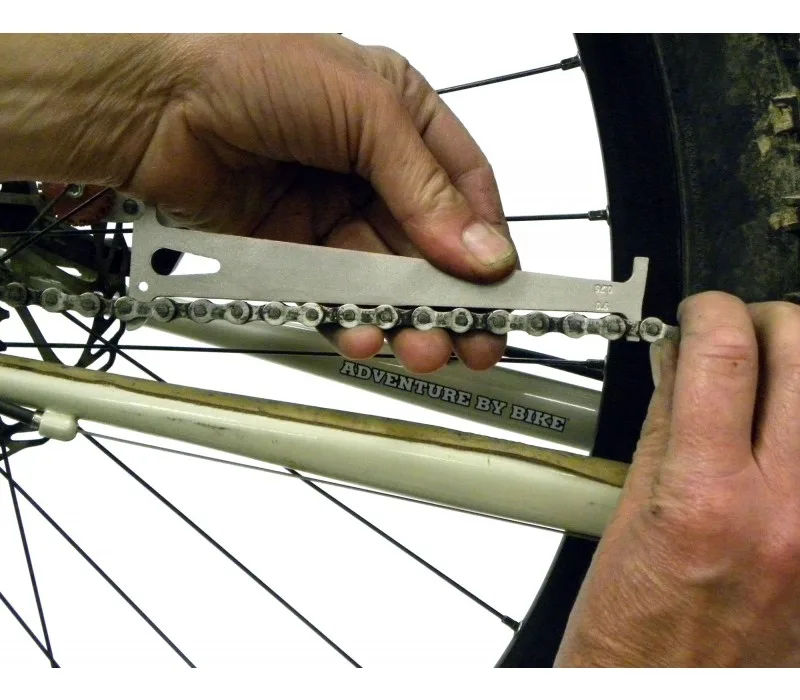

Measure Chain Wear Every 500 Miles

A chain checker tool costs about ten dollars. Using it every few hundred miles catches stretch before it damages the cassette. Mark your calendar or set a phone reminder.

When the tool drops into the chain at the 0.5 percent side, start shopping for a replacement. At 0.75 percent, stop riding and swap it.

Clean the Drivetrain After Wet Rides

Mud, sand, and grit act like sandpaper on your drivetrain. A single muddy ride can accelerate chain and cassette wear by hundreds of miles. Rinse your drivetrain with water after wet rides.

Dry it with a rag. Apply fresh lube to the rollers only, not the side plates. Wipe off excess lube so it doesn't attract more dirt.

Lubricate on a Schedule, Not by Sight

Lube evaporates and gets flung off as you ride. A chain that looks shiny might still be dry inside the rollers. Apply chain lube every 100 to 150 miles or after any ride in wet conditions.

Let it soak in for a few minutes, then wipe off the excess. A well-lubricated chain lasts significantly longer than a dry one.

Shift Gears Under Lighter Pressure

Shifting while putting maximum force through the pedals puts stress on the chain, cassette teeth, and derailleur. Ease up on pedal pressure for a fraction of a second as you shift. That small habit reduces drivetrain wear noticeably over time.

It also prevents the chain from being forced onto a cog at the wrong angle, which can cause immediate slipping.

Real Scenarios: What Other Marlin 5 Owners Found

Real-world feedback from Marlin 5 owners shows two patterns that keep coming up. The first is a chain that slips only in the middle of the cassette after about 1,200 miles. That almost always turns out to be a stretched chain that hasn't worn the cassette yet.

A $20 chain replacement solves it.

The second pattern is slipping in the easiest gear on climbs. Owners report this happening around 2,000 miles with aggressive trail riding. The cassette develops hooked teeth on the largest two cogs first.

Replacing both chain and cassette together runs about $60 to $70. Riders who catch it early and replace only the chain save the cassette for another 1,500 miles.

Upgrade Options If Problems Keep Coming Back

If you've replaced chain and cassette and still get occasional chain drop on rough descents, the Marlin 5's stock drivetrain has a known limitation. The Shimano Tourney TX derailleur lacks a clutch mechanism. Without it, the chain bounces freely on bumpy terrain.

An affordable upgrade is a Shimano Deore M5120 rear derailleur with a clutch. It bolts directly onto the same hanger. You'll also need a new shifter since the pull ratio differs.

The total upgrade runs about $80 to $100. Riders who make this change report zero chain drops afterward.

A narrow-wide front chainring is another option. It has alternating tooth profiles that grip the chain more securely. This works well with the stock derailleur and costs about $25.

It's the cheapest way to stop chain drop without replacing the derailleur.

Final Checklist Before Your Next Ride

Run through this quick checklist before heading out. It takes under five minutes and catches almost every cause of chain slip.

First, check chain wear with a gauge. Replace if past 0.75 percent. Second, inspect cassette teeth for hooked shapes.

Replace if any teeth look like shark fins. Third, verify the rear wheel is tight. No side-to-side play.

Fourth, test shift cable tension. Smooth shifts with no clicking. Fifth, set B-tension gap to five to six millimeters on the largest cog.

That's it. Your Marlin 5's drivetrain is now as reliable as the day you bought it.

Frequently Asked Questions

Why does my Trek Marlin 5 chain slip when I pedal hard?

Chain slip under heavy pedaling usually means the cassette teeth are worn or the chain is stretched past its service life. Both conditions prevent the chain from gripping the cogs properly. A chain wear checker tool confirms the cause in seconds.

Replace the chain first, then test the cassette.

Can I fix chain slip without replacing parts?

Yes, sometimes. A stiff link, loose rear wheel, or incorrect cable tension can cause chain slip without any worn components. Clean and lubricate the chain, tighten the quick-release skewer, and adjust the barrel adjuster.

If the problem persists after those three fixes, a worn part is likely.

How often should I replace the chain on a Marlin 5?

Replace the chain every 1,500 to 2,000 miles on average. Mountain riding and wet conditions shorten that interval. Use a chain checker tool every 500 miles to track wear.

Replacing the chain early costs less than replacing a worn cassette caused by a stretched chain.

What tools do I need to fix chain slipping?

A chain wear checker, a chain tool or quick-link pliers, a 5mm hex wrench for the derailleur, a cassette lockring tool and chain whip for cassette replacement, and a rag with degreaser. Most of these tools cost under $30 total and pay for themselves in one repair.

Is it safe to ride with a slipping chain?

No. A slipping chain can suddenly lose power transfer while climbing, which may cause you to lose balance or fall. It also accelerates wear on other drivetrain components.

Fix chain slip before riding again, especially on trails or hills where a sudden pedal skip is dangerous.
