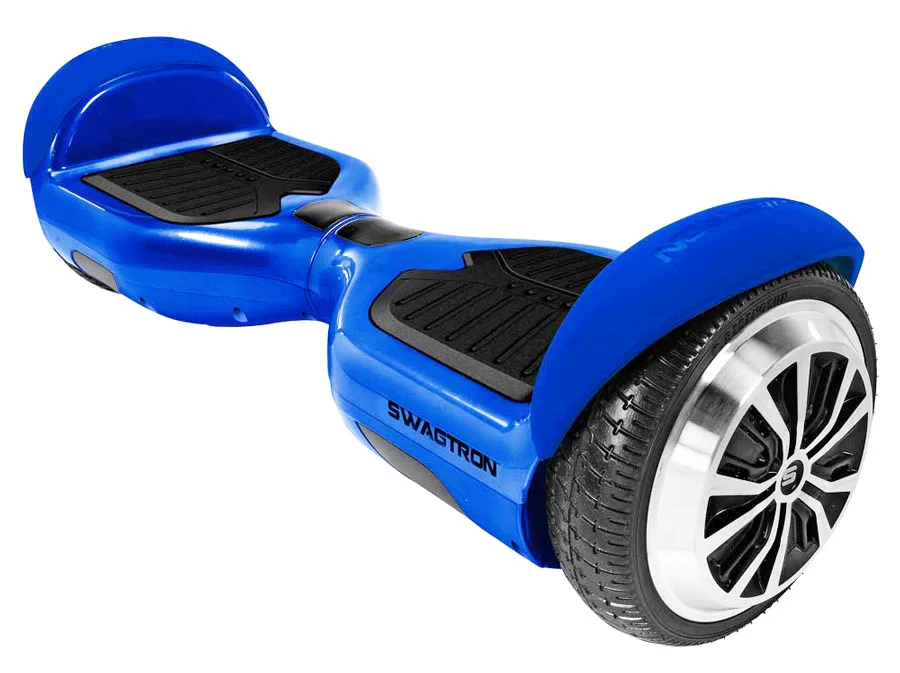

Swagtron T1 Hoverboard Motor Problem

Your Swagtron T1 hoverboard motor problem probably started the same way. One wheel stopped spinning. The other kept working.

Maybe you saw a flashing red light or heard a grinding noise. Now the board sits in the corner collecting dust.

The Swagtron T1 carries UL 2272 certification from Underwriters Laboratories. That standard covers fire safety for the electrical system. But it doesn't make the motors immune to failure.

As of 2026, motor problems are the most common repair issue reported by owners. Let's walk through what's happening inside that hub motor and how to fix it.

Quick Answer

A Swagtron T1 hoverboard motor problem usually comes from a bad hall sensor, a broken wire, or a dead battery. Check the error light first. A flashing red light points to the sensor.

A steady red light means a motor fault. Most repairs cost under $50 if you do them yourself.

How the Swagtron T1 Motor System Actually Works

The Swagtron T1 has two 250-watt hub motors, one in each wheel. Each motor runs independently. That's why one wheel can fail while the other spins fine.

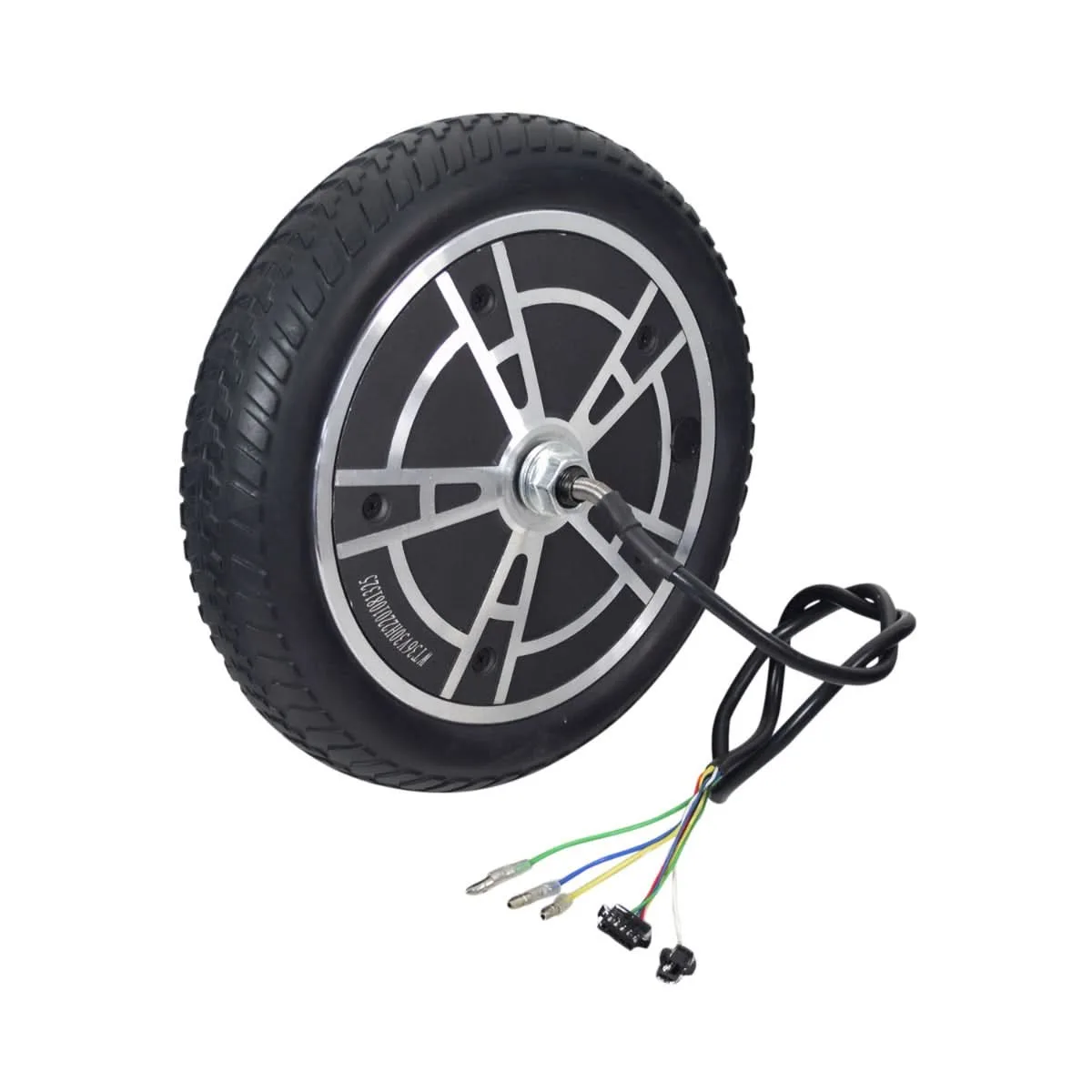

Inside each hub motor, three parts work together. The stator has copper windings. The rotor is the outer shell that spins the wheel.

The hall effect sensors tell the control board where the rotor is at all times.

Here's how it works. You shift your weight. The gyroscope senses the tilt.

The control board sends power to the motor. It uses both the gyroscope reading and the hall sensor position to decide how much power. This happens dozens of times per second.

The hall sensors are the weakest part. They're small magnetic field sensors mounted inside the motor housing. They get hot.

They vibrate constantly. They can fail without warning. When one sensor dies, the motor loses timing.

It stutters, shakes, or stops spinning.

The battery connects to the control board, which distributes power to each motor. If battery voltage drops below about 31 volts, the board shuts both motors down as a safety measure. That's different from a single-wheel failure.

Single-wheel problems usually point to the motor or its wiring.

The wiring harness runs from the control board through the hollow axle of each wheel. Those wires flex every time the wheel turns. Copper strands inside can break.

The rubber insulation might look fine, but the connection is gone. That causes intermittent motor problems.

Step-by-Step: Diagnosing the Motor Problem Safely

Disconnect the battery first. The Swagtron T1 runs on a 36-volt lithium pack. Exposed terminals can deliver a shock or start a fire if shorted.

Unplug the battery connector from the control board. Wait two minutes for capacitors to discharge.

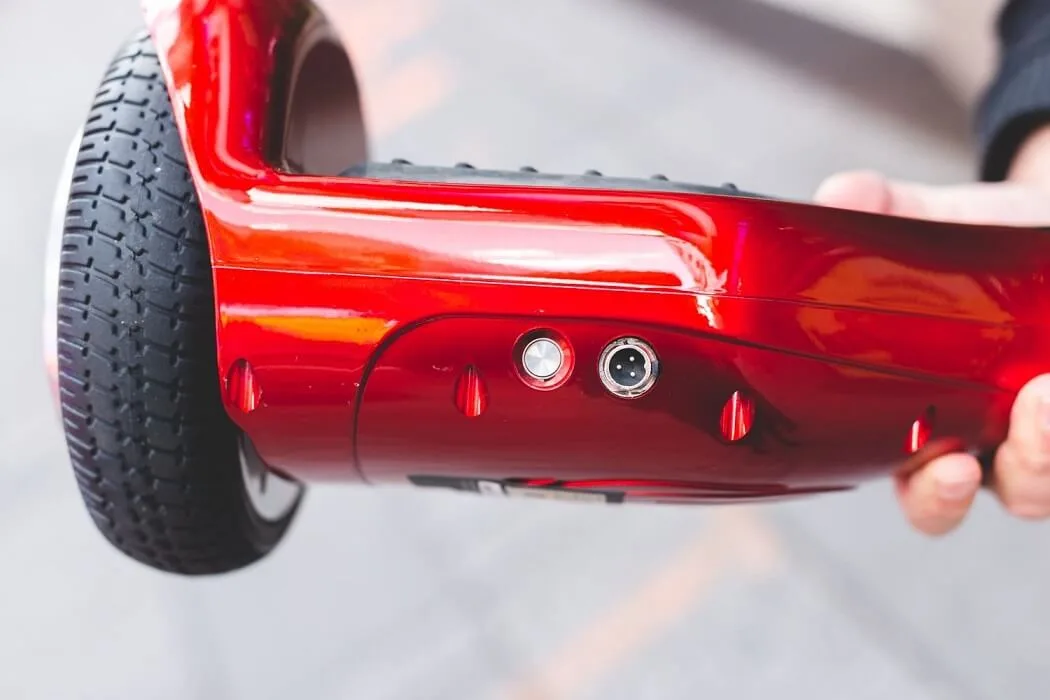

Step 1: Read the error light. Turn the board on. Place it upright. Count the red light flashes.

A steady red light means a motor fault. Two flashes means a hall sensor issue. Four flashes means a control board problem.

Write the pattern down.

Step 2: Test the battery voltage. Use a multimeter set to DC voltage. Measure across the battery connector pins. A full charge reads about 42 volts.

Anything below 31 volts means the battery is drained or has a dead cell. Charge fully and retest. If it doesn't reach 42 volts, the battery may be failing.

Step 3: Check the motor connectors. Unplug the motor harness from the control board. Look for burnt pins, melted plastic, or corrosion. A damaged connector can mimic a motor failure.

Clean contacts with electronic contact cleaner.

Step 4: Test motor continuity. Set your multimeter to resistance mode. Measure across each pair of the three thick phase wires (yellow, green, blue). You should see 0.5 to 2 ohms.

An open circuit or a short circuit means the motor windings are damaged.

Step 5: Check the hall sensors. The sensors connect through smaller wires, usually in a 5-pin or 6-pin connector. With the board powered on and motor disconnected, measure voltage between each sensor signal wire and ground. Spin the wheel by hand.

You should see pulses between 0 and 5 volts. A stuck reading means the sensor has failed.

Replace the motor if you find a winding short, an open circuit, or a failed hall sensor. Universal replacement hub motors for the Swagtron T1 cost around $30 to $45.

Error Lights, Grinding Noises, and Other Signs of Motor Failure

The Swagtron T1 gives you visual and audible clues. Knowing which symptoms are fixable saves you time.

A steady red light with no flashing usually means the motor won't spin at all. That can happen from a broken phase wire, a seized bearing, or crash damage.

Grinding noises tell a different story. If you hear scraping when the wheel turns, the bearing inside the hub is likely damaged. Bearings fail from water, impact, or normal wear.

A bad bearing can sometimes be replaced separately, but it means prying open the motor hub.

A clicking sound under load points to a stripped internal gear. Some Swagtron T1 motors use a plastic gear inside the hub. When that gear strips, the motor spins but the wheel doesn't.

This needs a full motor replacement.

Vibration at low speed usually means the hall sensor signal is intermittent. The motor tries to run but loses timing. It might work fine for a minute, then sputter.

This gets worse over time.

A hot motor housing after short rides is worth attention. The motor should feel warm, not hot. If it's too hot to hold your hand on, stop riding.

Check for binding bearings, a partial short, or overloading.

Repair vs. Replace: Cost, Safety, and When to Call It Quits

Not every motor problem is worth fixing. Compare part costs against the price of a whole board.

Safety matters more than price. If the motor failed from a crash or water, inspect the battery and control board. A dented battery cell or moisture inside electronics can cause a fire.

Per UL 2272 guidelines, any physically deformed or water-exposed battery pack should be replaced.

Fix it when:

• A single motor failed on a clean board less than two years old
• You have a hall sensor issue with solid battery voltage
• The control board failed but motors and battery are good

Replace the whole board when:

• Both motors failed or the battery is also dead
• The battery shows visible swelling or corrosion
• The board is three years or older
• The frame is cracked or footpad is broken

The Swagtron T1 uses standard JST connectors throughout. You don't need to solder. Just unplug and plug in the replacement.

Match wire colors carefully. Yellow to yellow, green to green, blue to blue. Reversing two phase wires makes the motor spin backward.

After replacing a motor, run the calibration. Turn the board on. Place it on a flat level surface.

Press and hold the power button for five seconds until you hear a single beep. Wait for the board to level itself. This resets the gyroscope and balance offsets.

Common Mistakes That Turn a Fixable Motor into a Fire Hazard

Some DIY repairs go wrong in dangerous ways. Here's what to avoid.

Skipping battery disconnection. The 36-volt pack can deliver a serious shock. Even worse, a dropped screw across the battery terminals can weld itself in place and start a fire. Always unplug the battery before touching any wires.

Mixing up phase wires. The three thick wires from each motor must match the control board connectors in the correct order. Yellow to yellow, green to green, blue to blue. Mixing them up won't damage anything immediately, but the motor will spin backward.

The board tries to compensate and fails. The motor overheats.

Forcing the motor to spin when it's seized. If the wheel won't turn by hand, don't apply power and hope it breaks free. A seized motor draws excessive current. That can burn out the control board or overheat the battery.

Disassemble and check the bearings first.

Ignoring battery swelling. A puffed battery pack is a fire waiting to happen. Don't charge it. Don't ride on it.

Dispose of it properly at a battery recycling center. Lithium-ion fires are difficult to extinguish.

Using the wrong replacement parts. Not all universal hub motors match the Swagtron T1's connector pinout or mounting holes. Check that the replacement lists Swagtron T1 compatibility. Measure the mounting bolt spacing if you're unsure.

Reusing damaged connectors. If a JST connector has a melted pin or broken locking tab, replace it. A loose connection creates resistance, which creates heat, which can cause a fire. New connectors cost pennies and take minutes to crimp.

Skipping calibration after motor replacement. The control board needs to relearn the balance point after you change any motor. If you skip this step, the board may pull hard to one side or refuse to balance. It feels like a broken motor, but it's just uncalibrated.

Frequently Asked Questions

How do I know if my Swagtron T1 motor is bad or if it's the battery?

Test battery voltage first. A reading below 31 volts means the battery is too low to run the motors. If voltage is good but one wheel won't spin, the problem is in that motor or its wiring.

A steady error light confirms the motor side.

Can I replace just the hall sensor in a Swagtron T1 motor?

Yes, but it's difficult. The sensor is soldered to a small board inside the sealed motor housing. You need to pry the hub apart, desolder the old sensor, and solder a replacement.

Most DIY users find it easier to swap the whole motor for $30 to $45.

Why does my Swagtron T1 motor work sometimes and then stop?

That's usually a broken wire inside the axle housing or a failing hall sensor. Wires flex as the wheel turns and eventually break. The connection works in one position and fails in another.

Wiggle the wire near the axle and see if the motor responds.

How long does a Swagtron T1 motor last before it fails?

Motor lifespan depends on riding conditions. On smooth pavement with moderate use, expect 12 to 18 months. Rough terrain, water exposure, and repeated drops shorten that significantly.

The hall sensors typically fail first.

What does the flashing red light mean on my Swagtron T1?

Two quick flashes followed by a pause means a hall sensor error. Four flashes means a control board failure. A steady red light means a general motor fault.

Count the flashes carefully and match them to the diagnostic table above.

Is it safe to ride a Swagtron T1 with a noisy motor?

No. A grinding or clicking sound means internal damage. Riding with a damaged motor can cause the control board to overwork and fail.

It can also damage the battery. Stop riding and diagnose the noise before using the board again.

Final Verdict: Is Your Swagtron T1 Worth Fixing?

Most Swagtron T1 motor problems are repairable with basic tools and a $30 to $45 replacement motor. If the board is clean, the battery holds a charge, and only one wheel has failed, go ahead and fix it. The repair takes under an hour and the board will ride like new.

If the battery is swollen, the frame is cracked, or both motors have failed, it's time to retire the board. A $150 to $200 replacement is cheaper and safer than piecing together a worn-out unit piece by piece.

The Swagtron T1 is a solid beginner hoverboard. With proper diagnosis and careful repair, you can keep it running safely for years. Just don't skip the safety steps.

Disconnect the battery. Match your wires. Run the calibration.

And if you're ever unsure, stop and ask for help. A working hoverboard is fun. A safe hoverboard is worth the extra caution.
