Toyota RAV4 Suspension Noise

Your RAV4 is telling you something. That clunk over speed bumps, the squeak when you turn, the rattle on cold mornings. Toyota RAV4 suspension noise is rarely one fixed problem.

It's a handful of wear items, each with its own sound, timing, and fix.

The trick is listening to when it happens. Our research shows the usual culprits are sway bar links, strut mounts, and control arm bushings. Per NHTSA complaint data, a smaller share of cases trace to ball joints or subframe bushings.

As of 2026, the diagnostic process hasn't changed: match the noise to the moment, then inspect the likely part.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

RAV4 suspension noise is usually a worn sway bar link, strut mount, control arm bushing, or ball joint. The sound changes based on the trigger: bumps, turns, braking, or cold weather. Match the noise to the moment and you cut the possible causes in half.

A $40 sway bar link often causes the same clunk that people blame on $800 struts.

Why That RAV4 Clunk, Squeak, or Rattle Isn't One Single Problem

Most RAV4 suspension noise is rubber and small hardware wearing out, not major structural failure. Sway bar links, strut mounts, and control arm bushings top the list. These are all cheap, replaceable parts.

Ball joints and subframe bushings need attention sooner, but they're less common.

Most owners don't need a mechanic to identify the source. You just need to know what each noise means and where to look. That's what this guide walks you through, step by step.

If you're comparing the RAV4's ride against other midsize SUVs, our earlier SUV comparison guide covers the broader picture.

Match the Noise to the Moment: The Variables That Narrow It Down

Every suspension noise has a personality. It happens at a specific time, in a specific place, at a specific speed. Those details are your best diagnostic tool.

When it happens:

• Over bumps (speed bumps, potholes, expansion joints): sway bar links, strut mounts, control arm bushings, ball joints
• While turning (especially at low speed): strut mount bearing, tie rod ends, CV axles, ball joints
• When braking: control arm bushings, loose ball joints, brake calipers
• When accelerating: control arm bushings, engine or transmission mounts
• On cold mornings: sway bar bushings, control arm bushings, strut mounts
• Only after driving a while: heat shields, exhaust components, worn shocks

Where it comes from:

• Front left or right: strut mounts, sway bar links, ball joints, tie rods, CV axles
• Rear left or right: rear sway bar links, rear shocks, rear control arm bushings, subframe bushings
• Under the floor: exhaust heat shields, spare tire, jack
• Behind the dash or seats: interior trim, not suspension at all

How it sounds:

• Clunk or knock: loose or worn links, ball joints, control arms
• Squeak: rubber bushings, sway bar bushings, dry strut mounts
• Creak or groan: control arm bushings, subframe bushings, shocks
• Pop: strut mount bearings, ball joints, tie rods
• Rattle: heat shields, brake calipers, exhaust hangers

Write down what your car does. Then match it to the list below.

The RAV4 Suspension Noise Decision Tree, Front to Rear

The fastest way to diagnose is to follow the symptom. Here's the decision tree our research keeps coming back to.

Front clunk over bumps

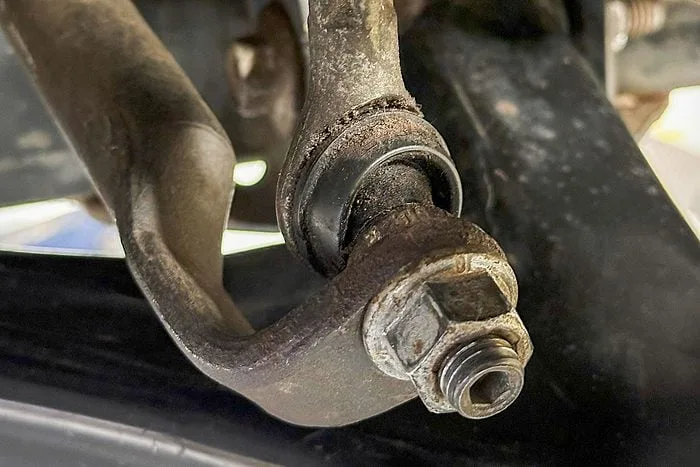

If you hear a dull clunk when the front wheels drop into a pothole, start with the sway bar links. They're small, cheap, and the most common cause. Push down on the front of the car with your weight.

If you hear the clunk, grab the sway bar link and shake it. Up-and-down play means it's time to replace.

If the links are solid, check the strut mounts. A worn strut mount bearing makes a clunk when the suspension compresses and rebounds. Finally, check the lower ball joints and control arm bushings.

A pry bar under the control arm will show you any play.

Front pop or squeak when turning

A pop or squeak when you turn the wheel at low speed points to the strut mount bearing. It rotates when you steer, and once the grease dries out, it announces itself. Turn the wheel lock to lock while parked.

A creak from the top of the strut tower confirms it.

Tie rod ends and ball joints also pop when they wear, especially if the sound comes from lower on the knuckle. CV axles make a rhythmic clicking while turning, not a single pop.

Image source: Bing (Web (fair-use with source credit))

Squeak over speed bumps

A high-pitched squeak when the suspension compresses is almost always rubber bushings. Sway bar bushings are the most common, followed by control arm bushings. Cold weather makes this worse because rubber stiffens.

Spray silicone lubricant on the bushings as a test. If the squeak disappears, you've found it.

Rear clunk over bumps

Rear suspension noise often points to rear sway bar links, rear shocks with worn upper mounts, or rear control arm bushings. On XA40 and XA50 models, rear subframe bushings can also produce a deep thud over sharp impacts. Inspect the rear shocks for leaks, then check the links for play.

Rattle at low speed

Not every noise is suspension. A metallic rattle at low speed is often a brake caliper, a heat shield, or the exhaust system. Check the brake calipers for loose mounting bolts, then tap the heat shields with a screwdriver handle.

If they rattle, they need a small clamp or new fasteners.

What Wears Out on a RAV4 Suspension, and What Each Noise Usually Means

Understanding the parts helps you speak the language at the repair shop. Here's what actually lives under your RAV4.

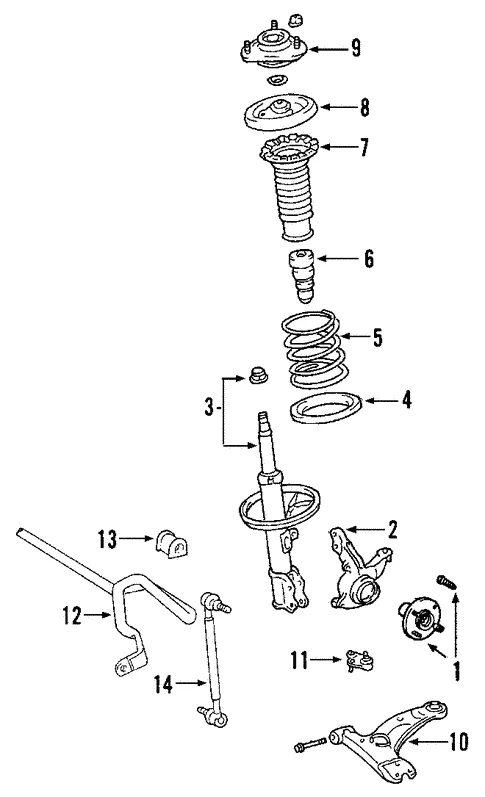

Struts, shocks, coil springs, and strut mounts

The strut is the main shock absorber up front. It sits inside a coil spring and connects to the steering knuckle below and the body through a strut mount on top. The strut mount contains a bearing that lets the whole assembly rotate when you steer.

Struts rarely fail silently. You'll feel bouncing or see fluid leaking down the side. The strut mount bearing is the noisier part, especially when it dries out.

Sway bar links, sway bar bushings, and stabilizer bar hardware

The sway bar (stabilizer bar) connects the left and right wheels to reduce body roll. It attaches to the control arms through small links called sway bar end links. These links have ball sockets that dry out and loosen over time.

They are the single most common cause of front and rear clunks in RAV4s. The sway bar itself mounts to the body with rubber bushings that squeak when they age.

Image source: Bing (Web (fair-use with source credit))

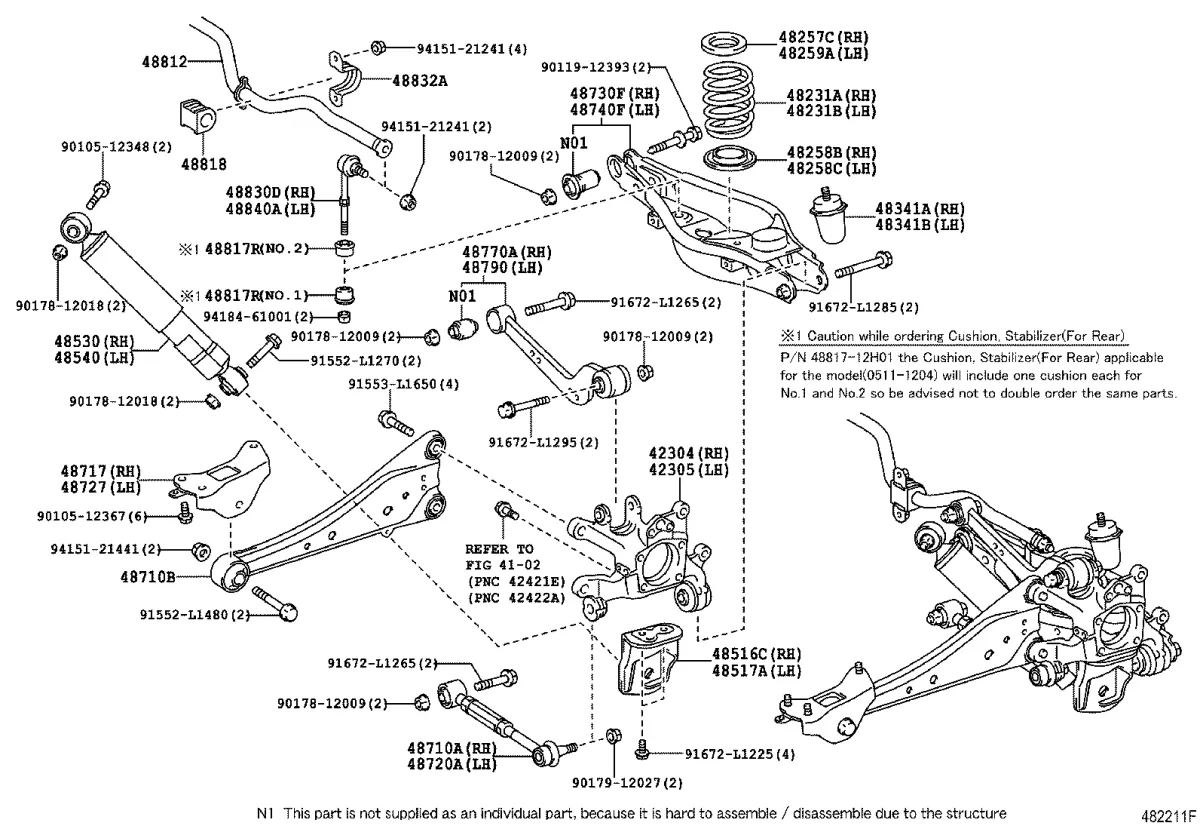

Control arms, ball joints, tie rod ends, and bushings

Control arms locate the wheels and connect the steering knuckle to the frame. The inner ends attach through rubber bushings. The outer ends connect through ball joints.

Worn control arm bushings cause clunks under braking and acceleration. Worn ball joints cause clunks over bumps and, in severe cases, can separate completely. Tie rod ends connect the steering rack to the knuckle and cause popping and loose steering when worn.

Wheel bearings, CV axles, and subframe bushings

Wheel bearings make a rhythmic humming or grinding that gets louder with speed, not with bumps. CV axles click rhythmically when turning. Subframe bushings, found mostly on the rear of newer RAV4s, cause a deep thud over sharp impacts.

These are less common but worth knowing about.

RAV4 generation differences: XA40, XA50, Hybrid, Prime, TRD Off-Road

The XA40 (2013 to 2018) and XA50 (2019 to present) share similar front suspension designs but differ in the rear. The XA50 uses a multi-link rear setup with more bushings and more noise potential. Hybrid and Prime models add regenerative braking, which can create brake-related clunks at low speed.

The TRD Off-Road and Adventure trims ride on firmer springs and larger wheels, which transmit more road noise into the cabin.

Repair Options and Real Costs: Sway Bar Links, Struts, Bushings, Ball Joints

Once you've identified the part, the next question is cost. Here are typical ranges as of 2026, based on parts pricing and average shop labor rates.

OEM vs aftermarket parts: Toyota Genuine Parts are higher quality but cost more. Aftermarket parts vary widely. For sway bar links, a good middle-tier aftermarket brand is fine.

For control arms and ball joints, OEM or a reputable aftermarket brand is worth the extra money. Cheap no-name parts fail faster and can reintroduce the same noise within a year.

Quick-strut vs separate strut and spring: A quick-strut assembly comes pre-assembled with the strut, spring, and mount. It's easier to install and safer, since you never compress the spring. It costs more upfront but saves labor.

Separating the strut from the spring requires a spring compressor, which is dangerous if you don't know what you're doing. For most DIYers, a quick-strut is the smarter choice.

Ball joint only vs complete control arm: On many RAV4s, the ball joint is pressed into the control arm. Replacing just the ball joint requires special tools. Replacing the whole control arm is easier and gives you fresh bushings at the same time.

It costs more but solves two potential problems at once.

Torque specs and alignment: Every suspension bolt has a specific torque spec. Under-tightened bolts come loose. Over-tightened bolts damage bushings.

Torque-to-yield bolts, like the lower strut bolts on many RAV4s, must be replaced, not reused. After any control arm, strut, or ball joint replacement, get a four-wheel alignment. A bad alignment causes uneven tire wear.

If you're comparing the RAV4's handling to other SUVs in its class, our Chevy Equinox vs Jeep Grand Cherokee comparison touches on ride quality differences. And for a broader look at how different SUVs handle road noise and comfort, the Hyundai Tucson vs Jeep Renegade breakdown has useful context.

DIY vs Shop: Tools, Safety, and When to Stop

Some RAV4 suspension fixes are perfect weekend projects. Others need a lift, special tools, and a professional alignment. Here's how to tell the difference before you start.

Tools that actually help:

• Chassis ears: clip-on microphones that isolate noise to one corner. They turn a guessing game into a direct answer.
• Pry bar: check control arm bushings and ball joints for play. A pry bar under the control arm reveals movement you can't see.
• Torque wrench: critical for suspension bolts. Guessing torque specs is how bolts back out or bushings tear.
• Jack stands: never work under a car supported only by a floor jack. This is non-negotiable.

Sway bar links and sway bar bushings are the most DIY-friendly jobs. They're cheap, visible, and most RAV4s have plenty of room to work. A quick-strut assembly is also manageable with basic tools.

Control arms with rusted bolts, ball joint pressing, and wheel bearings are shop jobs. So is any repair that changes suspension geometry. After replacing control arms, struts, or ball joints, you need a four-wheel alignment.

If you're building familiarity with how different SUVs handle similar suspension layouts, our BMW X3 vs Jeep Cherokee comparison walks through platform differences.

After any repair, torque everything to spec. Drive slowly over the same bumps that triggered the noise. If it's gone, wait 100 miles and re-check the bolts.

A quick re-torque saves you from doing the job twice.

Common Mistakes, Bad Diagnoses, and Safety Risks to Avoid

The biggest mistake we see in RAV4 suspension diagnosis is treating every clunk as a strut problem. Sway bar links fail far more often. They cost a fraction of struts and take 30 minutes to swap.

Second mistake: chasing suspension noise that isn't suspension. Brake calipers, heat shields, exhaust hangers, and the spare tire all rattle. Tap each with a screwdriver handle.

A loose heat shield sounds exactly like a worn bushing.

Rust belt owners face seized bolts and corroded subframes. Use penetrating oil and patience. Heat can work, but never heat suspension components near rubber bushings or brake lines.

Ball joint failure can separate the wheel from the car. If you hear a sharp pop followed by loose steering, stop driving. Spring compressors are equally dangerous.

One slip can send steel through your hand.

Never reuse torque-to-yield bolts. The lower strut bolts on many RAV4s are single-use. Reuse them and they can back out over time.

Schedule an alignment after any control arm or strut work too.

Check your VIN against the NHTSA database. The NHTSA recall page tracks the front lower suspension arm recall on 2019 and 2020 RAV4s. Toyota's recall page lists the same.

A quick VIN check takes seconds and could save you a full repair.

Frequently Asked Questions

Is it safe to drive my RAV4 with a suspension clunk?

It depends on the cause. A clunk from a sway bar link is annoying but rarely dangerous. A sharp pop from a ball joint or control arm is different.

If the steering feels loose or the noise appears suddenly, stop driving. A shop inspection costs less than a tow.

Why does my RAV4 squeak over speed bumps?

That squeak is usually dry rubber bushings. Sway bar bushings and control arm bushings are the usual suspects. Cold weather stiffens the rubber and makes it louder.

Spray silicone on the bushings as a test. If the squeak disappears, you've found the source.

Why does my RAV4 make noise only when cold?

Cold weather hardens rubber bushings, so they squeak until the suspension warms up. Strut mount bearings also dry out over years and pop when cold. If the noise fades after a few miles, bushings are the likely cause.

If it gets worse, check the strut mounts.

Can I replace just one sway bar link or strut?

It's not recommended. The part on the other side is probably just as worn. Replacing one side can leave the car lopsided and cause alignment issues.

Do both sides at once. The labor is the same and the parts cost barely more.

How much does it cost to fix RAV4 suspension noise?

Sway bar links run $150 to $300 installed. Struts cost $350 to $600 each. Control arms run $250 to $500 each.

Add $100 to $150 for alignment and roughly $100 for diagnostic time. The total depends on which corner is noisy and whether you DIY.

Will a Toyota TSB or recall cover my RAV4 suspension noise?

Toyota issued a recall for front lower suspension arms on some 2019 and 2020 RAV4 models. You can check your VIN on NHTSA's recall page. Technical service bulletins cover other noises like strut mount creaks.

Dealerships may cover repairs under warranty if the bulletin applies.
