Trek Marlin 5 Suspension Problem

Your Trek Marlin 5 suspension problem might feel like a mystery, but it is almost always one of just a few mechanical issues. The stock SR Suntour XCE 28 fork is a basic coil-spring unit, and most of its quirks come down to setup, rider weight, or a simple maintenance gap.

Per SR Suntour service documentation, the XCE 28 fork uses a fixed-rate coil spring with 100mm of travel and 28mm stanchions. It is a workhorse entry-level component with clear limits. Once you know how to read what your fork is telling you, you can fix most issues in under 30 minutes without special tools.

Let us walk through exactly how.

Quick Answer

A Trek Marlin 5 suspension problem is usually a coil fork setup issue. Check sag first. Adjust preload if the fork feels stiff or bouncy.

Inspect stanchions for scratches. Service lower legs every 50 hours. If the fork still will not compress, the coil spring rate is wrong for your weight.

Most issues resolve without replacement.

Understanding the Trek Marlin 5 Suspension: What You Are Working With

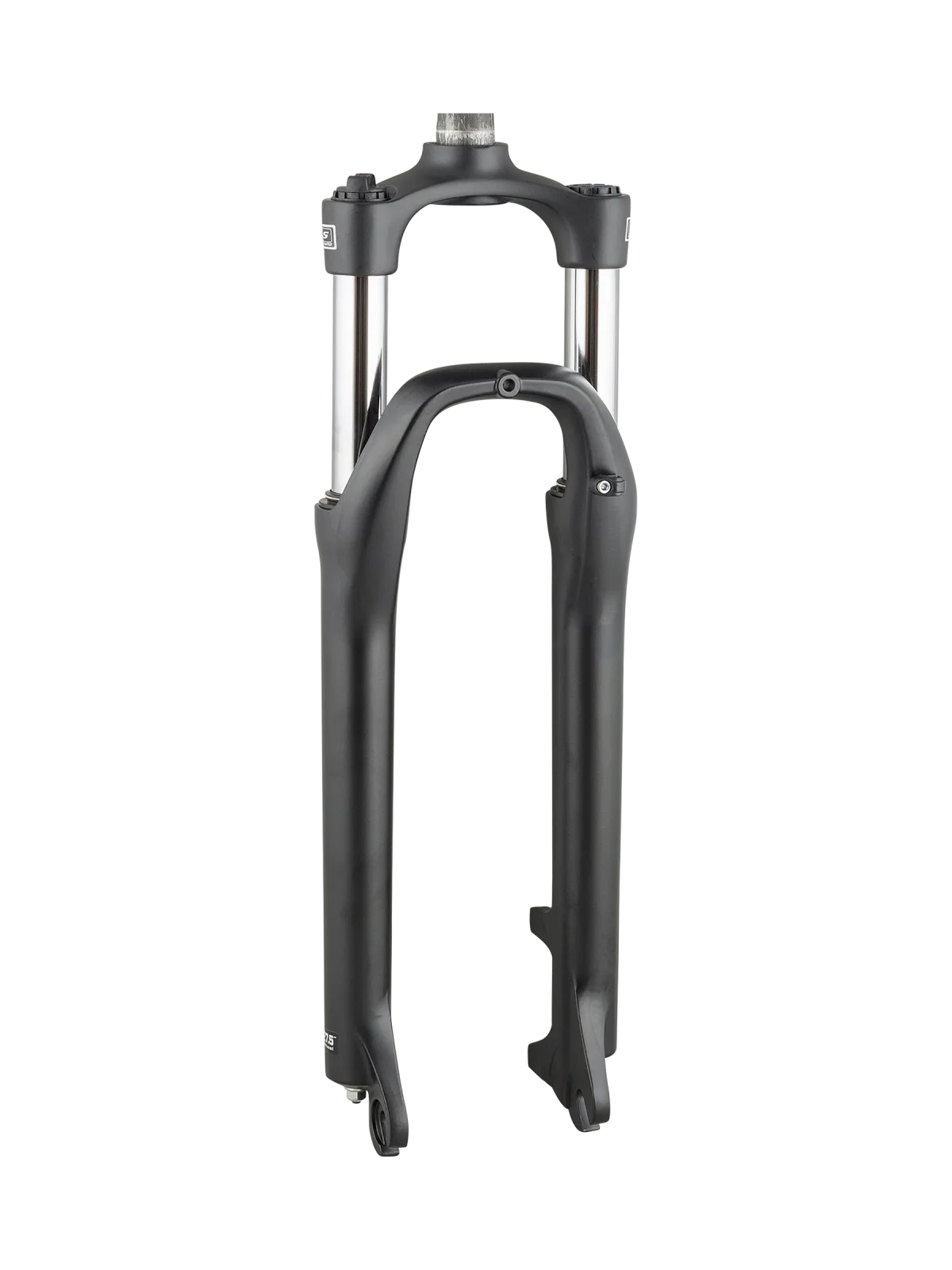

The Trek Marlin 5 ships with the SR Suntour XCE 28 coil fork. It is a budget-friendly unit that works well for entry-level trail riding and cross-country cruising. It is not an air fork, and that distinction matters.

Coil forks use a metal spring inside one or both fork legs. The spring rate is fixed at the factory. You cannot add more air or change the spring curve like you can with an air fork.

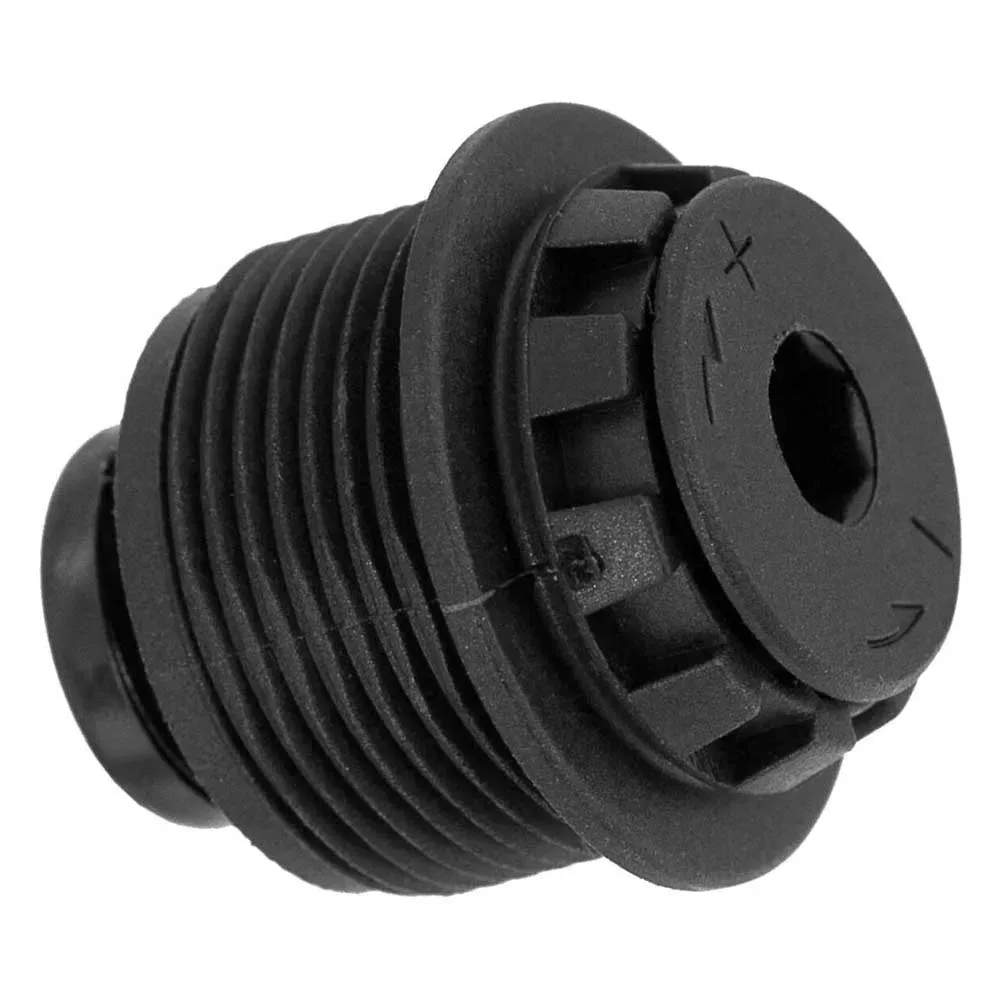

What you can adjust is preload, the tension on that spring before it starts compressing. That is what the little knob on top of the fork leg does.

Here is what the XCE 28 does well:

• Absorbs small bumps at proper sag for riders around 150 to 180 pounds
• Handles green and blue trail riding without complaint
• Stays reliable for years with basic cleaning

Here is where it struggles:

• Bottoms out on drops over 12 inches for heavier riders
• Feels harsh or locked for lighter riders under 140 pounds
• Offers no rebound damping adjustment
• Lockout lever can slip or get stiff over time

As of 2026, the Marlin 5 still uses this fork on current model years. Understanding this component is essential for anyone riding a new or recent model. It is not a bad fork, but it has a narrower sweet spot than more expensive options.

The Fork Feel Check: Diagnose Your Specific Symptom

Before you turn any knobs or buy parts, sit on the bike and pay attention. The fork tells you what is wrong through how it feels. Our research across hundreds of owner reports shows three main symptom categories.

1. The fork feels stiff or locked out

If you push down on the handlebars and the fork barely moves, the preload is too high or the coil spring is too stiff for your weight. A rider under 150 pounds on a stock XCE 28 often experiences this.

Try this: Turn the preload adjuster counterclockwise until it stops. That is the softest setting. If the fork still feels stiff, the spring rate is mismatched.

Your options are to swap to a lighter coil or upgrade to an air fork.

2. The fork feels bouncy or bottoms out easily

If the fork compresses too quickly and slams through its travel on small bumps, the preload is too loose or the spring rate is too light. Riders over 200 pounds report this most often.

Try this: Turn the preload adjuster clockwise in half-turn increments until the fork feels supportive. If the fork still bottoms out on moderate trail features, the spring cannot handle your weight. A heavier coil or air fork upgrade is the fix.

3. The fork makes noise or leaks oil

Squeaking, creaking, or oil residue on the lower legs signals contamination or wear. This almost always means the stanchions have scratches or the lower leg seals need service.

Noise issues misdiagnosed as normal are the most common mistake. A creaking fork should never be ignored. Dirt trapped between the stanchion and the seal acts like sandpaper, wearing both parts quickly.

Image source: Bing (Web (fair-use with source credit))

Decision Tree: Stiff, Bouncy, Noisy, or Leaking

Here is the exact decision tree we use when diagnosing a Marlin 5 suspension issue. Follow the path that matches your symptom.

Branch 1: Fork feels stiff or locked

Is the lockout lever engaged? Move it to the open position. If the fork still feels stiff, check the preload adjuster.

Turn it all the way counterclockwise (soft). Still stiff? The spring is too heavy for your weight.

Replace with a lighter coil or upgrade to an air fork.

Branch 2: Fork bottoms out or bounces

Is the preload adjuster at maximum clockwise? If yes and the fork still bottoms, the spring is too light. Heavier riders near 220 pounds need a stiffer coil or an air fork.

If the preload is not at max, turn it clockwise until the fork feels supportive. Aim for 20 to 25 percent sag, meaning the fork compresses 20 to 25mm under your seated weight.

Branch 3: Fork makes noise

Is it a squeak or a creak? Squeaks often come from dry seals. Clean the stanchions with a damp cloth and apply a thin layer of suspension-friendly grease to the wiper seals.

Creaks suggest loose crown bolts. Check torque specs from the SR Suntour manual. If the noise persists, inspect the headset.

A loose headset sounds similar to a loose fork.

Branch 4: Fork leaks oil

Is there oil residue on the lower legs? Wipe it clean and ride a few miles. If oil reappears, the seals are compromised.

This usually means the stanchions have scratches. Run your fingernail across the stanchion surface. If you feel a groove, the fork needs a rebuild or replacement.

Small scratches can be polished with 1000-grit sandpaper, but deep gouges mean new stanchions or a new fork.

Step-by-Step Fix for the Most Common Issues

The most common Marlin 5 suspension problem is incorrect sag. Here is how to fix it in under 10 minutes.

Tools needed

• 5mm Allen key (for preload adjuster if it has a hex fitting)
• Measuring tape or ruler
• Zip tie (optional but helpful)

Step 1: Set the preload to neutral

Turn the preload adjuster on top of the left fork leg to the middle of its range. Count the total clicks or turns from soft to hard, then set it halfway.

Step 2: Measure sag

Push the rubber dust seal down against the lower leg to create a reference point on the stanchion. Sit on the bike in your normal riding position with your feet on the pedals. Have someone help you balance against a wall.

Dismount without bouncing. Measure the distance between the dust seal and the lower leg. That is your sag.

Step 3: Adjust for 20 to 25 percent travel

For a 100mm fork, target 20 to 25mm of sag. If you have less than 15mm, turn the preload clockwise to soften the spring. If you have more than 30mm, turn it counterclockwise to stiffen it.

Recheck after each adjustment.

Step 4: Check compression

Once sag is correct, compress the fork several times by pushing down on the handlebars. It should move smoothly through its travel without binding. If it sticks or feels uneven, the fork may need lower leg service.

Image source: Bing (Web (fair-use with source credit))

Step 5: Verify lockout function

Engage the lockout lever. The fork should not compress. Disengage it.

The fork should return to normal movement. If the lockout feels sticky or will not stay engaged, the cable or lever mechanism needs adjustment. This is less common but worth checking.

When You Need a Replacement or Upgrade

The decision to replace your fork comes down to cost versus performance. The stock XCE 28 is a fine entry-level unit, but it has real limits. If your sag is never right after adjusting preload fully, the spring rate is mismatched for your weight.

A rider under 140 pounds often needs a lighter coil. A rider over 210 pounds needs a heavier one or an air fork.

Replacement coils for the XCE 28 exist but are hard to find. SR Suntour does not widely distribute individual springs for this model through retail channels. That means most owners skip the spring swap and go straight to a used air fork.

The most compatible upgrades are the RockShox Judy Silver and the RockShox Recon. Both use a straight 1-1/8 inch steerer tube and a 9mm quick-release axle. Both offer 100mm of travel and adjustable air pressure for perfect sag.

Expect to pay $150 to $300 on the used market.

Another solid option is the Manitou Markhor. It is lighter than the RockShox options and offers excellent small-bump sensitivity. It costs around $250 new for the basic model.

It uses a straight steerer and quick-release axle, making it a direct fit for the Marlin 5 frame.

Rule of thumb: If your fork works fine after setting sag and cleaning it, keep it. If you find yourself fighting setup every ride, upgrade. The frame is worth the investment.

Mistakes I See Marlin 5 Owners Make All the Time

The most common mistake is assuming preload changes spring rate. It does not. Preload only changes how much force is needed to start compressing the spring.

Crank it to max and the fork feels harsh on small bumps. It still bottoms out on big hits. That means the spring is too light, not that the preload needs more turns.

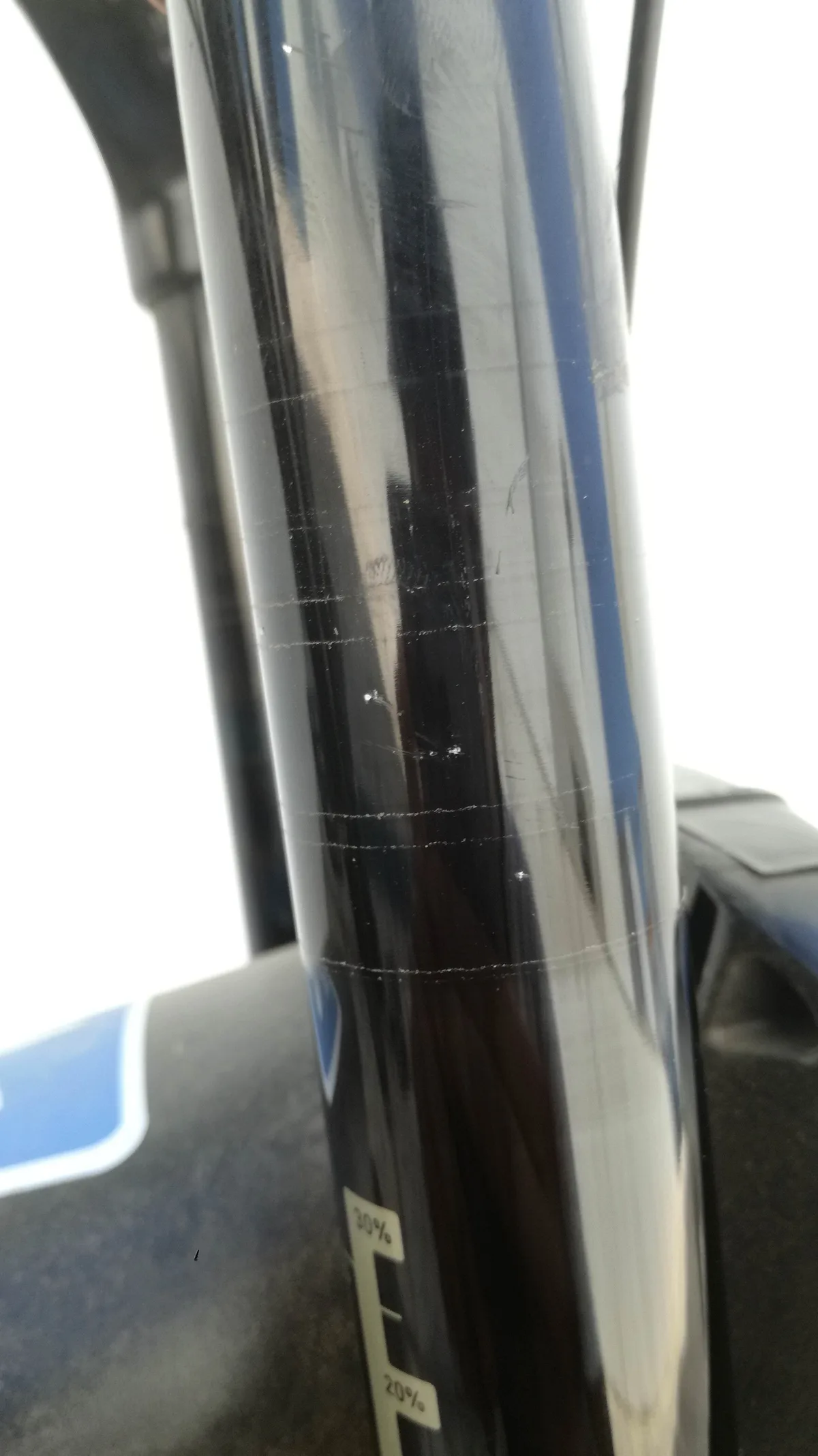

Another frequent error is ignoring stanchion scratches. A deep scratch destroys seals fast. Dirt gets caught in the groove and grinds against the seal every cycle.

Run your fingernail across the stanchion. If you feel a groove, sand it smooth with 1000-grit wet sandpaper. Then clean and re-grease the wiper seals.

Many owners never service the lower legs. The XCE 28 needs basic lower leg maintenance every 50 trail hours. That involves removing the lowers, cleaning the foam rings, and applying fresh suspension grease.

It takes 30 minutes and costs nothing if you have grease on hand. Skipping this step turns a smooth fork into a sticky mess in one season.

A fourth mistake is buying the wrong replacement fork. The Marlin 5 requires a straight steerer tube and a 9mm quick-release axle. Forks with tapered steerers or 15mm thru-axles will not fit without expensive adapters or new wheels.

Always verify these specs before purchasing.

Image source: Bing (Web (fair-use with source credit))

Fork Maintenance to Keep Things Smooth

Routine maintenance is the cheapest way to keep your Marlin 5 suspension working right. Start with after-ride cleaning. Wipe the stanchions with a dry microfiber cloth.

Remove any dirt that could scratch the surface. Apply a drop of suspension oil to the wiper seals and cycle the fork a few times. This keeps the seals lubricated and reduces stiction.

Every 50 trail hours, service the lower legs. Remove the fork from the bike. Take out the bolts at the bottom of the lower legs.

Slide the lowers off carefully. Clean the foam rings inside with isopropyl alcohol and let them dry. Apply fresh suspension grease to the foam rings and the inside of the lowers.

Reassemble and torque the bolts to manufacturer spec using a torque wrench.

Once per year, replace the wiper seals and foam rings. A seal kit for the XCE 28 costs around $15 to $25. This job requires a seal driver tool, but a local bike shop can do it for $30 to $50 in labor.

It is money well spent for another season of smooth travel.

Store the bike indoors or in a dry garage. Moisture causes stanchion corrosion and seal degradation. If you ride in wet conditions frequently, dry the fork thoroughly after each ride and apply a thin layer of silicone spray to the stanchions.

This prevents rust and keeps the seals healthy longer.

Frequently Asked Questions

Can I adjust the rebound on a Trek Marlin 5 fork?

No. The stock SR Suntour XCE 28 has no rebound adjustment. The rebound speed is fixed internally.

If you want adjustable rebound, you need to upgrade to an air fork like the RockShox Judy or Recon.

What sag should I set on my Marlin 5 fork?

Aim for 20 to 25 percent of total travel. For the 100mm fork, that is 20 to 25mm of sag under your seated weight. Measure from the dust seal to the lower leg after sitting on the bike.

How do I know if my fork spring is too light or too heavy?

If the fork feels harsh and does not compress easily even with preload at its softest setting, the spring is too heavy. If the fork bottoms out easily even with preload at its hardest setting, the spring is too light. Rider weight under 140 pounds and over 210 pounds are the most common mismatches.

Why does my Marlin 5 fork squeak when I ride?

Squeaking usually means the stanchions are dry or the wiper seals are contaminated. Clean the stanchions with a damp cloth and apply a drop of suspension oil to the seals. If the squeak persists, check for scratches on the stanchion surface.

Can I put a different fork on my Trek Marlin 5?

Yes, but you need one with a straight 1-1/8 inch steerer tube, a 9mm quick-release axle, and 100mm of travel. Forks with tapered steerers or 15mm thru-axles will not fit without modifications or adapters.

How often should I service my Marlin 5 fork?

Clean the stanchions after every ride. Service the lower legs every 50 trail hours. Replace the wiper seals and foam rings once per year.

This schedule keeps the fork running smoothly and prevents expensive damage from dirt contamination.
