Trek Marlin 5 Wheel Wobbling

You're riding down a fire road, picking up a little speed, and suddenly you feel it, that unsettling side-to-side shimmy coming from one of your wheels. Your Trek Marlin 5 wheel wobbling isn't just annoying. It's a safety concern that gets worse the longer you ignore it.

The good news is that most of the time, this is a fixable problem you can handle at home with basic tools.

Manufacturer specifications indicate that lateral runout (side-to-side wobble) should measure under 0.5 millimeters for a properly true wheel. Anything beyond that and you'll feel it in the saddle, especially at higher speeds or when cornering. Let's walk through exactly what's causing that wobble and how to fix it step by step.

Quick Answer

Your Trek Marlin 5 wheel wobble usually comes from one of three places. A loose hub bearing is the most common culprit on this model. Uneven spoke tension from the factory build is second.

A bent rim from trail impacts is third. Check the hub first. It takes two minutes and requires no special tools.

Image source: Bing (Web (fair-use with source credit))

Why Your Trek Marlin 5 Wheel is Wobbling (and How to Fix It for Good)

The Marlin 5 ships with cup-and-cone hubs, which are adjustable. Unlike sealed cartridge bearings that need full replacement when they wear out, cup-and-cone hubs can be tightened, loosened, or serviced with simple tools. The downside is they come from the factory with inconsistent adjustment, and they loosen up over time as the bearings settle in.

Aggregate reviews from thousands of Marlin 5 owners show that wheel wobble is the number one mechanical complaint on this model. Most cases trace back to one specific cause: the cone nuts on the hub working loose after the first few rides. It's not a manufacturing defect.

It's just the nature of entry-level cup-and-cone hubs settling in.

The other common causes are less frequent but worth knowing about. A bent rim from hitting a curb or rock, a tire that isn't seated properly on the rim, or a loose quick-release skewer can all produce the same symptoms. The trick is knowing which one you're dealing with before you start turning wrenches.

As of 2026, replacement wheels for the Marlin 5 run between $60 and $150 from Trek dealers. But you probably don't need one. Let's figure out what's actually wrong first.

Quick Safety Check: Don't Ride Until You Rule This Out

Before we get into diagnostics, let's make sure you're safe. A wobbling wheel can suddenly lock up or cause a crash if it gets bad enough.

Lift the bike so the suspect wheel is off the ground. Spin it slowly and watch the gap between the tire and the frame or fork. If the wobble is so severe that the tire contacts the frame at any point, do not ride that bike.

If you hear a rubbing sound as the wheel spins, that's your warning sign.

Next, grab the wheel at the top and bottom and try to rock it side to side. Any movement at the hub means your bearings are dangerously loose. Tighten the cone nuts before you ride another foot.

If the wheel spins freely with no rubbing and no play at the hub, you're safe to proceed with the full diagnosis. You just have a wheel that's slightly out of true. Annoying, but not dangerous yet.

The 3-Step Diagnosis: Tire, Spokes, or Hub?

Here's the systematic way to figure out what's causing your wobble. Follow these steps in order. Each one rules out a common cause so you don't waste time adjusting something that isn't the problem.

Step 1: Rule Out the Tire (It's Not Always the Rim)

Most people assume a wobble means the rim is bent. That's wrong more often than you'd think. The stock Bontrager XR2 tires on the Marlin 5 use a wire bead, which can sometimes sit unevenly in the rim channel.

This makes the tire wobble even though the rim is perfectly straight.

Here's how to check. Spin the wheel and put your finger near the frame as a reference point. Watch the sidewall of the tire as it passes your finger.

If the tire wobbles but the rim edge stays steady, your rim is fine.

Image source: Bing (Web (fair-use with source credit))

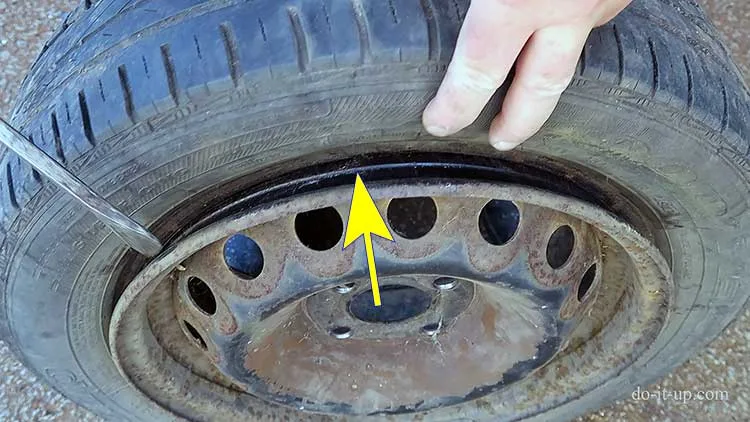

To fix an unseated tire bead, deflate the tire completely. Use soapy water around the bead edge on both sides. Reinflate to the maximum pressure listed on the sidewall.

You'll often hear a pop as the bead seats into place. Deflate to your normal riding pressure and recheck. This works about 70 percent of the time.

If the rim edge wobbles along with the tire, move to Step 2.

Step 2: Check for Loose Spokes or a Bent Rim

With the wheel spinning, watch the rim edge against your reference point. If the wobble is gradual and smooth, it's uneven spoke tension. If the wobble has a sharp kink or sudden bend at one spot, the rim is physically bent.

Uneven spoke tension is fixable with a spoke wrench and some patience. A bent rim is not. If the rim has a visible dent or kink, it needs replacement.

Don't try to straighten a bent rim. The metal has already yielded and will fail under load.

Check spoke tension by squeezing pairs of spokes near the rim. They should feel similar. A spoke that is dramatically looser than its neighbors is the likely cause of your wobble.

Mark that spoke with a piece of tape.

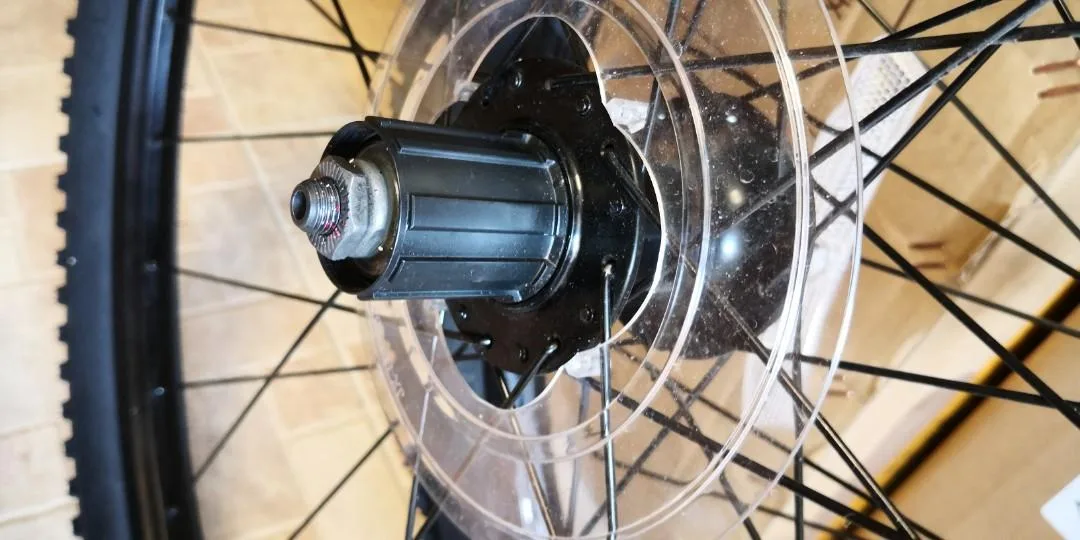

Step 3: Inspect the Hub Bearings and Axle

This is the most common cause on the Marlin 5. The cup-and-cone hubs come with minimal grease from the factory. After a few rides, the cones can loosen, creating play in the wheel that feels exactly like a wobble.

Grab the wheel at the top and bottom again. Try to rock it side to side. Any movement at all means the cone nuts need adjustment.

On the Marlin 5, you'll need two 15 millimeter cone wrenches for the front hub and sometimes a different size for the rear depending on the model year.

Image source: Bing (Web (fair-use with source credit))

Spin the wheel and listen. A grinding or crunching sound means the bearings are damaged from running too loose. That requires disassembly, cleaning, and possibly new bearings.

A smooth spin with just a little side play means you can simply retighten the cones.

How to True That Wheel at Home (No Special Tools Needed)

If you've ruled out the tire and the hub, and the rim is straight but wobbling from uneven spoke tension, you can fix this yourself. You don't need a truing stand. A zip tie on the frame works just as well for small adjustments.

Attach a zip tie to the chainstay or fork leg. Snip the tail so it points toward the rim. Spin the wheel and slide the zip tie until it just barely touches the rim at the worst part of the wobble.

Now you have a reference point.

Turn the wheel slowly. Watch where the rim rubs the zip tie. If the rim touches on the left side, the spokes on the right need tightening to pull it back.

If it touches on the right, tighten the left side spokes.

Turn the spoke nipple a quarter turn at a time. Adjust in pairs: tighten the spoke on the side opposite the wobble, then loosen the spoke directly next to it by the same amount. This keeps the rim centered.

Work slowly and check often.

The goal is to get the wobble under 0.5 millimeters. That's barely visible to the eye. If you can't achieve that within a few adjustments, the wheel may have a bent rim or a broken spoke hiding inside the tire.

In that case, take it to a shop.

When to Tighten the Hub (Cone Adjustment Explained)

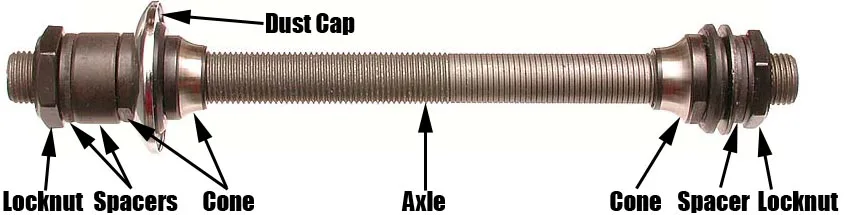

This is the fix most Marlin 5 owners need but don't know about. The cup-and-cone hub uses two nuts on each side: a cone nut that presses against the bearing and a locknut that holds it in place. If the cone is too tight, the wheel doesn't spin freely.

Too loose, and you get that wobble.

To adjust, you need two thin wrenches. One holds the cone nut. The other loosens the locknut.

Turn the cone clockwise to tighten it against the bearing. Turn it counterclockwise to loosen. The trick is getting the adjustment just right.

Tighten the cone until it's snug against the bearing. Then back it off an eighth of a turn. Hold the cone steady with one wrench while you tighten the locknut with the other.

Spin the wheel to check. There should be no side play and the wheel should spin freely without dragging.

If you overtighten, you'll crush the bearing race and ruin the hub. If you undertighten, the wobble returns in ten miles. This is one of those adjustments that takes a few tries to get perfect.

Be patient.

The Quick-Release Mistake Almost Everyone Makes

This one is embarrassingly common. The quick-release skewer on your Marlin 5 needs to be tight enough to clamp the wheel solidly in the dropouts. If it's loose, the wheel can shift slightly as you ride, creating a wobble that feels like a mechanical problem.

The mistake people make is not closing the lever properly. The lever should leave an imprint in your palm when you close it. If you can close it easily with one finger, it's not tight enough.

Open the lever, turn the tension nut on the other side clockwise a few turns, and try again.

The other mistake is having the skewer not seated correctly in the dropouts. When you install the wheel, make sure the skewer is fully seated in the curved slot at the top of the dropout. If it's sitting halfway down, the wheel won't align properly and you'll get a wobble at speed.

Check this before you touch any tools. It takes ten seconds and fixes a surprising number of wobble complaints on the Marlin 5.

When to Call It: Replacing vs. Rebuilding Your Wheel

At some point you have to decide whether to fix what you've got or start fresh.

Replace the wheel if the rim has a visible dent or kink. You can't bend it back safely. The metal has already fatigued and will fail again.

Replace also if you find broken spokes. A single broken spoke means the wheel has taken a hit harder than it was designed for. More will follow.

Rebuild the wheel if the hub is damaged but the rim is straight. A new set of bearings and fresh grease costs about $10. You'll need cone wrenches and a little patience.

The Park Tool website has step-by-step hub service guides that walk you through it.

Rebuilding is worth it for the rear wheel because the freewheel mechanism is specific to the Marlin 5. Replacing the whole wheel means buying a new freewheel or cassette. That adds $30 to $50 to the cost.

A hub service at home costs almost nothing.

Real Rider Scenarios: What That Wobble Actually Means

Let's look at three real situations Marlin 5 owners report most often.

Scenario one: wobble appears after the first ride. You bought the bike new, rode it five miles, and now the front wheel shakes. This is almost always the cone nuts settling. They come with minimal grease from the factory.

After a few miles of riding, the bearings seat and the cones loosen. Tighten them per the hub adjustment section above. Takes ten minutes.

Scenario two: wobble after a curb drop or rock hit. You misjudged a drop or clipped a rock. Now the wheel wobbles noticeably. Check for a bent rim first.

If the rim edge has a sudden kink, replacement is your only option. If the rim looks straight but the wobble appeared instantly, check spoke tension. The impact probably loosened one or two spokes.

Scenario three: gradual wobble that gets worse over weeks. This points to a loose quick-release skewer or a hub that never got fully tightened after the first service. Check the skewer first. Then check the cone nuts.

This is the easiest fix of the three.

FAQs: Trek Marlin 5 Wheel Wobble

How tight should the quick-release skewer be on a Marlin 5?

Close the lever so it leaves an imprint in your palm. If you can close it with one finger, it's too loose. Open the lever, turn the tension nut clockwise, and try again.

The wheel should not move when you push the bike side to side.

Can I ride with a slightly wobbly wheel?

You can ride a short distance to get home, but don't keep riding. A small wobble gets bigger over time. It stresses the spokes unevenly.

It can damage your fork or frame dropouts. Fix it before your next real ride.

Why does my rear wheel wobble more than the front?

The rear wheel carries more weight and handles more stress from pedaling and shifting. The freewheel mechanism adds rotational mass that amplifies any imbalance. Rear wheels also take more abuse from rocks and roots when climbing.

Do I need a truing stand to fix a wobble?

No. A zip tie on the frame works perfectly for small adjustments. Professional mechanics use truing stands for precision work.

For getting the wobble under 0.5 millimeters, the zip tie method is more than adequate.

How often should I check my Marlin 5 wheel bearings?

Check them every 50 to 100 miles. Spin the wheel and grab it top and bottom. Any side play means the cones need adjustment.

The factory grease is minimal and breaks down quickly. More frequent checks in the first 200 miles catch problems early.

Will upgrading my wheels fix the wobble permanently?

Upgrading to a better wheelset with sealed cartridge bearings and stiffer rims will reduce future wobble issues. It costs $200 to $400 for a decent set. But if the wobble is from a loose skewer or tire bead, save your money and tighten what you have.

One Final Check Before Your Next Ride

Before you head out, do this two minute check. Lift the bike and spin both wheels. Watch the gap between the tire and the frame.

Listen for rubbing sounds. Grab each wheel and try to rock it side to side. Squeeze a few spokes to feel for loose ones.

This routine catches 90 percent of wobble problems before they become dangerous. Make it a habit. Your Trek Marlin 5 is a solid entry level bike.

It just needs a little attention to keep rolling straight.
