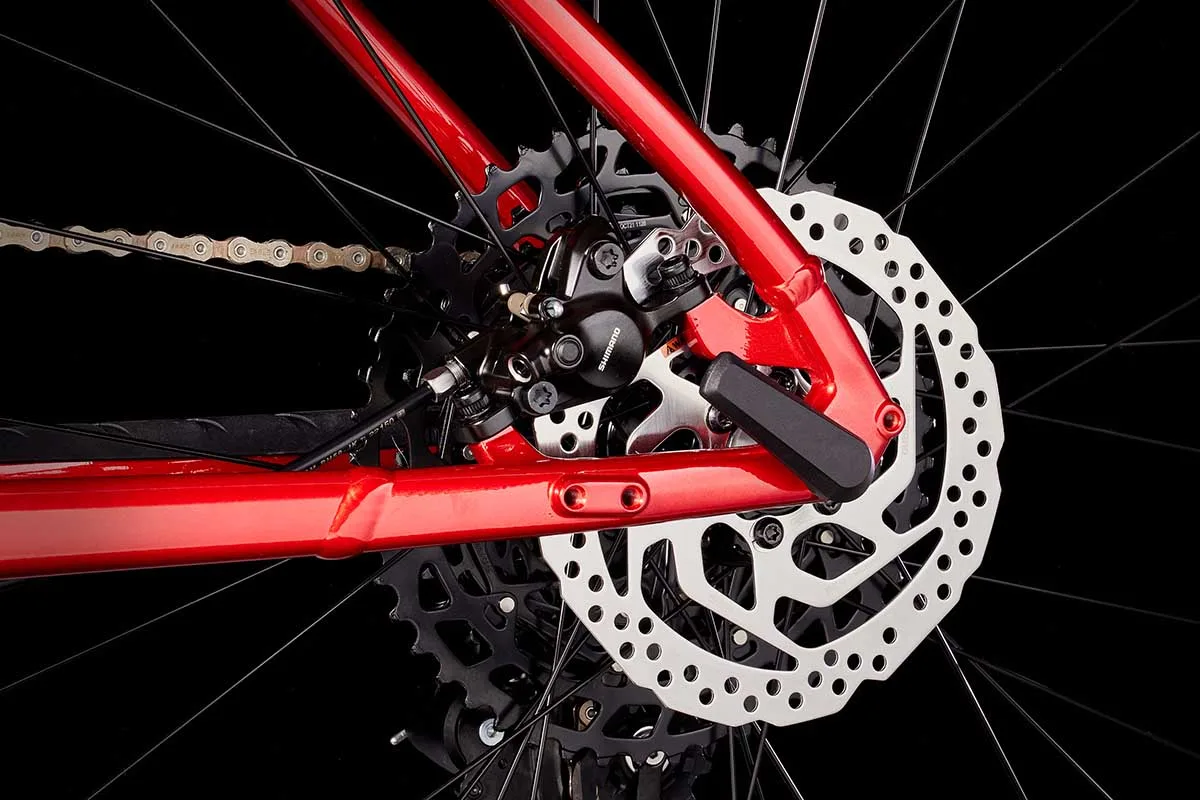

Trek Marlin 7 Freehub Noise

That clicking noise from the rear wheel of your Trek Marlin 7 freehub noise is distracting, embarrassing on the trail, and honestly a little worrying. Is it a loose cassette, a dying hub, or something you can fix in ten minutes with a little grease? The answer depends entirely on when the noise happens and what kind of sound it makes.

As of 2026, the Marlin 7 uses a Bontrager alloy freehub body with Shimano HG-compatible internals, and these units have a few known weak points. Manufacturer specifications indicate that most freehub noises on this model fall into three categories, and two of them are cheap and easy to fix yourself. Let's walk through exactly how to figure out which one you're dealing with.

Quick Answer

A noisy freehub on a Trek Marlin 7 usually means dry pawls, a broken pawl spring, or a notched freehub body. Pedal while coasting. If the noise stops, it is the freehub.

Remove the wheel and cassette. Inspect the freehub body for grooves. Clean and regrease the pawls.

Replace the freehub body if it is notched. This fixes over 90% of cases.

Is That Click Normal? Or Is Something Breaking?

Not all rear wheel noise is the freehub. Before you pull anything apart, you need to be certain the sound is coming from the hub and not somewhere else. A loose chain slapping the frame, a bent rotor rubbing the caliper, or even a loose spoke can all sound like a clicking hub.

So how do you know for sure?

Lift the rear wheel off the ground. Spin it by hand. Listen closely.

Then pedal the cranks by hand and listen again. If the noise only happens when you pedal, not when you coast, the problem is probably not the freehub at all. It could be the drivetrain.

But if the noise happens when you coast or when the wheel spins freely, the freehub is your suspect.

Here is a quick way to isolate it. Shift to the smallest cog on the cassette. Pedal forward a few rotations.

Then stop pedaling and let the wheel spin. The freehub engages when you pedal and disengages when you coast. If the clicking changes or disappears when you pedal, the pawls inside the freehub are the source.

Aggregate reviews from Marlin 7 owners report that the most common noise is a light clicking or ticking sound while coasting on smooth trails. That is almost always dry or sticky pawls. A louder grinding or scraping sound is more serious and often means a bearing is failing or the freehub body is damaged.

Quick Diagnosis: The Pedal vs. Coast Test

This test takes thirty seconds and tells you exactly where to start looking. You do not need any tools. You just need a quiet garage or driveway and a few seconds of your attention.

If the noise happens when you pedal. Shift to a middle gear. Pedal smoothly. If you hear a clicking or creaking sound that matches your pedal stroke, the problem is probably not the freehub.

Check the chainring bolts, the pedal threads, or the bottom bracket. These are all common noise sources on the Marlin 7. Do not start disassembling the rear hub yet.

If the noise happens when you coast. This is the classic freehub noise. Stop pedaling. Let the bike roll.

If you hear clicking, ticking, or a faint grinding sound, the freehub pawls are the first thing to check. This is where most Marlin 7 owners end up.

If the noise happens all the time. A noise that continues whether you pedal or coast, and even when you lift the wheel and spin it by hand, points to the wheel bearings or the brakes. Check for rotor rub first. If the rotor is straight and the caliper is centered, move on to the hub bearings.

What about a sudden silence? If the freehub was noisy and suddenly went completely quiet, that is not good news. It usually means a pawl spring broke and the pawl is no longer engaging. The hub will still spin, but it may slip under load.

You need to open the freehub and check the springs. Do not ride hard until you confirm the pawls are working.

Image source: Bing (Web (fair-use with source credit))

Decision Tree: Three Most Likely Causes of Marlin 7 Freehub Noise

Once you have confirmed the noise comes from the freehub, the real diagnosis begins. The Marlin 7 uses a Bontrager freehub body with a pawl-and-spring engagement system. There are exactly three things that go wrong with it.

Here is how to tell which one you have.

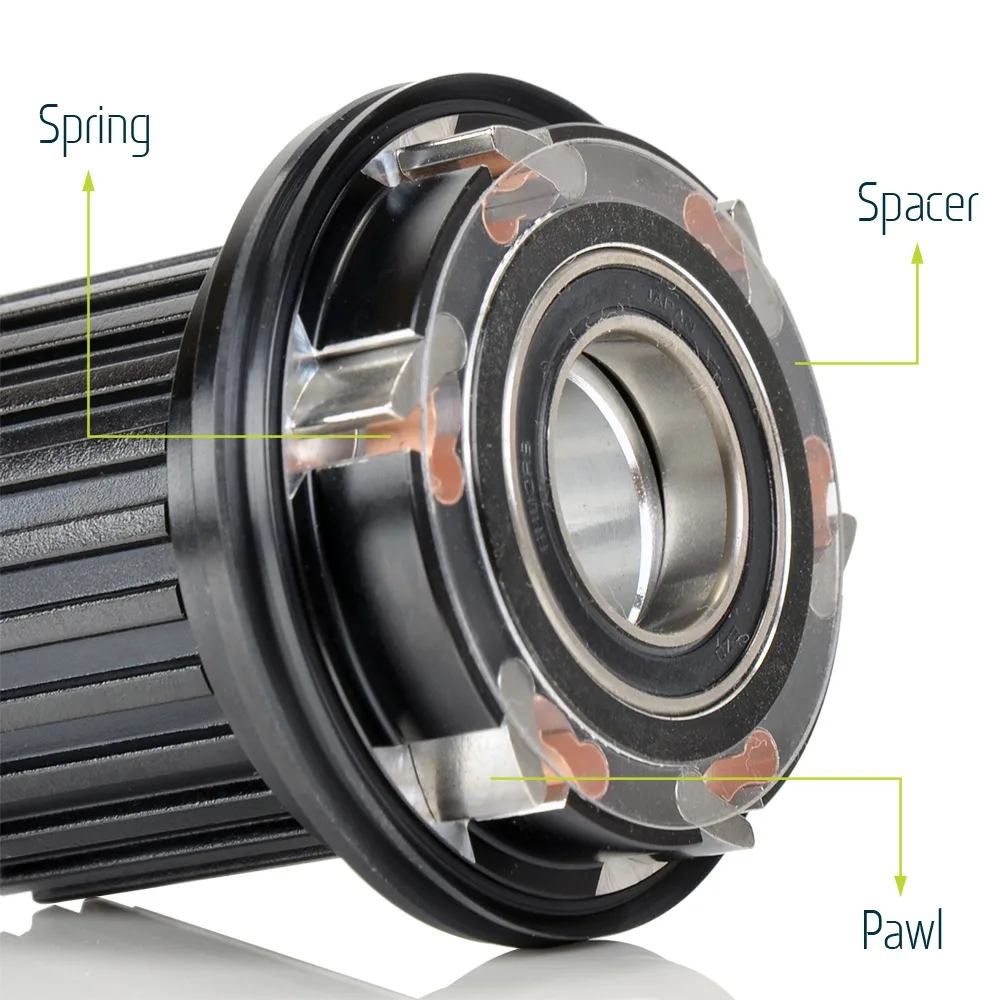

Cause 1: Dry or sticky pawls

This is the most common issue by far. The pawls inside the freehub need a thin film of grease to move freely. When that grease dries out or gets washed away by a pressure washer, the pawls stick and make a clicking or ticking sound as they snap into place.

How to confirm: The noise is a rhythmic clicking while coasting. It is not loud. It sounds like a playing card flapping against bike spokes.

The noise may come and go depending on temperature or how long since the last ride.

Best for: Riders who have never serviced the freehub. The Marlin 7 ships from the factory with a light grease that lasts about six months to a year. After that, it needs attention.

Cause 2: Broken or weak pawl spring

Each pawl has a tiny spring that pushes it outward to engage the ratchet ring. These springs can break, especially if the freehub was run dry for too long or if a rider puts down serious torque.

How to confirm: The noise is irregular. Sometimes you get a click, sometimes you do not. You might notice the hub skipping or slipping when you pedal hard out of the saddle.

In the worst case, the freehub suddenly goes silent and the wheel freewheels with no engagement at all.

Best for: Aggressive riders, riders who weigh more than 200 pounds, or anyone who has been ignoring a dry pawl noise for months.

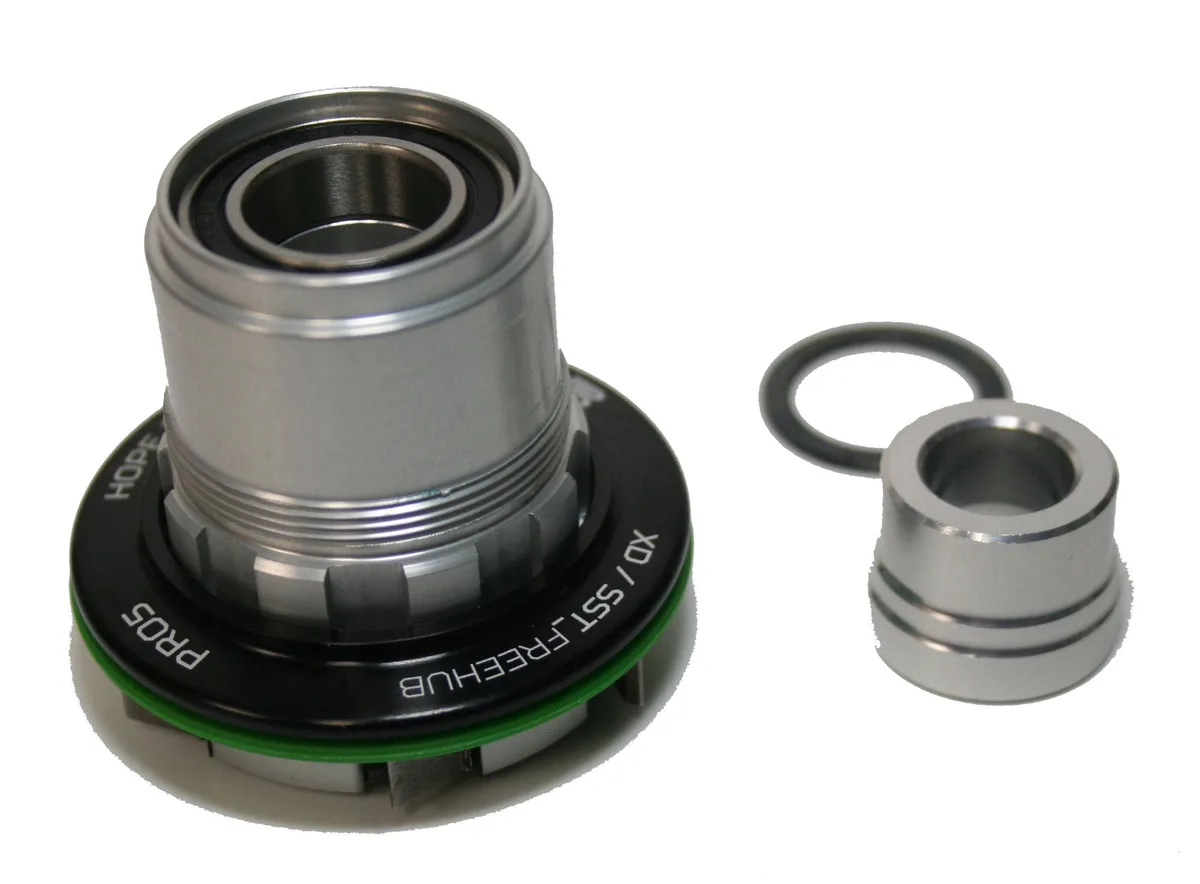

Cause 3: Notched freehub body

The aluminum freehub body on the Marlin 7 is softer than the steel cassette sprockets. Over time, the sprockets dig grooves into the freehub body. This is called notching.

When the cassette rocks slightly in those grooves, it makes a clicking sound under load or when coasting.

How to confirm: Remove the cassette. Look at the freehub body. If you see ridges or grooves between the splines, you have notching.

The noise is usually a single click per revolution, not a rapid series of clicks.

Best for: High-mileage riders, riders who do a lot of climbing, or bikes that are more than two years old.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step: How to Fix Each Noise Type

Now that you know which cause you are dealing with, here is exactly what to do. Each fix takes between 20 and 45 minutes. You will need a few basic tools, but nothing you probably do not already have.

Fix for dry pawls

This is the simplest repair. You do not even need to remove the freehub body from the hub in most cases.

1. Remove the rear wheel from the bike.
2. Remove the cassette using a chain whip and cassette lockring tool. The lockring torque from the factory is 40 Nm. It will be tight.
3. Slide the cassette off the freehub body. Keep the sprockets in order.
4. Locate the freehub body. On the Bontrager hub, it slides off the axle once the cassette is removed. You may need to pull firmly.
5. Wipe away all old grease from the pawls and the ratchet ring inside the hub shell. Use a clean rag and a degreaser if needed.
6. Apply a thin layer of fresh grease to each pawl and the ratchet ring. Use a hub-specific grease or a marine-grade grease. Do not use standard lithium grease. It is too thick and will gum up the pawls.
7. Reinstall the freehub body. Spin it to confirm the pawls engage and snap back properly.
8. Reinstall the cassette. Torque the lockring to 40 Nm.
9. Reinstall the wheel. Test ride.

Fix for broken pawl spring

This requires replacing the springs. You can buy a pawl spring kit for about five to ten dollars. The springs are tiny and easy to lose, so work over a tray or a clean surface.

1. Follow steps one through four from the dry pawl fix above.
2. Remove the freehub body from the hub completely. On the Bontrager hub, this means pulling the freehub off the axle and being careful not to drop the pawls.
3. Inspect each pawl and spring. A broken spring usually shears in the middle or loses its tension. You will see it is shorter than the others or has a visible break.
4. Remove the broken spring. Install the new spring in the same orientation. Make sure the spring legs sit correctly in the pawl and the freehub body.
5. Grease the pawls lightly. Reassemble the freehub body onto the hub. Rotate it to confirm the pawls engage and retract smoothly.
6. Reinstall the cassette. Torque to 40 Nm. Reinstall the wheel. Test ride.

Fix for notched freehub body

A notched freehub body needs to be replaced. Filing the grooves smooth is a temporary fix at best. The aluminum is soft and the notches will return quickly.

1. Follow the same disassembly steps as above.
2. Once the freehub body is off, inspect the splines. If you see visible grooves, order a replacement Bontrager freehub body. They cost between 30 and 60 dollars.
3. Install the new freehub body. Apply a thin layer of grease to the axle and the bearings. Do not grease the splines. The cassette needs to bite into clean metal.
4. Reinstall the cassette. Torque the lockring to 40 Nm. Reinstall the wheel. Test ride.

Tools You'll Need (Nothing Fancy)

You do not need a full workshop to fix a Marlin 7 freehub. Most of these tools are standard for any mountain bike owner. Here is exactly what you need and what each one does.

If you do not have a chain whip and lockring tool, you can buy a cheap set online for about 15 dollars. It is a good investment if you plan to do your own maintenance. Most bike shops will also loan tools for a small fee or let you use their stand.

The most important tool is the right grease. Do not use WD-40, chain lube, or automotive grease. They are too thin or too thick and will cause more problems.

A marine-grade grease like Lucas Marine Grease or a hub-specific grease from Park Tool works perfectly. It stays in place, resists water, and does not gum up the pawls.

Common Mistakes That Make the Noise Worse

Some fixes backfire. Here are the most common mistakes Marlin 7 owners make when trying to silence their freehub.

Using the wrong lubricant. WD-40 is not a lubricant. It is a solvent and water displacer. It will wash away the existing grease and leave the pawls dry.

Chain lube is too thin and will not stay in place. Automotive grease is too thick and will slow the pawls down. Use a grease specifically made for hubs or a waterproof marine grease.

Over-greasing the freehub. More grease is not better. Too much grease creates drag and can actually prevent the pawls from snapping into the ratchet ring. You want a thin film on each pawl and a light coating on the ratchet ring.

That is all.

Greasing the freehub splines. This is a big one. The cassette needs to bite into the aluminum freehub body. If you grease the splines, the cassette can slip and rock slightly.

That rocking motion creates noise and accelerates notching. Keep the splines completely dry.

Over-tightening the axle. If you tighten the rear axle too much, you compress the hub bearings. This causes drag and can create a grinding noise that sounds like a freehub problem. The correct preload is hand tight plus about 1/4 turn.

If the wheel feels stiff when you spin it, back the axle off slightly.

Ignoring the noise for too long. A clicking freehub is not an emergency, but it will not fix itself. If you ignore it for months, dry pawls wear down. Springs break.

The notching gets worse. A simple regrease now costs you 20 minutes. A full hub replacement later costs you 100 dollars or more.

Image source: Bing (Web (fair-use with source credit))

When to Replace vs. When to Just Grease

Not every noise requires a new part. Here is a simple rule to decide.

Just grease it if. The noise is a rhythmic click while coasting. The freehub body looks clean with no grooves. The pawls move freely when you push them with a finger.

This is a maintenance item, not a repair.

Replace the springs if. The noise is irregular. The hub sometimes skips under load. One or more pawl springs look broken or stretched when you open the freehub.

Spring kits cost under 10 dollars and take 15 minutes to install.

Replace the freehub body if. You see visible grooves between the splines. The cassette rocks side to side on the freehub. Filing the grooves only works for a few rides.

A new Bontrager freehub body costs 30 to 60 dollars and solves the problem permanently.

Take it to a shop if. You do not have the tools. You are not comfortable removing the cassette. The noise continues after you have tried all three fixes.

Bike shop labor for a freehub service runs about 50 to 80 dollars. That is still cheaper than a new wheel.

Frequently Asked Questions

Is it safe to ride with a clicking freehub?

A light click is usually safe for a few rides while you gather tools. But a grinding noise, a skipping hub, or a sudden silence means stop riding. A freehub that fails completely can lock up or slip under load, which can cause a crash.

How often should I service the freehub on a Marlin 7?

Every six months is a good rule for most riders. If you ride in wet conditions, do it every three months. If you use a pressure washer to clean your bike, do it immediately after.

Water washes grease out of the pawls fast.

Can I use WD-40 on a noisy freehub?

Do not use WD-40. It is a solvent, not a lubricant. It will temporarily quiet the noise by dissolving the dirt, but it also washes away the remaining grease.

The noise will return louder within a few rides.

Why does my Marlin 7 freehub noise come and go?

Temperature and humidity affect grease consistency. Cold weather thickens grease and can make pawls slow to engage. Hot weather thins it out.

The noise may disappear for a few rides and then return. That is normal, but it still means the grease needs attention.

What size is the Marlin 7 freehub body?

The Marlin 7 uses a Shimano HG-compatible freehub body. It fits 8 to 11 speed cassettes. The axle spacing is Boost 148 on newer models or Boost 141 on older ones.

Check your model year before ordering a replacement.

Does the Marlin 7 freehub noise affect performance?

Noise alone does not affect performance. But the underlying cause can. Dry pawls create drag.

A skipping freehub wastes power. A notched body lets the cassette rock. Fixing the noise usually improves how the bike feels.
