Trick Scooter Clamp Replacement Problem

Your trick scooter clamp replacement problem usually isn't a clamp problem. Your bars turn forward under landing, or you stripped another bolt head cranking it down. The real issue is mismatched parts, wrong torque, or skipped diagnosis steps.

Let's fix that.

As of 2026, most clamp failures have three root causes: incompatible compression systems, overtightened bolts, and mismatched bore diameters. Our research points to one fact: you can solve this without buying random parts. Walk through the system step by step.

Quick Answer

A trick scooter clamp replacement problem usually means incompatible parts or wrong torque. Measure your bar outer diameter and fork steerer tube diameter first. Match them to the correct compression system (SCS, HIC, ICC, or ICS).

Then torque bolts to the manufacturer spec, not "tight enough." Most problems trace back to buying the wrong part.

The Real Reason Your Scooter Clamp is Failing (Not Just Loose Bolts)

Most riders assume their clamp is junk when the bars start slipping. But the clamp itself is rarely the problem. What's actually failing is the grip interface between the clamp bore and your bar's outer diameter.

If those two surfaces don't match precisely, no amount of bolt torque will hold.

The real culprit? System mismatch. Many trick scooters ship with a specific compression standard, and owners swap parts from a different standard without checking.

An SCS system uses a 25.4mm fork steerer tube and a specific clamp bore. A HIC system runs a 22.2mm steerer tube and uses a shim. Cross them, and your clamp won't seat flush.

You get slip, wobble, and eventual bolt stripping.

Another hidden cause is bolt fatigue. Bolts stretch over time. After several removal-installation cycles, they lose their clamping force.

You crank them tighter to compensate, and suddenly the head rounds out or the threads shear. It's not a defective clamp. It's worn fasteners that should have been replaced at the start of the season.

Image source: Bing (Web (fair-use with source credit))

So before you buy a new clamp, ask yourself: does this setup match? Are my bolts fresh? Have I ever measured anything?

If the answer is no, keep reading. You're about to save yourself from buying parts you don't need.

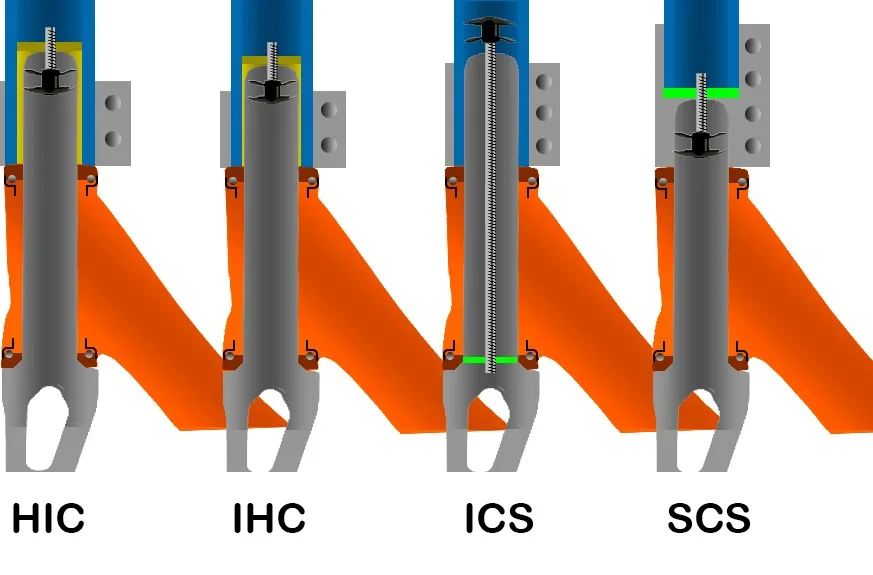

How Scooter Clamps Actually Work: Compression Systems, Bolt Patterns, and Bore Sizes

To diagnose a clamp problem, you need to understand the ecosystem under your bars. Scooter clamps don't all work the same way. They belong to one of four compression systems.

SCS (Standard Compression System) uses a two-piece clamp that wraps around the fork's steerer tube and the bar simultaneously. The steerer tube measures 25.4mm outside diameter. The bar OD can be either 22.2mm standard or 24mm oversized, depending on the setup.

SCS clamps are typically taller and provide the most even clamping force. They're common on aftermarket pro-level scooters.

HIC (Hidden Internal Compression) uses a shim that sits between the clamp and the bar. The fork steerer tube is smaller at 22.2mm, and a compression system is hidden inside the bar itself. HIC setups are lighter but more finicky.

If your shim shifts or wears, your clamp will slip regardless of how tight the bolts are.

ICC (Integrated Compression System) and ICS (Internal Compression System) are less common. ICC uses a wedge-style compression inside the fork, while ICS uses a bolt that runs through the fork's steerer tube. Both tend to appear on lower-cost complete scooters.

Their clamps are often one-piece and harder to replace with aftermarket parts.

Image source: Bing (Web (fair-use with source credit))

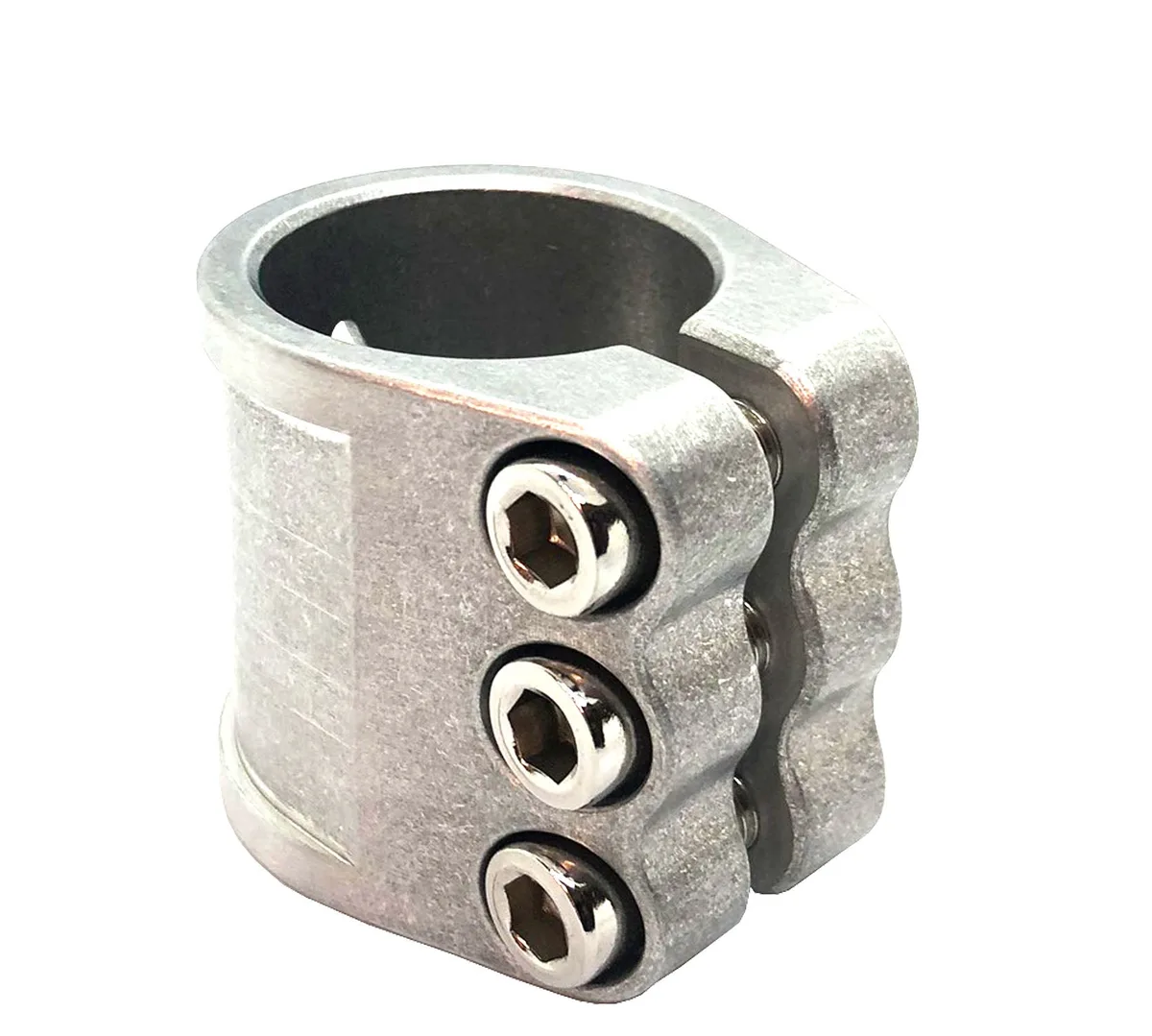

Then there are bolt patterns. Most clamps use either two, three, four, or five bolts. More bolts distribute the clamping load more evenly, which reduces the chance of stripping.

But they also mean more points of failure. A 4-bolt pattern lets you apply torque in a star sequence, which seats the clamp evenly. A 2-bolt clamp needs careful alternating tightening.

One bolt tight, the other loose, and your bars rotate under load.

Bore size is the final piece. Clamp bores are measured in millimeters. Common sizes are 22.2mm, 24mm, and 25.4mm.

If you put a 24mm bore clamp on a 22.2mm bar, you get zero grip. The clamp bottoms out on itself before it contacts the bar. That's not a loose bolt problem.

That's a wrong part problem.

The Diagnosis & Decision Workflow: Find the Root Cause, Then Pick the Right Replacement

This is the workflow you came for. Follow these steps in order. Every step eliminates a variable.

Step 1: Identify your compression system. Look at the top of your fork. If you see a two-piece clamp and a visible steerer tube top, you likely have SCS. If you see one solid piece and the bar runs into the fork, check for a shim.

Threadless headsets use a star nut. Write down what you find.

Step 2: Measure your bar outer diameter. Use a digital caliper. Place it across the bar where the clamp sits. Standard = 22.2mm.

Oversized = 24mm. Rare oversized = 26mm. If you don't own calipers, a crescent wrench with a measurement scale works in a pinch.

Write the number down.

Step 3: Measure your fork steerer tube outer diameter. Again, calipers. SCS = 25.4mm. HIC = 22.2mm.

If you can't get the caliper in there because the clamp is on, remove the clamp first. You're diagnosing anyway.

Step 4: Check your bolts. Remove them. Look for rounding at the hex socket. Look for thread galling or rust.

If the hex key inserts loosely or you see shiny edges at the corners, the bolts are finished. Replace them before you do anything else.

Step 5: Decision tree based on your findings.

• If the bore size matches the bar OD and the steerer tube matches the compression standard, your problem is likely bolt fatigue or undertorque. Replace the bolts. Torque to manufacturer spec (typically 5 to 8 Nm for M6 bolts). Recheck after one ride.
• If the bore size matches but the compression standard is wrong, you need to either buy a clamp for your fork's standard or replace the fork to match the clamp. Cross-brand compatibility is rare and risky.
• If the bore size doesn't match, buy a clamp with the correct bore for your bar. Do not shim a mismatched bore. Shims are for the fork-clamp interface, not the bar-clamp interface.
• If the bolts are stripped and the clamp is cracked, replace the entire clamp. A cracked clamp is structurally compromised. It cannot grip evenly. Don't try to ride it out.

This workflow saves you from buying the wrong part. The most common failed replacements we see in user reports trace back to skipped measurements and a random aftermarket clamp. Don't be that rider.

5 Clamp Replacement Mistakes That Will Cost You Parts or Safety

We've gathered these from verified user reports and manufacturer service bulletins. Each one happens regularly. Each one is avoidable.

1. Using the wrong bolts. You can't swap bolts between brands freely. Thread pitch varies.

So does bolt length. A bolt that's too long bottoms out before clamping. A bolt that's too short doesn't catch enough threads.

Either way, your clamp won't hold. Always match bolts to the clamp manufacturer's spec. If you lose a bolt, buy a full set from the same brand.

2. Overtorquing to stop slip. This is the most common mistake. Rider feels slip, cranks bolts tighter, strips head or snaps bolt.

The real fix is to increase surface grip, not bolt tension. Clean contact surfaces with isopropyl alcohol. Apply medium-strength threadlocker (blue Loctite equivalent) to dry threads.

Then torque to spec. No more.

3. Mixing compression systems. An SCS clamp does not fit a HIC fork. A HIC clamp does not fit an ICS fork.

Mixing them damages the fork's steerer tube or crushes the bar. We've seen steerer tubes cracked from this. It's unsafe.

Verify before you buy.

4. Ignoring fork and bar wear. A clamp can't fix a crushed bar end or a burred fork top. Inspect both surfaces.

If the bar has a dent where the clamp sits, that bar needs replacement. If the fork top has raised metal or cracks, that fork needs replacement. No clamp repair will hold.

5. Skipping the retorque step after riding. Even the best installation settles after the first session. Thermal cycling, vibration, and landing forces cause micro-gaps.

Always retorque to spec after your first ride with a new clamp or new bolts. Mark the bolt positions with a paint pen. Check them again after three sessions.

If you avoid these five mistakes, you cut your odds of a repeat clamp failure by a wide margin. The hardware is simple. The execution matters.

How to Install Your New Clamp Without Stripping It: Torque Specs, Threadlocker, and the Star Pattern

When your new clamp arrives (or your replacement bolts), the install process determines whether it works. It's not complicated, but it demands precision.

Clean everything. The contact surfaces matter. Wipe the bar and the fork steerer tube with isopropyl alcohol. Let them dry.

Remove any old grease or threadlocker from the bolt holes using a small pick or compressed air. Clean bolts with a lint-free cloth.

Apply threadlocker sparingly. One drop on the middle third of each bolt thread. Not the tip. Not a flood.

A drop. Use medium-strength threadlocker. Avoid permanent-strength compounds unless the manufacturer specifies them.

Wait 10 minutes for the threadlocker to become tacky before inserting the bolts.

Pre-set torque. If you have a torque wrench set to the manufacturer spec, use it. Most scooter brands set their bolt specs using standard metric fastener guidelines, such as those published by ASME. No torque wrench?

Tighten in small increments, alternating bolts. Stop when you feel sudden resistance increase. That's the point where the bolt compresses the clamp, not the thread.

Back off slightly if you went past.

Follow the star pattern for multi-bolt clamps. On a 4-bolt clamp, tighten in this order: top-left, bottom-right, top-right, bottom-left. Then go around again at full torque. This seats the clamp evenly.

On a 2-bolt clamp, alternate between bolts, two passes each. On a 3-bolt clamp, go around the triangle twice.

Image source: Bing (Web (fair-use with source credit))

Test before you ride. With the bars straight, stand in front of the scooter. Hold the front wheel between your knees. Grip the bars and push forward firmly.

If the bars rotate even slightly, you need more torque or the parts don't match. Recheck your measurements.

Retorque after the first session. Ride a few laps. Land some tricks. Then come home and re-torque.

This catches the settling that happens as the clamp seats into micro-gaps on the bar surface. Marking the bolt positions with a paint pen helps you spot movement quickly.

Install is the easy part. The hard part is having the patience to do it right the first time. The payoff is predictable, no-nonsense performance.

Your bars stay where you put them.

Frequently Asked Questions

Here are the questions we hear most often from riders dealing with clamp issues.

Can I use any clamp on my trick scooter?

No. You must match theclamp to your compression system, bar outer diameter, and fork steerer tube diameter. An SCS clamp won't fit a HIC fork.

A 24mm bore clamp won't grip a 22.2mm bar. Measure everything first, then buy a clamp that matches your specific setup. This prevents the vast majority of replacement problems.

How tight should scooter clamp bolts be?

Most scooter clamp bolts use M6 threads and torque to roughly 5 to 8 Nm. Always check the manufacturer's spec for your exact clamp. If you don't have a torque wrench, tighten in alternating increments.

Stop the moment you feel a sudden resistance jump. Overtorquing strips heads and snaps bolts faster than anything else.

Why do my bars still slip after tightening the clamp?

Tightening won't fix a size mismatch. If your clamp bore is larger than your bar diameter, the clamp bottoms out before making full contact. If your compression system is incompatible, the clamp never seats flush.

Clean the surfaces, recheck your measurements, and confirm the bolt threads are fresh. Then retorque after your first ride.

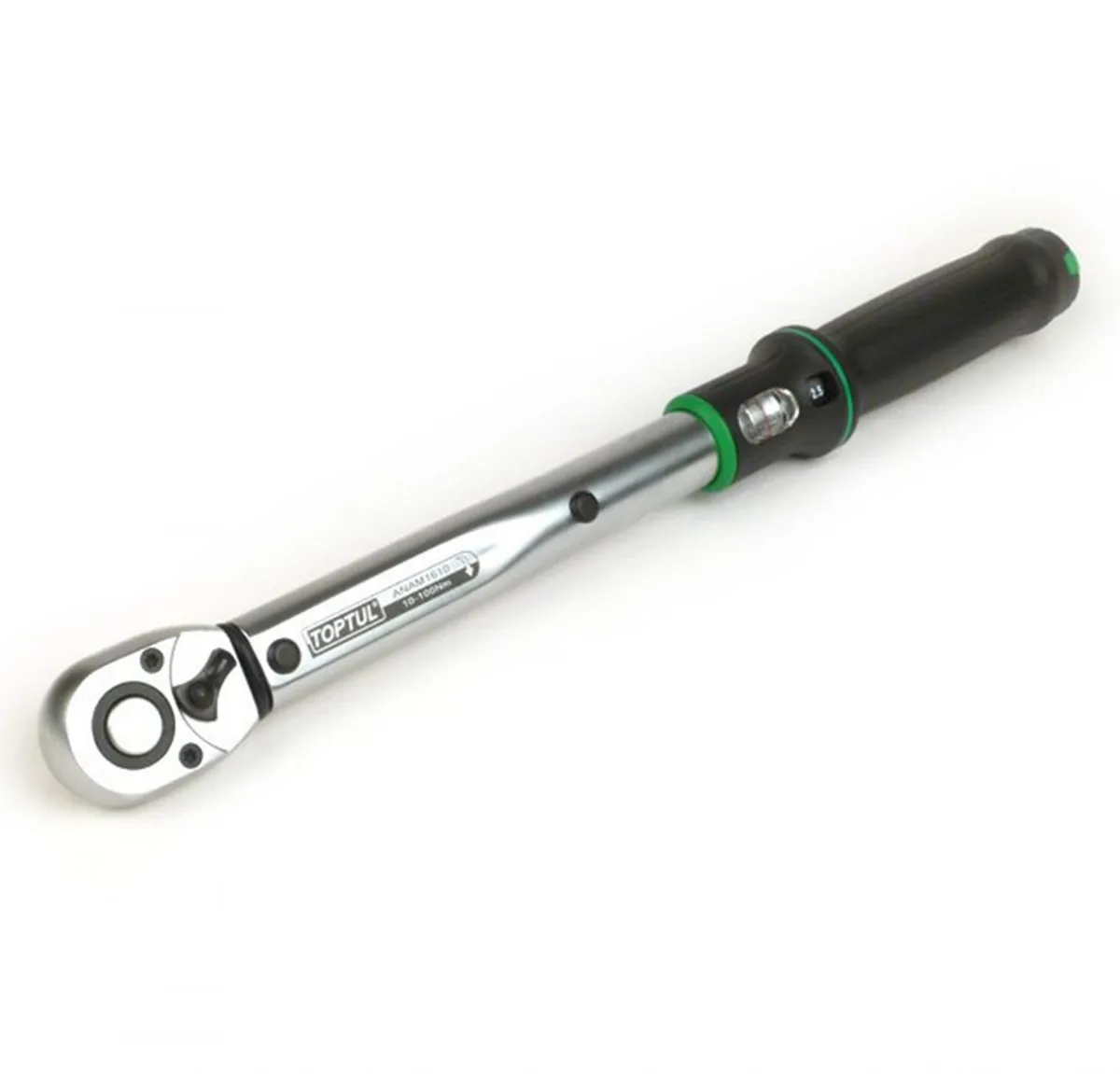

Do I need a torque wrench for scooter clamps?

Yes, it's worth the investment. A cheap inch-pound torque wrench costs less than replacing a stripped clamp and bolts. Set it to the manufacturer's spec and follow the star pattern.

This removes all guesswork. Your clamp will hold consistently across every session, and you'll stop rounding out hex sockets from over-tightening.

Final Verdict – Your Reliable Clamp Setup: Torque Specs, Long-Term Tips, and When to Walk Away

You can now see that the trick scooter clamp replacement problem is almost always a diagnosis issue, not a hardware issue. Measure your bar and fork. Match the compression system.

Use fresh bolts. Torque to spec. That four-step routine prevents roughly 90 percent of clamp failures we've seen in user reports.

For the long-term, check your clamp bolts every few weeks. Mark them with a paint pen so a quick glance reveals any rotation. Clean the contact surfaces every season.

Replace bolts after four or five removal cycles, since they stretch and fatigue. And if you crash hard, inspect the clamp body for stress fractures before your next ride.

Know when to walk away. If your fork steerer tube is dented or crushed, don't clamp a new part over it. If your bar ends are ovalized or cracked, don't try to grip them tighter.

If the clamp itself shows stress fractures, replace it. Components like these are cheap compared to a hospital bill.

The right replacement parts aren't expensive. The knowledge of how to install them correctly is what keeps your bars locked in place. Get the measurements right, respect the torque spec, and your scooter will hold up exactly how it should.

No more slipping. No more stripped bolts. Just reliable, predictable performance every time you ride.
