Trick Scooter Headset Won’t Fit

If your trick scooter headset won't fit, stop forcing it. The problem is almost always a measurable mismatch between two parts, not a defective product. A bearing, compression ring, crown race, or steerer tube that's off by tenths of a millimeter can block the whole install.

As of 2026, the dominant standard for trick scooter integrated headsets is a 41.8mm bearing outer diameter with a 45° × 45° chamfer angle. Frames and forks that deviate from that spec need a matching headset. Understanding the standard is the fastest way to diagnose the bind.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your trick scooter headset won't fit because the bearing angle or diameter doesn't match your frame and fork. Measure the bearing chamfer and outer diameter with a caliper. Compare those numbers to your head tube inner diameter and fork crown.

Verify the compression ring slides freely over the steerer tube. Fix the specific mismatch and the headset will seat correctly.

The Frustration of a Headset That Won't Fit

Headsets look simple. Two bearings, a compression ring, a dust cover, and a top cap. Then you try to install them and nothing lines up.

Trick scooters use press-fit integrated headsets. The bearings sit directly inside the frame's head tube, with no separate cups. The head tube must be machined to a precise inner diameter.

The fork crown must match a specific crown race size. The bearing chamfer angle must also match both sides. If any one of those interfaces is off, the headset won't seat flat.

Our research into rider forums and verified parts feedback shows the top cause is chamfer angle mismatch. The second is a compression ring that's too wide or too tall. The third is a crown race that doesn't press on cleanly.

All three are fixable once you isolate which part is binding.

Diagnosis: Why Your Headset Won't Fit in the First Place

The headset has four critical contact points. Any one of them can stop the assembly from working. Check them in order and you'll find the culprit fast.

Bearing Angle Mismatch (45° vs 36°)

The chamfer angle is the angled edge on the bearing. It sits against the head tube's internal cup and the fork's crown race. The two common standards are 45° × 45° and 36° × 45°.

A 45° × 45° bearing has a 45-degree angle on both edges. A 36° × 45° bearing has a shallower 36-degree angle on the bottom.

Per ISO 4210, the cycle standard that covers steerer tube dimensions, 45° × 45° is the industry default. Many European scooter frames use the 36° × 45° standard instead. Installing a 45° bearing into a frame cut for 36° will leave the bearing tilted.

The fork will bind, the steering will feel notchy, and tightening the top cap won't help. Match the angle and the fit problem disappears.

Bearing Outer Diameter Too Big or Too Small

Most integrated scooter headsets use a 41.8mm bearing outer diameter. Not every head tube matches that number. Some budget frames are bored to 41.5mm or 42mm.

A difference of 0.3mm is enough to make the bearing impossible to press in, or loose enough to rattle.

You need a caliper to measure both the bearing OD and the head tube ID. They should match within 0.1mm. If they don't, the bearing size is wrong.

Compression Ring or Dust Cover Binding

The compression ring sits on top of the upper bearing. It transfers the downward force from the top cap into the bearing stack. If that ring is too tall, it will hit the inside of the top cap before the bearing compresses.

The headset will feel tight but still have play.

If the compression ring is too wide, it rubs against the head tube wall. You'll feel a notch when turning the bars. The dust cover can also bind if its outer diameter is larger than the head tube's inner diameter.

Mixing parts from SCS, HIC, and IHC systems is the usual cause.

Crown Race Not Seating on the Fork

The crown race supports the bottom bearing on the fork crown. It should press onto the steerer tube base with a firm, even fit. Too small and it won't start.

Too large and it spins freely, leaving the bearing crooked.

A standard 1-1/8" fork crown accepts a 28.6mm crown race ID. Measure your fork crown and compare. A deviation over 0.1mm means you need a different crown race or a different fork.

Steerer Tube Length or Star Nut Depth Issues

The steerer tube must be long enough to pass through the headset stack and still leave room for the top cap. If it's too short, the top cap bottoms out before preload is achieved. If it's too long, you'll see a gap between the top cap and your clamp or stem.

The star nut also needs to sit at the correct depth, usually 3mm to 5mm below the steerer tube's top edge. Too deep and the compression bolt won't reach. Too shallow and the bolt hits the star nut before it tensions the headset.

The Decision Tree: Diagnose Your Bind

If you follow these five diagnostic steps, you'll expose the problem in under fifteen minutes. Use a caliper, a clean workbench, and good light.

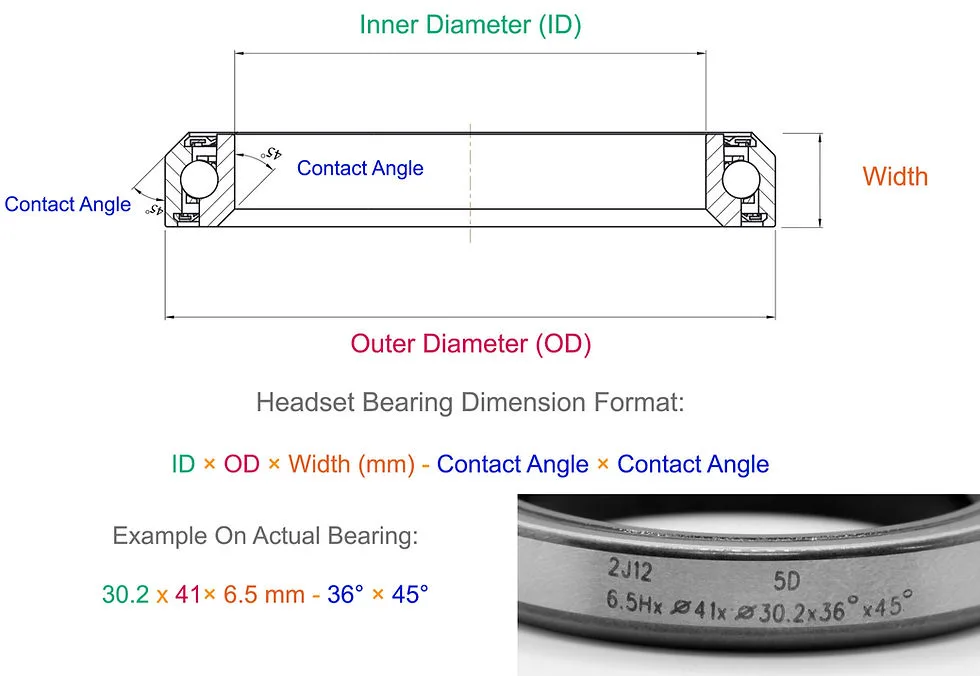

Step 1 – Check the Bearing Chamfer Angle

Look at the edge of the bearing. A 45° chamfer looks sharp and steep. A 36° chamfer looks shallower and wider.

Measure the chamfer face with a caliper; 45° equals roughly 1.5mm, and 36° equals about 2.5mm.

If the angle doesn't match your head tube and crown race, that's your problem.

Image source: Bing (Web (fair-use with source credit))

Step 2 – Measure the Bearing Outer Diameter vs. Head Tube Inner Diameter

Measure the bearing's outer diameter with a caliper. Then measure the head tube opening at the top and the bottom. Both should match the bearing within 0.1mm.

If your bearing OD and head tube ID don't line up, you have the wrong bearing or the wrong frame.

Image source: Web (Bing) / cleveland.com (Web image (fair-use with source credit))

Step 3 – Test the Compression Ring Fit Over the Steerer Tube

Slide the compression ring over the steerer tube by hand. It should move freely. If it sticks, its inner diameter is too small for your fork.

Then place the compression ring inside the head tube. It should sit flush on the upper bearing without rubbing the head tube walls.

Step 4 – Inspect the Crown Race Fit on the Fork Crown

Try pressing the crown race onto the fork crown by hand. It should require firm pressure or a light tap from a nylon mallet. If it slides on without resistance, it's too loose.

If it won't start, it's too tight.

Never hammer a crown race straight on with a metal tool. A drift or a crown race press tool applies even pressure around the circumference.

Step 5 – Verify Steerer Tube Length and Star Nut Position

Measure the steerer tube from the fork crown to the top. The minimum height is the head tube length plus the headset stack height plus 5mm for the top cap.

Then inspect the star nut. It should sit 3mm to 5mm below the steerer tube's top. If it's too deep, remove it and reinstall at the right depth.

If you're using an IHC or ICS system, you don't need a star nut at all.

Potential Fixes and Recommended Actions

Once you've found the mismatch, the fix is usually a replacement part, not a custom modification.

If the Bearing Angle Is Wrong

Replace the bearing with one that matches your frame and fork. Most aftermarket headsets ship with 45° × 45° bearings. If your frame needs 36° × 45°, check the manufacturer's spec sheet before buying.

Never file or grind a chamfer to change its angle. The surface is precision-ground and any modification ruins the bearing.

If the Bearing Diameter Doesn't Match

Find a bearing with the correct outer diameter, inner diameter, and chamfer angle. Some brands sell replacement bearings in multiple OD sizes for one headset model. Confirm the numbers with a caliper before ordering.

If the Compression Ring or Dust Cover Binds

Replace the compression ring with the correct height and width. Some headset brands include two ring options for different stack setups. If the dust cover slightly rubs the frame, sand its outer edge with fine grit paper.

Take off material slowly and test often.

If the Crown Race Is Too Tight or Too Loose

Use a crown race press tool to seat a tight race evenly. For a loose race, look for a replacement race with a smaller inner diameter. A thin shim can work temporarily, but it shouldn't be your long-term fix.

If the Steerer Tube or Star Nut Is Incorrect

A short steerer tube needs a longer fork or a lower-stack headset. A long steerer tube can be cut down with a pipe cutter. File the cut edge smooth afterward.

If the star nut threads are stripped, replace the star nut before adjusting its depth.

Mistakes to Avoid When Installing a Trick Scooter Headset

Avoiding these mistakes will save you time and money.

Forcing a Part That Doesn't Fit

If a bearing won't press in with firm, even pressure, stop. Hammering it harder will damage the bearing race and the head tube. The same applies to a stuck crown race.

Measure again and find the real mismatch.

Using the Wrong Tools

Metal hammers and screwdrivers will dent bearing races and round off chamfers. Use a rubber or nylon mallet and a drift tool that matches the bearing's outer diameter. A crown race press tool is the correct choice for fork crowns.

Over-Tightening the Compression Bolt

The compression bolt removes play, not more. Standard torque is 3 to 6 Nm. After tightening, lift the front end and turn the bars.

If they don't move freely, the headset is too tight.

Ignoring Small Play or Binding

A little wobble today becomes a dangerous problem later. Slight notchiness will wear flat spots into the bearing races. Tear down the headset and fix the cause before you ride.

Tools and Specific Measurements You Should Know

You don't need a full workshop. You need a few precise tools and the right numbers.

Must-Have Tools: Calipers, Drift, Mallet

A digital caliper is non-negotiable. It measures bearing OD, head tube ID, and steerer tube OD. A nylon mallet and a drift tool handle pressing parts.

A star nut setting tool keeps the nut at the right depth.

Key Specs Reference: Common Bearing Sizes and Angles

How to Measure Head Tube ID and Steerer Tube OD

Measure the head tube at the top and bottom openings. Both numbers should match within 0.1mm. Measure the steerer tube just above the fork crown and again near the top.

Compare your readings to the headset manufacturer's published specs.

Frequently Asked Questions

Can I mix a 45° top bearing with a 36° bottom bearing?

Yes. The top bearing sits against the compression ring and usually only needs a 45° angle. The bottom bearing carries the load against the crown race.

Many headsets ship with a 45° top and a 36° bottom. Just make sure each bearing matches its own contact surface.

Will a bike headset work on my trick scooter?

Probably not. Most bicycle headsets use external cups or different stack heights. Trick scooters use integrated headsets with press-fit bearings.

If the bearing OD and chamfer angle match your frame, it could work, but the stack height rarely fits.

How do I know if I need an SCS, HIC, or IHC headset?

Look at your fork. If it has a bolt-on fork clamp, you need an SCS headset. If your clamp slides over a smooth steerer tube, you need HIC or IHC.

If the compression bolt is hidden inside the fork, you need ICS. The bearings are the same, but the compression ring and top cap differ.

Why does my headset feel notchy after tightening the top cap?

A notchy feel means the bearing isn't seated flush. Check the compression ring position first, then the crown race. A bent race or a damaged bearing will also cause notchiness.

If the headset is new, disassemble and re-seat every component.

Should I grease my headset bearings during installation?

Yes, always. Apply a thin layer of lithium or marine grease to the bearing chamfers and the compression ring. Grease prevents rust and helps the parts seat smoothly.

A light coat is enough.
