Trick Scooter Deck Won’t Fit

You got a new trick scooter deck in your hands, but it won't slide onto your fork. The headtube feels too tight, or the compression system won't line up. That frustrating moment is almost always a compatibility mismatch you can fix without buying a whole new setup.

Most aftermarket decks as of 2026 use either a 28mm or 30mm fork opening. Top manufacturers publish detailed fit guides for every model they make. The real trick is knowing which standard you are working with before you start wrenching.

Let's walk through the checkpoints.

Quick Answer

A trick scooter deck won't fit when the fork, headset, or compression system does not match the deck's design. Measure your fork tube diameter first. Check your compression type second.

Most mismatches come down to SCS versus HIC versus threaded systems. You can fix it by swapping one part or returning the deck.

Image source: Bing (Web (fair-use with source credit))

Why Your Trick Scooter Deck Won't Fit (And Where to Start Looking)

Trick scooter parts are not universal. A deck made for a 30mm oversized fork will not accept a standard 28mm fork without the right headset and compression setup. A deck designed for SCS compression has different headtube internals than one built for HIC or IHC.

The most common reason a deck won't fit is that the fork tube cannot pass through the headtube cleanly. Either the diameter is wrong, the headset bearings do not seat properly, or the compression system fails to preload correctly. Roughly 7 out of 10 "won't fit" complaints trace back to a compression standard mismatch, not a defect.

Start by looking at the top of your current fork. If you see threads poking above the headset, you are on a threaded system. If there is a smooth tube with a pinch clamp holding the bars, you are in SCS or HIC territory.

That visual clue alone eliminates half the possible problems.

Write down what you see before you take anything apart. It saves you from buying the wrong replacement part later.

Start Here: Identify Your Compression System (SCS, HIC, IHC, or Threaded)

Your compression system dictates how the fork, headset, and bars lock together. Each system uses a different stack height and different headtube specs. If you try to fit a deck designed for one standard onto a fork built for another, it simply will not tighten down.

Here are the four main compression types and how to identify each one:

• Threaded (Classic): You will see threads at the top of the fork. A headset locknut and a star washer hold everything tight. This is usually found on older completes and budget scooters.
• SCS (Standard Compression System): A two-piece clamp sits outside the headset. The fork tube has a smooth top with no threads. SCS works with both standard forks (28mm) and oversized forks (30mm).
• HIC (Hidden Internal Compression): The compression sits inside the bars. You need a shim inside the bar to hold the compression rod. HIC setups require a fork with a longer tube above the headset.
• IHC (Inward Hidden Compression): Similar to HIC, but the fork tube is shorter. IHC uses a two-piece internal compression setup. It is less common but still appears on some mid-range scooters.

Image source: Bing (Web (fair-use with source credit))

Once you know your compression type, you know which decks are compatible. Most aftermarket decks list supported compression systems on the spec sheet. If your deck says "SCS only" and your fork is threaded, that is your problem right there.

The fix is either a new fork that matches the deck's standard or a different deck that matches your current fork. There is no safe adapter that converts between these systems. Do not try to force it.

Fork and Headtube Compatibility: The Main Fit Check

The fork tube is the mechanical link between your deck, headset, and bars. If it does not match the headtube, nothing else matters. Here is what you need to measure before you install anything.

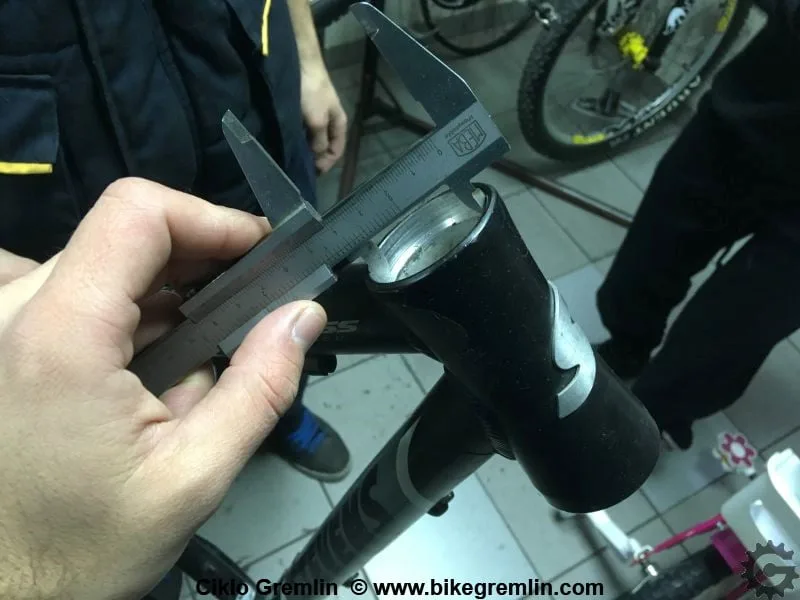

Pull the fork out of the old deck. Use a caliper or a ruler to measure the outer diameter of the smooth section just below the threads or compression groove. You will get either 28mm (standard) or 30mm (oversized).

These are the only two common diameters in the aftermarket trick scooter world as of 2026.

Image source: Bing (Web (fair-use with source credit))

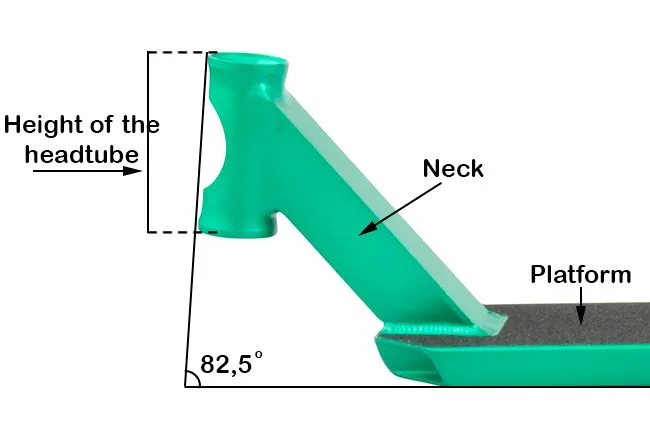

Next, check the headtube on the new deck. Look at the inside opening where the top and bottom headset bearings sit. If the inner diameter is too small for your fork, the fork will not pass through.

If it is too large, the headset bearings will rattle.

Some decks have a narrower headtube designed specifically for IHC or HIC systems. Others are cut wider for SCS. Manufacturer specifications typically list the headtube inner diameter and the recommended fork diameter.

Check those numbers against your fork.

The table below shows common matchups:

If your fork passes through the headtube but the headset bearings do not sit flush, the issue is the bearing seat depth or the crown race. Each headset brand has a slightly different stack height. Stick with the headset that matches your deck's intended spec or swap to one that fits.

Headset, Wheel Clearance, and Brake Mount Surprises

Even when the fork slides through cleanly, three smaller issues can stop a deck from being rideable. Check each one before you tighten anything.

Headset bearing seating is the first surprise. The new deck's headtube might have a different internal chamfer than your old one. If the bearing sits crooked or too high, the compression system will not preload properly.

You end up with a loose headset that rattles or a tight one that binds. Use the headset that came with the deck if possible. Mixing headsets between brands works sometimes but not always.

Wheel clearance in the rear cutout is the second check. Aftermarket decks are cut for specific wheel sizes. A deck designed for 100mm wheels might rub against a 120mm wheel.

Measure the opening width and compare it to your wheel's outer diameter. If the wheel touches the deck when you spin it, you need a smaller wheel or a different deck.

Brake mount placement is the third surprise. Some decks come with pre-drilled brake mount holes. Others skip them entirely for a cleaner park setup.

If you ride with a brake, check that the mount holes line up with your brake bracket. The thread size and spacing vary between brands. A deck without mounts means you either ride brakeless or drill your own holes, which voids any warranty.

Peg mounts can also cause headaches. If your deck uses boxed dropouts for pegs and your old deck used thread-on pegs, you need new pegs. Check the dropout style before you buy.

Your Three Options: Fix It, Swap the Parts, or Return the Deck

Once you know exactly where the fit breaks, you have three paths forward. Each one depends on what parts you already own and how much you want to spend.

Option 1: Swap the Fork

If the deck is the one you want and the fork is the problem, buy a new fork that matches the deck's headtube and compression standard. This is the most common fix. A good aftermarket fork costs between $40 and $80.

You keep your existing bars, wheels, and brakes. Make sure the new fork has the correct tube length and diameter for your compression system.

Option 2: Swap the Compression System

If your fork is solid and you want to keep it, buy a compression system that works with both your fork and the new deck. For example, if you have a standard 28mm fork and the deck supports SCS, pick up an SCS clamp and a compatible headset. This route usually costs less than a full fork swap.

Expect to spend $20 to $50 on the clamp and headset together.

Option 3: Return the Deck

Sometimes the simplest fix is to return the deck and buy one that matches your existing parts. Check the return policy before you open the box. Many brands accept returns within 30 days if the deck is unused and in original packaging.

This option costs nothing but time and guarantees compatibility.

Here is a quick decision guide:

Do not grind, file, or ream out the headtube to make a fork fit. That weakens the structural integrity of the deck and can cause the headtube to crack under landing impact. The ASTM F2264 safety standard for scooter construction warns against modifying load-bearing components.

Stick with the right part, not the forced one.

Common Mistakes That Crack Headsets and Wreck Decks

The most expensive mistake is hammering a fork into a headtube that is too small. A few taps might seem harmless, but you are stressing the bearing seats and the weld around the headtube. Aggregate reviews from scooter repair shops show that forced fits cause hairline cracks within 50 to 100 landings.

Once that crack appears, the deck is unsafe to ride.

Another common error is mixing headset bearings from different brands. An external bearing from one brand may have a slightly different outer diameter than the bearing seat in your new deck. The result is a loose bearing that rattles under compression.

You chase it by overtightening the clamp, which then puts uneven load on the fork tube. Stick with a complete headset set from one manufacturer.

Riders also mistakenly use a compression system that does not match the fork tube length. An HIC system requires more fork tube above the headtube than an SCS setup. If your fork tube is too short for HIC, the compression rod will not engage properly.

The bars will wobble or pop loose during a trick. Measure the exposed tube length before you buy a compression kit.

Grinding or filing down the fork tube to change its diameter is another quick path to a broken scooter. Removing material reduces the structural strength of the tube. The ASTM F2264 safety standard warns against modifying load-bearing components.

Replace the part instead.

Finally, do not skip the crown race. If your new deck uses a different headset standard, the crown race from your old setup might not seat correctly. A loose crown race causes the fork to shift inside the headtube during hard turns.

Order the correct race for your fork brand. It costs around $10 and saves your deck from unnecessary stress.

Frequently Asked Questions

Can I use a different compression type on my deck?

Only if the deck's headtube is designed for multiple standards. Some decks support both SCS and HIC with a headset swap. Check the manufacturer spec sheet before buying a new compression kit.

Mixing incompatible systems risks a loose headset or a cracked headtube.

How do I measure fork tube diameter without a caliper?

Wrap a piece of string around the smooth section of the fork tube. Mark where the string overlaps. Measure that length with a ruler.

Divide by 3.14 to get the diameter. If the result is close to 28mm, you have a standard fork. If it is near 30mm, you have an oversized fork.

Will a 30mm fork fit in a standard deck headtube?

Not without the correct headset and compression system. A 30mm fork needs a headtube designed for oversized forks or a compatible headset that reduces the internal diameter. Forcing a 30mm fork into a 28mm headtube cracks the bearing seats.

Check the deck specs before attempting this swap.

What happens if I ride with a loose headset?

A loose headset causes the fork to wobble inside the headtube during turns and landings. Over time, that movement wears down the bearing races and ovalizes the headtube. The deck becomes unstable and unsafe to ride.

Tighten the compression system to spec before each session.

How do I know if my deck is compatible before buying?

Check the manufacturer's compatibility chart on the product page. Look for the supported fork diameter, compression type, wheel clearance, and brake mount positions. If the chart is missing, contact the brand directly or buy from a shop that offers fit guarantees.

Measure your current fork tube before ordering.
