Trick Scooter Brake Won’t Fit

So your trick scooter brake won't fit. You've got the new part in your hand, the wheel's off, and nothing lines up the way it should. The bolts won't catch, the caliper rubs the frame, or the whole thing just sits there mocking you.

It's frustrating, but you're not alone, and it's almost never a lost cause.

Manufacturer specifications indicate that most trick scooter forks use either a 110mm or 120mm brake mount spacing, depending on the wheel size and brand. Confusing these two measurements is the single most common reason a brake won't physically bolt on. Let's walk through exactly what to check and how to fix each scenario.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your trick scooter brake won't fit because of a physical mismatch. The most common causes are wrong mount spacing, wrong axle size, or wheel clearance issues. Measure the distance between your fork's brake mount holes first.

Standard spacing is 110mm for most aftermarket forks. If yours measures 120mm, you need a different brake or an adapter.

First, Check These Three Things Before Buying or Fitting Any Brake

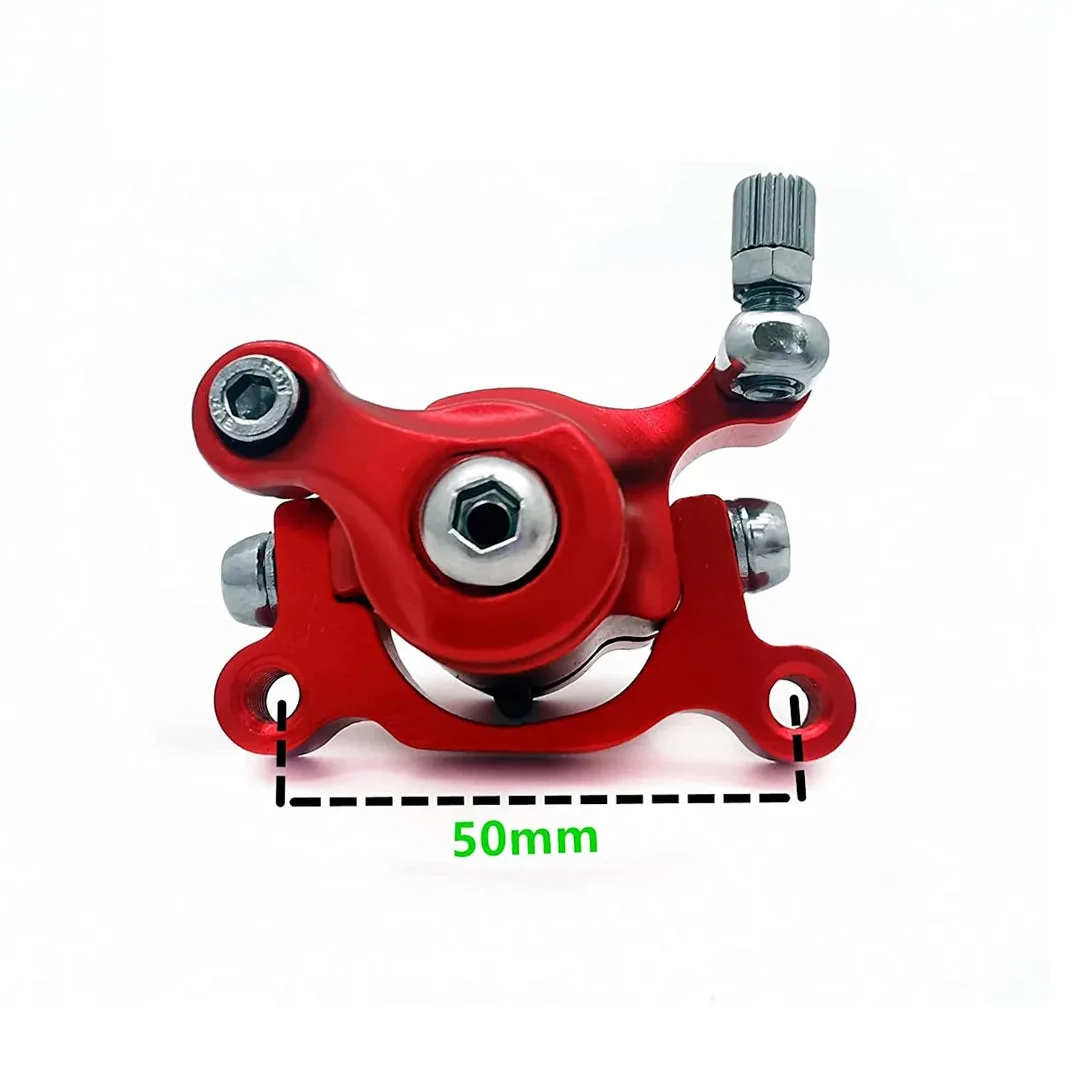

Brake mount spacing is the first thing to verify. Grab a ruler or tape measure and check the distance between the two threaded holes on your fork where the brake bolts on. If you have a U-brake style, the standard spacing is 110mm. Many newer forks designed for 120mm wheels use 120mm spacing instead.

Trying to force a 110mm brake onto 120mm mounts will never work without an adapter or a new fork.

The axle diameter and thread type matter just as much. Nearly all modern trick scooters use an 8mm axle with standard threading. But if you're working with an older scooter or a budget model, you might find a 6mm axle or a different thread pitch. The brake's mounting bolts need to match the fork's threads, not just the axle hole.

Check the threads with a bolt from your existing brake setup if you have one.

Wheel and hub clearance can surprise you. Even if the bolts line up, the brake caliper might touch the wheel hub, the tire, or the deck sidewall. Spin the wheel after loosely mounting the brake. If you hear rubbing, check whether the brake pads are too thick or the caliper sits too far inward.

Per ASTM F2264, there should be a clear gap with no drag when the wheel rotates freely.

Image source: Bing (Web (fair-use with source credit))

U-Brake vs Disc Brake: Two Different Fitment Problems

U-brakes and disc brakes mount in completely different ways. If you're swapping from one type to the other, you cannot reuse the same mounting holes.

Branch 1: The U-brake caliper bolts don't line up with the fork mounts. This usually means a mount spacing mismatch. If you measure 110mm spacing but the brake is designed for 120mm, you have a clear answer: the brake is not compatible with the fork. Spacers and adapters exist, but they add width and can shift the brake off-center.

Branch 2: The disc brake caliper hits the fork or frame. Disc brakes require a specific mount standard. Most trick scooter forks with disc mounts use the IS (International Standard) pattern, which requires a separate caliper adapter for your rotor size. If the caliper touches the fork leg, you likely have the wrong adapter or no adapter at all.

Branch 3: The brake pads rub the wheel, deck, or pegs. This happens when the brake sits too low, too high, or too far inward. For U-brakes, check the reach of the caliper arms. The pads need to align with the rim braking surface, not the tire sidewall.

For disc brakes, the caliper must center over the rotor. If it's off, loosen the caliper bolts, squeeze the brake lever tight, and retighten while holding pressure.

How to Fix Your Brake Fitment Without Buying a Whole New Setup

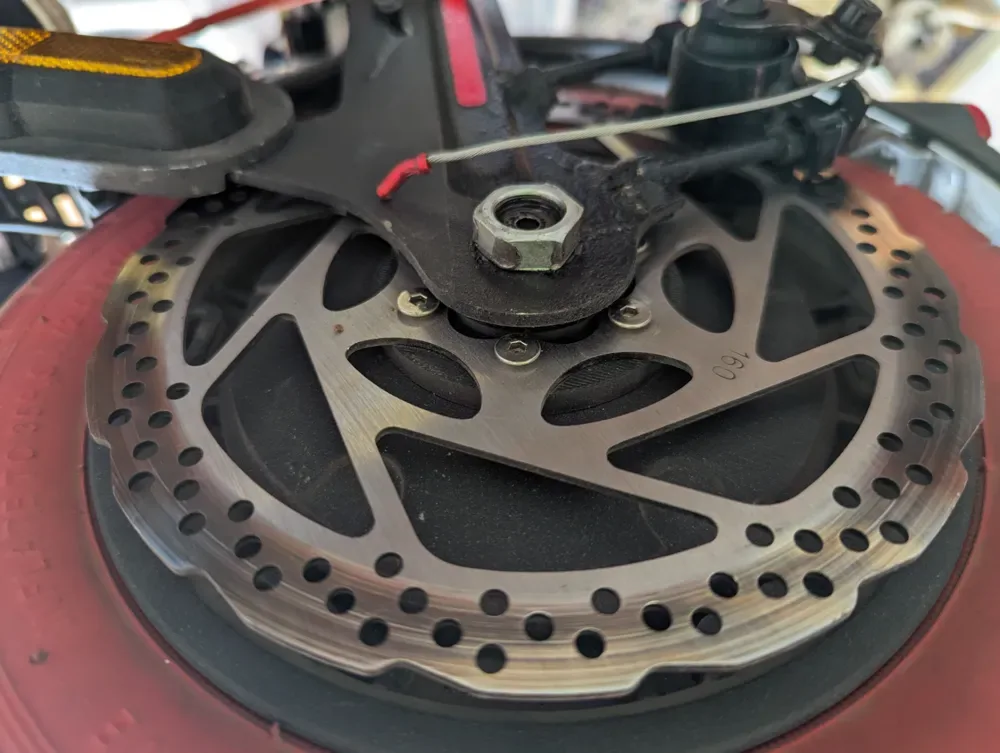

Brake mount spacers or shim kits can solve minor spacing issues. If your brake bolts are snug but the caliper sits slightly crooked, thin washers on the bolts can shift the caliper into alignment. Stack them behind the mounting ear of the brake on one side only. This is a trial-and-error process.

Use metal washers, not plastic, to avoid crushing under torque.

Swapping bolts can fix thread mismatch or length problems. If the bolts are too long, they hit the wheel hub. If they're too short, they won't engage the fork threads fully. Standard brake bolts for trick scooters are usually M4 or M5 thread, about 8 to 12mm long.

Check your fork's thread depth with a known bolt before buying new hardware. Add a drop of threadlocker to prevent vibration loosening.

Adjusting brake pad reach and centering the calipers fixes rubbing issues. Most U-brakes have a small hex bolt on each arm that adjusts how far the pad sits from the rim. Loosen it, slide the pad to the right position, then tighten. For disc brakes, the caliper itself can slide side to side on its mounting bolts.

Loosen them, center the caliper over the rotor manually, then retighten.

Image source: Bing (Web (fair-use with source credit))

5 Mistakes That Wreck Brake Fitment (And How to Avoid Them)

Forcing the bolts in without checking alignment. If a bolt doesn't thread smoothly, don't push harder. You risk stripping the fork's brake mount threads. Back it out, check for thread damage, and try a known good bolt.

Using the wrong bolts from other parts. Brake bolts are not universal. Bolts from a brake lever or handlebar clamp have different thread pitch and length. Always use the bolts that came with the brake or verified replacements.

Ignoring wheel and tire clearance. A brake that fits the fork can still rub the tire if the wheel is too wide or the tire is oversized. Test-fit everything loosely before tightening down fully.

Skipping the threadlocker. Scooter vibrations can loosen brake bolts over time. A loose brake can shift mid-ride and start rubbing or fail entirely. Use medium-strength threadlocker on brake mounting bolts.

Forgetting about peg clearance. If you ride with pegs, the brake needs to clear the peg mounting area. A caliper that sits too far inward can get hit by an installed peg. Check clearance with the peg mounted and the wheel spinning.

When to Stop Fitting It and Just Buy a New Brake or Fork

Matching the right U-brake to your fork's mount spacing saves the most hassle. If you have 120mm spacing, buy a brake designed for 120mm mounts. Trying to adapt a 110mm brake with spacers is possible but often results in a crooked caliper that never centers properly. A correctly matched brake costs about the same as a set of adapters and works better.

Upgrading your fork to fit a disc brake has a cost-benefit trade-off. As of 2026, a new fork runs from $60 to $150. If you already own a disc brake and the fork is the only incompatible piece, a fork swap might be cheaper than replacing the brake. But if your current frame also lacks disc mounts, you're looking at a full rear end change, which is rarely worth it for just a brake upgrade.

Running brakeless vs making it fit is an honest trade-off. Some riders choose to run brakeless entirely. It's simpler, lighter, and removes all fitment problems. But many skateparks and organized events require a functioning rear brake.

Local regulations in some areas also mandate a brake on scooters used in public spaces. Check your local rules before removing the brake completely. If you need a brake for safety or legality, make it fit properly rather than settling for a half-working setup.

Brake Maintenance After Installation: Keeping It Quiet and Reliable

Cable tension and lever feel determine how your brake performs. Once the brake fits, you still need the proper pull. Hold the brake arms against the rim with light pressure and tighten the cable anchor bolt. The lever should have a small amount of free travel before the pads engage.

If it feels spongy, tighten the barrel adjuster a quarter turn at a time until it firms up.

Pad wear comes faster than most riders expect. U-brake pads and disc brake pads both wear down with use, especially in dusty park conditions. Check the pad surface every couple of weeks. If the grooves are gone or the surface looks glazed, replace them.

Worn pads don't just stop worse, they can also make a horrible squeal that sounds like a fitment issue but isn't.

Loose bolts will ruin a perfectly tuned brake. Vibrations from jumps, grinds, and flat ground speed all work against your hardware. Per manufacturer installation guides, brake mounting bolts should be checked and re-torqued after the first few rides. Use medium-strength threadlocker on the brake mount bolts and the cable anchor bolt.

A loose caliper shifts sideways when you pull the lever, which feels like a rubbing or alignment problem.

Lubricate the pivot points sparingly. A drop of light oil on the spring mechanism and pivot bolts keeps the arms returning smoothly. Avoid getting lubricant on the brake pads or the rim. Oil on the braking surface kills stopping power completely until you clean it off.

When in doubt, do a full brake test before a serious session. Lift the rear wheel and spin it. Pull the brake and confirm the wheel locks instantly. Then do a slow roll test and apply the brake at walking speed.

If anything feels off, go back through the adjustment steps. A properly mounted brake should feel sharp, quiet, and responsive.

Frequently Asked Questions

Is it okay to ride with the brake rubbing slightly?

No. A rubbing brake creates constant drag, slows you down, and wears out your pads fast. It also heats the rim or rotor over long rides.

Fix the contact instead of riding through it. Loosen the pads, recenter them, and retighten.

Can I use zip ties to hold a brake that won't mount?

Zip ties are not a repair. They're a temporary trick to get home after a failure. A brake held on with zip ties can shift under load and lock your wheel unexpectedly.

Stop riding and fix the mounting issue properly.

Do I need a brake on my trick scooter?

Most public skateparks and many local rules require a functioning rear brake. Per the U.S. Consumer Product Safety Commission, scooters sold in the U.S. must have a rear brake that meets performance standards.

If you ride in skateparks or events, keeping a working brake is the smart move.

What's the difference between 110mm and 120mm brake mounts?

The number refers to the distance between the two brake mount holes on the fork. A 110mm mount fits most aftermarket forks with 100mm to 120mm wheels. A 120mm mount appears on wider forks, often designed for disc brakes or 125mm wheels.

Measure yours before buying anything.

Will a disc brake fit on any trick scooter fork?

No. Disc brakes only fit forks with a dedicated disc brake mount, typically an IS mount. Most standard trick scooter forks lack these mounts.

You'd need a specific disc-compatible fork, plus the correct caliper adapter for your rotor size.
