Trick Scooter IHC Compression Problem

Image source: Bing (Web (fair-use with source credit))

IHC Compression Basics: What the Wedge, Bolt, and Spacers Actually Do

How the Integrated Headset system compresses (and why it's different from HIC)

The fork's steerer tube fits inside the handlebar. A small conical wedge sits inside that steerer tube. When you tighten the compression bolt, it pulls the wedge upward.

That expands the wedge against the inner wall and locks the fork to the handlebar. This same tension preloads the headset bearings underneath.

Hidden Internal Compression (HIC) uses an external clamp to squeeze the bar and fork together. IHC uses no external clamp. The wedge does the clamping internally.

That's why visual diagnosis matters so much. You can't see the wedge working from outside, but you can see the gaps and angles that reveal what's wrong.

Why a one-millimeter spacer gap ruins the whole setup

If the spacer stack is even 1 mm too tall, the top cap rests on the spacer instead of the steerer tube. The bolt tightens, but the headset never compresses. That leaves a wobble that only gets worse as you ride.

IHC systems are precise. Small measurements matter more than torque.

What a Healthy IHC Compression System Looks Like

Visual check: spacer stack height, wedge seating, and bolt angle

A healthy setup has clear visual signatures. The top cap should sit flush or just below the top of the handlebar. The compression bolt head should be centered and straight.

If it tilts, the wedge is sitting crooked or the bolt threads are damaged.

Check the spacer stack. There should be no daylight between spacers. The stack should sit flat against the headset.

Check the headset cups too. They should be flush with the frame with no visible gap. A gap means the bearing isn't fully seated.

Sound and feel clues: binding, clicking, or bar slop

Grab the front brake and rock the bars forward and backward. If you feel a clunk, the headset is loose. Lift the front wheel off the ground and spin the bars.

A healthy system turns smooth with no gritty catch or tight spot.

Clicking when you brake is usually a loose headset. Clicking when you turn is often a worn bearing. A healthy IHC system doesn't need excessive tightening.

It just needs the right stack height and a wedge that can bite.

Visual Troubleshooting Guide: Diagnosing the Problem by What You See

Wedge visible under the headset: what it means

Image source: Bing (Web (fair-use with source credit))

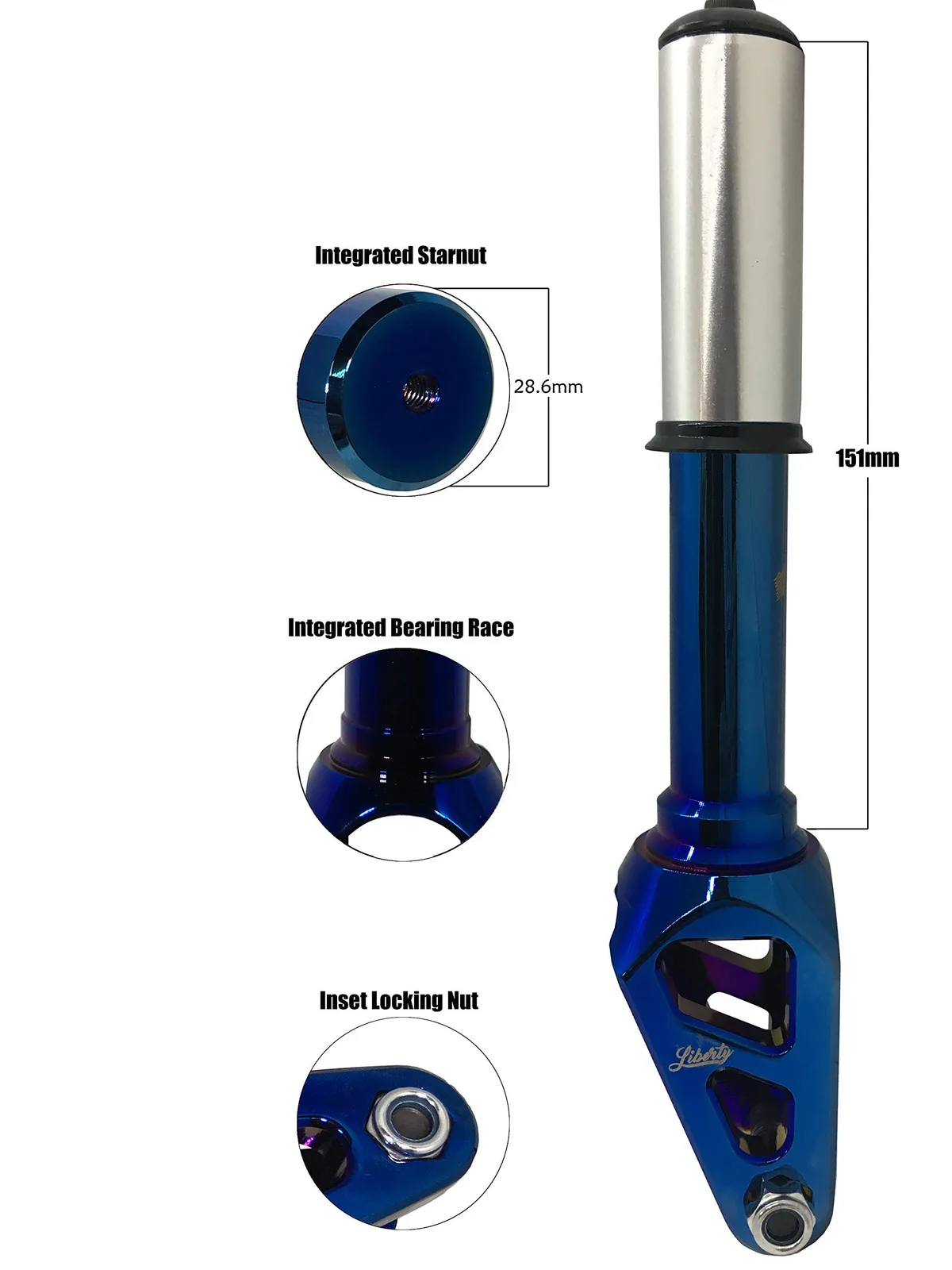

A visible wedge is the biggest smoking gun. In a working IHC system, the wedge should sit hidden inside the steerer tube. If you can see it peeking out below the handlebar, it slipped.

That means the compression bolt isn't pulling it up far enough. Or the wedge surface is too worn to hold.

Compression bolt sitting too high or too low

The bolt head should sit just above the top cap. If it sits high by more than a couple of millimeters, the bolt isn't reaching the wedge properly. If it sits below the top cap, the stack height is too short.

The bolt can't create enough tension in that case. Adjust the spacer stack before you blame the bolt.

Headset cups not flush with the frame

A visible gap between the headset cup and the frame is a bearing press problem. The cup might not be fully seated. Riding with a loose cup will slowly ovalize the frame's head tube.

If you see this, stop riding until the bearing is pressed in correctly.

Spacer stack too tall or too short

Too tall means the top cap doesn't push on the steerer tube. Too short means the bolt runs out of threads before it can apply pressure. The fix is simple.

Add or remove spacers until the top cap sits flush when the bolt is snug.

Worn or stripped star nut threads

Silver shavings around the headset are a bad sign. They mean threads are grinding against each other. Check the compression bolt and the threads inside the wedge.

If either one looks shiny, stretched, or rounded out, replace it before riding again.

Fixing the IHC Compression Problem Step by Step

Re-setting the wedge and adjusting spacer stack

Start by removing the bar pad or top cap cover if you have one. Loosen the compression bolt a few full turns. Pull the handlebars straight up to release the wedge.

If it sticks, tap the bolt head gently with a rubber mallet.

Inspect the wedge for flat spots, gouges, or polishing from slipping. If it looks worn, replace it now. Then set your spacer stack.

The goal is to have the top cap sit flush against the steerer tube when the bolt is only snug. Adjust the spacers until that happens.

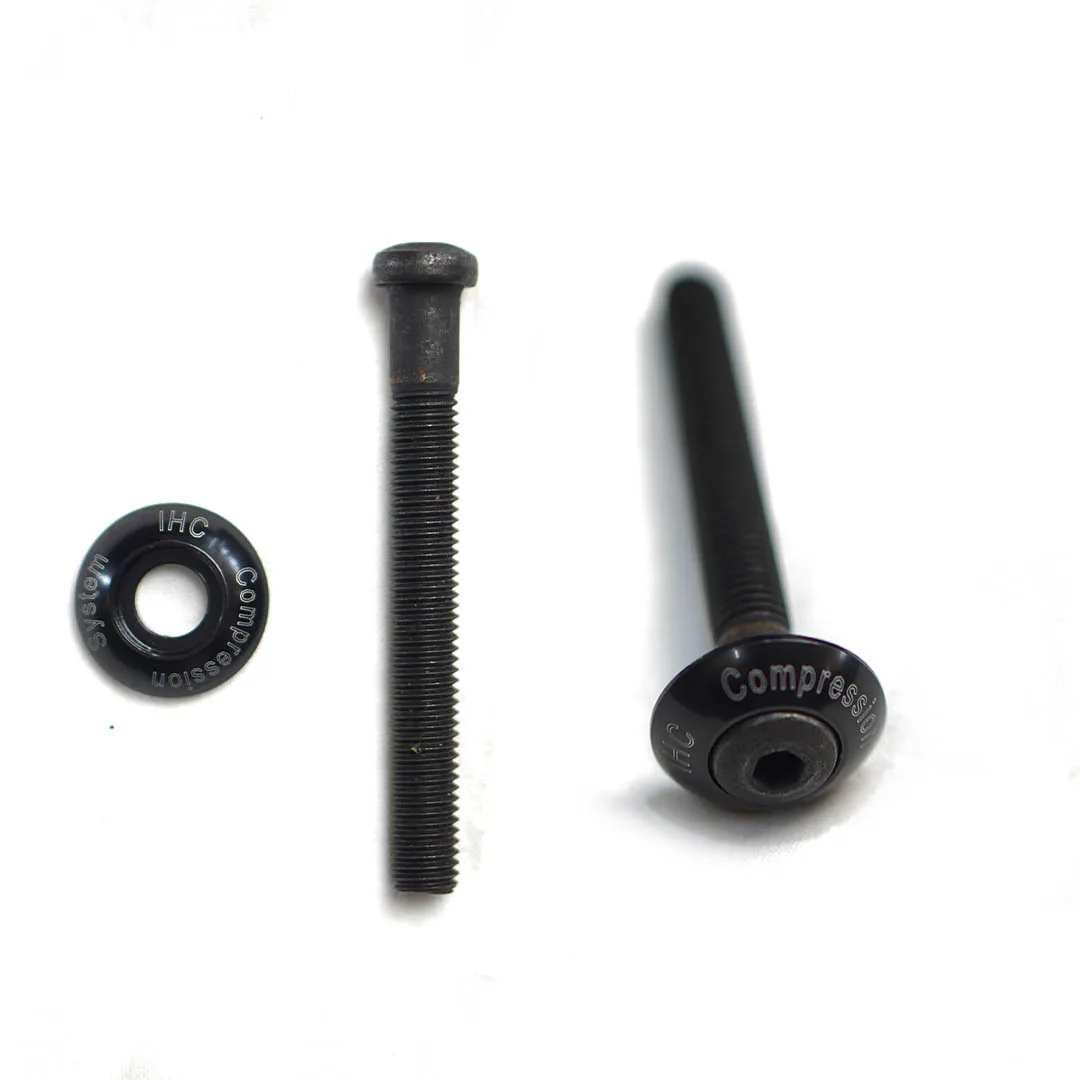

Replacing a stripped compression bolt or wedge nut

If the bolt threads are damaged, don't try to force it back in. Getting the right replacement matters. Match the thread pitch and length to your existing system.

Common IHC bolts are M6 or M8, but lengths vary by fork and handlebar design.

Blue Loctite is worth the extra step. A drop on the compression bolt threads stops vibration from backing the bolt out. That vibration is what eats threads.

It turns a loose headset into a stripped one.

Torquing the compression bolt correctly

Insert the bolt through the top cap and thread it into the wedge. Tighten it gradually while spinning the bars between checks. Stop at the first sign of resistance.

Then move to a torque wrench.

Most M6 and M8 IHC bolts want between 10 and 15 Nm. Overtightening doesn't make the system safer. It makes the wedge more likely to crack.

Check the manufacturer's manual for your specific fork or scooter model before you settle on a number.

Common Visual Mistakes That Lead to IHC Compression Failure

Adding spacers to hide a short steerer tube

Adding spacers makes a short steerer tube look fine, but it doesn't fix the geometry. The extra height moves the top cap away from the wedge. The bolt ends up bottoming out before the headset gets any real tension.

The headset stays loose, and the wobble comes straight back.

Over-tightening the bolt until the wedge cracks

A compression bolt should feel snug, not crushed. Going past the recommended torque can crack the wedge or pull the threads out. Both are silent failures.

The system may feel fine for a few minutes, then go loose mid-ride. When that happens, you're replacing parts instead of making a small adjustment.

Reusing a worn wedge without checking the contact surface

Wedges wear down over time. A worn wedge has polished or shiny areas where it contacts the steerer tube. If you reuse it, it can slip under load.

That slipping action damages the inside of the fork tube. A cheap wedge replacement is much easier than replacing a fork.

Check the bolt grade while you're at it. Per the ISO 898 fastener standard, good bolts carry a grade marking on the head. Grade 8.8 or higher is a common minimum.

If the head has no marking, don't trust it.

IHC vs HIC vs SCS: Knowing Which Compression Problem You're Really Dealing With

Image source: Bing (Web (fair-use with source credit))

The names get confusing fast. Three systems, three compression methods, and three different failure points. But you can tell them apart with one quick look at the handlebar clamp area.

An SCS system has a bulky external clamp with two bolts. It sits below the handlebar and grips the fork from the outside. SCS is the most durable, but it's also the heaviest.

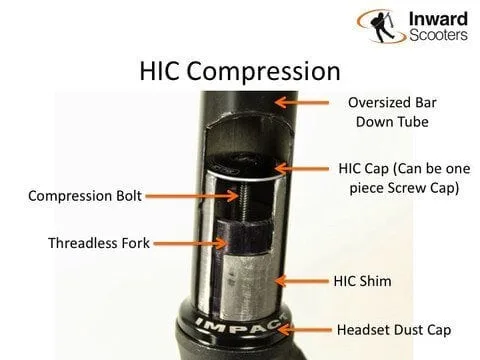

HIC uses a slit clamp under the bar plus a shim inside the handlebar. The top cap bolt compresses the headset, and the clamp locks the bar. You'll see a visible clamp ring with bolts.

IHC has no external clamp. The handlebar is machined to hide the compression bolt inside. You'll see just a top cap and no clamp ring.

If you have a bare top cap and an internal wedge, that's IHC.

Each system has its own problem patterns. HIC wedges slip, SCS bolts snap, and IHC bolts strip. Parts don't transfer between systems.

A shim for HIC won't help an IHC fork. If you're swapping parts, know your system before you buy anything.

IHC Compression Quick-Reference Specs and Torque

Here are the numbers riders and shop techs check first. These are typical values. Always confirm your fork brand's documentation before trusting them.

If the bolt spins freely without resistance, check the thread pitch. Cross-threading is easy on these small bolts. Grease the threads lightly.

It prevents galling and makes your torque reading more accurate.

If your system uses a star nut inside the steerer tube, check that it's seated square. An angled nut makes the wedge sit crooked. That leads to uneven wear.

These cheap checks prevent expensive parts.

IHC Compression Problems: Frequently Asked Questions

These are the questions we see most from riders dealing with a trick scooter IHC compression problem.

Why does my IHC compression keep loosening?

Usually vibration works the bolt loose. A drop of blue Loctite fixes that. Also check the spacer stack.

If the top cap doesn't apply even pressure to the steerer tube, the system will settle and loosen over time.

Can I replace the wedge without replacing the fork?

Yes, in most cases. The wedge is a wear item, not a permanent part. Order the correct size for your fork brand.

Clean the inside of the steerer tube before installing a new wedge. It helps the wedge bite securely.

Should I use blue Loctite on the IHC compression bolt?

Yes. Blue Loctite is designed for parts you may remove later. It stops the bolt from backing out under vibration.

Apply a small drop to the threads, then tighten to spec. It's a ten-second fix for a frustrating problem.

How do I know if my IHC compression bolt is bottomed out?

The bolt stops turning but the handlebars still wobble. Tightening further does nothing. Remove the bolt and inspect the tip.

If you see polished contact marks on the very end, it's been hitting the wedge without moving it.
