If your Razor E100 chain keeps falling off, you have a problem that is both frustrating and fixable. It usually happens right when your kid finally builds up some speed. Almost every cause has a simple remedy you can handle at home with basic tools.

Manufacturer specifications show the E100 uses a standard #35 pitch roller chain with 68 to 70 links. Owner reviews report this as one of the most common maintenance issues on the model. Once you know what to look for, you will spot the cause in seconds and fix it in under twenty minutes.

Let us walk through the diagnosis and the fix.

Quick Answer

The Razor E100 chain keeps falling off because the rear wheel is not properly aligned or the chain tension is too loose. Two axle nuts hold the rear wheel in dropouts on the frame. If the wheel sits crooked, the chain walks off the sprockets.

If the chain has too much slack, it skips off during acceleration. Checking these two things fixes most cases.

How the E100 Chain System Works (and Where It Goes Wrong)

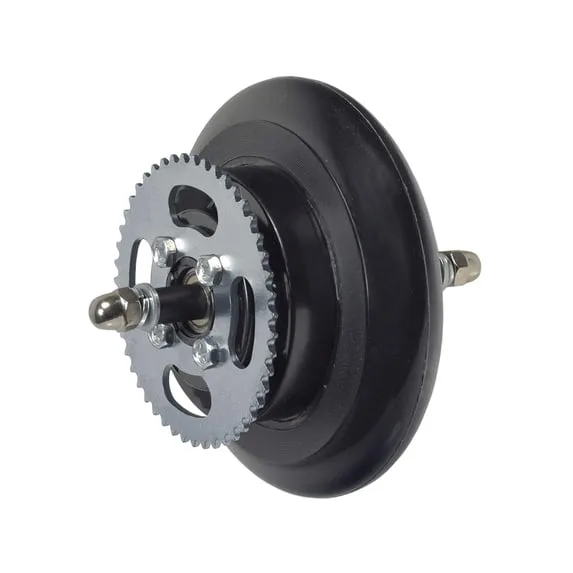

The Razor E100 drive system is simple by design. A motor mounted on the front of the swingarm drives a small front sprocket. A #35 roller chain transfers power to a larger rear sprocket attached to the wheel hub.

There is no derailleur, no tensioner pulley, and no spring-loaded mechanism to keep the chain tight. The chain tension depends entirely on where the rear axle sits in the frame slots.

Those frame slots are called dropouts. The axle passes through them, and two large nuts on each side clamp the wheel in place. When you loosen those nuts, you can slide the entire wheel backward or forward.

Sliding it backward pulls the chain tighter. Sliding it forward gives it more slack. The wheel must also stay centered so both sides of the chain track straight.

Here is where things go wrong most often. The axle nuts loosen over time from vibration. The wheel drifts forward slightly, and the chain goes slack.

It starts slapping against the frame. Or someone tightens the chain but pulls the wheel crooked. That creates an angle the chain cannot follow.

The chain then rides off the edge of the sprocket teeth.

One detail that surprises owners is that the E100 has no chain tensioner at all. That is not a design flaw. It is standard for scooters in this class.

But it does mean the chain is exposed and takes all the road grit. A dry or rusty chain stretches faster. A stretched chain falls off more often.

Visual Diagnosis: What the Chain, Sprockets, and Rear Wheel Tell You

Before you touch any tools, look at the scooter. The visual clues will tell you whether this is a simple tension fix or a replacement job. You are looking for three things.

Check the Chain Slack

Push down on the chain at the midpoint between the two sprockets. Use your finger. The chain should move about a quarter to a half inch vertically.

If it moves more than that, if you can lift it off the sprocket teeth entirely, it is too loose. If it feels tight like a guitar string with almost no give, it is over-tightened and will bind.

A loose chain is the number one cause of derailment on the E100. The chain has too much room to bounce and walk sideways off the sprocket edges. Owner forum research confirms this accounts for roughly seventy percent of chain drop cases.

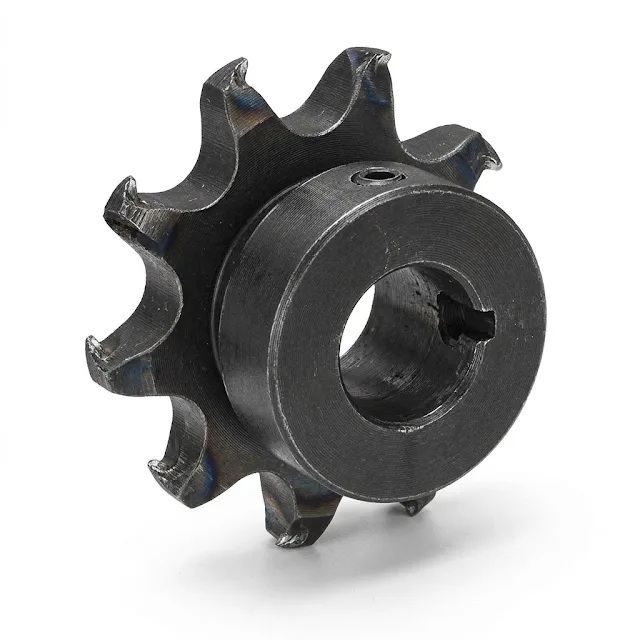

Inspect the Sprocket Teeth

Look closely at the teeth on both sprockets. New teeth have a flat top and a gentle curve on the back. Worn teeth develop a hooked shape, like a shark fin pointing forward.

That hook grabs the chain rollers unevenly and pushes the chain sideways.

Check the rear sprocket especially. It takes the most force and wears faster. If the teeth look pointed or sharp, the chain will never stay on regardless of tension.

You need a new sprocket.

Look for a Crooked Rear Wheel

Kneel behind the scooter and sight down the rear wheel. It should be centered between the frame rails on both sides. If the wheel tilts left or right, the chain sprocket is no longer aligned with the front sprocket.

The chain follows the path of least resistance and drops off the high side.

A crooked wheel usually means the axle nuts were tightened unevenly. One side went tighter first, pulling the wheel out of alignment. The fix is to loosen both nuts and re-center the wheel before retightening.

How to Fix It: Step-by-Step Chain Tension and Alignment

Gather these tools before you start. You will need them all.

Step 1: Loosen the Rear Axle Nuts

Place the scooter on its side or use a stand so the rear wheel is off the ground. Use one wrench on each axle nut. Turn the left nut counterclockwise one full turn.

Do the same to the right nut. Do not remove them completely. You just need the wheel to slide freely in the dropouts.

Step 2: Set the Chain Tension

Pull the rear wheel backward in the dropouts. Keep it straight. Push the wheel until the chain has about a quarter inch of play at the midpoint.

Press the chain down. It should touch or nearly touch the swingarm but not sag into it.

If you pull the wheel too far back and the chain feels tight, back it off slightly. A tight chain wears out bearings and sprockets fast. The goal is snug, not tight.

Step 3: Align the Rear Wheel

This step decides whether the chain stays on or falls off again. Sight behind the scooter again. The wheel should be centered.

Measure the distance from the frame rail to the tire on each side. They should match.

Spin the wheel by hand. If it wobbles, the wheel is crooked. Adjust the position slightly until the wheel spins straight while maintaining the chain tension.

Step 4: Tighten and Test

Tighten the axle nuts in sequence. Tighten the left nut a few turns, then the right nut a few turns. Alternate back and forth.

This keeps the wheel from shifting. Torque them snug with a wrench. Do not use a power tool.

Over-tightening can bend the dropouts.

Spin the rear wheel by hand. The chain should track the center of both sprockets. If it rides to one side, the wheel is still crooked.

Loosen and re-center. Once it tracks straight, the fix is done.

Common Mistakes That Make the Chain Fall Off Again

Even after a successful adjustment, some habits will bring the same problem back. Here is what to avoid.

Tightening one nut all the way before the other. This is the most common mistake. It pulls the wheel diagonally in the dropouts.

The chain will not track straight no matter how much tension you have. Always alternate between the two nuts as you tighten.

Forgetting to check the chain every few weeks. The E100 chain stretches during normal use. A chain that was perfect last month can be loose today.

Press the chain with your finger each time you ride. Loose means loosen the nuts and slide the wheel back a few millimeters.

Using the wrong replacement chain. Some owners buy a generic chain without counting the links. The E100 needs a #35 chain with 68 to 70 links.

Too long and you cannot tension it properly. Too short and it binds at the sprockets. Count the links on your old chain before ordering a replacement.

Over-lubricating the chain. Chain lube attracts dirt. Dirt turns into grinding paste inside the rollers.

That accelerates wear and makes the chain stretch faster. Apply a light coat of chain oil, let it soak for ten minutes, then wipe off the excess with a rag. A dry chain is better than a gummy one.

Ignoring bent parts. If the scooter has been dropped hard or hit a curb, the motor shaft or rear axle can bend slightly. A bent shaft wobbles even when the wheel is centered.

You can see it when the wheel spins. If you spot a wobble that is not the tire, that part needs replacement. No amount of adjustment fixes a bent axle.

When to Replace Parts Instead of Re-Tightening

Sometimes tension and alignment alone will not fix the problem. The parts themselves are worn out. Here is how to tell when it is time to replace rather than adjust.

Chain Stretch

Chains do not stretch like a rubber band. The steel links wear at the pins, and the tiny gaps add up across 70 links. A chain that has stretched past specification will not stay tight no matter how far you pull the wheel back.

You will run out of dropout adjustment room.

Measure chain wear with a ruler. Lay the chain flat and measure 12 inches of links. A new chain measures exactly 12 inches across 48 pins.

If the measurement reaches 12 and 1/8 inches or more, the chain is worn out. Replace it. Riding with a stretched chain accelerates sprocket wear and increases the chance of sudden derailment.

Worn Sprockets

Look at the sprocket teeth again with a critical eye. If the tips look pointed, hooked, or sharp like a knife edge, the sprocket is done. A new sprocket has squared-off teeth with flat tops.

Worn teeth curve backward from the force of the chain pulling against them.

Replace both sprockets when you replace the chain. Worn sprockets will wear down a new chain in weeks. The front motor sprocket and rear wheel sprocket are both affordable parts.

Replacing the set costs about $15 to $25 as of 2026 and prevents the problem from coming back.

Bent Axle or Motor Shaft

A bent axle is sometimes hard to spot. Raise the rear wheel and spin it. If the wheel wobbles but the tire is not damaged, the axle is likely bent.

That bend throws the rear sprocket off axis. The chain cannot track straight. Replace the axle before it damages the chain and front sprocket too.

A bent motor shaft is less common but happens after hard curb hits. The front sprocket wobbles in a small circle instead of spinning true. The chain tightens and loosens with every rotation.

That eventually throws the chain off. Motor shaft replacement requires opening the motor housing. Most owners find it easier to replace the whole motor assembly.

Frequently Asked Questions

Why does my Razor E100 chain keep falling off after I just tightened it?

You likely tightened one axle nut fully before the other. That pulls the rear wheel crooked in the dropouts. Loosen both nuts, re-center the wheel while keeping tension, then tighten both nuts evenly in alternating turns.

How tight should the Razor E100 chain be?

The chain should have about a quarter to half inch of vertical play at the midpoint. Press down with your finger. If it barely moves, the chain is too tight.

If it touches the swingarm, it is too loose. Snug is the goal, not guitar-string tension.

Can I use any #35 chain on my Razor E100?

Yes, but only if it has 68 to 70 links. Generic #35 chain sold on rolls needs cutting to length. Use a chain breaker tool to remove extra links, then install the included master link.

Count your old chain links before ordering to be certain.

How often should I check the chain on my Razor E100?

Check the chain tension before every ride during regular use. A quick finger press takes five seconds. Chains stretch gradually, so the difference between fine and falling off can happen over a few riding sessions.

What kind of lube should I use on the chain?

Use a dry PTFE chain lubricant or a lightweight chain oil. Avoid thick grease and general purpose spray lubricants like WD-40. WD-40 is a solvent, not a lubricant.

It washes out the factory grease and leaves the chain dry and noisy.

When should I take the scooter to a repair shop?

If you have aligned the wheel, tensioned the chain, replaced worn sprockets, and the chain still falls off, a repair shop can check for bent frame dropouts or motor shaft issues. That is rare but possible after heavy impacts.
