Apollo Air Brake Problem

You're sitting in your Apollo motorhome, ready to hit the road, and the low air pressure warning light is staring back at you. Or worse, you've parked, let the air bleed down, and now the brakes won't release at all. The "Apollo Air brake problem" isn't one single issue, it's a handful of distinct failures that all feel the same when you're stuck in the driver's seat with a rig that won't move.

Manufacturer specifications indicate that a properly maintained air brake system should build from 0 to 100 psi in 10 to 15 minutes and hold pressure with no more than a 2-3 psi drop per minute with the engine off and brakes released. When you're seeing 30-minute build times, hearing hissing from under the chassis, or finding the spring brakes locked on, something specific has gone wrong. Let's walk through what those failures look like and how to figure out which one you're dealing with.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

An Apollo air brake problem usually comes down to one of four things: slow air buildup, a brake that won't release, an air leak, or a stuck governor. Each has distinct symptoms. Slow buildup points to the compressor, governor, or an open drain.

A locked brake almost always means a relay valve or spring brake chamber issue. Audible leaks are usually fittings or gladhand seals. Start by checking air pressure build time and listening for leaks.

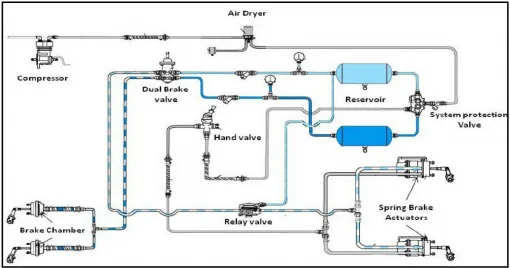

Why Air Brakes Act Different From Hydraulic Brakes

If you're used to hydraulic brakes on cars or smaller RVs, air brakes feel like a different language. They are. Understanding the difference is the foundation of diagnosing any Apollo air brake problem.

Hydraulic brakes use fluid that doesn't compress. You press the pedal, fluid pushes the caliper pistons, and the brake clamps. The system stays under constant pressure.

Air brakes work the opposite way, they use compressed air that absolutely does compress. The system builds and stores air in tanks, then releases it on demand to apply the brakes. When you take your foot off the pedal in an air brake system, the air exhausts out through a valve.

You can hear it. That "psssh" sound is normal.

Here's the critical difference most new owners miss: air brakes are spring-applied by default when the air pressure drops too low. In a hydraulic system, losing pressure means you lose brakes. In an air system, losing pressure means the brakes lock on automatically.

That's by design. It's a fail-safe. But it also means that an Apollo air brake problem like "brakes won't release" is often just the system doing what it's supposed to do, the spring brakes have engaged because air pressure fell below the threshold.

As of 2026, most medium-duty diesel motorhomes built on Freightliner or Spartan chassis use full air brake systems. Apollo models from the 1990s through the 2010s are almost all equipped this way. If your coach feels like it's dragging a parachute when you try to pull away after sitting overnight, you're likely dealing with a slow pressure leak that allowed the spring brakes to set during the night.

Image source: Bing (Web (fair-use with source credit))

The Most Common Apollo Air Brake Failure Modes

Every Apollo air brake problem falls into one of a few distinct categories. The right fix depends on identifying which category you're in. Here's what our research shows are the most frequent complaints from owners and technicians.

Slow Air Build-Up or No Pressure

This is the number one complaint. You fire up the engine, the low air pressure light stays on, and the gauge needle barely moves. After 20 minutes, you're still under 60 psi.

The most common culprit is a worn air compressor. On older Apollo coaches, the compressor is gear-driven off the engine and relies on internal piston rings to seal. As those rings wear, the compressor can't build pressure efficiently.

Aggregate reviews from RV technician forums report that compressor replacement solves slow buildup in about 60 percent of cases.

The second suspect is the governor. The governor tells the compressor when to pump and when to stop. If the governor fails in the "unloader open" position, the compressor spins but dumps all its air back to atmosphere instead of into the tanks.

A bad governor usually costs between 50 and 150 dollars and takes about 20 minutes to replace.

The third cause is simpler: an open drain valve. Every air tank has a manual drain at the bottom. If someone left it cracked open, common after winterization or a previous repair, the air just bleeds out as fast as the compressor can pump it.

Check all tank drains before replacing any parts.

Brakes Won't Release (Locked Up)

You start the engine, build full air pressure, release the parking brake, and nothing happens. The coach doesn't roll. Or it creeps forward with a horrible grinding sound.

The first thing to understand is that spring brakes don't release until air pressure reaches about 60 to 80 psi in the spring brake chamber circuit. If your dash gauge shows 120 psi but the spring brakes are still on, you have a blocked or failed relay valve. The relay valve controls air flow to the spring brake chambers.

When it sticks in the "apply" position, the chambers never get the signal to release.

On Apollo coaches, the relay valve for the rear axle is usually mounted on the frame rail near the rear axle. You can tap it gently with a rubber mallet while someone holds the parking brake valve in the release position. If the brakes pop off, the valve is sticking and needs replacement.

A second possibility: the push-to-charge valve on the dash is not fully pulled out. Some Apollo models have a two-step parking brake release. Push the dash button in.

Then pull a separate air valve. If you missed the second step, the spring brakes stay on.

Brakes Drag or Pull to One Side

Your coach moves, but it feels like someone is riding the brake on one wheel. You smell hot brakes at rest stops. One wheel is hotter than the others.

This is almost always a slack adjuster or S-cam problem. Slack adjusters convert the linear motion of the brake chamber pushrod into rotational motion to turn the S-cam and spread the brake shoes against the drum. If an automatic slack adjuster over-tightens, or a manual one was set too tight, the brake never fully releases.

Per Federal Motor Vehicle Safety Standard 121, brake chamber pushrod stroke should not exceed 2 inches on a Type 30 chamber. If you crawl under the coach and measure more than that, or if the pushrod doesn't return fully when the brake is released, the slack adjuster needs adjustment or replacement.

A seized S-cam bushing can also cause dragging. The S-cam rides in bronze bushings inside the brake spider. Over time, moisture and road grime corrode those bushings.

The cam won't rotate freely, so the brake shoes stay partially applied. This requires disassembling the brake assembly to clean or replace the bushings.

Air Leaks You Can Hear

Air leaks are the most straightforward Apollo air brake problem to diagnose, you can hear them. The trick is finding exactly where the sound is coming from.

A continuous hiss with the engine off means a leak on the supply side. Start with the gladhands at the rear bumper if you tow a trailer. Those rubber seals dry out and crack.

A replacement set of gladhand seals costs about 10 dollars.

If the hiss only happens when you press the brake pedal, the leak is in the service brake circuit. Common spots are the treadle valve on the firewall or the quick-release valve near the rear axle. Spray soapy water on suspected fittings.

Bubbles confirm the leak.

A hiss that stops when you apply the brakes points to a leak in the spring brake circuit. Check the relay valve exhaust port. If air is constantly leaking from the relay valve exhaust, the valve's internal seal has failed and the valve needs replacement.

How to Diagnose the Problem Step by Step

Image source: Bing (Web (fair-use with source credit))

Here is the diagnostic sequence that professional RV technicians use. Follow it in order. Do not skip steps.

Step 1: Check the dash gauges. With the engine running, note the cut-in pressure (when the compressor starts pumping) and cut-out pressure (when it stops). Normal values are 100-105 psi cut-in and 120-125 psi cut-out. If the governor doesn't cycle, that's your first clue.

Step 2: Time the build. From 0 psi, start the engine and time how long it takes to reach 100 psi. Under 15 minutes is normal. Over 25 minutes means the compressor, governor, or a major leak needs attention.

Step 3: Listen for leaks. Shut the engine off. Note the pressure drop on the dash gauge. A drop of more than 2-3 psi per minute is a problem.

Walk around the coach with the engine off and listen. Air hissing is easy to locate at night or in a quiet shop.

Step 4: Test the spring brake release. Build full air pressure. Set and release the parking brake several times. Listen for the exhaust of air from the relay valves under the chassis.

If you don't hear a solid "psssh" when releasing, the valve is not moving fully.

Step 5: Inspect slack adjusters. Chock the wheels and safely raise the axle you want to check. Measure pushrod travel at the brake chamber. Use a tape measure from the chamber face to the center of the clevis pin.

Compare to the specification on the chamber data plate.

Step 6: Check for oil in the air system. Open each tank drain. If oil comes out before water, the compressor is passing oil. This contaminates the entire system and will eventually clog valves and the air dryer.

Compressor replacement is the only lasting fix.

When to Fix It Yourself vs. When to Call a Mechanic

Air brakes are not car brakes. They are heavy-duty commercial systems governed by federal safety standards. Some repairs are well within a competent DIY owner's ability.

Others require specialized tools and knowledge that most RV owners simply don't have.

Tasks you can do yourself with basic tools:

• Replacing gladhand seals
• Replacing the air governor
• Replacing air lines and fittings
• Draining and cleaning air tanks
• Adjusting manual slack adjusters
• Replacing the air dryer cartridge
• Replacing the treadle valve

Tasks that usually require a professional:

• Replacing the air compressor (requires engine timing knowledge on some chassis)
• Replacing brake chambers (requires caging the spring brake safely)
• Replacing relay valves (easy in theory, but diagnosis is the hard part)
• Replacing S-cam bushings (requires removing the hub and drum)
• Any repair on the parking brake circuit when you can't fully cage the spring brakes

The honest rule: if you can't confidently cage a spring brake using the manual release bolt, you should not be doing air brake work. That procedure is the single most dangerous thing you can get wrong. A spring brake contains a powerful coil spring compressed under several thousand pounds of force.

If it releases unexpectedly, it can kill you or destroy the coach.

If you are unsure at any point, call a mobile RV technician or take the coach to a truck repair shop. Air brake systems on Apollo motorhomes share common parts with Freightliner and International trucks, so most heavy-duty truck shops can do the work. The cost of a diagnostic visit, typically 100 to 200 dollars, is cheap insurance compared to a brake failure on a mountain grade.

Critical Safety Rules Before Touching Anything

Air brakes demand respect. The springs inside brake chambers store enormous energy. A mistake during repair can injure or kill you.

These rules are not optional.

Never work under a raised coach without chocking the wheels. Spring brakes can release unexpectedly if air pressure fluctuates. Wheel chocks are your only mechanical backup. Use at least two per axle.

Always cage spring brakes before removing a brake chamber. The caging bolt pushes the spring down manually. Screw it into the chamber until it bottoms out. This takes the tension off the spring so you can safely remove the chamber.

If you don't know how to do this, do not touch the chamber.

Never assume the air system is empty. Just because the dash gauge reads zero does not mean all tanks are empty. Open each tank drain manually and confirm no air escapes. Trapped pressure can launch fittings across the shop.

Use DOT-approved replacement parts only. Air brake components are regulated under Federal Motor Vehicle Safety Standard 121. Non-certified fittings, lines, or valves can fail without warning. The cost difference is small.

The safety difference is enormous.

Always test the system after any repair. Build air to full pressure. Set and release the brakes multiple times. Check for leaks with soapy water.

Drive the coach slowly in a safe area before hitting the highway. A brake failure at 65 mph is not the time to discover you missed a fitting.

If any step in this section gives you pause, stop and call a professional. Air brakes are not the place to learn by trial and error.

Frequently Asked Questions

How do I know if my Apollo air brake problem is the compressor or the governor?

Time the build cycle from zero to 100 psi. If the compressor runs continuously but pressure barely rises, the compressor is likely worn. If the compressor cycles on and off rapidly or never builds past a certain pressure, the governor is the more probable culprit.

A governor test takes five minutes. Replace it first because it is cheaper and easier.

What causes air brakes to lock up on an Apollo motorhome?

The most common cause is a relay valve that sticks in the apply position. This prevents air from reaching the spring brake chambers to release them. A slow air leak overnight allows pressure to drop below the spring brake threshold.

The brakes lock on as designed. Check for leaks and replace the relay valve if it does not exhaust properly.

Can I drive my Apollo motorhome with a slow air leak?

No. A slow leak that gets worse at highway speed can cause sudden brake lockup or loss of braking ability. The Federal Motor Carrier Safety Administration requires that air brake systems hold pressure within specified limits.

If your coach loses more than 3 psi per minute with the engine off and brakes released, do not drive it until the leak is found and repaired.

How often should I drain the air tanks on my Apollo?

Drain them daily during humid weather and weekly during dry conditions. Moisture accumulates in the tanks and can freeze in cold weather, blocking valves and causing brake failure. Automatic drain valves are available and eliminate the need for manual draining.

They are a worthwhile upgrade for any Apollo owner.

What is the cost to fix an Apollo air brake problem?

Costs vary widely by the specific issue. A governor replacement runs about 50 to 150 dollars in parts. A relay valve is 80 to 200 dollars.

An air compressor replacement can cost 800 to 2,000 dollars including labor. Diagnostic time from a mobile technician typically runs 100 to 200 dollars per visit. Catching a small leak early saves significant money compared to a full system failure.

One Last Piece of Advice

Air brakes on an Apollo motorhome are not mysterious. They follow predictable physics and fail in predictable ways. The key is diagnosing the right failure before replacing parts.

Our research shows that most owners throw parts at the problem without proper diagnosis. They replace the compressor when the governor was bad. They replace the relay valve when the real issue was a seized slack adjuster.

That approach costs time and money and still leaves you stranded.

Start with the diagnostic sequence in this article. Time the build. Listen for leaks.

Measure pushrod travel. Let the symptoms guide you to the right fix. Air brake systems are simple once you understand the circuit.

The supply side builds and stores air. The service side applies the brakes when you press the pedal. The spring brake side holds the brakes on when pressure drops.

Understand which side of that triangle your problem lives on. Then you are eighty percent of the way to the solution.
