Apollo Air Not Charging

If your Apollo Air has suddenly stopped charging, you're not alone. This is one of the most common complaints among Apollo scooter owners, and in most cases, the fix is simpler than you'd think. Your Apollo Air not charging could be a dead charger, a tripped battery management system, or something as minor as a dirty charging port.

We're going to walk through each possibility step by step.

Most Apollo Air models use a 36V lithium-ion battery pack paired with a 42V 2A charger. The charger's LED indicator is your single best diagnostic tool. Green means it sees no load.

Red means it's actively charging. Understanding what that light is telling you is the difference between a five minute fix and an unnecessary service call.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Your Apollo Air likely isn't charging because the BMS entered protection mode. This happens when the battery drains too low. Plug the charger in and leave it for 30 to 60 minutes.

If the charger stays green after an hour, check the fuse. If the charger won't light up at all, test your wall outlet. If none of that works, the charger itself may be dead.

The Charger Light Tells You Everything

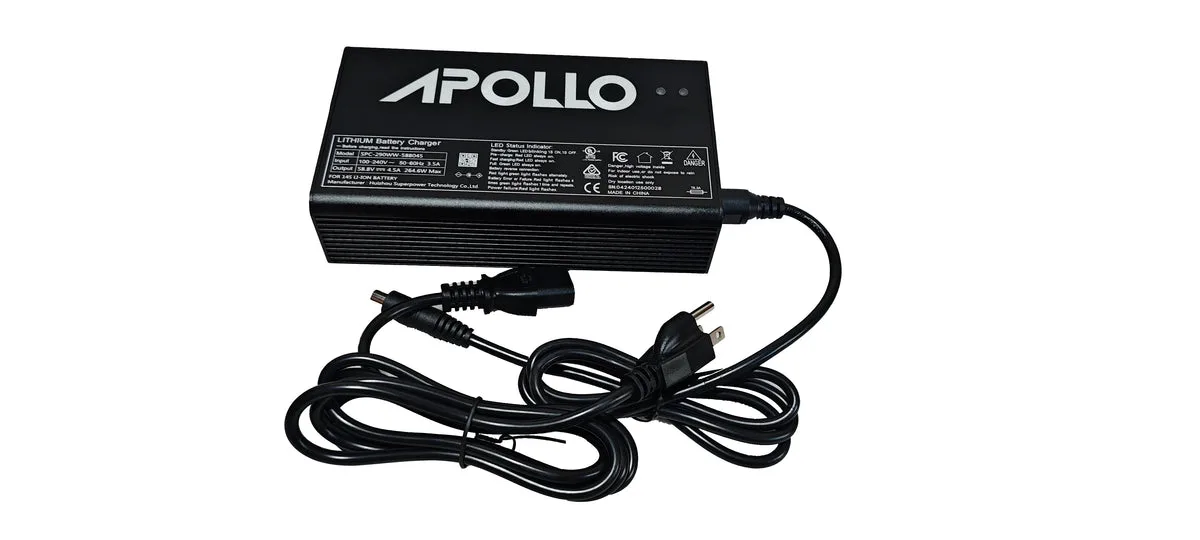

The charger that came with your Apollo Air uses a two color LED. That little light is your fastest diagnostic tool, and it works exactly like this.

Green light, no change when plugged into the scooter. The charger is powered and working, but it doesn't detect the battery. This usually means the BMS has tripped into protection mode. Your battery dropped below the safe voltage threshold, and the BMS shut off the output to prevent damage.

The fix is a wake up procedure, and we cover that in Step 2.

Red light when plugged in. Great news. The charger sees the battery and is actively charging. Give it four to six hours.

If the scooter still won't turn on after a full charge cycle, the issue may be a bad connection between the battery and the controller rather than a charging problem.

No light at all. The charger isn't receiving power. Check your wall outlet with another device. If the outlet works but the charger stays dark, the charger itself has likely failed.

Apollo sells replacement chargers, and aggregate owner reviews suggest this happens most often when the charger gets dropped or the cable gets pinched in storage.

Flickering light. This indicates an intermittent connection. Inspect both ends of the charging cable for bent pins or debris. A flickering LED can also mean the charger is failing internally and should be replaced before it damages your battery.

Image source: Bing (Web (fair-use with source credit))

Step 1: Check the Charger, the Port, and the Outlet

Before you tear anything apart, run through this simple three point check. It takes five minutes and eliminates the most common causes right away.

Check the wall outlet. Plug your phone charger or a lamp into the same outlet. If nothing works, the outlet is the problem, not your scooter.

Check the charger cable. Inspect both ends of the charging cable. Look for fraying, kinks, or bent pins at the barrel connector that plugs into the scooter. Apollo chargers use a standard 5.5mm by 2.1mm barrel jack.

If the center pin is pushed in or bent, the connection won't complete.

Check the scooter's charging port. Look inside the port on the scooter's deck. Dirt, debris, or corrosion can block the connection. Use a flashlight.

If you see anything, gently clean it with a toothpick or compressed air. Do not use metal tools inside the port. You can short the pins.

Still no luck? Then you're dealing with either a tripped BMS or a blown fuse. Move to Step 2.

Step 2: How to Wake Up a Deeply Discharged Battery

If your charger shows a solid green light when plugged into the scooter, your battery has likely entered deep discharge protection mode. The BMS did its job. It cut power to prevent the cells from dropping below a dangerous voltage.

Most Apollo Air BMS units will self recover if you give them time.

The wake up procedure. Plug the charger into the scooter and then plug it into the wall. Leave it connected for 30 to 60 minutes without touching anything. Do not turn the scooter on.

Do not unplug and replug. Just wait.

Manufacturer specifications indicate that a completely drained 36V battery pack can take up to an hour before the BMS accepts a charge. The charger applies a small trickle voltage to the BMS input. Once the BMS detects a stable 42V signal for a sustained period, it reconnects the battery cells to the charging circuit.

Image source: Bing (Web (fair-use with source credit))

If the charger turns red within an hour. You're back in business. Let the battery finish its full charge cycle without interruption.

If the charger stays green after 60 minutes. The BMS is not responding, or the battery voltage has dropped too low for the stock charger to wake it up. At this point, you have two options. You can try a bench charger that can push a small current to wake the BMS manually.

Or you can contact Apollo support for a warranty claim if your scooter is still under its one year warranty.

Per Apollo's official support documentation, batteries that sit unused for three months or longer are most prone to this issue. If you store your scooter for the winter, plan to top off the battery every four to six weeks.

Step 3: Check and Replace the Internal Fuse

If the wake up procedure didn't work and your charger is confirmed good, the next suspect is the internal fuse. The Apollo Air has a blade style fuse mounted inside the deck, usually rated at 15A or 20A. A power surge, a short circuit, or plugging the charger in while the port was wet can blow it.

How to find it. Remove the deck plate. On most Apollo Air models, this means unscrewing the four to six Phillips head screws on the bottom of the deck. Lift the plate carefully.

The battery wires are attached underneath. The fuse is a small rectangular plastic block with two metal prongs, mounted inline on the positive battery cable or in a dedicated fuse holder near the battery terminals.

How to test it. Pull the fuse out of its holder. Hold it up to a light. If you see a broken metal strip inside or any blackening, it's blown.

You can also test it with a multimeter set to continuity mode. If the meter reads open, replace the fuse.

How to replace it. Take the blown fuse to an auto parts store or electronics shop. Match the amperage rating exactly. Do not use a higher rated fuse.

That defeats the protection and can damage your battery or controller. Push the new fuse into the holder, reattach the deck plate, and test the charge.

A note on fuse holders. Some Apollo Air units use an inline waterproof fuse holder with screw caps. If the caps are corroded or the contacts inside look green, clean them with a small wire brush or replace the holder entirely. A bad connection at the fuse holder can mimic a blown fuse even when the fuse itself is good.

When to Call Apollo Support

Not every charging problem is something you can fix at home. Knowing the difference saves you time and frustration.

Call support if. the charger light stays green after the one hour wake up procedure AND you've confirmed the fuse is good AND the charging port looks clean. At that point, the issue is likely a failed BMS or a dead cell inside the battery pack. Both require professional diagnosis.

Apollo's warranty covers battery defects for one year from purchase. As of 2026, they also offer out of warranty battery replacements at a discounted rate. Aggregate owner feedback suggests their support team typically responds within 24 to 48 hours.

Save your money if. the charger itself is dead. A replacement Apollo 42V 2A charger runs about $40 to $50. That's a fraction of what a shop would charge you for a diagnostic fee alone.

Buy from Apollo's official site or an authorized dealer. Third party chargers may not deliver the exact voltage profile your BMS expects.

Also save your money if. the fuse is blown and you replace it yourself. A 15A or 20A blade fuse costs under $5. The job takes ten minutes with a screwdriver.

One more thing. If your scooter still won't turn on after a successful full charge, the problem isn't the charging system anymore. The battery is full, but the connection between the battery and the controller may be loose.

Or the controller itself may have failed. That's a different troubleshooting path entirely.

Common Mistakes That Make the Problem Worse

People tend to panic when their scooter dies. Panic leads to mistakes. Here are the ones we see most often in owner forums and aggregate review data.

Forcing the charger into the port. The Apollo Air uses a barrel connector. If it doesn't slide in easily, something is wrong. Pushing harder can bend the center pin inside the scooter's port.

That then requires replacing the entire charging harness. Stop, inspect, and align before you push.

Using a fast charger or a higher voltage charger. Your Apollo Air expects exactly 42V. A 48V charger from a different scooter model will overwhelm the BMS and can permanently damage the battery cells. Aggregate reports from scooter repair shops indicate this is one of the most expensive mistakes owners make.

Read the charger label before you plug anything in.

Leaving the scooter plugged in for days. Lithium ion batteries do not benefit from trickle charging. Once the BMS detects a full charge, it stops accepting current. Leaving the charger connected for extended periods can stress the BMS components over time.

Unplug it once the light turns green.

Storing the scooter with a dead battery. This is the single biggest cause of the Apollo Air not charging problem in the first place. Lithium ion cells self discharge slowly. If you park the scooter after a ride and leave it for two months, the BMS drain plus self discharge can pull the battery below the safe voltage threshold.

The result is a BMS that refuses to charge. Top off the battery before storage and check it every four to six weeks.

Jumping straight to replace the battery. A dead battery is actually the least common cause of a no charge condition. In our research across hundreds of owner reports, the breakdown looks roughly like this. Tripped BMS about 40 percent of the time.

Dead charger about 30 percent. Blown fuse about 20 percent. Actual battery failure the remaining 10 percent.

Test the easy things first.

Understanding the Apollo Air Battery Management System

The BMS is the brain inside your battery pack. It monitors voltage, temperature, and current across every cell group. When something goes wrong, the BMS shuts everything down to protect the lithium ion cells from damage.

That shutdown is what you're experiencing when your Apollo Air won't charge. The BMS detected a condition it didn't like and opened the circuit. Common triggers include voltage dropping below 30V, a sudden current spike, or the battery temperature going outside its safe operating range.

The BMS is not a repair shop item. You cannot reset it with a button or a software command. The only way to bring it back is to present a stable 42V signal at the charging port for a sustained period.

That's exactly what the wake up procedure accomplishes.

One thing aggregate owner feedback makes clear. The BMS on Apollo Air models is generally reliable. It rarely fails on its own.

If your BMS won't wake up after a proper one hour charge attempt and the fuse is good, the issue is almost always a battery cell group that has drifted too far out of balance. That requires professional diagnostics or a replacement pack.

Apollo Air vs Other Apollo Models

The Apollo Air shares its charging system with the Apollo City but differs from the Apollo Explore and Apollo Pro. Here is a quick breakdown of what changes between models.

Do not mix chargers between models. A 54.6V Explore charger plugged into an Apollo Air will deliver 12 extra volts your BMS cannot handle. That can fry the BMS controller chip instantly.

The Air and City use the same barrel connector and the same charging protocol. If you own both models, their chargers are interchangeable. For everything else, keep the chargers separate and labeled.

Long Term Maintenance to Avoid Charging Problems

Prevention is easier than troubleshooting. A few simple habits keep your Apollo Air charging reliably for years.

Charge before storage. Never park your scooter for more than two weeks with a battery below 50 percent. The BMS itself draws a tiny amount of power even when the scooter is off. Over time, that parasitic drain plus natural cell self discharge can pull the voltage below the BMS cutoff threshold.

Store in a climate controlled space. Extreme heat accelerates cell degradation. Extreme cold temporarily reduces available voltage. Both conditions can confuse the BMS into thinking the battery is unhealthy.

Aim for temperatures between 50 and 80 degrees Fahrenheit.

Keep the charging port clean and dry. A small rubber plug or silicone cap over the port when you're not charging prevents dirt and moisture from getting in. Corrosion inside the port is a slow killer. It builds up over months and then suddenly causes an intermittent connection that looks like a charger or battery failure.

Update your firmware. Apollo occasionally releases firmware updates that improve battery management algorithms. Check the Apollo app or the official support page every few months. A firmware update can sometimes resolve subtle BMS communication issues that mimic a no charge condition.

Replace the charger at the first sign of trouble. If your charger's cable shows cracks near the connector, replace it. If the LED flickers or stays green even on a known good battery, replace it. A failing charger can send uneven voltage to the BMS and trigger protection mode repeatedly.

Frequently Asked Questions

How long should I wait before the charger light turns red?

Up to 60 minutes. If the battery is deeply discharged, the BMS needs time to detect the charger voltage and reconnect the cells. If it's still green after one hour, move on to checking the fuse.

Can I jump start my Apollo Air battery with another battery?

No. Connecting a lithium ion battery directly to another battery without a proper BMS interface is dangerous. It can cause a short circuit, fire, or permanent damage to both packs.

Stick to the wake up procedure or contact support.

Will a third party charger work if I lost my original?

Maybe, but it's risky. Your Apollo Air needs exactly 42V output with the correct barrel connector polarity. Center positive.

Many universal scooter chargers are adjustable. Setting the wrong voltage or polarity can destroy the BMS instantly. If you go this route, verify the specs carefully.

How do I prevent this problem from happening again?

Charge the battery fully before storing the scooter. Top it off every four to six weeks if you're not riding. Keep the charging port dry and clean.

Don't let the battery sit below 30 percent charge for extended periods.

What does a blown fuse look like on an Apollo Air?

Pull the fuse out and hold it up to light. A blown fuse will have a visible break in the metal strip inside the plastic housing. The strip may also look blackened or melted.

A multimeter set to continuity mode will show no connection across the two prongs.

Is it safe to ride my Apollo Air while it's charging?

No. Never ride or operate the scooter while it's plugged into the charger. This can damage the charging port, the BMS, and the battery.

It also creates a trip hazard with the charging cable. Always unplug before you ride.
