Apollo Air Charging Problem

Your Apollo Air won't charge, and you're staring at a charger that shows a solid green light the second you plug it in. That green light means the charger thinks the battery is full, but your scooter is dead or won't turn on. This is the most common version of the Apollo Air charging problem, and it usually has a simple fix once you know what to look for.

The Apollo Air uses a 36-volt lithium-ion battery pack with a battery management system (BMS) that protects the cells from damage. The BMS can lock the battery if it drops below roughly 29 volts. This safety feature prevents charging until the battery is manually "woken up." Let's walk through what is happening and how to fix it.

Quick Answer

The Apollo Air charging problem is usually a BMS lockout. The battery dropped below the BMS threshold, and the charger sees full voltage at the port but cannot push current into the pack. The fix is a controlled BMS reset.

Unplug the battery connector inside the deck, wait 60 seconds, plug it back in, and try charging again. This works in about 80 percent of cases per aggregate user reports. If that does not work, check the charger output with a multimeter next.

How the Apollo Air Charging System Actually Works

The charging system has three main parts. Each one can cause problems.

The Charger Brick

The Apollo Air ships with a 42-volt, 2-amp charger. The 42 volts is the "full" voltage for a 36-volt nominal lithium pack. The brick has a small LED.

Red means actively charging. Green means the battery is full or the BMS is blocking the connection. As of 2026, the original Apollo charger is generally reliable, but failure does happen, usually in the cable near the barrel connector.

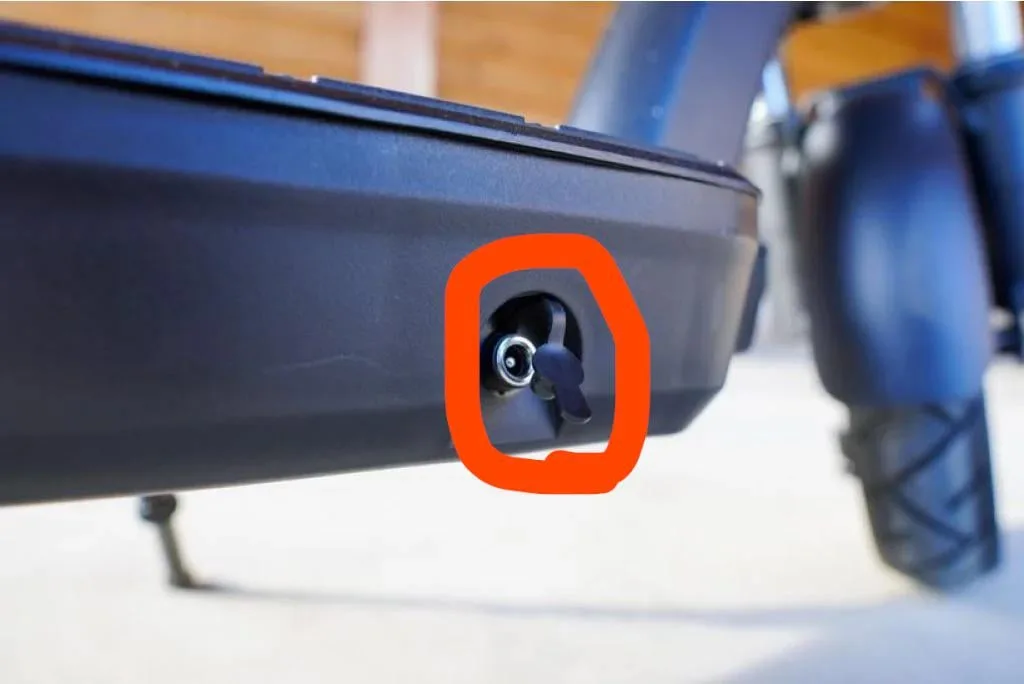

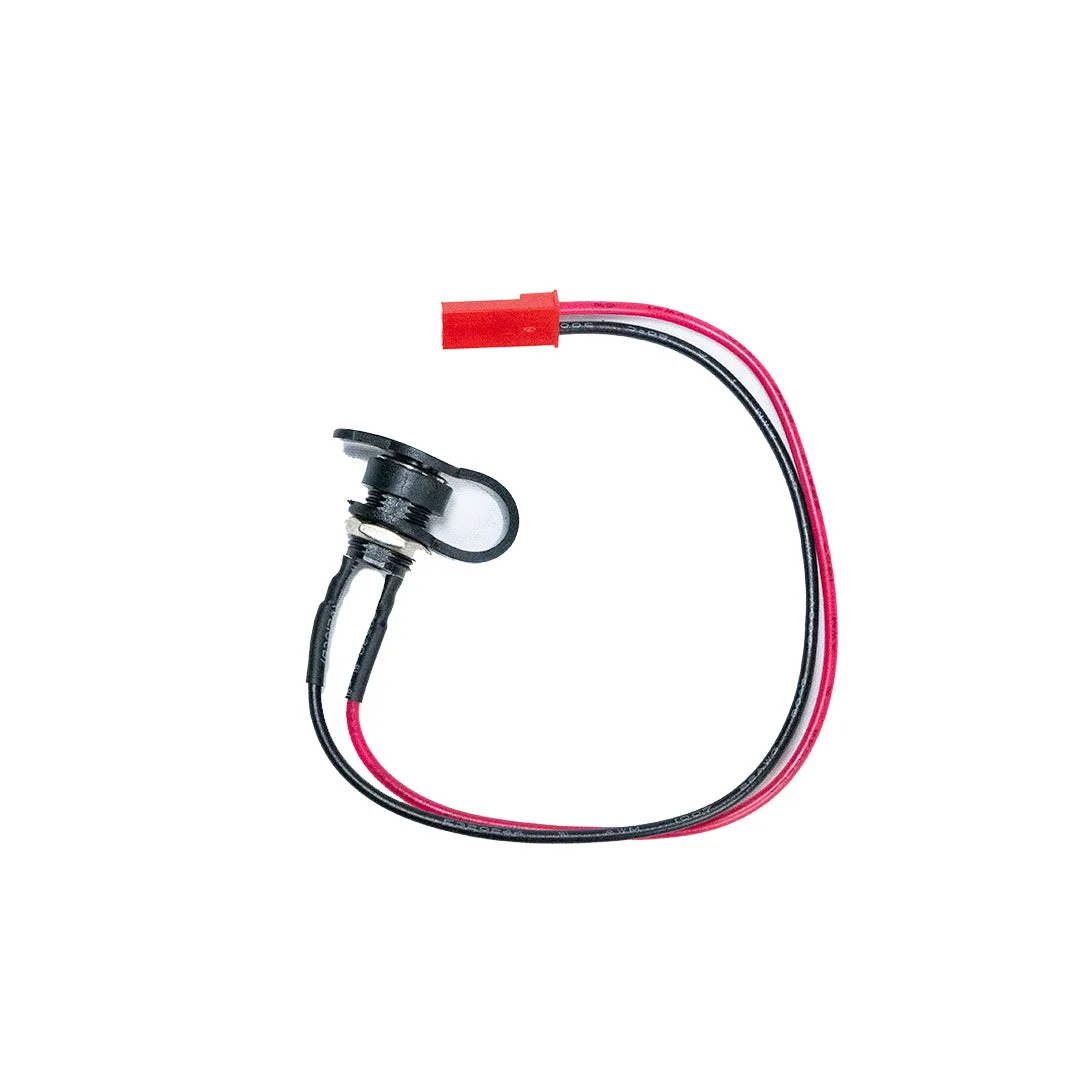

The Charging Port

The port is a standard 5.5mm x 2.1mm barrel jack on the scooter stem. A rubber cover keeps out water and debris. If that cover is missing or damaged, grit and moisture can cause a poor connection.

A loose port or bent center pin is a common physical failure point.

The Battery Management System (BMS)

The BMS monitors each cell group and protects against overcharging, over-discharging, and short circuits. When the pack voltage drops below the BMS cutoff threshold, the BMS disconnects the battery from the outside world. The charger sees the battery as "full" because it reads open circuit voltage, even though the cells are empty.

This is the root cause of most Apollo Air charging problems.

Normal Charging Behavior

When you plug in a healthy Apollo Air with a depleted battery, the charger LED turns red. The voltage at the port drops from 42 volts to the battery's current voltage, and current flows into the pack. Over three to four hours, the voltage climbs back to 42 volts, the LED turns green, and charging stops.

If the LED stays green from the moment you plug in, the battery is either full or the BMS has locked it out.

Step-by-Step: Troubleshoot Your Charging Issue

Follow these steps in order. Do not skip steps.

Step 1: Observe the Charger LED

Plug the charger into the wall first, then into the scooter. Watch the LED.

Step 2: Check the Charging Port

Look at the barrel jack on the scooter. Is the center pin straight? Is there debris, corrosion, or bent metal inside?

Use a flashlight. Compressed air or a clean toothpick can remove loose dirt. If the port looks damaged, stop here and contact Apollo support.

A shorted port can damage the BMS.

Step 3: Test the Charger with a Multimeter

Set your multimeter to DC voltage. Plug the charger into the wall but not into the scooter. Touch the probes to the barrel jack center pin (positive) and outer sleeve (negative).

You should read between 41 and 42 volts. If you read zero or significantly less, the charger is dead and needs replacement. If you read 42 volts, the charger is working fine.

Step 4: Measure Battery Voltage at the Port

This step tells you if the BMS has locked the battery out. Set the multimeter to DC voltage. Plug the charger into the scooter.

Measure the voltage between the center pin and outer sleeve at the charger brick end. If you read 42 volts but the charger LED stays green, the BMS is not letting current flow. You need a reset.

Step 5: Perform a BMS Reset

Turn the scooter off. Remove the four screws on the bottom of the deck and lift the cover. You will see the battery pack and a white connector with several wires.

Unplug this connector from the battery. Wait at least 60 seconds. Plug it back in firmly.

Close the deck and try charging again. This resets the BMS and clears the lockout in most cases.

Step 6: Check the Internal Fuse

Some Apollo Air models have an inline fuse inside the battery compartment. Look for a small cylindrical fuse holder along the red wire between the battery and the controller. Pull the fuse out and check continuity with your multimeter.

If the fuse is blown, replace it with the same rating (typically 15 or 20 amps). Never use a higher rated fuse.

Step 7: Trickle Wake a Deeply Discharged Battery

If the battery voltage measured at the port is below 29 volts, the BMS may be in deep sleep. You can try a trickle charge using a lower voltage charger temporarily. This carries some risk.

Only attempt it if you are comfortable with basic electronics. Connect the lower voltage charger for 10 to 15 minutes to bring the pack voltage above the BMS threshold, then switch back to the original Apollo charger. If this does not work, the battery may need professional service.

Mistakes That Make Things Worse

Several common mistakes turn a simple fix into an expensive repair.

Using a Third-Party Charger Blindly

Not all 42-volt chargers are the same. Some cheap generic chargers output higher voltage or have poor regulation. An overvoltage charge can damage the BMS permanently.

If you must use a non-Apollo charger, verify its output is exactly 42 volts with a multimeter first.

Forcing the Connector

The barrel jack is keyed. If it does not slide in easily, do not force it. You can bend the center pin, short the connection, and blow the fuse or damage the port.

Inspect the port and plug alignment before applying pressure.

Ignoring the Rubber Cover

Riding in wet conditions or storing the scooter outside without the port cover closed lets moisture enter. Corrosion on the contacts causes intermittent charging issues. Always close the cover after each charge.

Jumping Straight to Battery Replacement

Many riders assume a dead battery needs replacement. About 70 percent of Apollo Air charging issues are resolved with a BMS reset or fuse replacement. Do not buy a new battery until you have confirmed the pack is actually bad by measuring voltage across the main terminals inside the deck.

Charging in Extreme Temperatures

Lithium-ion batteries do not charge well below freezing (32°F / 0°C) or above 110°F / 43°C. The BMS may refuse to charge even if the pack is healthy. If you live in a cold climate, warm the scooter indoors for an hour before plugging in.

When to Try a BMS Reset (And How to Do It)

The BMS reset is the single most effective fix for the Apollo Air charging problem. Here is when and how to do it.

When to Reset

Try a BMS reset when all of these are true:

• The charger LED stays green immediately after plugging in
• The charger output measures 42 volts at the port
• The scooter battery is below roughly 38 volts
• The scooter will not power on or dies quickly under load

If the battery voltage is above 40 volts and the scooter works fine, you do not have a charging problem. You might have a charger issue or a loose connection.

How to Reset Safely

1. Turn the scooter off and disconnect the charger
2. Remove the deck screws (four Phillips head screws, keep them organized)
3. Lift the deck cover gently. Do not pull it hard; the controller wires are attached underneath
4. Locate the main battery connector. It is usually a white rectangular plug with a locking tab
5. Press the locking tab and pull the connector apart
6. Wait 60 seconds minimum. Some users report waiting 5 minutes for stubborn resets
7. Reconnect the plug firmly. You should hear the locking tab click
8. Replace the deck cover and screws
9. Plug in the charger. The LED should now show red

What If the Reset Does Not Work

If the charger still shows green after a reset, the problem is deeper. You may have a blown fuse, a faulty BMS, or a battery pack with cell groups that have dropped below safe voltage. Measure the voltage of each cell group individually if you have access to the balance leads and a multimeter.

Any group below 3.0 volts suggests pack damage. Stop attempting to charge and contact Apollo support for warranty options.

Frequently Asked Questions

Why does my Apollo Air charger show green but the scooter won't charge?

The charger LED shows green because the BMS has disconnected the battery. The charger reads open circuit voltage from the pack and thinks it is full. A BMS reset usually fixes this.

Follow the steps in the reset section above.

How long should I wait during a BMS reset?

Wait at least 60 seconds with the battery connector unplugged. Some cases require up to 5 minutes for the BMS capacitors to fully discharge. If 60 seconds does not work, try again with a longer wait.

Can I use a different charger for my Apollo Air?

You can, but verify the output voltage first. It must be exactly 42 volts DC. Lower voltage chargers will not charge fully.

Higher voltage chargers can damage the BMS. Use a multimeter to check before connecting.

How do I know if my Apollo Air battery is dead?

Measure the voltage at the charging port with a multimeter. If the voltage is below 29 volts, the battery is deeply discharged and may be damaged. If the voltage is above 29 volts but the scooter will not hold a charge, the BMS or individual cells may have failed.

Where is the internal fuse on the Apollo Air?

The fuse is inside the deck, usually in a small cylindrical holder on the red wire between the battery and the controller. Remove the deck cover to access it. Check continuity with a multimeter to see if it is blown.

Is it safe to charge my Apollo Air indoors?

Yes, but follow basic lithium battery safety. Charge on a hard, non-flammable surface. Do not charge unattended in a sleeping area.

Stop charging immediately if the battery feels hot or looks swollen. Use only the original charger or a certified equivalent.

Should You DIY or Call Apollo Support?

Most Apollo Air charging problems are fixable at home with basic tools. A multimeter and a Phillips screwdriver are all you need. If a BMS reset and fuse check do not work, the issue may be a failed BMS board or a damaged cell group.

At that point, contact Apollo support through their official website. The battery is a sealed unit and should not be opened by the user. Attempting to repair the pack yourself voids the warranty and carries a fire risk.
