Trick Scooter Headset Too Tight

Your trick scooter headset too tight turns every barspin into a fight. That stiff, notchy rotation isn't just annoying. It's a clue.

Something in the headset stack is binding, and nine times out of ten, it's a small mistake you can fix in minutes.

Manufacturer specifications for threadless headsets call for a top cap bolt torque of roughly 5, 8 Nm. Just enough to remove play without crushing the bearings. Most riders overtighten by feel, which is exactly where the problem starts.

Here's how to fix it.

Image source: Bing (Web (fair-use with source credit))

Why Your Scooter's Headset Feels Like It's Locked Up

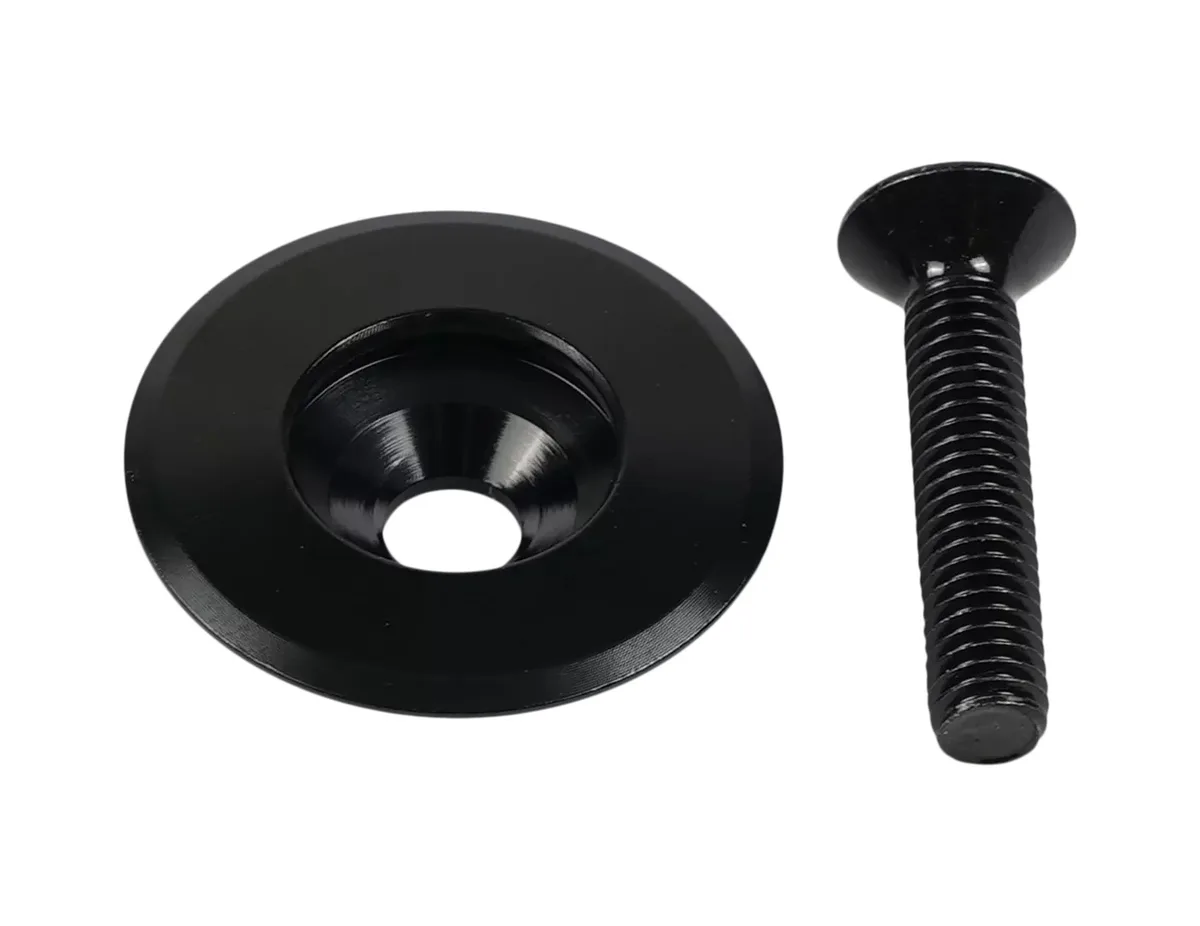

A threadless headset is a simple system. The top cap bolt threads into a star nut pressed inside the fork's steerer tube. Tightening that bolt pulls the fork upward, which loads the compression ring against the upper bearing.

That force is called preload, and it controls how freely the bars rotate. Most trick scooter frames use a 1 1/8" headtube, so this applies to nearly every complete and custom build on the market.

When preload is too high, the sealed cartridge bearings get squeezed between their races. The result is stiff, notchy steering. Sometimes the bars won't turn at all.

But preload isn't always the culprit. The compression ring can sit unevenly. The star nut can be too deep.

Spacers can rub against the compression ring. Each cause has its own fix.

What Tight Steering Actually Means (and Doesn't Mean)

Tight steering means resistance when you rotate the bars. It can show up as constant drag, a click at a certain point, or a full stop. That's different from a loose headset.

A loose headset gives you a clunk or play when you rock the fork back and forth.

The difference matters because the fixes are opposite. A loose headset needs more preload. A tight headset needs less preload or a part repositioned, not more torque.

Quick Answer

If your trick scooter headset feels too tight, loosen the top cap bolt a quarter turn. Test the rotation. If the bars still bind, remove the fork and check the compression ring's position.

Nine times out of ten, the ring is sitting unevenly against the bearing. Reset it, reapply preload, and you are done.

Image source: Bing (Web (fair-use with source credit))

Quick Fix: The Two-Minute Preload Test

Before you pull anything apart, try the simplest fix first. The preload test tells you if the headset is just overtightened or if a part is actually misaligned.

Start by loosening the two handlebar clamp bolts so the bars can spin freely on the fork. Then loosen the top cap bolt about a half turn. Now spin the bars.

If they turn smoothly, you overtightened the preload. Retighten the top cap bolt finger tight plus an eighth of a turn, then reclamp the bars.

If the bars still bind after loosening the top cap bolt, the problem is not preload. Something in the stack is physically catching. Move on to the symptom tree.

Follow the Symptom Tree: Find the Real Culprit

This is where you isolate the exact part causing the binding. Here is how the decision logic works based on what you feel.

If the bars bind at one specific point during rotation, the compression ring is likely seated unevenly. Remove the fork and look at the split ring's gap. That gap should be uniform all around the steerer tube.

If it tilts higher on one side, the ring is jammed against the bearing at that spot.

If the bars bind evenly throughout the full rotation, the top cap is too tight, the star nut is too deep, or the bearings are damaged. Check preload first. If that doesn't fix it, inspect the star nut depth.

If the bars bind only when you clamp them down, the handlebar clamp is pinching the fork or the compression system is stacking wrong. Loosen the clamp bolts and test the bars unclamped. Smooth rotation confirms the headset assembly is fine and the clamping force is distorting the fork or spacers.

Image source: Bing (Web (fair-use with source credit))

How to Isolate the Binding Point

Remove the front wheel and take the handlebars off the fork. Hold the fork by the crown and spin it with your other hand. If the fork rotates smoothly with no bars or wheel attached, the headset is fine and the problem is in the bar setup or the wheel axle.

If the fork still binds, the headset stack itself is the problem. That narrows it down fast.

Step-by-Step Fixes for Each Cause

Once you have isolated the binding point, the fix is straightforward. Each root cause has its own step sequence. Follow the right branch.

Reset the Preload Correctly

Loosen the top cap bolt until you feel play in the fork when you rock it front to back. Then tighten the bolt just until the play disappears. Do not tighten further.

Manufacturers recommend 5, 8 Nm. If you do not have a torque wrench, finger tight plus an eighth turn works. Crank it harder and you compress the bearings, making the steering stiff again.

Reposition the Compression Ring

Remove the fork completely. Slide the compression ring off the steerer tube. Wipe it clean and inspect the split gap.

Place it back onto the bearing chamfer with the gap facing forward or backward, not to the side. Press evenly around the ring's outer edge until it sits flush against the bearing race. Reinsert the fork and apply preload.

The ring must seat fully before the top cap applies pressure.

Check the Star Nut Depth and Alignment

The star nut should sit flush with the top of the steerer tube or just below it. Not deep inside. A star nut driven too far down means the top cap bolt cannot engage the nut without crushing the headset stack.

If the nut is too deep, you need a new star nut set higher. Use a star nut setting tool or a hammer and flat punch to install it at the correct height. A nut installed at an angle will also cause binding.

Remove it and start fresh.

Inspect the Bearings, Cups, and Spacers

If all the above steps are correct, the bearings themselves may be damaged. Spin each bearing by hand while it is still seated in the cup. A smooth, quiet rotation means they are fine.

A gritty or notchy feel means the bearing has dirt inside or a flat spot from a hard landing. Replace both bearings as a set.

Also check the headset cups for cracks or dents. A dinged cup can pinch the bearing and cause drag.

Spacers are another overlooked cause. If the spacer stack contacts the outer edge of the compression ring, it creates friction. Check the inner diameter of your spacers against the compression ring's outer diameter.

If they rub, switch to spacers with a larger inner bore.

Mistakes to Avoid When Adjusting a Tight Headset

A few common errors can make the problem worse or waste your time.

Cranking the top cap bolt harder when the bars are already tight. More torque only loads the bearings more. It never fixes a compression ring that is seated wrong.

Ignoring the handlebar clamp. If the bars bind only after clamping, the clamp bolts are overtightened or the clamp itself is pinching the fork. Loosen the clamp bolts and torque them evenly to spec. Overtightening can deform a lightweight fork steerer tube.

Mixing headset brands. Compression rings from one brand may have a different taper angle than the bearings from another. That mismatch causes the ring to sit high on one side. Stick with a full headset from the same manufacturer for the best fit.

Forgetting to grease the compression ring. A dry ring can bind on the steerer tube or the bearing chamfer. Apply a thin layer of light grease to the inner taper before reassembly. It helps the ring slide into place as the top cap applies preload.

Skipping the isolation test. Diving straight into disassembly without isolating the binding point leads to wasted time and unnecessary part replacements. The two-minute test always comes first.

Pro Tips for Keeping Your Headset Smooth Long-Term

A smooth headset needs consistent care. Hard landings, dirt, and moisture work their way into the bearings over time.

Clean and regrease every three months. Pop the fork out, remove the bearings, and wipe the races clean. Apply fresh grease to the bearing seals and the compression ring taper. This prevents the gritty feeling many riders mistake for a mechanical bind.

Use a torque wrench for the top cap bolt. The 5, 8 Nm spec from manufacturers is tighter than most people guess by hand. A cheap beam-style torque wrench costs under $20 and removes the guesswork. Overtightening is the most common cause of headset binding we see in the riding community.

Check headset cup alignment after a hard crash. A dented or shifted cup can pinch the bearing from the side. If the bars bind after a big drop, inspect the cups where they meet the headtube. Any distortion means the cups need pressing out and replacement.

Per ASTM F2264, structural integrity matters here.

Replace bearings as a pair. Even if only one feels rough, replace both upper and lower sealed cartridge bearings. Matching new bearings maintain even preload. Mixing an old bearing with a new one creates an uneven load that causes binding over time.

Keep the star nut clean. Dirt on the star nut threads can make the top cap bolt feel tight when it is actually bottoming out on debris. Run a rag through the steerer tube before reinstalling the bolt. This simple step prevents false binding signals.

Frequently Asked Questions

Can I use WD-40 to fix a tight scooter headset?

WD-40 is a solvent, not a lubricant. It will wash away any remaining grease and make the binding worse. Use a light lithium or marine grease on the compression ring and bearing seals instead.

Why is my headset tight after I land a jump?

Hard landings can shift the compression ring off-center. The impact can also dent a bearing race or push the fork crown against the bottom cup. Check the compression ring first.

If it looks fine, inspect the bearings for flat spots.

Does headset tightness affect barspins?

Yes, directly. A tight headset slows rotation and can make barspins feel sticky or uneven. A properly preloaded headset spins freely with no drag.

If your bars slow down mid-spin, the headset is too tight or a part is binding.

How do I know if my headset is too tight or too loose?

Rock the scooter forward and backward with the front brake applied. If you feel a clunk or play in the headtube, it is too loose. If the bars resist rotation or feel notchy, it is too tight.

The isolation test described earlier confirms which one you have.

Can I overtighten the handlebar clamp and cause binding?

Yes. Overtightening the clamp bolts can pinch the fork's steerer tube, causing drag at the headset bearings. Loosen the clamp bolts and retorque them evenly to the manufacturer's spec.

Test the rotation before and after clamping.

Do I need special tools for headset adjustment?

No. A set of Allen keys, a star nut setting tool if you replace the nut, and optionally a torque wrench cover all common fixes. Most adjustments require only a 4 mm or 5 mm Allen key for the top cap bolt.
