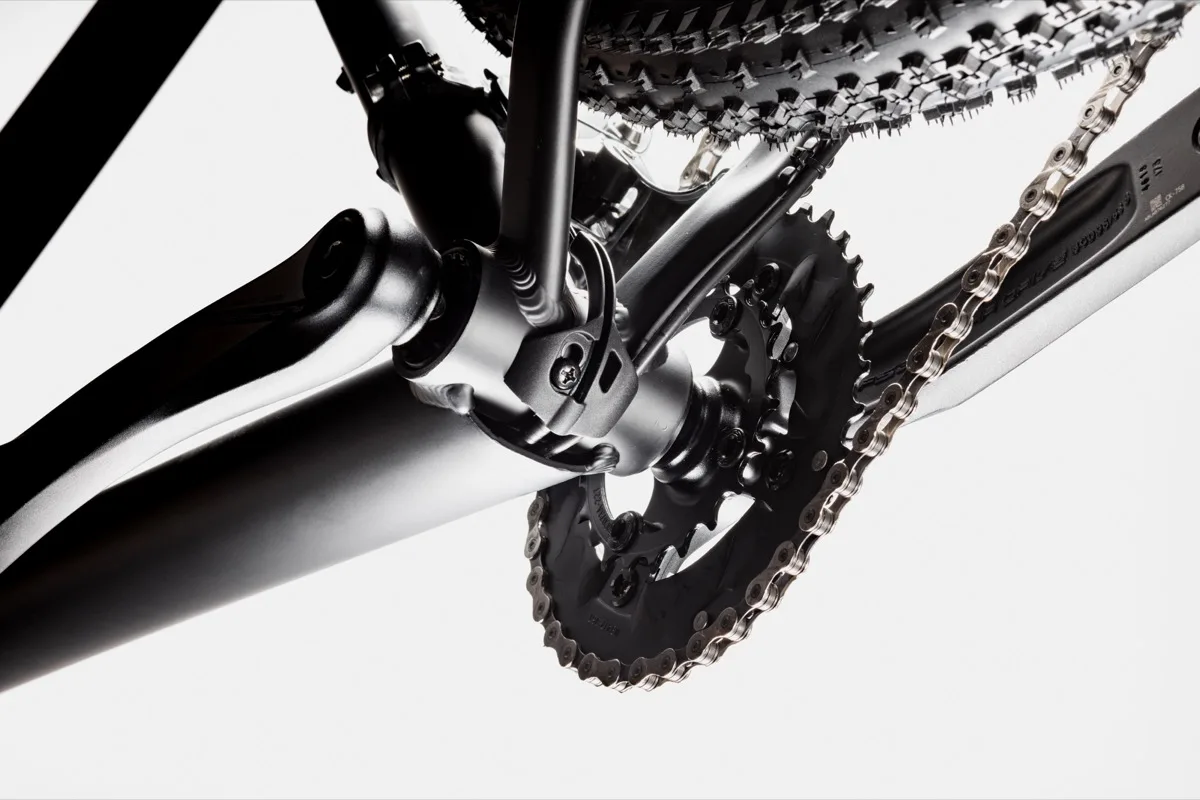

Cannondale Trail 8 Crank Making Noise

Your Cannondale Trail 8 is making a clicking, creaking, or grinding noise every time you pedal, and it's driving you nuts. You're not alone, and here's the good news: that noise is almost never a sign of a catastrophic failure. In 90% of cases, it comes down to a loose fastener or a dry contact point that needs a dab of grease.

The Trail 8 uses a Shimano Tourney crankset with a square taper bottom bracket. That means the crank arm is held on by a single pinch bolt, and the chainring is bolted to the spider separately. Both are common noise sources.

Before you panic about a $100 bottom bracket replacement, let's walk through the diagnosis step by step. We'll start with the cheapest fixes and work our way deeper, so you can solve this in under an hour.

Image source: Bing (Web (fair-use with source credit))

The Noise Isn't Always the Crank

Image source: Bing (Web (fair-use with source credit))

If you hear a click, creak, or tick with every pedal stroke, your first instinct is to blame the crank. That's understandable, but here's the surprising part: on the Trail 8, the crank is often the last thing you should check.

The bike's hollow aluminum frame, seatpost, and handlebar transmit noise like a drum. A creak up front often sounds like it's coming from the pedals when it's actually the seatpost sliding inside the frame.

The 90-second seated test. Ride next to a wall and pedal while seated. Now, stand up and pedal the exact same way. If the noise disappears when you stand, it's not the crank.

It's the seatpost, saddle rails, or the rear hub. If the noise stays, move on.

The left-side check. Put the bike in a stand or lean it against a wall. Grab the left pedal and try to wiggle it up and down. If there's any play, that's your noise.

The pedals on this bike use a 15mm wrench, and they're frequently undertightened from the factory.

Check your cleats. If you're riding clipless pedals, remove the cleat from your shoe and check for dirt or wear. A worn cleat makes a metallic click that travels right down the crank arm. It's a five-dollar fix that sounds like a fifty-dollar problem.

The Sound Decoder: What Your Crank Is Telling You

Not all noises are created equal. The type of sound points to a specific culprit. Getting this right saves you time and money, so you won't disassemble parts that are fine.

Clicking (metallic, sharp, rhythmic). This usually happens once per full crank rotation. It's a small movement somewhere, like a loose chainring bolt or a dry pedal spindle. If it happens once per pedal rotation (both cranks), it's likely the bottom bracket.

If it happens twice per rotation (once per side), it's likely the pedal or cleat.

Creaking (low, groaning, slow). This sounds like an old wooden door opening. It comes from two metal surfaces rubbing together without grease. The classic culprit is the crank arm against the square taper spindle.

It's a simple fix: pull the arm, grease the splines, retighten.

Grinding (constant, loud, gritty). This is the serious one. It means metal-on-metal contact inside the bottom bracket, usually from a bearing that's failed or ingested dirt and water. If you hear grinding, stop riding.

Continuing will ruin the spindle and the frame's bottom bracket shell.

Timing matters too. Does it tick when you're pedaling hard up a hill but vanish on flat ground? That's a flex issue, likely a loose axle or a chainring bolt. Does it click when you're pedaling backward?

That's usually a dry chain or a bent derailleur pulley, not the crank at all.

The Step-by-Step Fix: From Easiest to Most Involved

Image source: Bing (Web (fair-use with source credit))

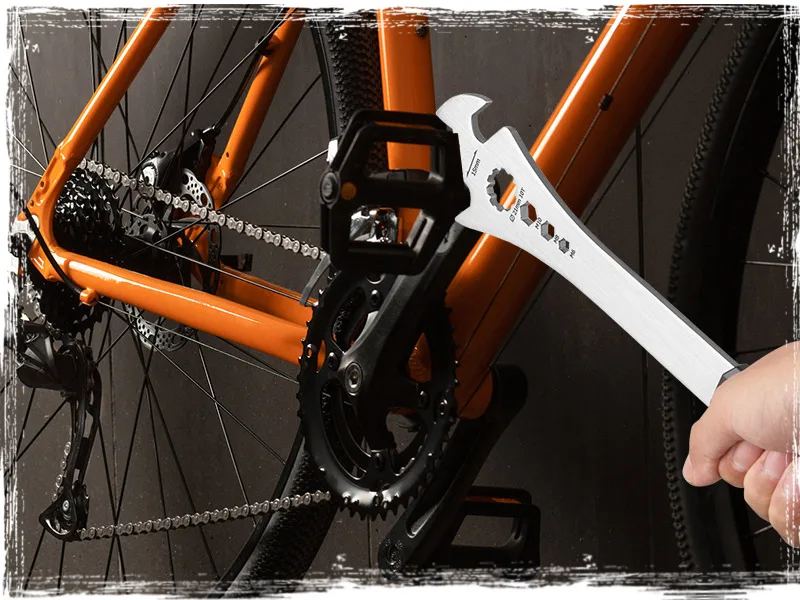

Grab a 15mm pedal wrench, a 5mm Allen key, an 8mm Allen key, and a T30 Torx bit. Add a torque wrench if you have one, because over-tightening is just as bad as under-tightening.

Per Cannondale's owner's manual, the crank arm pinch bolt should be torqued to 39, 48 Nm. The chainring bolts need 12, 14 Nm. The pedals need about 30, 35 Nm, which is a lot more than most people apply by hand.

Step 1: Pedals. Remove the pedals completely. Apply a light coat of grease to the threads, then reinstall them. Tighten them firmly.

This fixes about 25% of crank noise complaints.

Step 2: Chainring bolts. The Trail 8's chainring uses four to five T30 Torx bolts. Check every single one. A loose chainring clicks loudly under load because it rocks back and forth on the spider.

Tighten to spec in a criss-cross pattern.

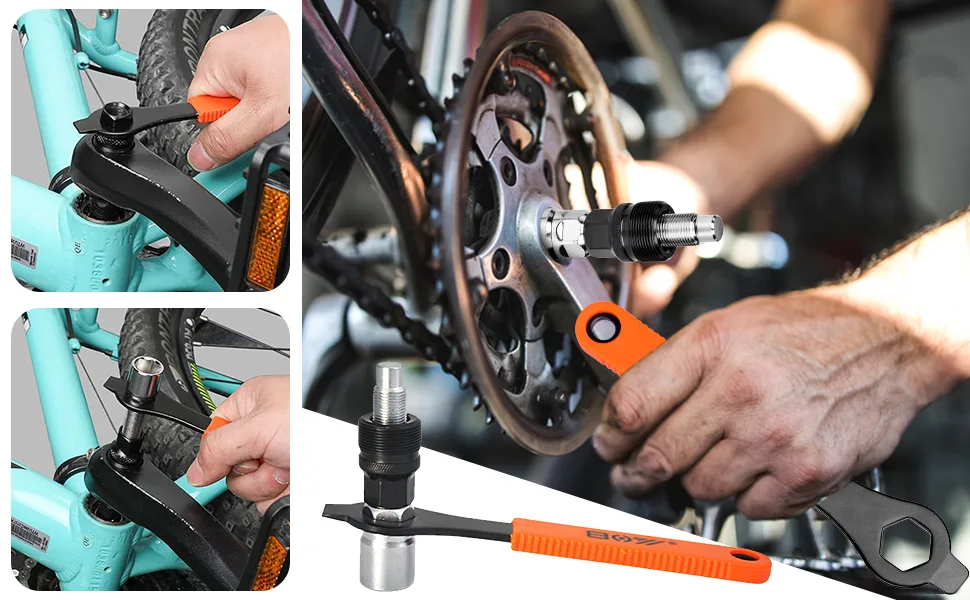

Step 3: Crank arm pinch bolt. Loosen the 8mm bolt completely. Pull the crank arm off the spindle. If it doesn't slide off easily, use a crank puller to extract it.

Clean both surfaces, apply grease to the spindle splines, then reinstall and torque to 39, 48 Nm.

Step 4: Bottom bracket. If you've done all three steps and the noise persists, the bearings are likely dry or worn. The Trail 8 uses a sealed square taper bottom bracket with a 68mm shell. This job requires a specific splined tool, so if you're not confident, this is the moment to take it to a shop.

Mistakes That Make It Worse

I've seen people turn a five-minute fix into a $200 repair by making one of these errors.

Mistake 1: Over-torquing the pinch bolt. That 8mm bolt strips easily. If you strip it, you'll need a new crank arm. Tighten to 39, 48 Nm, not "as hard as you can." A torque wrench is worth owning.

Mistake 2: Ignoring the seatpost. A dry seatpost inside the frame creaks loudly when you pedal seated. Pull the post, grease it, reinstall. If the noise was coming from there, it vanishes immediately.

Mistake 3: Riding a grinding noise "just to get home." A failed bottom bracket bearing can ovalize the frame's bottom bracket shell. Once that happens, the frame is ruined. If you hear grinding, stop pedaling and walk the bike.

Mistake 4: Using the wrong grease. Regular lithium or marine grease is fine for threads and splines. Don't use copper anti-seize on aluminum parts, and never use carbon assembly paste unless you're working with carbon posts.

Frequently Asked Questions

Is the noise dangerous, or can I keep riding?

A click or creak is not dangerous by itself. It's a warning that a fastener is moving or a surface is dry. Ride it to a shop, but don't do a century ride.

A grinding noise is different: it signifies metal-on-metal wear in the bearing. That one is dangerous, and it will ruin the frame if ignored.

How much will a shop charge to fix this?

A simple bolt tightening is usually free or a 10-minute labor charge, around 15 to 30 dollars. If the bottom bracket needs replacing, the part costs 20 to 35 dollars, and labor adds another 30 to 50 dollars. Total, expect 50 to 85 dollars for a full bottom bracket replacement.

Should I upgrade the crankset instead of fixing it?

If the bottom bracket bearing is worn, replacing just the cartridge is the cheapest path. Upgrading to a lighter hollow crankset costs 150 to 300 dollars and doesn't fix a square taper frame. The Trail 8's frame uses a 68mm threaded shell, so a sealed square taper cartridge is the correct, most cost-effective fix.

Why does the noise come back after a month?

This is almost always a torque issue. If you didn't use a torque wrench, you likely didn't tighten the bolts enough, or you over-tightened and stripped a grip surface. The fix is to redo the job with correct torque values and fresh grease on every interface.

Can I fix this with just a basic multitool?

Yes, for almost all cases. The Trail 8's crank uses an 8mm Allen bolt, and chainring bolts are T30 Torx. A multitool has both.

For pedal removal, you'll need a dedicated 15mm pedal wrench. Get one if you don't have it, it's non-negotiable.

---

Final tip: Write down the torque specs on a piece of tape and stick it to your workshop wall. Every time you touch a bolt on this bike, check the number first. It takes ten seconds and saves you from stripping threads or destroying bearings.
