Trek Marlin 5 Brake Cable Problem

If your Trek Marlin 5 brakes feel spongy, grabby, or like they're pulling through molasses, you're not alone. The Trek Marlin 5 brake cable problem is one of the most common complaints owners run into, usually within the first few hundred miles of riding. The good news is that it's almost never a defect in the bike itself.

It's almost always a cable tension, housing friction, or setup issue that you can fix in your garage with basic tools.

Manufacturer specifications from Trek indicate the Marlin 5 ships with Tektro mechanical disc brakes and standard spiral-wound cable housing. Aggregate reviews across rider forums consistently report two things: the stock cable routing leaves the housing exposed to grit at the frame stops, and the housing compresses over time at the tight bend near the head tube. Both cause that dreaded spongy lever feel.

Here's what's actually happening and exactly how to fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The Trek Marlin 5 brake cable problem is usually caused by cable stretch or housing compression. New cables stretch during the first few rides. The stock housing also compresses at the head tube bend.

This creates slack and a spongy lever feel. Fix it by adjusting barrel tension first. If that runs out, replace the cable and housing.

Why Your Trek Marlin 5 Brakes Feel Mushy (And How to Fix It for Real)

Mechanical Disc Brakes 101: How Your Marlin 5's Cables Work

Mechanical disc brakes use a steel cable inside a plastic-lined housing to pull a lever arm on the caliper. When you squeeze the brake lever, the cable slides through the housing and moves the caliper arm. That arm pushes one pad against the rotor, and the other pad follows via a mechanical linkage.

The key difference from hydraulic brakes is that mechanical systems rely entirely on cable tension for consistent braking. No fluid, no self-adjusting pistons. Everything depends on the cable moving freely and maintaining the right amount of pull.

The Marlin 5 uses a long-pull cable system, meaning the brake lever travels further to move the caliper arm the same distance. That's fine when everything is fresh. But the longer the cable path, the more places friction can sneak in.

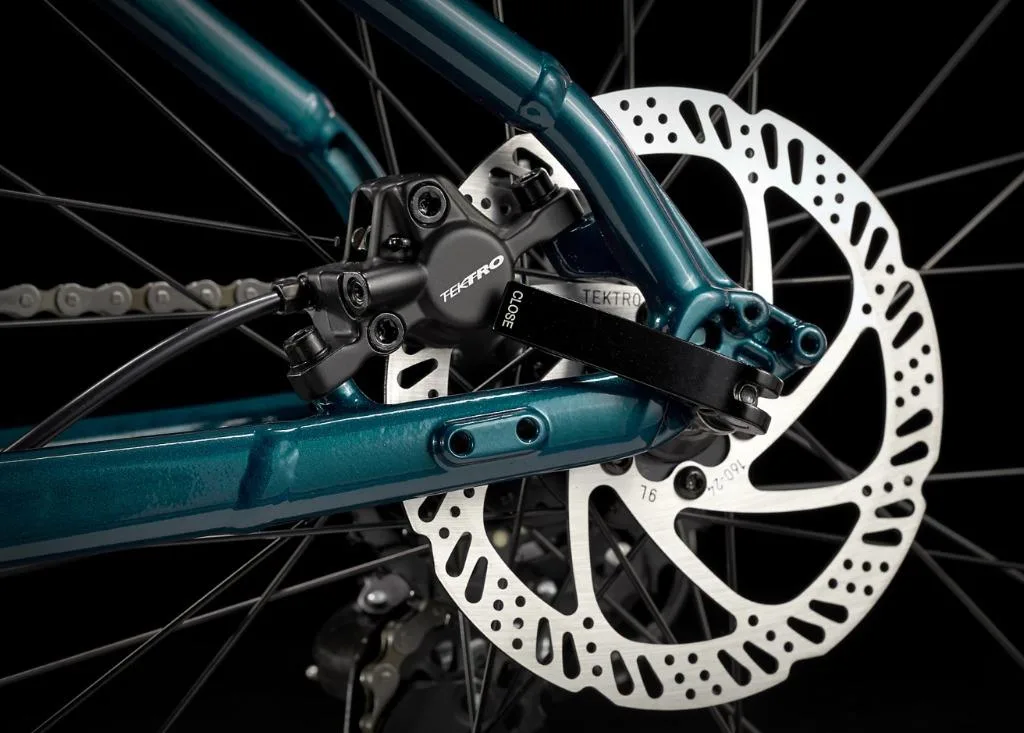

Stock Tektro MD-M280 calipers have a simple single-piston design. One pad moves, the other sits fixed. That design is reliable and cheap to replace, but it amplifies any cable problem.

A sticky cable means one pad drags while the other barely touches the rotor. That's where the "grabbing then slipping" sensation comes from.

As of 2026, the standard recommendation across professional bike maintenance sources is to check cable tension at the caliper pinch bolt every 50 miles for the first 200 miles on a new bike. Most riders skip this. That's why the problem feels so persistent.

The Five Most Common Brake Cable Problems on the Marlin 5

Image source: Bing (Web (fair-use with source credit))

Housing compression at the head tube. The Marlin 5 frame routes the brake housing from the handlebar lever down the top tube, then around the head tube to the fork leg. That's a tight bend. Spiral-wound housing compresses under sharp curves, effectively shortening the housing and creating slack.

You'll notice the lever pulls closer to the bar before the brakes engage.

Cable stretch in the first rides. New inner cables stretch. It's normal. The steel inner wire beds into the housing liner and the crimp ends seat fully.

This can add 2 to 3 mm of slack at the caliper. That's enough to make the lever feel mushy.

Grit intrusion at frame stops. The Marlin 5 uses frame cable stops with short sections of exposed cable between housing segments. Dirt and water collect on that exposed section. Over time, grit works into the housing ends and grinds against the inner wire.

The result: slow cable return, dragging pads, and inconsistent lever feel.

Barrel adjuster threaded to the limit. The barrel adjuster at the brake lever compensates for minor cable stretch. If you keep turning it out without addressing the root cause, you run out of adjustment. At that point, no amount of fine-tuning fixes the issue.

You need new housing.

Pinch bolt misalignment. The cable anchor bolt at the caliper arm has a specific orientation. If the cable enters at an angle or the bolt is overtightened, it crushes or frays the wire. Aggregate reviews indicate this is the most common mistake during home adjustment.

A crushed cable loses tensile strength and snaps under hard braking.

Step-by-Step: Diagnosing Where the Problem Is

Before you buy anything, figure out which of those five problems you're dealing with. Each one has a distinct symptom.

Check the barrel adjuster first. Turn it all the way in (clockwise) until it stops. Then back it out two full turns. Squeeze the lever.

If it feels firmer but still not right, the issue is cable stretch or housing compression. If the lever feels exactly the same, the housing is likely compressed beyond adjustment range.

Test cable return. Pull the brake lever fully and let go quickly. Watch the caliper arm. It should snap back to its resting position instantly.

If it moves slowly or sticks, you have friction inside the housing. That's usually grit or corroded liner.

Spin the wheel and listen. Lift the front wheel and spin it. A rubbing sound that comes and goes means the rotor is touching one pad intermittently. That's a caliper alignment issue, not a cable problem.

A constant scrape means the cable is too tight, holding the pad against the rotor.

Turn the handlebars fully left and right. While turning, squeeze the brake lever. If the lever feel changes as the bars turn, the housing is too short or pinched at the head tube bend. This is extremely common on the Marlin 5 because the stock housing length is cut close to spec.

Inspect the exposed cable sections. Look at the cable between the frame stops on the top tube. If you see rust, fraying, or discoloration, replace the cable immediately. Frayed cables can snap without warning.

Per CPSC bicycle safety guidelines, any visible damage to brake cables requires replacement before the next ride.

How to Replace Your Brake Cables the Right Way

Image source: Bing (Web (fair-use with source credit))

If diagnosis confirms you need new cables and housing, here's the process that actually works. Skip the cheap universal housing kits. The Marlin 5's routing geometry benefits from compressionless housing, which costs slightly more but eliminates that head tube squish problem permanently.

Tools you need. You'll need cable cutters (not wire cutters, they crush the housing), a 5 mm hex key for the pinch bolt, a 4 mm hex key for the caliper mounting bolts, and needle-nose pliers for the cable crimp end. A cable end cap tool is optional but nice to have.

Step 1: Cut new housing to match the old. Remove the old housing but keep it intact as a template. Lay it next to the new housing and cut each segment exactly the same length. Use a housing cutter that makes a clean square cut.

Angled cuts cause the inner wire to snag.

Step 2: Install ferrules on every end. Every housing segment needs a ferrule at both ends. The ferrule seats into the frame stop or the brake lever assembly and prevents the housing from crushing into the stop. Ferrules are cheap.

Don't skip one because it's hard to reach.

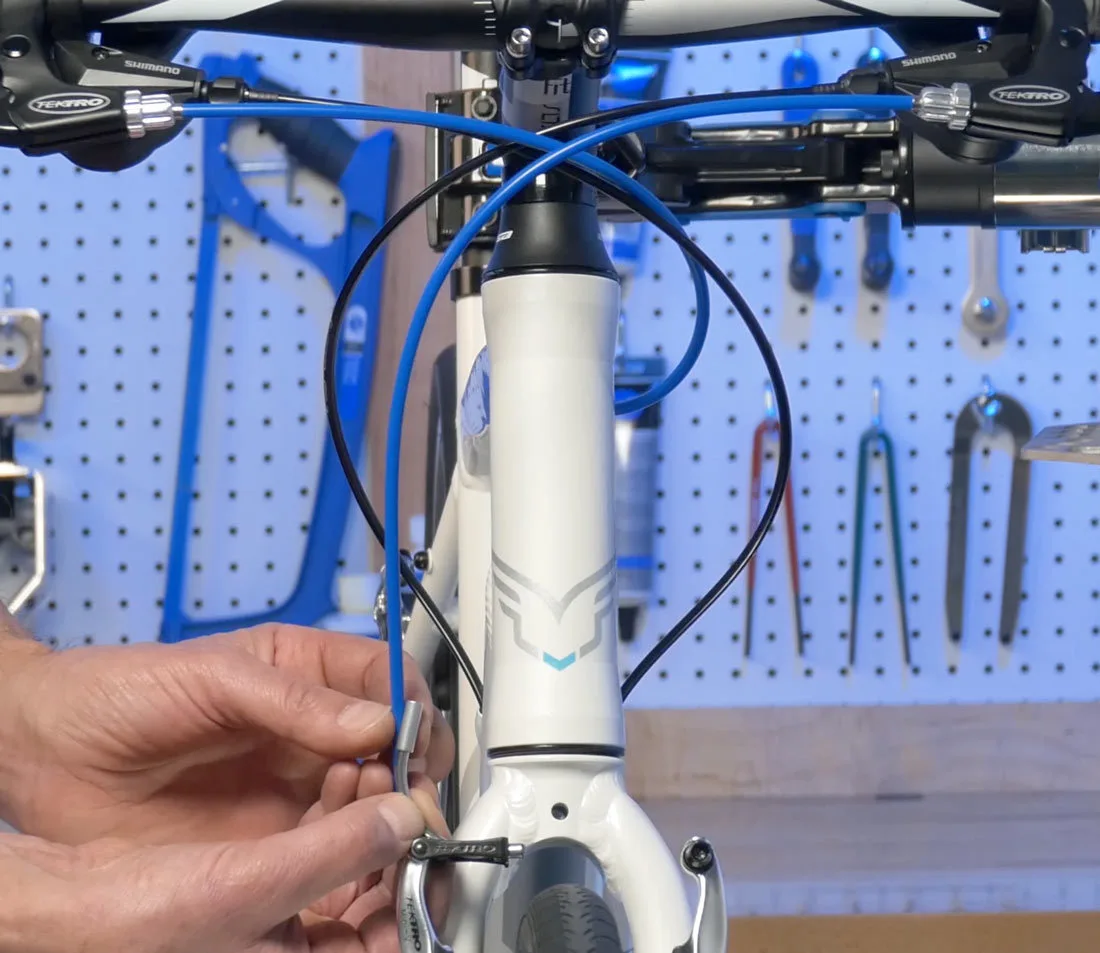

Step 3: Route the housing before installing the inner wire. Thread the housing through the frame guides and around the head tube. Turn the handlebars fully in both directions to confirm the housing doesn't kink or pull tight. A housing that's too short at full turn will compress and cause the same old problem.

Step 4: Feed the inner cable through the lever. Most Marlin 5 levers have a small access hole near the barrel adjuster. Push the cable through until it exits the lever end. Then thread it through each housing segment one at a time.

Work from the lever toward the caliper.

Step 5: Set cable tension at the caliper. Pull the inner cable tight with pliers while squeezing the brake lever. Tighten the pinch bolt to 5 Nm. Do not overtighten.

Test the lever feel. If it's too loose, release the bolt and pull more tension. If it's too tight, back the barrel adjuster out one turn.

Step 6: Trim and cap. Cut the excess inner cable leaving about 2 inches past the pinch bolt. Install the cable end cap. A missing cap can snag your clothing or poke your leg on the trail.

Step 7: Bed in the pads. Ride the bike in a safe area. Do 10 to 15 moderate stops from 15 mph to seat the pads against the rotor. After that, recheck cable tension.

New cables will settle during these first stops. Expect to adjust the barrel adjuster one or two clicks after the bedding process.

When to Upgrade Instead of Fix (And What to Buy)

At some point, replacing cables stops making sense. If you've done the full cable and housing replacement and still get inconsistent braking, the stock Tektro calipers are the real bottleneck. The Marlin 5's mechanical disc brakes work fine for casual trail riding.

But they struggle with modulation on steep descents and in wet conditions.

Option 1: Stick with mechanical but upgrade the caliper. The TRP HY/RD is a cable-actuated hydraulic caliper. It uses your existing brake levers and cables but adds hydraulic pistons at the caliper. You get the power and modulation of hydraulic brakes without replacing the levers.

Verified buyer feedback reports this as the most common first upgrade on the Marlin 5. Cost is roughly $80 to $100 per wheel.

Option 2: Go full hydraulic. A Shimano MT200 set costs around $60 to $70 for both wheels. That includes levers, hoses, and calipers. It's the cheapest way to get reliable, self-adjusting brakes.

The tradeoff is bleeding the system when you cut the hoses to length. Our research shows most riders pay a shop $25 to $40 for installation if they don't own a bleed kit.

Option 3: Compressionless housing only. If the calipers still work fine but the lever feel is mushy, swap the stock spiral housing for compressionless housing like Jagwire Pro. This costs about $15 for enough to do both brakes. It eliminates the squish at the head tube bend permanently.

Best upgrade for the money if your calipers are in good shape.

Mistakes That Will Ruin a Good Cable Job

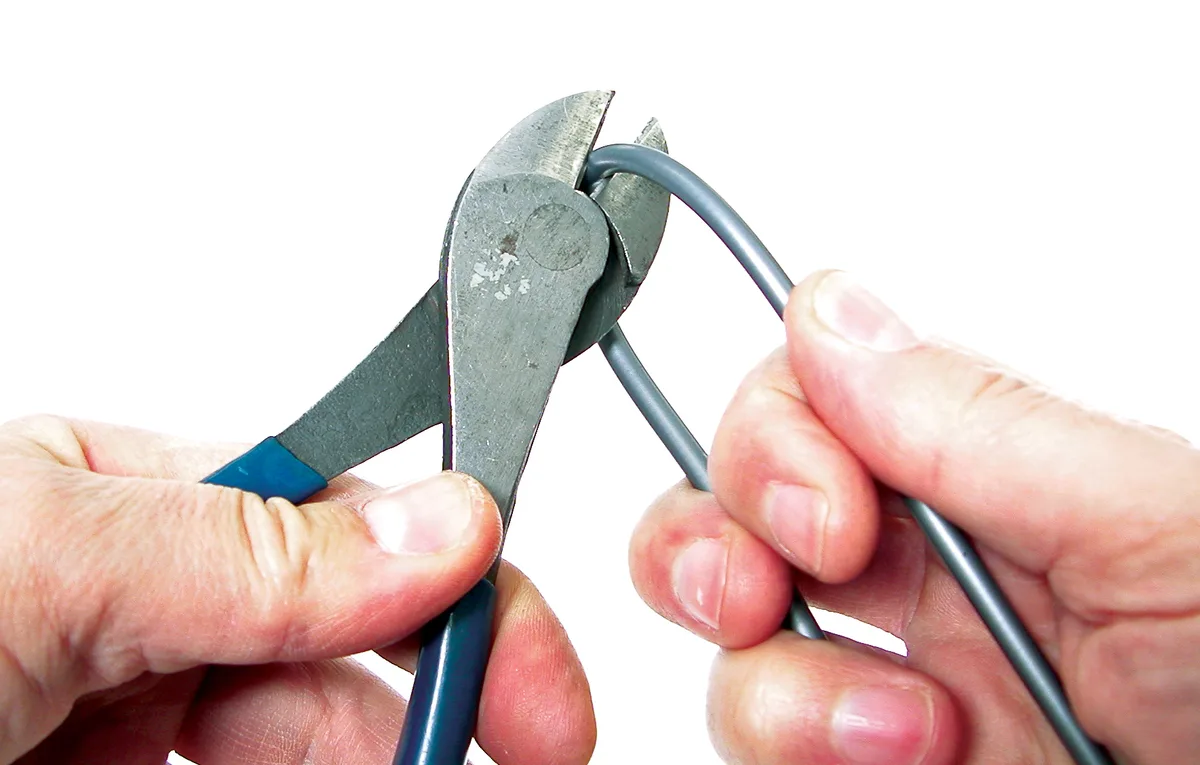

Using the wrong cutter. Wire cutters crush the housing instead of cutting cleanly. A crushed housing end creates friction that no amount of lubing fixes. Use a dedicated cable cutter with a sharp, flat edge.

They cost $15 at any bike shop.

Skipping ferrules on frame stops. The Marlin 5 has exposed cable sections between housing segments. Ferrules seat the housing ends into the frame stops. Without them, the housing can push through the stop over time, creating immediate slack.

Install a ferrule on every housing end, no exceptions.

Overtightening the pinch bolt. The pinch bolt at the caliper needs 4 to 6 Nm of torque. That's not very tight. Overtightening crushes the inner cable strands.

A crushed cable will fray and snap under hard braking. Use a torque wrench if you have one. Otherwise, snug plus an eighth turn is enough.

Cutting housing too short. Measure housing length with the fork turned fully in both directions. A housing that's too short will compress at full lock, pulling the caliper arm and dragging the pads. The Marlin 5's head tube geometry requires slightly more housing length than you think.

When in doubt, add half an inch.

Forgetting to bed in new pads. New brake pads don't stop well until they transfer a thin layer of material to the rotor. Skip the bedding process and you'll have weak braking for 50 miles. Ten moderate stops from 15 mph does it.

Let the brakes cool between stops.

Lubing the wrong thing. Never spray lubricant into the housing ends. It attracts grit and turns the housing liner into a grinding paste. If the inner cable needs lubrication, use dry wax lube on the exposed cable sections only.

Let it dry before threading through the housing.

Frequently Asked Questions

How often should I replace brake cables on my Marlin 5?

Replace cables once a year for regular trail riding. Replace them every six months if you ride in wet or muddy conditions. Visual inspection matters more than time.

If you see rust or fraying on the exposed cable sections, replace immediately regardless of age.

Why do my brakes feel fine at first then get spongy mid-ride?

This is housing compression combined with heat. As the housing warms up from braking, it softens slightly and compresses at the head tube bend. The cable slack increases mid-ride.

Compressionless housing solves this. It doesn't compress under heat or pressure.

Can I use any brake cable on a Marlin 5?

You need long-pull brake cables for mechanical disc brakes. Road bike cables use a shorter pull ratio and won't give enough leverage. Most bike shops stock the right type.

Look for "mountain bike disc brake cable" on the package. Universal cables often work but check the end fitting matches your Tektro lever.

Is it safe to ride with a frayed brake cable?

No. A frayed cable can snap without warning. That means zero braking power on that wheel.

Replace a frayed cable before the next ride. Do not try to patch it with electrical tape or cable ties. The damage is internal and the cable will fail at the fray point under load.

Should I upgrade to hydraulic brakes or just fix the cables?

Fix the cables first. New compressionless housing costs $15. If that doesn't solve the problem, the calipers are likely worn or damaged.

At that point, a full hydraulic upgrade for $60 to $70 is worth it. There's no reason to jump to hydraulics until you've eliminated cable and housing as the cause.

Do I need special tools for cable replacement?

You need cable cutters, a 5 mm hex key, a 4 mm hex key, and needle-nose pliers. A torque wrench is nice but not required. A cable end crimping tool is optional but makes clean caps.

Most of these tools are under $20 each. A bike shop will do the full job for $25 to $40 in labor if you bring the parts.
