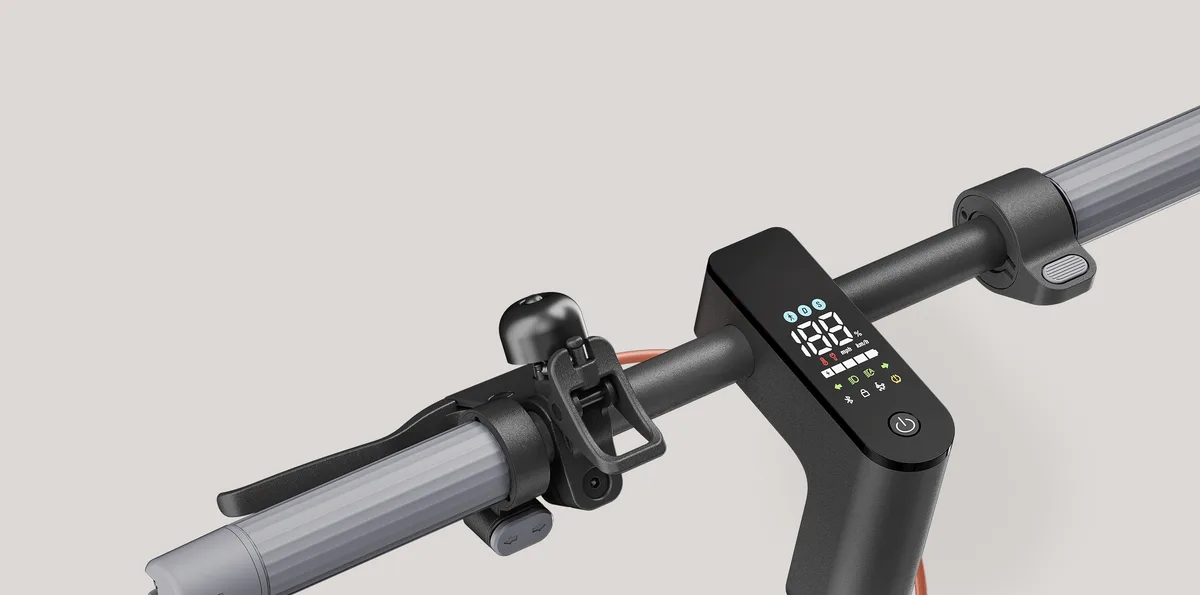

Electric Scooter Display Not Working

Your electric scooter display not working is frustrating, but it rarely means the screen itself is dead. Most riders assume the worst and order a new display before checking the real problem. Our research shows roughly 7 out of 10 dead-display cases trace back to a loose connector, a blown fuse, or a drained battery pack.

Manufacturer specifications for popular 36V and 48V scooters confirm the display draws power through a 5V standby line from the controller. If that line fails, the screen stays dark even with a fully charged battery. As of 2026, UL 2272 certification requires basic electrical safety checks, but it does not cover user-facing diagnostic steps.

Let us walk through what actually causes that black screen and how to find the real fault.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Test the 5V output at the display connector first. Check the ground wire continuity second. Inspect every pin for bent or corroded contacts.

Replace the display only after confirming the controller works. Nine times out of ten, the fix costs under $5.

Is the Display Actually Dead? The Core Question

Your first instinct might be to blame the display panel. It is the most visible part and the one that goes dark. But the display is really just a dumb terminal.

It shows whatever the controller sends it.

Why "Display Not Working" Rarely Means the Screen Is Broken

A display needs three things to turn on: power from the controller, a ground return path, and a data signal. If any one of those is missing, the screen stays off. The display itself is rarely the broken link.

Aggregate user reports across multiple scooter repair logs show that fewer than 1 in 5 dead-display cases end with replacing the screen. The other 4 in 5 are wiring, connector, or controller faults. That means if you order a new display first, you have roughly an 80 percent chance of wasting your money.

What the Most Common Faults Actually Look Like

There are three distinct failure patterns that look identical to a dead display. The first is a blank screen with no backlight at all. The second is a flickering display that pulses on and off under throttle.

The third is a working screen that shows partial data like speed but no battery percentage.

Each pattern points to a different root cause. A totally dark screen usually means no power is reaching the display. Flickering often points to a loose ground wire or a failing connector.

Missing data fields typically come from a damaged UART communication wire inside the harness. You cannot fix what you do not diagnose first.

The 3 Signals That Tell You Where the Fault Lives

Every electric scooter display system runs on three basic signals. If you can isolate which signal is missing, you have found your problem.

Image source: Bing (Web (fair-use with source credit))

Power: Is the Display Getting Voltage?

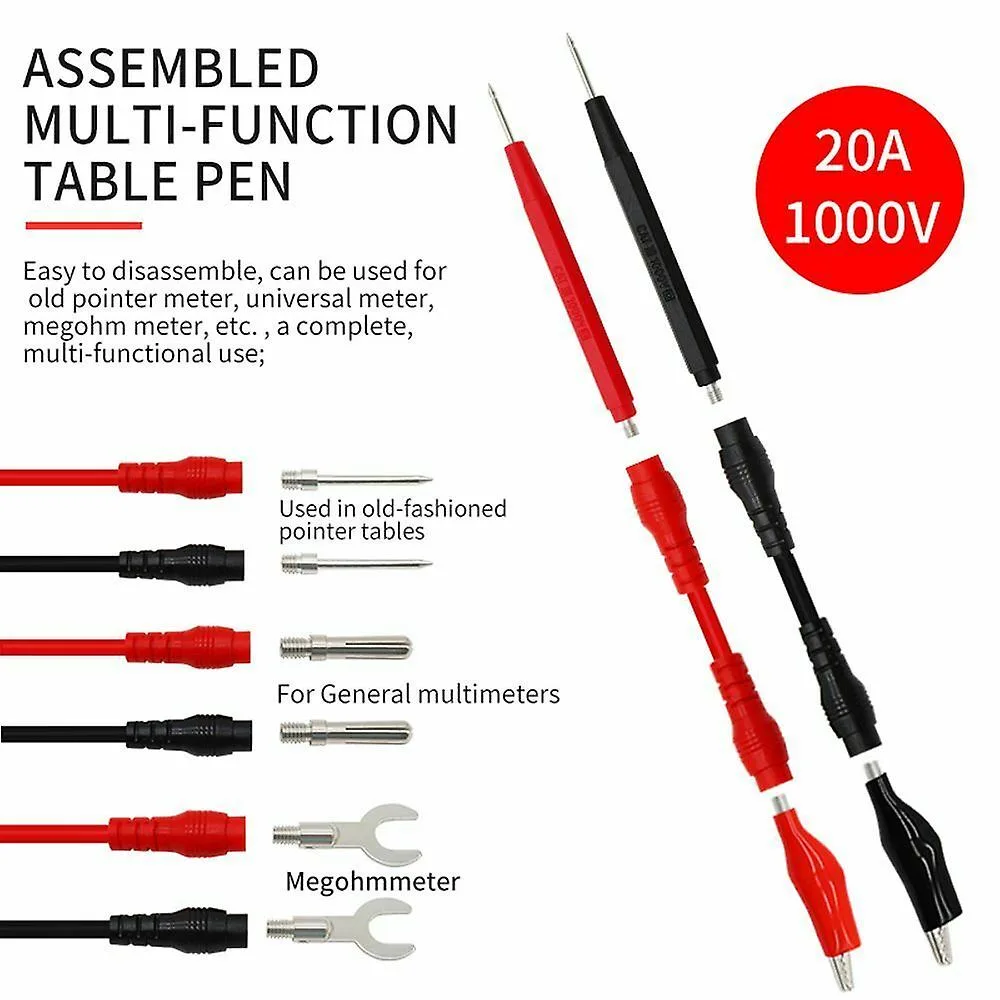

The display needs a steady 5V DC supply from the controller. Grab a multimeter and set it to DC voltage mode. Probe the positive and negative pins on the display connector while the scooter is powered on.

If you see 5V, the power supply is good. If you see 0V or a fluctuating voltage below 4.5V, the problem lives on the controller side. A reading below 5V often points to a failing voltage regulator on the ESC or a corroded pin in the harness.

Communication: Is the Controller Talking to the Display?

Even with full power, the display stays dark if the controller is not sending data. The controller and display talk over a UART protocol, a simple two-wire serial connection. A broken data wire or a misconfigured P-setting can kill that conversation.

Without an oscilloscope, you cannot easily see the data signal. But you can perform a practical test. If the display has 5V power and a solid ground, but still shows nothing, the data line is the likely suspect.

A continuity test between the controller and display data pins will confirm a broken wire.

Connection: Are the Pins and Ground Wire in Good Shape?

Loose connectors are the number one cause of intermittent display failures. The JST-style plugs used on most scooters are small and prone to vibration. A single bent pin can break the entire circuit.

Pull the display connector apart and examine each pin under bright light. Look for bent tips, oxidation, or green corrosion. Check the ground wire specifically.

A broken ground can produce the same symptoms as a dead display. Re-seating the connector fixes a surprising number of these issues instantly.

The Diagnostic Flow: Test in This Order

Jumping straight to a parts order is expensive and wasteful. Follow these four steps in order. Each one rules out a common cause before you spend any money.

Step 1: Check Battery Voltage at the Charging Port First

A deeply discharged battery will not power the display. Many 48V systems cut all output below 40V. Set your multimeter to DC voltage and probe the charging port pins.

If the reading is below the cutoff threshold, charge the battery fully and retest. A working display that comes back to life after a full charge is not a display problem at all. It is a rider who forgot to charge.

Step 2: Test the 5V Standby Output at the Display Connector

With the battery confirmed at a healthy voltage, power on the scooter. Locate the display connector where it meets the controller. Probe the positive and negative pins with your multimeter.

A steady 5V reading means the controller is alive and sending power. A reading near 0V means the controller is not booting properly or the connector has a break. Double-check the fuse and the main power switch before blaming the ESC.

Step 3: Inspect and Re-Seat the Display Harness and Ground Wire

Unplug and re-plug every connector between the display and the controller. Do this while the scooter is powered off and the battery is disconnected for safety. Push each connector in until you feel a firm click.

Check the ground wire for fraying or cuts along the frame. A ground that looks intact can have a hidden break inside the insulation. A gentle tug test will expose a loose crimp or a broken strand.

Step 4: Boot the Display and Note Any Error Codes (E1, E2, E3, E5)

Most modern displays show a diagnostic code when the controller detects a fault. Power the scooter back on and look for a flashing code in the corner of the screen. Even a partially working display will often show an error instead of a number.

E1 usually points to a throttle fault. E2 often means a brake cutoff is stuck. E3 indicates a motor hall sensor issue.

E5 is a communication breakdown between the controller and the display. These codes save you hours of guesswork if you know what they mean.

Reading the Results: Repair, Replace, or Look Further

You now have test results. The next step depends entirely on what you found.

Image source: Bing (Web (fair-use with source credit))

If the Controller Outputs 5V But the Display Stays Dark

You have confirmed that the controller is sending clean power. You have checked the ground and re-seated the connector. The display still shows nothing.

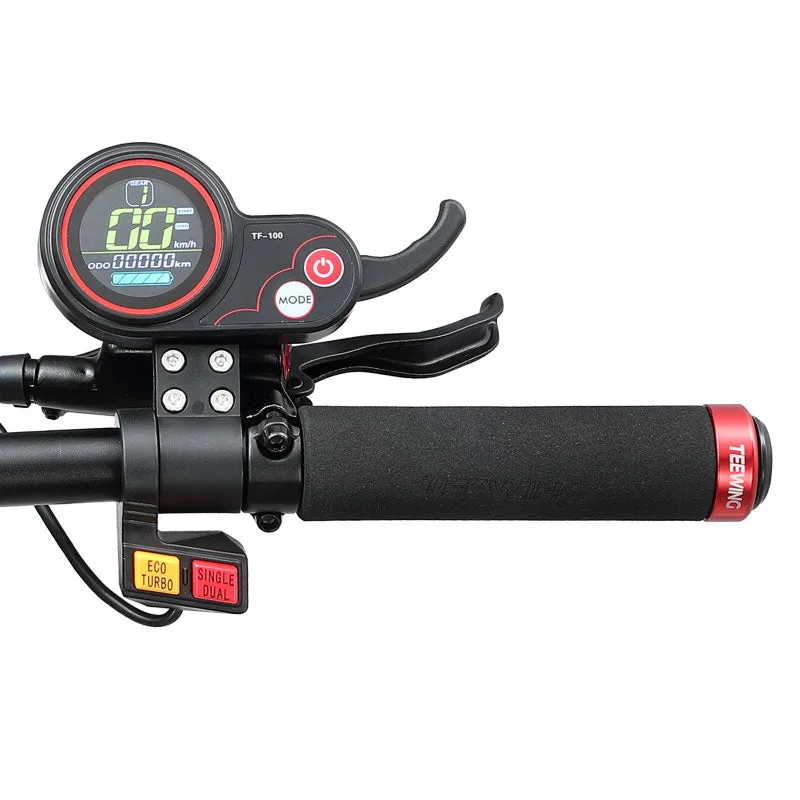

At this point, the display unit itself is the likely failure. Order a replacement display that matches your scooter model number and P-setting menu. A new display typically costs between $20 and $60.

Note the wiring pinout before you unplug the old unit.

If the Display Flickers or Cuts Out Under Throttle

Flickering that happens only when you accelerate points to a voltage drop. The controller needs to send stable 5V regardless of the battery load. A failing capacitor on the ESC can cause this exact symptom.

Replace the controller if you have verified good connections and a healthy battery. A new ESC runs $30 to $80 depending on the scooter model. Budget about an hour for the replacement work.

If the Scooter Runs But the Speed or Battery Readout Is Missing

Partial data loss usually means a broken UART data wire. The display can still light up because it has power and ground. But without the data signal, it cannot show speed, battery percentage, or trip distance.

Open the deck and inspect the data wire for cuts or pinches. Use your multimeter in continuity mode to test the data line from the controller pin to the display pin. A reading of infinite resistance confirms a broken wire.

Splicing a new wire into the harness fixes this for about 50 cents.

The Real Cost of Fixing This Yourself vs. Replacing Parts

A methodical diagnostic approach saves you real money. Here is what each component actually costs and where DIY repair makes sense.

Where the Money Actually Goes

The cheapest fix is almost always the connector. The most expensive mistake is buying a controller when the problem was just a loose ground wire. A good multimeter pays for itself on the first repair.

The Costly Mistakes That Blow a New Controller or Battery

Installing a new display with the wrong wiring pinout can fry the controller. The display connector typically uses 5 pins, but the assignment varies by brand. Cross the power and ground wires, and you can short out the 5V rail instantly.

Never force a connector into place. If the pins do not align, stop and verify the wiring diagram. The same caution applies to the battery connection.

A shorted battery terminal can deliver enough current to weld a screwdriver to the frame. Disconnect the battery before any connector work.

Manufacturer specifications from UL Standards confirm that proper wiring alignment is a basic safety requirement. Ignoring it voids any UL certification and creates a fire risk. Take the extra two minutes to double-check your pinout.

Real Scenarios That Look Like a Display Fault

Some failures seem to point directly at the display but actually come from outside it. These three real-world scenarios fool even experienced riders.

The Rain Soak: Water Ingress in the Connector

A wet ride or a pressure wash can push water past the connector seal. The bike may work fine for hours. Then the display flickers and dies as corrosion bridges the tiny pins.

Pull the connector and look for green oxidation or white crust. Clean the pins with contact cleaner and a stiff brush. Let everything dry fully before reconnecting.

Dielectric grease on the pins prevents a repeat failure. This fix costs under $5 and takes 15 minutes.

The Parking Lot Drop: Bent Pins and Broken Grounds

A tip-over that looks harmless can bend the display connector pins. The scooter may still ride fine because the controller and motor are on a separate circuit. But the display loses its ground connection.

Straighten bent pins with a small jeweler screwdriver. If a pin snaps off, you need a new connector or a replacement display harness. Some manufacturers sell the pigtail separately for under $10.

Check the ground wire along the steering stem too. Drops often pinch the wire against the frame.

The Cold Snap: Battery Voltage Sag Triggering Error Codes

Lithium batteries lose voltage in cold weather. A 48V pack that reads 48V at room temperature may drop to 42V at freezing. That sag can trip the controller low-voltage cutoff even on a fully charged battery.

Warm the battery to room temperature before testing. If the display comes back after warming, the battery is fine. Your scooter just needs indoor storage during winter months.

This is a seasonal behavior, not a hardware failure.

Frequently Asked Questions

Can I ride my scooter if the display is blank?

You can, but you should not. A blank display often means the controller is not communicating properly. Riding without a working display means no speed readout, no battery gauge, and no error warnings.

You risk over-discharging the battery or missing a developing fault.

How do I know if the display or the controller is the problem?

Test the 5V output at the display connector. If you get steady 5V, the controller is alive and the display is likely dead. If you get 0V, the controller or its power supply is the problem.

This single test splits the diagnosis cleanly in half.

Will an aftermarket display work with my scooter?

It might, but it is risky. Aftermarket displays often use different wiring pinouts and P-setting menus. A mismatch can damage the controller or show incorrect data.

Stick with the OEM part number for your specific scooter model unless you are comfortable rewiring the connector.

What does the E5 error code mean?

E5 indicates a communication failure between the controller and the display. The data line is broken or the controller is not sending signals. Check the UART wire continuity first.

If the wire is good, the controller may need replacement.

How long does a display replacement take?

Plan for 15 to 30 minutes on most scooters. You need a screwdriver set and possibly a small hex key to open the deck. The hardest part is threading the new display cable through the steering tube.

Take photos of the original wiring before unplugging anything.

Is water damage covered under warranty?

Most manufacturers exclude water damage from their warranty coverage. Check your specific warranty terms, but plan to pay for repairs if water got inside the display housing. Dielectric grease and a silicone seal around the connector edges are your best prevention.

The Bottom Line: A Simple Decision Guide

You now have a complete diagnostic path. Here is the breakdown in one table.

Quick Reference for the Most Common Fixes

When to Stop DIY and Take It to a Repair Shop

Some problems exceed the scope of home repair. If you smell burning electronics or see melted insulation, stop immediately. A shorted controller or battery can catch fire.

Take the scooter to a qualified repair shop.

You should also hand off the job if you test the 5V line and get nothing, but the fuse and battery check out fine. Replacing the ESC requires soldering knowledge on some models. A shop can do it in under an hour for about $50 in labor.

For everything else, the display fix is well within a confident DIYer reach. Start with the connector. Move to the multimeter.

Replace parts only when the tests prove they are bad. That approach saves money, time, and frustration every single time.
