Schwinn Koen Handlebar Wobbling

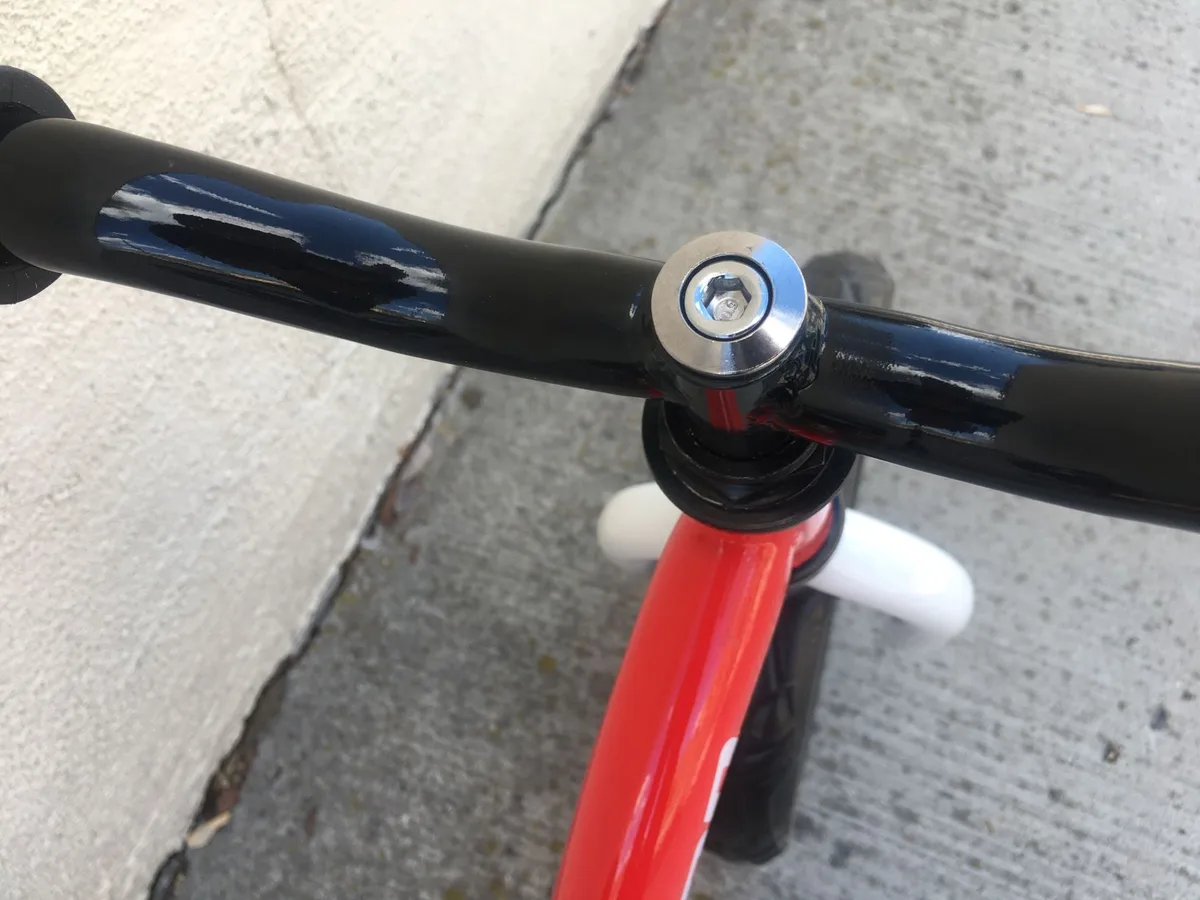

Schwinn Koen handlebar wobbling is a safety issue you need to fix before your child rides again. That loose, clunky feeling in the front end means something in the headset or stem assembly isn't secure.

Manufacturer specifications indicate the bike uses a standard 1-1/8-inch threadless headset. Most wobbles come down to improper assembly from the box or bolts loosening over time. Here's exactly how to diagnose and fix it.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Schwinn Koen handlebar wobbling is almost always caused by loose headset or stem bolts. The fix involves tightening the stem clamp bolts and adjusting the headset preload via the top cap bolt. Check the handlebar clamp bolts as well.

Most wobbles can be resolved at home with a set of Allen wrenches in about 15 minutes. If the wobble persists after tightening, the headset bearings may need inspection or replacement.

Diagnose the Wobble: A Step-by-Step Decision Guide

First, you need to pinpoint exactly where the play is coming from. Follow this decision tree to find the culprit.

Step 1: Isolate the source.

Stand the bike upright. Hold the front brake firmly. Grab the handlebars and try to rock the entire bike forward and backward.

Do you feel or hear a "clunk" at the headset (where the fork meets the frame)? If yes, your issue is headset play. If the wobble is side-to-side movement of the handlebars relative to the stem, your handlebar clamp is loose.

Step 2: Check the stem's connection to the fork.

With the bike secured, inspect the two bolts on the side of the stem that clamp it to the fork's steerer tube. These are your steer clamp bolts. Try to wiggle the handlebars.

If the whole stem moves independently of the fork, these bolts are loose.

Step 3: Check the handlebar's connection to the stem.

Look at the bolts on the front of the stem where the handlebar is clamped. Are they snug? A loose handlebar will rotate or wobble within the stem clamp itself.

Step 4: The "rock and clunk" test for headset bearings.

Lift the front wheel off the ground. Hold the headtube of the frame. Try to move the fork side to side.

Any detectable movement or clunking sound confirms worn or loose headset bearings. This is distinct from stem bolt looseness.

Image source: Bing (Web (fair-use with source credit))

A quick reference for common causes:

Fix the Wobble: Headset Adjustment, Stem Bolts, and Handlebar Clamp

Once you've diagnosed the issue, follow the correct tightening sequence. Always adjust the headset preload before tightening the stem's steer clamp bolts.

Tools You'll Need

• Allen wrench set (typically 4mm, 5mm, 6mm)
• Torque wrench (recommended, not mandatory)
• Bike repair stand or a helper to hold the bike steady

The Repair Sequence

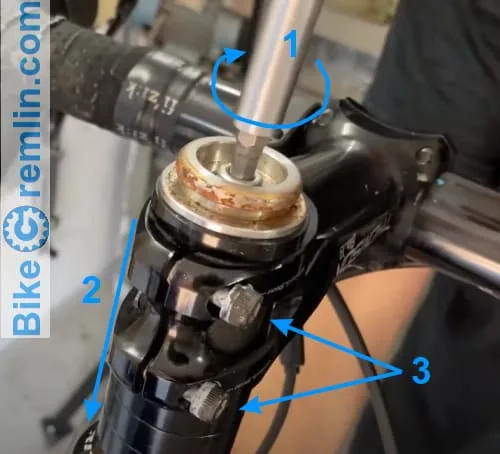

1. Set the headset preload.

The top cap bolt on top of the stem controls how tightly the headset bearings are seated. Loosen the two side steer clamp bolts on the stem first. Now, turn the top cap bolt clockwise in small increments (quarter-turns) until the wobble is gone and the handlebars turn smoothly without binding.

2. Tighten the steer clamp bolts.

With the preload set, firmly tighten the two side bolts on the stem to lock it to the fork's steerer tube. If you have a torque wrench, aim for 5 to 7 Newton-meters. Snug is good; cranking down is bad.

Over-tightening can crush the steerer tube.

3. Secure the handlebar clamp.

Finally, check and tighten the bolts on the front of the stem that hold the handlebar. Ensure the bar is centered and doesn't rotate when you apply force. Tighten these bolts evenly.

Image source: Bing (Web (fair-use with source credit))

What to Do When Tightening Bolts Doesn't Solve It

If you've followed the sequence and the wobble persists, the problem lies deeper. As of 2026, the most common underlying issues for a stubborn Schwinn Koen wobble are worn bearings or a damaged star nut.

The star nut is a metal piece pressed inside the fork's steerer tube that the top cap bolt threads into. If it's loose, stripped, or pulled out of position, you can't set proper preload. You'll need a star nut tool to reinstall it correctly.

If bearings feel gritty or rough when you turn the handlebars, they need replacement. This involves removing the fork entirely. For most parents, this is the point where a quick home fix turns into a bigger project.

The Razor A6 Headset Problem guide covers similar bearing issues on a scooter, and the principles are comparable.

A bent fork steerer tube from an impact can also cause persistent wobble that no amount of tightening will fix. If the bike was in a crash, this is a possibility. In that case, the fork needs professional inspection or replacement.

Mistakes That Make Handlebar Wobble Worse (or Create New Problems)

Avoid these common errors during the repair process.

• Tightening in the wrong order. Tightening the steer clamp bolts before setting headset preload will not fix a loose headset. It just locks the wobble in place.
• Over-torquing the top cap bolt. This bolt only needs to be snug (about 1-2 Nm). Cranking it will damage bearings and make steering stiff.
• Ignoring the handlebar clamp. You fixed the headset, but the bars still twist. Always check the clamp bolts at the front of the stem.
• Using the wrong size Allen wrench. Stripping a bolt head turns a 15-minute job into a major headache. Find the exact fit.
• Skipping the final check. After all bolts are tight, lift the front wheel and spin it. Make sure the brake rotor or rim doesn't rub. Then, take a slow test ride to confirm the fix.

Preventative maintenance is key. For issues like bolts that keep backing out, a guide on solving problems with fasteners loosening offers useful general advice.
