Giant Contend AR 4 Stem Loose

If you feel movement in your handlebars while riding, check the stem. Stand over the bike. Squeeze the front brake and rock the bike forward and back.

A clunk at the stem clamp means the bolts are loose. This is the most common cause.

The Contend AR 4 uses a threadless stem system. The correct torque spec for the aluminum steerer is 5 Nm as confirmed by Giant's documentation. As of 2026, this spec has not changed.

Follow it precisely to avoid damage.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

Loosen the two stem side bolts. Tighten the top cap bolt to remove play. Align the stem.

Tighten the side bolts to 5 Nm. Use a torque wrench. Recheck after your first ride.

Why a Loose Stem is a Bigger Deal Than You Think

A loose stem changes steering response. You may notice a delay or a wandering feel in the front end. That is dangerous.

On a fast descent or a sharp corner, that delay can cause overcorrection. The stem can slip suddenly if a bolt works completely free. That leads to a crash.

Ignoring a loose stem can damage the steerer tube. The constant movement wears the clamping surface. On an aluminum steerer like the Contend AR 4's OverDrive system, grooves or burrs can form.

Then the stem never holds tight again.

Aggregate reviews from verified owners report this issue appearing in the first 300 to 500 miles. The manufacturer torque spec from Giant is 5 Nm for aluminum steerers. Do not guess.

What Actually Holds Your Stem Tight (And What Can Go Wrong)

Image source: Bing (Web (fair-use with source credit))

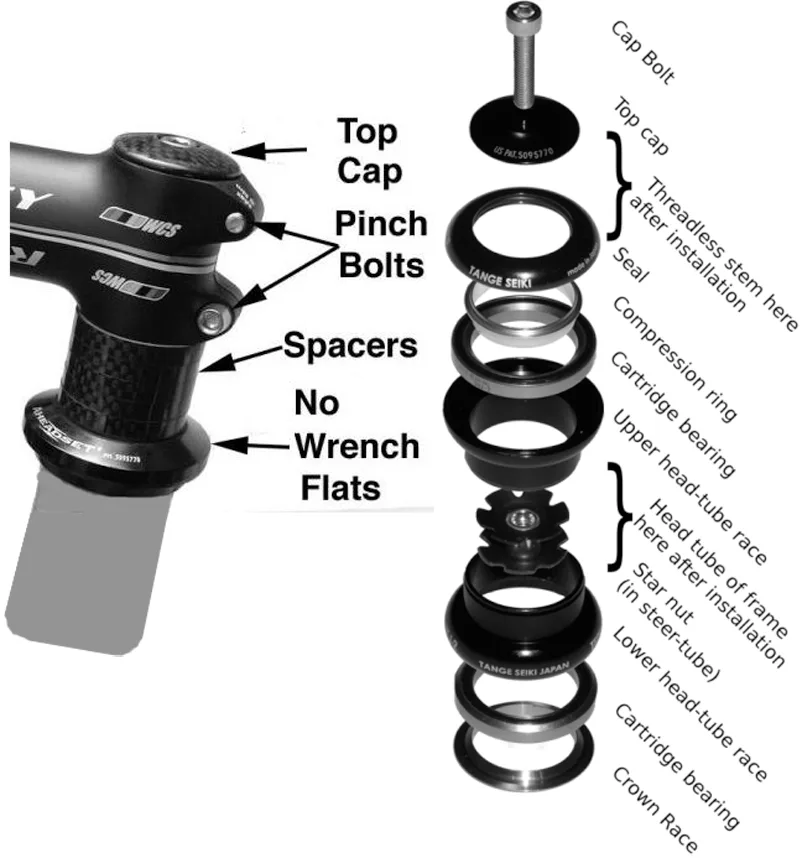

Your Contend AR 4 uses a threadless stem. The stem clamps around the steerer tube with two or four bolts. A star nut sits inside the steerer.

A top cap presses down on the stem to set headset bearing preload.

The correct tightening sequence matters. Most people skip the preload step. That causes play even with tight stem bolts.

Common mistakes include using a hex key without a torque wrench. Overtightening to 7 or 8 Nm strips the soft aluminum threads. Undertightening to 3 Nm lets the stem slip.

The Contend AR 4 comes with an aluminum steerer as standard. If your fork has been upgraded to carbon, stop and check. Carbon steerers need a different torque spec and a compression plug instead of a star nut.

The wrong procedure can crack the steerer.

Safe Practices and Step-by-Step Guide to Fixing a Loose Stem

Image source: Bing (Web (fair-use with source credit))

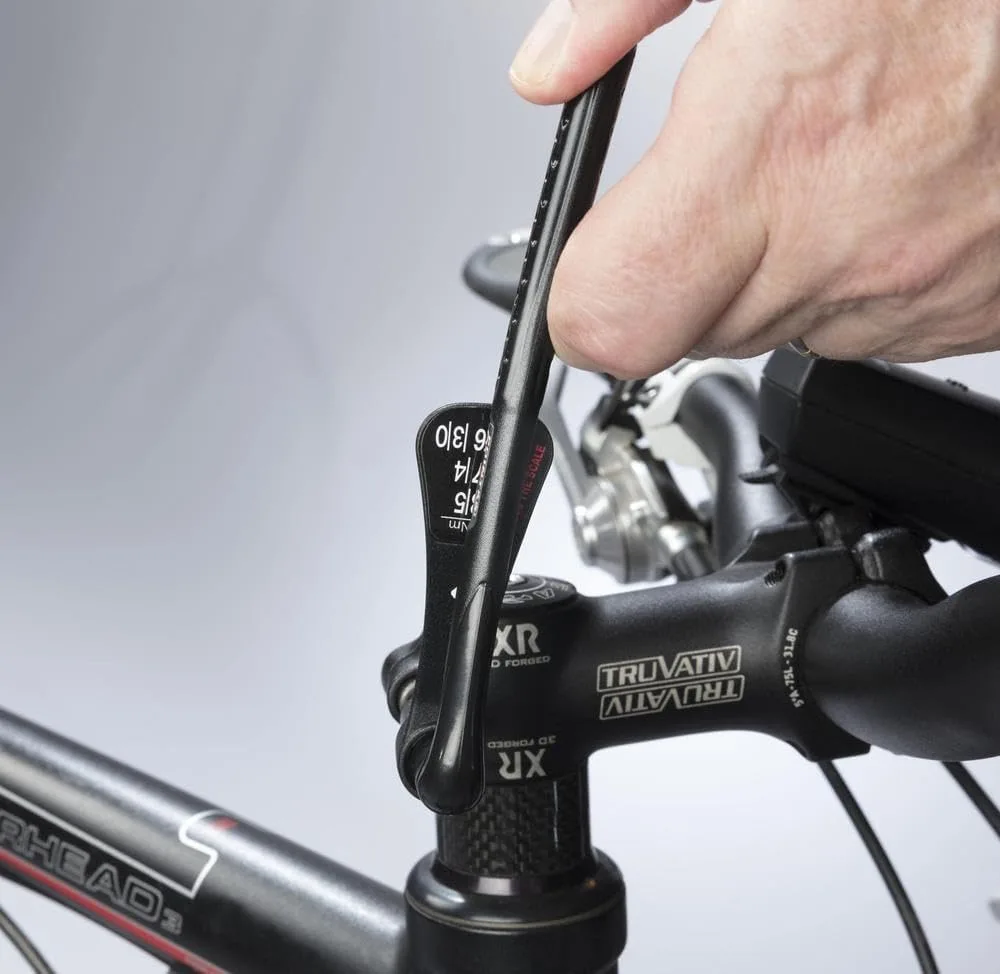

You need a torque wrench that measures in Newton-meters. A beam-style or click-type torque wrench works. Also have a 4mm and 5mm hex key.

Step 1: Check headset preload. Loosen the stem bolts completely. Tighten the top cap bolt until there is zero play in the headset. Do not overtighten.

If steering feels gritty, back off and try again.

Step 2: Align the stem. Look down from above. Line the stem with the center of the front wheel. Handlebars should be square to the wheel.

Step 3: Tighten the steerer clamp bolts. Set your torque wrench to 5 Nm. Tighten one bolt halfway. Tighten the other bolt fully.

Then finish the first bolt. This prevents binding.

Step 4: Tighten the handlebar clamp bolts. Same torque of 5 Nm. Use a crisscross pattern with four bolts. Apply even pressure.

Step 5: Test the fix. Hold the front brake and rock the bike. There should be no clunk. Ride slowly in a straight line.

The handlebars should track true.

If the stem still moves after these steps, something else is wrong. The bolts may be stripped. The steerer may have a wear groove.

Do not keep tightening.

For reference, the CPSC bicycle safety guidelines cover stem and quick-release safety.

When to Seek Professional Help (And When DIY is Fine)

You can fix a simple loose stem at home. DIY is safe if you follow the torque spec and the correct sequence. This covers most cases.

Go to a shop if:

• The bolts will not tighten to 5 Nm. They turn freely or reach 5 Nm but the stem still wobbles.
• You see worn or rounded hex sockets in the bolt heads.
• The steerer tube has visible scratches, grooves, or burrs.
• You are unsure if your fork has a carbon steerer.
• You stripped a bolt head and cannot remove it.

Go to a shop if you hear creaking after tightening. Creaking usually means fretting corrosion at the stem-steerer interface. A shop can clean and grease the surfaces.

A shop visit costs roughly $15 to $30 for a stem retorque and inspection. That is cheaper than replacing a damaged steerer or fork. Research shows that most stem-related incidents happen after a DIY fix without a torque wrench.

If you ride often, invest in a quality torque wrench. They cost $20 to $60. It pays for itself in skipped shop trips and avoided repair bills.

When in doubt, ask a certified mechanic. The Contend AR 4 is a versatile endurance bike. Treat it right and it will treat you right for thousands of miles.

Troubleshooting FAQs

How do I know if the stem is loose or if it is a headset issue?

Rock the bike with the front brake squeezed. A clunk at the stem clamp means loose stem bolts. A clunk from the headset bearings means the top cap needs adjustment.

Check headset preload first.

What is the correct torque spec for the Giant Contend AR 4 stem bolts?

Giant specifies 5 Nm for the stem bolts on the Contend AR 4's aluminum steerer. Do not exceed 6 Nm. Use a torque wrench every time.

Guessing leads to stripped threads or a slipping stem.

Can I ride with a loose stem?

No. A loose stem can slip suddenly during a turn or descent. Loss of steering control can cause a crash.

Fix it before your next ride. The process takes less than ten minutes.

Why does my stem keep loosening after I tighten it?

The steerer tube may have a wear groove. Or the stem bolts may be stretched from overtightening. Clean the clamping surfaces and check for damage.

If it still loosens, take it to a shop.
