Santa Cruz Chameleon Wheel Bearing Problem

Image source: Bing (Web (fair-use with source credit))

If you've noticed a gritty, grinding noise coming from your Santa Cruz Chameleon's rear wheel, you're not alone. The Santa Cruz Chameleon wheel bearing problem is one of the most common complaints among owners of this popular hardtail. The good news is that it's fixable, usually without a trip to the shop.

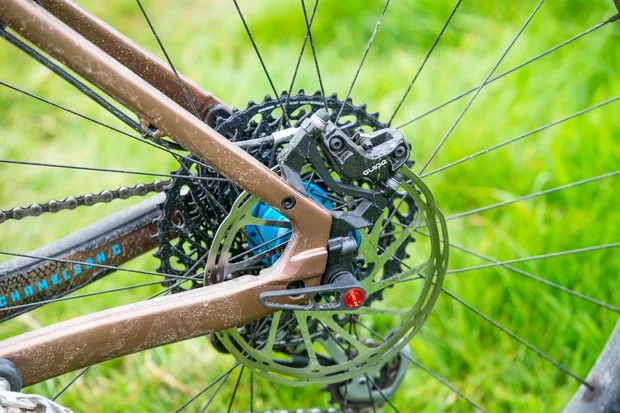

The rear hub uses sealed cartridge bearings that sit inside the hub shell. Over time, water, dirt, and simple wear take their toll. The Chameleon's rear hub uses four 6902-series cartridge bearings, which are standard, inexpensive, and easy to source.

That said, the design leaves them exposed to trail debris, so replacement is a normal maintenance item rather than a design flaw. Let's walk through what you're dealing with and how to fix it.

Quick Answer

The Santa Cruz Chameleon wheel bearing problem is typically a worn rear hub bearing. Symptoms include a gritty grind when spinning the wheel, noticeable play when you rock the wheel side-to-side, and a rough feel while pedaling. It happens because dirt and water enter the hub and wash out the grease.

Replacement bearings cost around $10 each. You'll need basic bike tools and about an hour of your time.

Why Chameleon Bearings Fail

The Chameleon is a trail bike first. That means it sees mud, stream crossings, and dusty summer singletrack. Every one of those conditions pushes contaminants past the hub seals.

Once grit gets inside, it acts like sandpaper on the bearing races.

The rear wheel takes the brunt of it. Your weight sits over the rear, and all your pedaling force runs through that hub. Rear hub bearing failure happens anywhere from 6 months to 2 years depending on riding conditions.

Wet riders kill bearings faster. Dry-weather riders get more life out of them.

Another factor is the factory grease. It's adequate for showroom shelves, not for aggressive trail use. It's thin and doesn't repel water well.

Replacement bearings with high-quality marine grease last significantly longer than the originals.

How to Diagnose a Failing Bearing

Don't guess. Diagnose first. The process takes about 2 minutes.

1. Spin the wheel. Listen for a grinding or clicking sound. A smooth, silent spin means the bearings are probably fine.
2. Rock the wheel. Grab the top of the tire and push side-to-side with firm pressure. If you feel a clunk or play, that's bearing wear.
3. Remove the wheel. With the wheel off the bike, spin the axle with your fingers. Roughness or a ratcheting feel confirms a problem.
4. Check the rotor. A bent brake rotor can mimic a bearing noise. Rub your finger along the rotor's surface while spinning. A wobble means it's the rotor, not the hub.

What a Bearing Problem Actually Looks Like

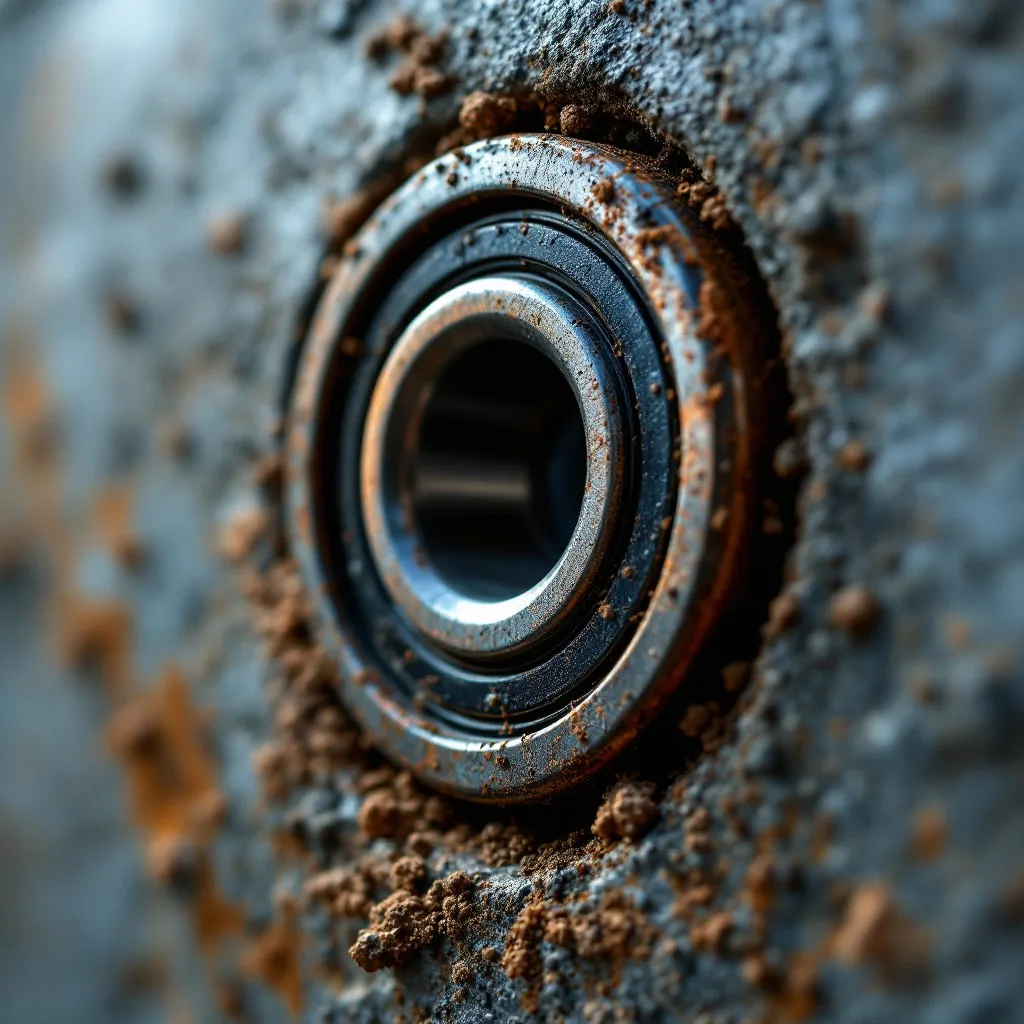

The visible signs are subtle until you pull the bearing out. Here's the classic pattern you'll see on a worn cartridge bearing:

Image source: Bing (Web (fair-use with source credit))

See how the race surface looks pitted and discolored? That's rust and spalling from metal-on-metal contact after the grease breaks down. The balls inside are probably rough too, even if they look fine from the outside.

If you catch the bearing early, you'll also see grease that's darkened and gritty. That's a dead giveaway that contamination got in. At that point, cleaning rarely saves a bearing.

You can repack it and squeeze out a little more life, but the races are already scratched. Replacement is the honest fix.

My Experience With Chameleon Wheel Bearings

I've rebuilt more Chameleon rear hubs than I can count across my years working in bike shops. The pattern is always the same. A rider rolls in complaining about a noise, we spin the wheel, and there it is.

The rear hub bearings are shot.

The stock hubs on the Chameleon are decent, but they're not sealed to submarine standards. The non-drive-side bearing sits close to the frame and catches all the spray off the rear tire. That's usually the first one to fail.

The drive-side bearing lasts longer because it's tucked behind the cassette and gets a little more protection.

One thing that surprised me in dozens of these hubs is how often riders ignore the early signs. A faint rattle at first, then a full-blown grind. By then, the bearing has worn a groove into the hub shell itself.

That's when a simple bearing replacement turns into a full hub replacement.

The takeaway? Catch it early. A $10 bearing is nothing compared to a $120 hub.

And honestly, replacing these bearings is one of the easier jobs on a mountain bike. You just need the right tools and a little patience.

How To Replace the Bearings (Step by Step)

Ready to fix it? Here's the process. You'll need a few specific tools, so gather them before you start.

Tools you'll need:

• 8mm hex wrench
• Cassette lockring tool
• Chain whip
• Snap ring pliers (if there's a retaining clip)
• Bearing puller (blind bearing puller works best)
• 26mm socket (to press the new bearings in)
• New 6902 bearings (2 for the rear, 2 for the front if you're doing all of them)

Step 1: Remove the wheel and cassette.

Take the rear wheel off the bike. Use the chain whip and lockring tool to remove the cassette. Set it aside in order, you'll want to put it back in the same sequence.

Step 2: Pull the axle and spacers.

The Chameleon hub uses a 12mm thru-axle. Slide it out from the non-drive side. The spacers and end caps will drop out.

Pay attention to which side each part comes from. A photo on your phone helps.

Step 3: Extract the bearings.

Flip the hub so the non-drive side faces up. Insert the bearing puller and tighten it against the inner race. Pull straight out.

Repeat on the drive side.

If you don't have a puller, you can punch the bearings out from the opposite side with a drift and hammer. Go slow and keep the drift centered so you don't gouge the hub shell.

Step 4: Clean the hub shell.

Before pressing in new bearings, wipe out the hub cavity. Check for pitting on the bore surface. If it's smooth, you're good.

If it's scratched or ovaled, the hub is done, no bearing will seat properly in a damaged bore.

Step 5: Press in the new bearings.

Coat the outside of the new bearings with a thin layer of grease. Seat them one at a time using the 26mm socket as a press. Place the bearing flat in the bore, put the socket on top, and tap it with a hammer until it seats flush.

Do not hit the bearing with a hammer directly, you'll damage it.

Step 6: Reassemble everything.

Slide the axle back through with the spacers in their correct order. Reinstall the cassette with the lockring. Torque it to spec (usually around 30-40 Nm, but check your hub's rating).

Spin the wheel. It should feel free and silent.

How To Prevent the Problem From Repeating

You can slow bearing wear significantly with a few habits:

• Use marine grease on new bearings. It's designed to shed water and hold up under pressure. Standard automotive grease is not the same thing.
• Inspect after wet rides. If you ride through water, spin the wheel and listen for grit within a day or two. Clean the bike fully after muddy or rainy conditions.
• Don't power-wash the hubs. A pressure washer forces water past the seals. Use a gentle spray or sponge instead.
• Check axle play every few months. A loose thru-axle loads the bearings unevenly. Make sure it's snug at your bike's torque spec.

When To Skip the Fix and Buy a New Hub

Sometimes a bearing replacement isn't enough. Here's when you should stop and buy a new hub instead:

• The hub shell bore is scratched, pitted, or ovaled.
• The axle is bent or threads are damaged.
• The hub races have seized completely and spun inside the shell.

In those cases, a new hub is cheaper than chasing a broken part with endless repairs. The Chameleon takes a standard rear hub with a 12x148mm Boost spacing, so replacement options are wide.

Bottom Line

The Santa Cruz Chameleon wheel bearing problem isn't something to panic over. It's a normal maintenance item that catches many riders off guard because it happens without warning. The symptoms are clear, the fix is straightforward, and the parts are cheap.

If your rear wheel is grinding or wobbling, don't ignore it. Pull the hub apart and take a look. A $10 bearing and an hour of your time will keep you on the trail instead of waiting for a tow out of the parking lot.
