Kids Bike Tire Rubbing Frame

A kids bike tire rubbing frame can turn a fun ride into a scraping, dragging mess. You hear it the moment the pedals turn, and every rotation sounds like something is about to snap. The good news is most of the time this is a quick fix you can handle at home with basic tools.

Our research shows this is one of the most common repairs on children's bikes. It usually comes down to four causes: a loose axle, a wobbly wheel, low tire pressure, or a frame bent from a tip-over. As of 2026, standard kids' bike tires (16" to 24") need 30 to 50 PSI to keep proper clearance.

Let's walk through the diagnosis.

Quick Answer

A kids bike tire rubbing frame usually means low pressure, a loose axle, or a wobbly wheel. Check the tire pressure first. Then spin the wheel and watch the gap.

Most fixes take under ten minutes and cost nothing.

The Scraping Sound: What's Happening and Why It's Common on Kids' Bikes

That grinding noise isn't just annoying. It's the sound of rubber wearing against metal or paint. When a tire rubs the frame, it creates drag, slows your child down, and can damage both the tire sidewall and the frame's finish.

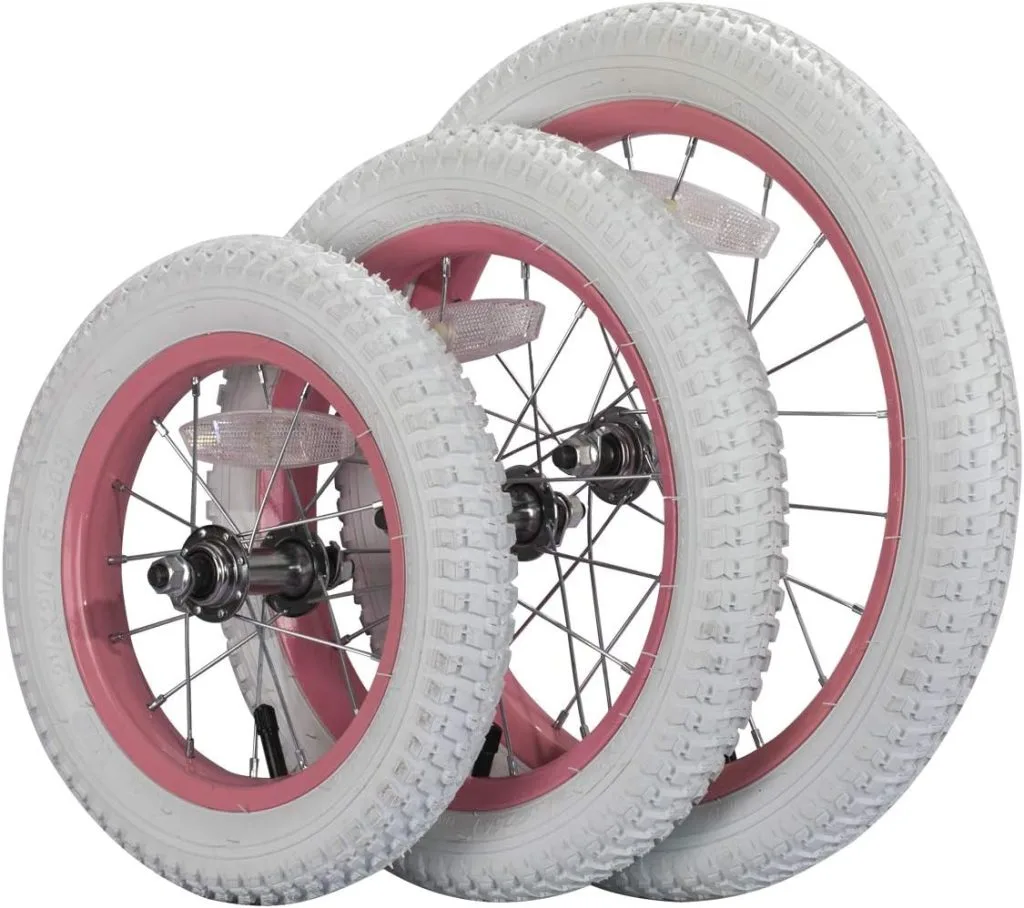

Kids' bikes are prone to this because they're built with tight clearances. A 20-inch wheel with a standard 2.1-inch tire often has only 3 to 5 millimeters of gap between the rubber and the chainstay. That's roughly the thickness of a pencil eraser.

Any small shift in the wheel, axle, or frame eats up that tiny gap.

The other contributing factor is how kids ride. Bikes get dropped, crashed into curbs, and left outside in the rain. All of that abuse works components loose or bends things slightly out of alignment.

What seems like a mysterious rubbing noise is usually just physics catching up with a well-used bike.

The most common culprits, in order of frequency:

• Under-inflated tires, which bulge sideways when soft
• A wheel that's gone slightly out of true, meaning it wobbles side-to-side
• A quick-release axle that isn't fully seated in the dropout
• A tire that's too wide for the frame after an upgrade or swap

Start Here: The 60-Second Lift-and-Spin Check

Before you buy parts or grab a wrench, do this simple test. Flip the bike upside down so it rests on the seat and handlebars, or use a repair stand. Give the wheel a hard spin and watch the gap between the tire and frame on both sides.

Image source: Bing (Web (fair-use with source credit))

What you're looking for:

• A constant rub on every rotation suggests the tire is too wide or the frame is misaligned.
• A rub that comes and goes means the wheel is warped or the axle is crooked.
• No rub at all when the wheel spins free means the problem only appears with weight on the bike.

That last point is crucial. If the wheel clears the frame when the bike is upside down but rubs when your child sits on it, the cause is almost always low tire pressure. The rider's weight squashes the tire, making it bulge into the frame.

The Decision Tree: Match the Rub to the Fix

Work through these branches in order. Stop when you find the one that matches your situation.

Rub Only in One Spot? Your Wheel Is Out of True

If you hear the rub once per full wheel rotation, the rim is bent or the spokes are uneven. That's called being "out of true," and it's the most common cause after low pressure.

Spin the wheel slowly and watch the gap. At the slow part of the spin, you'll see the tire move closer to the frame, then pull away. That's your damaged spot.

Image source: Bing (Web (fair-use with source credit))

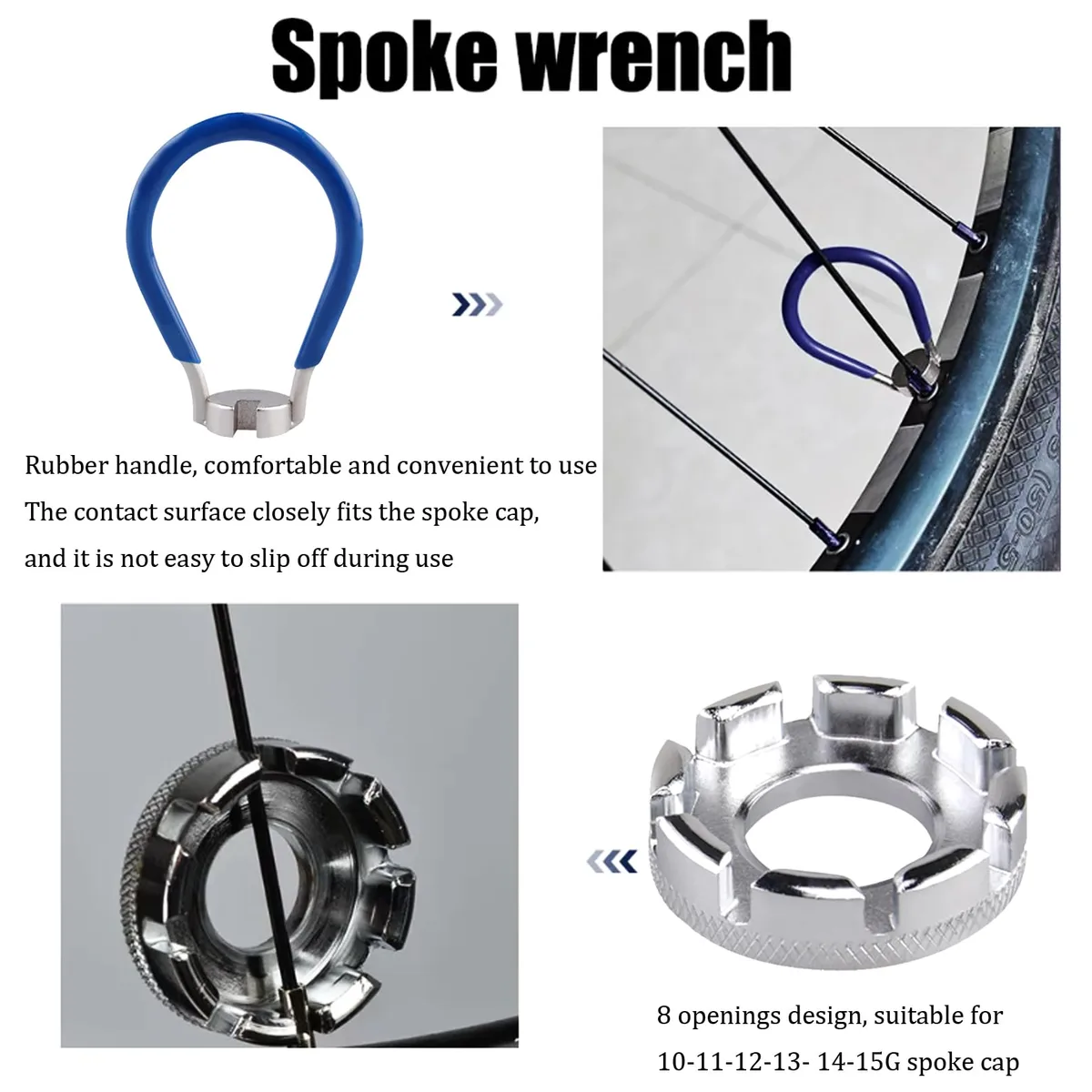

The fix involves tightening or loosening specific spokes to pull the rim back into alignment. You'll need a spoke wrench, which costs around five to ten dollars.

• Locate the spot where the rim is closest to the frame.
• If the rim is pulled to the left, tighten the spokes on the right side near that spot. Do a quarter turn at a time.
• If the rim is pulled to the right, do the reverse.
• Spin and re-check after every quarter turn.

If the wobble is severe or the rim has a visible dent, truing might not be enough. A new wheel for a kids' bike typically runs 25 to 40 dollars, which is often a better investment than fighting a bent rim.

Rub Only When the Bike Is Ridden? Low Tire Pressure

This is the easiest fix and the most common. When a tire doesn't have enough air, it flattens at the contact point and the sidewalls bulge outward. That bulge is what touches the frame.

Image source: Bing (Web (fair-use with source credit))

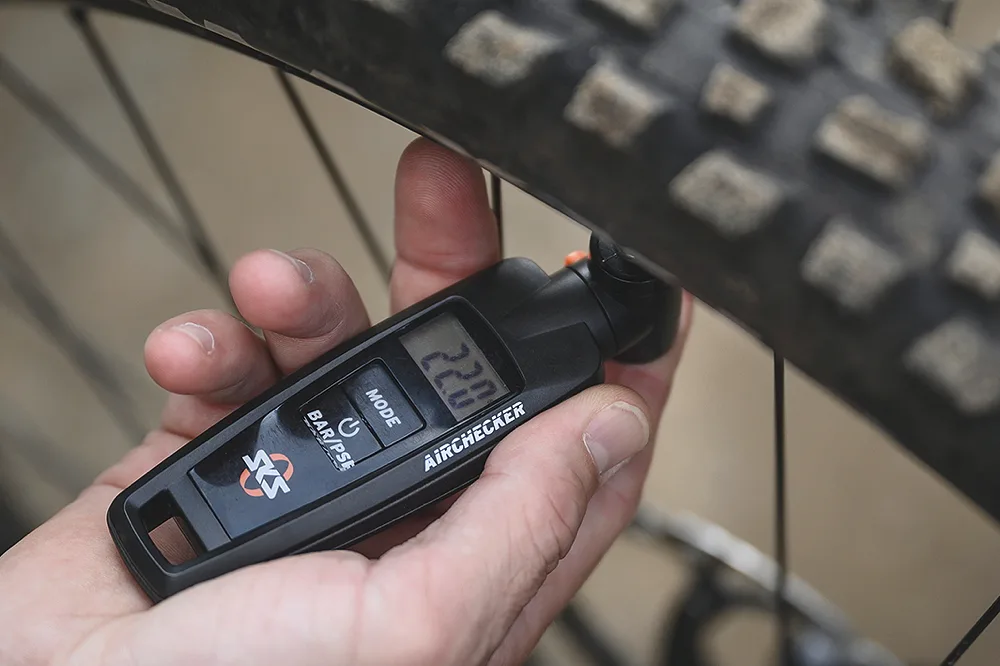

Check the tire sidewall for the recommended pressure range. Most kids' bike tires list something like "30-50 PSI" right on the rubber. Use a pump with an integrated gauge, or a separate gauge, to check where you are.

Here's the practical tip: kids' bikes lose pressure fast. A 20-inch tire can drop 10 to 15 PSI in a month just sitting in the garage. If it's been a while since the last ride, pump it to the middle of the recommended range and see if the rub disappears.

While you're at it, check the other wheel too. Uneven pressure between front and rear tires makes the bike handle poorly. Both should be at similar pressures.

Rub on One Side Only? Axle Not Seated Properly

This one is sneaky. The axle can look fine from outside but sit crooked in the frame dropout, the slot where the wheel connects to the bike. That tilts the wheel to one side, closing the gap.

The quick-release skewer should be snug and pointing parallel to the bike or slightly upward. If it's loose, the wheel can slide around.

• Loosen the quick-release lever until the wheel moves freely.
• Make sure the axle is fully seated at the bottom of both dropouts.
• Hold the wheel centered and tighten the lever.
• It should take firm hand pressure to close. If it closes with no resistance, adjust the tension.

For bolt-on axles, use a 15mm wrench. Undo both sides, push the wheel firmly into the dropouts, and tighten alternately to keep the wheel centered.

Rub Started After a Tire Swap? Too-Wide Tire for the Frame

If you recently replaced the tire and the rub started, this is your culprit. Not every tire fits every bike frame.

Kids' bike tires come in widths like 1.5, 1.75, 2.0, and 2.25 inches. A frame built for a narrow tire won't comfortably fit a wide one. The chainstays simply don't leave enough room.

Check the current tire's width on the sidewall and compare it to the original spec. If you've gone wider, swap back to the original size. A new 20-inch kids' tire costs around 15 to 25 dollars.

If you're not sure of the original size, call a local bike shop. They can check the frame's recommended range in a few minutes.

Rub on Every Full Turn, Even with a Perfect Wheel? Check the Spokes

Sometimes the rim looks straight, the tire is properly inflated, and the axle is seated, but the rub still happens. The problem might be a broken or loose spoke.

Run your fingers gently across the spokes on both sides. A loose spoke feels slack compared to its neighbors. A broken spoke will be obvious, dangling or rattling.

A single loose spoke isn't a major repair. A spoke wrench can tighten it, but matching the tension of surrounding spokes takes some feel. If several spokes are loose, take the wheel to a shop.

Professional truing and tensioning runs about 20 to 30 dollars.

When a Frame Is the Real Problem: Bent Stays, Dropouts, or Fork

Sometimes the tire is fine, the wheel is true, and everything is tightened correctly, but the rub persists. That means the frame is out of alignment. This usually happens after a hard crash or a fall onto the side of the bike.

How to Check Frame Alignment at Home

You can do a basic check with a piece of string or a straightedge.

• Lay the bike on its side or flip it upside down.
• Run a straightedge along the inside of each chainstay, the frame tubes flanking the rear tire.
• Look for a visible gap difference between the two sides when the wheel is centered.
• Do the same for the fork on the front wheel.

If one side is visibly bent, the frame is compromised. A bent frame isn't something you can safely hammer back into shape. The metal has already fatigued, and bending it again can create a stress fracture.

When to Call It: Replace the Bike vs. Take It to a Shop

This is where you make a judgment call. Kids' bike frames use steel or aluminum.

• Steel frames can sometimes be realigned by a professional frame builder, but that service often costs more than a new kids' bike.
• Aluminum frames cannot be safely bent back. They will crack.

For a kids' bike, replacement is usually the practical answer. A new 20-inch bike runs anywhere from 100 to 250 dollars. If the frame is bent, the bike isn't safe to ride.

Per CPSC safety standards, a compromised frame can fail during a ride and cause serious injury. Don't risk it.

Mistakes That Make It Worse (or Turn a Fix into a Rebuild)

We've seen well-meaning parents make a simple problem worse by skipping the diagnosis. Here are the most common missteps.

Letting your kid ride anyway. A rubbing tire wears through the sidewall over time. Eventually, the tire can fail at speed. That's a crash waiting to happen.

Pumping to the maximum PSI. The number on the sidewall is the ceiling, not the target. Over-inflated tires give a harsh ride. Aim for the middle of the range.

Over-tightening spokes. Crank a spoke more than a quarter turn and you'll pull the rim too far the other way, or strip the nipple. Go slow.

Tightening wheel nuts unevenly. Tighten one side completely and you'll pull the axle out of alignment. Alternate a few turns per side, like car lug nuts.

Using heat to bend a frame back. This ruins the metal's heat treatment and creates a weak spot that can fail without warning. Never do it.

Forgetting the training wheels. A misaligned training wheel bracket can tilt the rear end and make the tire rub. Check those brackets are straight and equal length.

Leaving the quick-release lever sticking out. If the lever points forward, it can hit your child's leg or frame parts. Close it parallel to the frame or pointing upward.

How to Keep the Rub from Coming Back: Pressure, Checks, and Good Habits

A quick fix is great, but keeping the problem from returning is better. A little routine goes a long way.

Check tire pressure monthly. This is the single most effective habit. A 20-inch tire can lose 10 to 15 PSI in a month. Set a calendar reminder or check before every ride.

Do the 10-second spin test. Flip the bike upside down and spin each wheel once a month. You'll catch a loose spoke or wobble before it becomes a full rub.

Store the bike inside or under cover. Rain and sun degrade rubber and rust spokes. A bike left outside needs truing and new tires more often.

Clean the frame and wheels occasionally. Grit and mud build up in the tight gap between tire and frame. A quick wipe with a damp cloth removes debris that causes wear.

Check the quick-release lever every few rides. Kids are hard on hardware. Loose levers are the easiest problem to miss.

Frequently Asked Questions

Is it safe to ride a bike with a rubbing tire?

No. A rubbing tire creates friction that wears through the sidewall over time. More critically, it can cause the wheel to lock up suddenly during a turn or bump.

That's a crash risk. Fix it before the next ride.

How much clearance should a kid's tire have from the frame?

Manufacturers generally spec 3 to 5 millimeters of gap, roughly the thickness of a pencil eraser. If you can't fit a standard business card between the tire and frame, the clearance is too tight.

Can I bend the frame back myself to fix the rub?

Don't. Bending a frame by hand creates stress fractures, especially on aluminum. A steel frame might be realignable by a professional, but that service usually costs more than a new kids' bike.

Replace it instead.

Why did this start after we pumped up the tires for the first time in months?

Under-inflated tires bulge sideways and rub. Once you inflate them properly, clearance should restore automatically. If the rub continues after inflation, check axle seating, wheel trueness, and tire width.

Do we need a whole new wheel, or can this one be fixed?

Most wheels can be fixed. Spoke truing costs about 20 to 30 dollars. A new kids' wheel runs 25 to 40 dollars.

If the rim has a visible dent from a crash, the wheel is usually cheaper to replace than repair.
