NIU KQi3 Pro Brake Problem

If your NIU KQi3 Pro brake problem has you second-guessing every stop, you're not alone. This is one of the most common ownership questions, and the good news is that most brake issues have a straightforward fix once you know what to look for.

The KQi3 Pro pairs a mechanical rear drum brake with an electronic regenerative brake on the front motor. Manufacturer specifications indicate the combined system stops the scooter from 15 mph in roughly 4 to 5 meters when properly adjusted. Each system has its own failure modes, so knowing which one is acting up matters.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

The most common NIU KQi3 Pro brake problem is a loose or squealing rear drum brake. A quick cable tension adjustment at the lever or drum arm fixes most cases. Dragging brakes usually need a barrel adjuster turn.

Spongy levers often mean cable stretch. Electronic brake issues are usually an app setting, not a hardware failure.

What Brake Problem Are You Actually Dealing With?

Image source: Bing (Web (fair-use with source credit))

The KQi3 Pro uses a sealed drum brake on the rear wheel. Brake shoes press outward against the inside of a drum to create friction. It's a durable, low-maintenance design, but it behaves differently than disc brakes.

Most owners report four distinct symptoms.

Squealing is the most common. A high-pitched screech when you pull the lever usually means glazed brake shoes or a contaminated drum interior. It sounds alarming but is rarely a safety hazard.

A spongy lever that pulls almost to the grip indicates cable slack or stretch. This happens naturally during the first few hundred miles as the cable beds in. It's the easiest fix on the list.

Dragging brakes sound like constant scraping when pushing the scooter. The wheel resists spinning freely. This usually means the cable is too tight or the drum arm isn't returning fully.

Left unchecked, it wears pads and drains range.

A dead lever with no resistance points to a broken cable or detached cable end. This is critical. Stop riding immediately.

What to look for: Stand the scooter upright. Spin the rear wheel by hand. Listen for scraping.

Pull the lever and see how far it travels before engaging. A healthy brake bites at about one-third of the lever's travel.

If you hear a squeal, the pads are likely glazed from heat. Several hard stops from moderate speed on a safe, straight road can restore grip. If the squeal persists, the drum needs cleaning.

If the lever pulls to the grip, you need more cable tension. That's a 30-second adjustment at the barrel adjuster on the lever or the drum arm.

If the wheel drags, back off the cable tension. Turn the barrel adjuster counterclockwise a quarter turn at a time until the wheel spins freely.

The Two-Minute Diagnosis: Check These First

Before grabbing tools, run through this checklist. It catches the easy stuff that feels like a bigger problem.

Tire pressure. Underinflated tires create rolling resistance that feels exactly like a dragging brake. The KQi3 Pro's recommended pressure is 45 to 50 PSI. Check with a gauge.

Inflate if low and retest. You might skip an unnecessary adjustment.

EBS setting in the NIU app. The electronic brake system applies regenerative force through the front motor. If the app is set to High, motor resistance kicks in when you release the throttle. Some riders mistake it for a stuck rear brake.

Open the app, go to Settings, and check the EBS mode. Switching to Low or Medium clarifies whether the drag is electronic or mechanical.

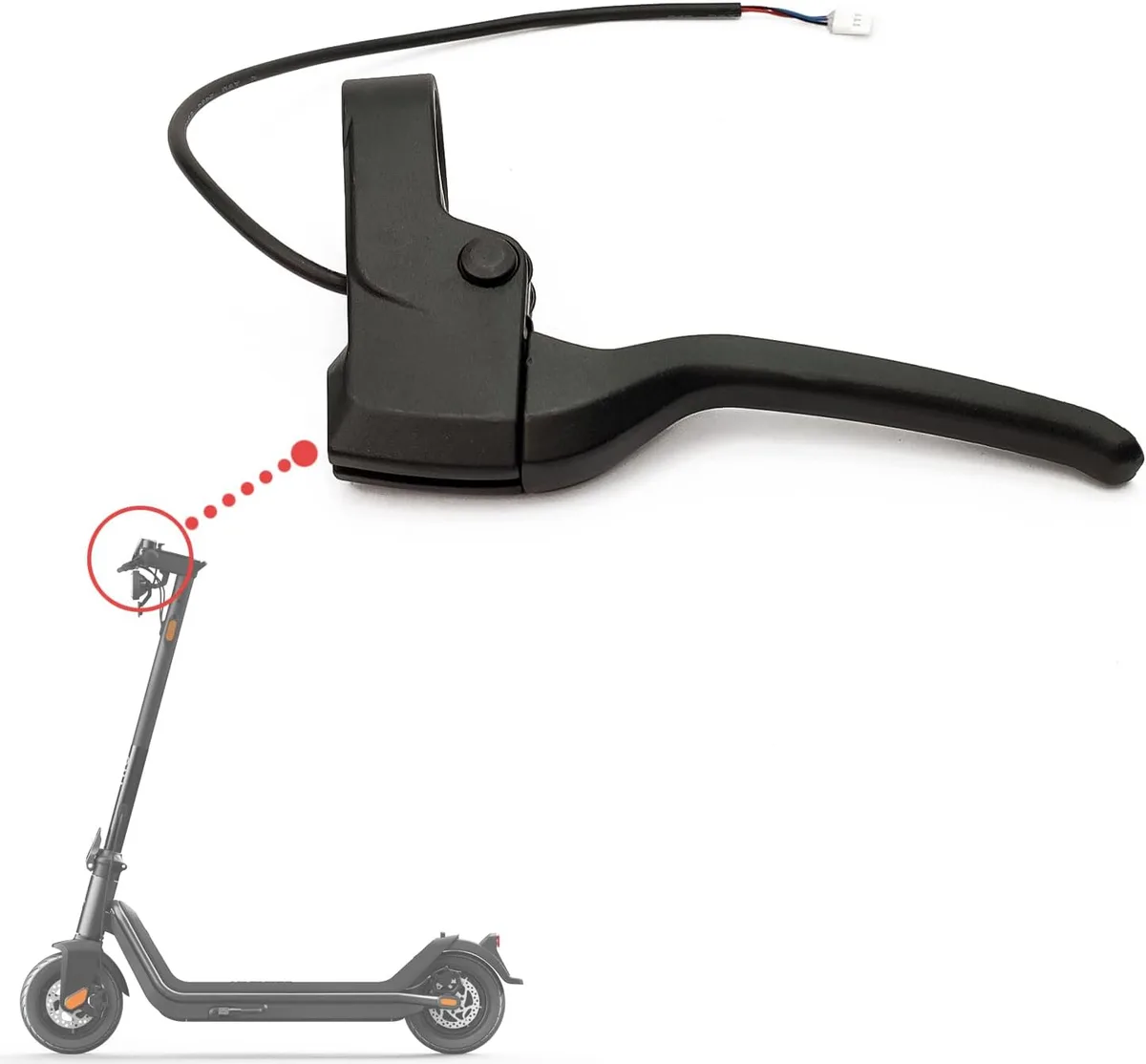

Brake lever reach adjustment. The KQi3 Pro lever has a small dial near the pivot. Turning it changes the resting position. If the dial is too close to the grip, the brake engages early and feels always on.

Adjust outward until the lever sits comfortably.

Cable routing at the head tube. The brake cable runs inside the frame and exits near the folding mechanism. A sharp kink here restricts cable movement. Visually inspect the path.

If the housing is crushed or bent, the cable won't slide freely.

The quick test: Lift the rear wheel. Spin it. It should rotate freely with light, even friction.

If it stops abruptly or feels gritty, you have a mechanical issue. If it spins fine but drags under load, the problem is cable tension or tire pressure.

Decision Tree: Fixes for Squealing, Spongy, Dragging, or Dead Brakes

Match your symptom to the solution below.

Branch 1: Squealing or screeching noise

If braking works but sounds terrible, the issue is glazing or contamination. Try bedding first. Find a straight, empty road.

Accelerate to 12 to 15 mph. Apply the rear brake firmly while moving. Do not lock the wheel.

Repeat five to seven times. The heat transfers pad material evenly onto the drum.

If the noise persists, remove the rear wheel and open the drum cover. Clean the inside with brake cleaner and a lint-free cloth. Do not use WD-40 or any lubricant.

Drum brakes rely entirely on friction.

Branch 2: Spongy lever or lever pulls to the grip

This is almost always cable stretch. The KQi3 Pro's cable settles during the first 100 to 300 miles. Take up the slack with the barrel adjuster on the lever.

Turn it counterclockwise in quarter-turn increments, testing after each turn. If the barrel runs out of thread, move to the adjuster at the drum arm. Loosen the lock nut, turn clockwise to tighten, then retighten.

If the lever stays spongy after both adjustments, the cable may be kinked or damaged. Replace it.

Branch 3: Brake drags or wheel won't spin freely

Back off the cable tension. Turn the barrel adjuster clockwise a quarter turn. Spin the wheel.

Repeat until the drag disappears. If the wheel still drags with the cable fully slack, the shoes may be misaligned or the return spring weak. Remove the drum cover and inspect.

Branch 4: Sudden loss of braking power or dead lever

Stop riding. A dead lever means a snapped cable, a pulled-through cable end, or an internally detached shoe. None are safe to ride with.

The front regen brake alone isn't enough for emergency stops. Replace the cable or drum assembly before riding again.

How to Adjust the Rear Drum Brake on a KQi3 Pro (Step-by-Step)

Image source: Bing (Web (fair-use with source credit))

This adjustment fixes nine out of ten brake problems. You don't need to be mechanically inclined. Follow these steps.

Step 1: Locate both adjustment points. One is the barrel adjuster on the brake lever. The other is on the drum arm near the rear axle. Most adjustments start at the lever.

Step 2: Loosen the lock nut on the barrel adjuster. Turn it counterclockwise with a 10mm wrench or by hand. Just loosen it enough to let the barrel turn.

Step 3: Turn the barrel adjuster counterclockwise. This pulls more cable through the system. One full turn makes a noticeable difference. Go in half-turn increments.

Step 4: Test the lever feel. It should engage firmly at roughly one-third of its travel. If still loose, give another half turn. If the wheel starts dragging, turn back clockwise.

Step 5: Tighten the lock nut. Hold the barrel steady and tighten the nut against it. This stops the adjustment from drifting.

Step 6: Verify free spin. Lift the rear wheel and spin it. You want a clean rotation with a light, even brush sound. No abrupt stops.

No scraping.

If the barrel adjuster is maxed out: Move to the drum arm. Loosen its lock nut. Turn the adjuster clockwise to tighten.

Go in quarter turns.

Pro tip: After any adjustment, ride for a few minutes and re-check. Cable tension changes under load.

Three Common Mistakes That Ruin KQi3 Brakes (and One Safety Rule)

Mistake 1: Over-tightening the cable. A loose lever makes you want to keep turning. But too much tension keeps the shoes partially engaged. That creates drag, heat, and glazing.

Adjust until the lever feels right, then back off slightly until the wheel spins freely.

Mistake 2: Using any lubricant on the drum brake. This is the fastest way to destroy stopping power. Drum brakes work through friction. Lubricant makes them nearly useless.

If you accidentally contaminate the drum, disassemble and clean everything with brake cleaner.

Mistake 3: Ignoring the cable path. The brake cable passes through the frame and exits at the folding hinge. When you change tension, the housing may shift or bind. Always check that the cable runs smoothly after any adjustment.

The one safety rule: Never ride with a brake lever that pulls all the way to the grip. That indicates a failed cable or disconnected shoe. The electronic brake alone won't stop you in time.

Replace the cable. At $15 to $25 for parts and about 30 minutes of work, it's cheap insurance.

When to Walk Away: Legal Limits, Warranty, and Pro Help

Not every brake problem is a DIY fix. If the lever feels dead after a cable replacement, or the drum shoes are below 1mm thick, stop riding. Take the scooter to a certified NIU service center.

As of 2026, NIU's warranty covers brake components against manufacturing defects. It does not cover normal wear, cable stretch, or damage from improper adjustment. Per NIU's warranty policy, aftermarket brake parts or self-modification void coverage.

If you're choosing a replacement scooter instead of paying for repairs, compare reliable options in our best electric scooter guide.

Local rules matter too. In the US, the Consumer Product Safety Commission requires personal mobility devices to have working brakes. Riding with a known brake defect could make you liable in an accident.

Professional help is the right call if you lack tools or confidence. Drum brake service needs specific wrenches. A shop can spot hidden issues like bent drum arms or worn cam pivots.

A typical cable replacement costs $15 to $25 in parts, plus $40 to $60 labor at an authorized dealer.

Watch for signs that need immediate attention: a cracked drum, a stripped adjuster thread, or a brake arm that won't return. These need replacement, not adjustment. Attempting home fixes risks further damage and injury.

Frequently Asked Questions

How often should I adjust the KQi3 Pro rear brake?

Check the lever feel every 100 miles. Cable stretch is normal during the first 300 miles. If the lever pulls past halfway before engaging, adjust the barrel adjuster.

A 30-second check prevents most brake problems.

Why does my brake lever feel fine but the wheel still drags?

This usually means misaligned brake shoes or a weak return spring. Check that the cable is fully slack when released. If drag persists, open the drum and inspect the shoe pins and spring.

A professional may be needed.

Can I replace the drum brake with a disc brake on the KQi3 Pro?

Technically possible, but not recommended. The rear hub isn't designed for disc rotor mounting. Aftermarket kits are rare and can compromise safety.

NIU doesn't support this modification and it voids the warranty.

Why do my brakes stop working when it's cold?

Cold weather stiffens the brake cable and reduces lever feel. Moisture inside the drum can also freeze briefly. Park indoors when possible.

If the lever feels hard and unresponsive, adjust the tension slightly and test gently before riding aggressively.

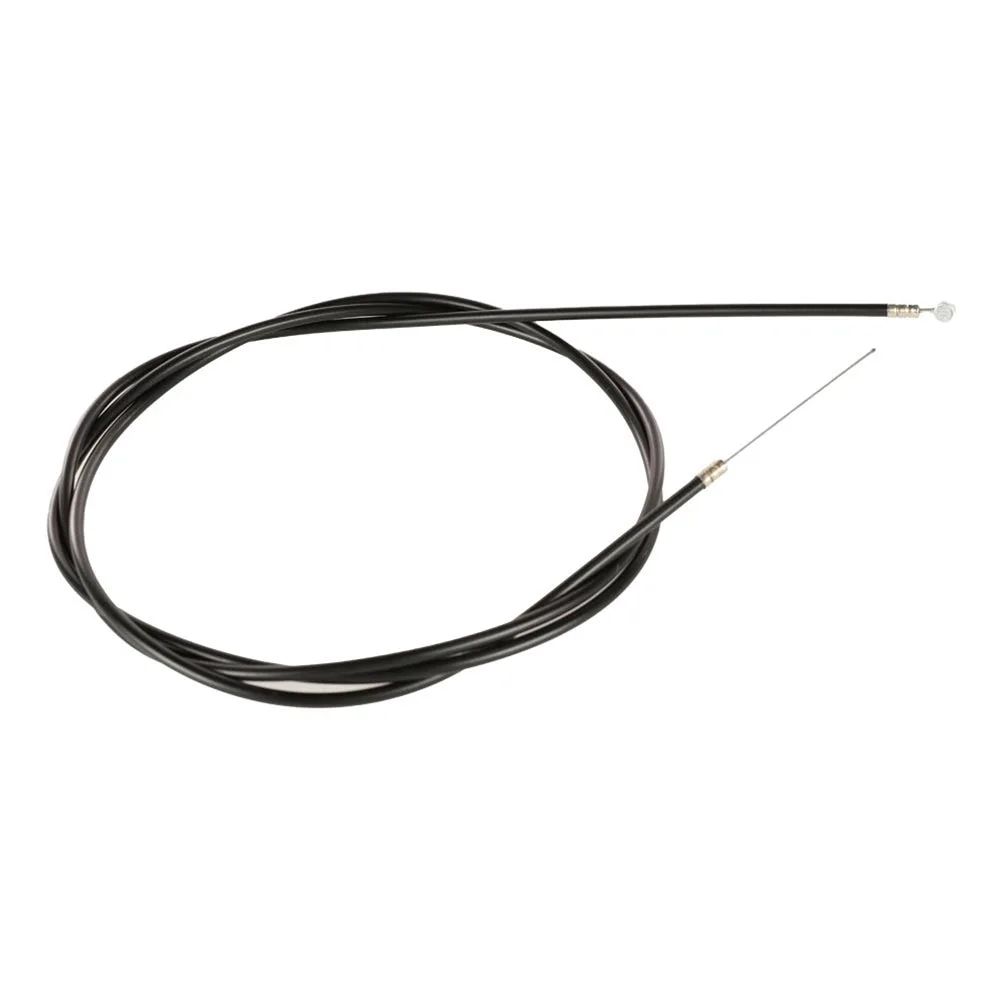

How do I know if my brake cable is stretched or damaged?

A stretched cable gives you a spongy lever that firms up after adjustment. A damaged cable creates inconsistent feel or sticking. Inspect the housing for cracks and the inner wire for rust.

If the wire is frayed, replace the cable immediately.
