Razor A5 Lux Won’t Fold

Your Razor A5 Lux won’t fold, and you’re probably wondering if it’s a quick fix or something worse. Most of the time it’s the first one. The folding mechanism on this model is reliable but it has a few known sticking points that are easy to fix once you know where to look.

Manufacturer specifications confirm the A5 Lux uses a two-step folding system with a sliding safety lock and a spring-loaded hinge pin. Understanding these three parts, the lock, the hinge, and the T-nut alignment, solves most folding problems. Let’s walk through what’s actually going on under there.

Quick Answer

The Razor A5 Lux won’t fold because something is blocking one of three points. The safety lock is stuck. The handlebar T-nut is misaligned.

Or the hinge is jammed with debris. Check those in order. Most fixes take under five minutes.

No tools required for the first two checks.

Image source: Bing (Web (fair-use with source credit))

Why Your Razor A5 Lux Won’t Fold (and What to Check First)

The most common reason the Razor A5 Lux won’t fold is a stuck safety lock. This is the small sliding tab on the folding latch. It locks the mechanism in place when the scooter is unfolded.

If it won’t slide back, the stem can’t move.

Three things cause this lock to jam. Dirt and grit build up in the track. The spring underneath gets rusted.

Or you’re trying to fold it in the wrong order. The correct sequence is: slide the safety lock open, then pull the folding lever, then press the handlebar down. Many people skip the first step and wonder why nothing moves.

If the lock moves freely but the stem still won’t press down, the T-nut is probably misaligned. This is a small bolt inside the folding groove that keeps the handlebar straight when riding. When it shifts out of position, it blocks the stem from seating fully into the hinge.

What not to do: don’t force the handlebar down. That can bend the hinge pin or crack the aluminum frame. If it won’t fold with moderate pressure, stop and diagnose the actual blockage.

How the Folding Mechanism Actually Works

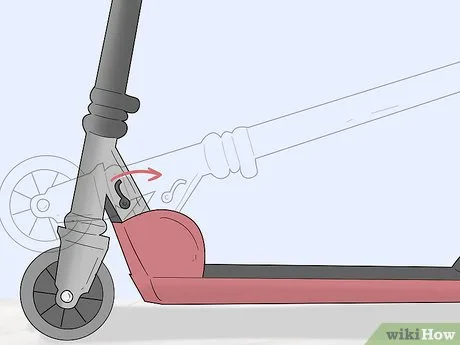

The A5 Lux fold is a two-step mechanical sequence. Step one releases the safety. Step two breaks the hinge.

Neither step works if the other is skipped.

The folding latch sits on the handlebar stem near the hinge point. It has a spring-loaded clip that grips the hinge pin when the scooter is unfolded. Pulling the clip releases that grip.

But the clip won’t move if the safety lock is still engaged. That safety lock is a small sliding tab right next to the clip.

Image source: Bing (Web (fair-use with source credit))

Below the latch, the folding groove runs along the inside curve of the hinge. This is a slotted channel that guides the T-nut as the stem rotates down. The T-nut is a threaded bolt with a flat head that sits inside this groove.

When everything is aligned, the stem folds smoothly into the deck.

The handlebar collar holds the stem tight to the deck when riding. It has a tension nut on one side. That nut controls how much resistance the hinge has.

Too loose and the scooter wobbles. Too tight and the stem binds before it can reach the folded position.

The Razor user manual recommends lubricating the hinge monthly with a silicone-based spray. Petroleum-based lubricants like WD-40 attract dirt and cause jams over time.

Decision Tree: Follow Your Symptom to the Fix

Use this flow to match your exact problem to the right fix.

Branch 1: Safety lock won’t slide.

Clean the lock track with a dry brush or compressed air. Spray silicone lubricant into the track and work the lock back and forth. If the spring feels stuck, a drop of penetrating oil on the spring itself (not the track) can help.

Let it sit five minutes before testing again.

Branch 2: Lock slides but stem won’t press down.

This is a T-nut alignment issue almost every time. Loosen the handlebar collar slightly with the hex wrench (usually 5mm). Push the handlebar forward and backward until you feel the T-nut drop into the groove.

Tighten the collar and test the fold.

Branch 3: Folds but hinge feels gritty or binds.

Debris has built up inside the hinge joint. Flush the hinge with silicone spray. Fold and unfold the scooter several times to work the lubricant through.

Wipe away any debris that oozes out. If the grit persists, the hinge pin may be bent.

Image source: Bing (Web (fair-use with source credit))

Branch 4: Folds but won’t stay locked when unfolded.

The tension nut on the handlebar collar is too loose. Tighten it clockwise in quarter-turn increments until the hinge feels firm when unfolded. Test the fold each time.

Over-tightening can strip the nut.

Branch 5: Frame is bent or hinge misses after a crash.

This is structural damage. Stop using the scooter immediately. A bent hinge pin or cracked frame can fail while riding.

Contact Razor support for a warranty assessment or replace the scooter. Folding repairs won’t fix bent metal.

Mistakes That Break the Folding Mechanism

Forcing the stem down while the safety lock is engaged is the number one mistake. It bends the safety lock tab. Once bent, the tab won’t engage properly and the scooter could unfold mid-ride.

Using WD-40 instead of silicone lubricant is mistake number two. WD-40 is a solvent, not a lubricant. It cleans initially but dries out the hinge and attracts dirt, making jams worse after a few weeks.

Silicone spray stays slick and repels dust.

Overtightening the tension nut during reassembly strips the threads. The nut is made of soft metal. Snug is enough.

If you crank it, you’ll need to replace the whole collar assembly.

Skipping monthly maintenance is mistake number three. Rider forums consistently report that most folding issues appear in scooters that haven’t been lubed in over three months. A five-minute clean and spray prevents nearly all common folding problems.

FAQ — Quick Answers on the A5 Lux Fold

Do I need tools to fix a stuck fold?

Not for the first three troubleshooting steps. Cleaning the lock and realigning the T-nut require no tools. You may need a 5mm hex wrench if the collar is too tight to adjust by hand.

Can I replace the folding latch or hinge pin myself?

Yes, but it requires a replacement part from Razor. The latch is held by two screws. The hinge pin requires a punch tool to drive out.

If you’re not comfortable with small mechanical repairs, a local bike shop can handle it.

When is the scooter beyond repair and worth replacing?

When the frame is cracked or the hinge pin hole is oblong. These are stress fractures that compromise safety. Replacing the scooter costs less than a hospital visit from a mid-ride failure.

How do I prevent this from happening again?

Lubricate the hinge monthly with silicone spray. Keep the folding groove free of debris. Don’t force the fold.

Store the scooter indoors to prevent rust from humidity or rain.
