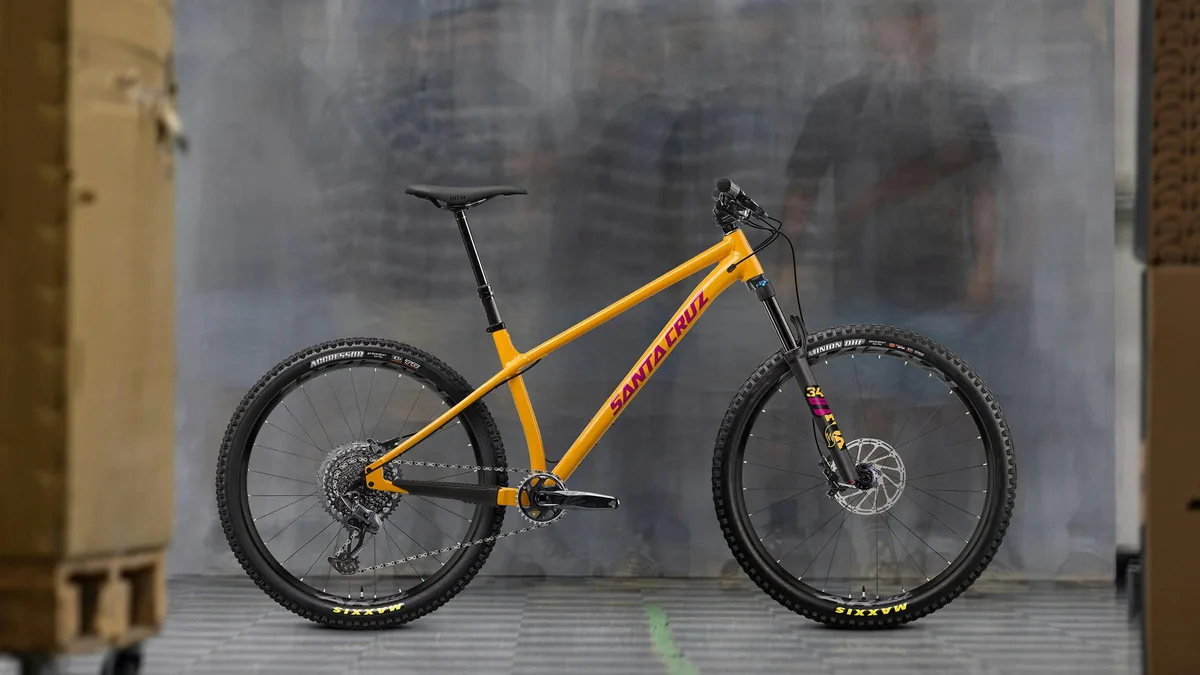

Santa Cruz Chameleon Brake Rotor Noise
Riding a Santa Cruz Chameleon should feel like pure flow, not a constant, irritating scrape or squeal every time you feather the brakes. If you're dealing with brake rotor noise, you already know it kills the vibe and makes you wonder if something's dangerously wrong. The good news?
Most of the time, it's a fixable issue that comes down to a handful of common culprits.
Before you start swapping parts or shelling out for a mechanic, it helps to diagnose the problem systematically. Let's walk through the noise, pinpoint the source, and get you back to silent, confident stopping.
Image source: Bing (Web (fair-use with source credit))
Quick Answer
Santa Cruz Chameleon brake rotor noise usually comes from misaligned calipers, contaminated pads, or a loose axle. A high-pitched squeal means pad contamination or glazing. A low grind or pulse points to a warped rotor.
Constant rubbing usually means the caliper isn't centered. Fixing it takes basic tools and about 20 minutes.
First, Pin Down the Sound
Not all rotor noise is the same, and the specific sound is your biggest clue. Put the bike on a stand and spin the front wheel. Then the rear.
Listen closely.
29% off Today's Exclusive Deals
Limited-time Exclusive Deals. Check current discount on Amazon.
Check Price on Amazon As an Amazon Associate I earn from qualifying purchases.- High-pitched squeal when braking, friction issue, usually the pads.
- Low grind or rhythmic pulse, physical or surface problem, like a warped rotor or worn pads.
- Constant rub while the wheel spins, alignment issue with the caliper or axle.
Also note when the noise happens. Does it only occur under hard braking, or all the time? Does it change when you're sitting on the bike?
These details narrow things down fast.

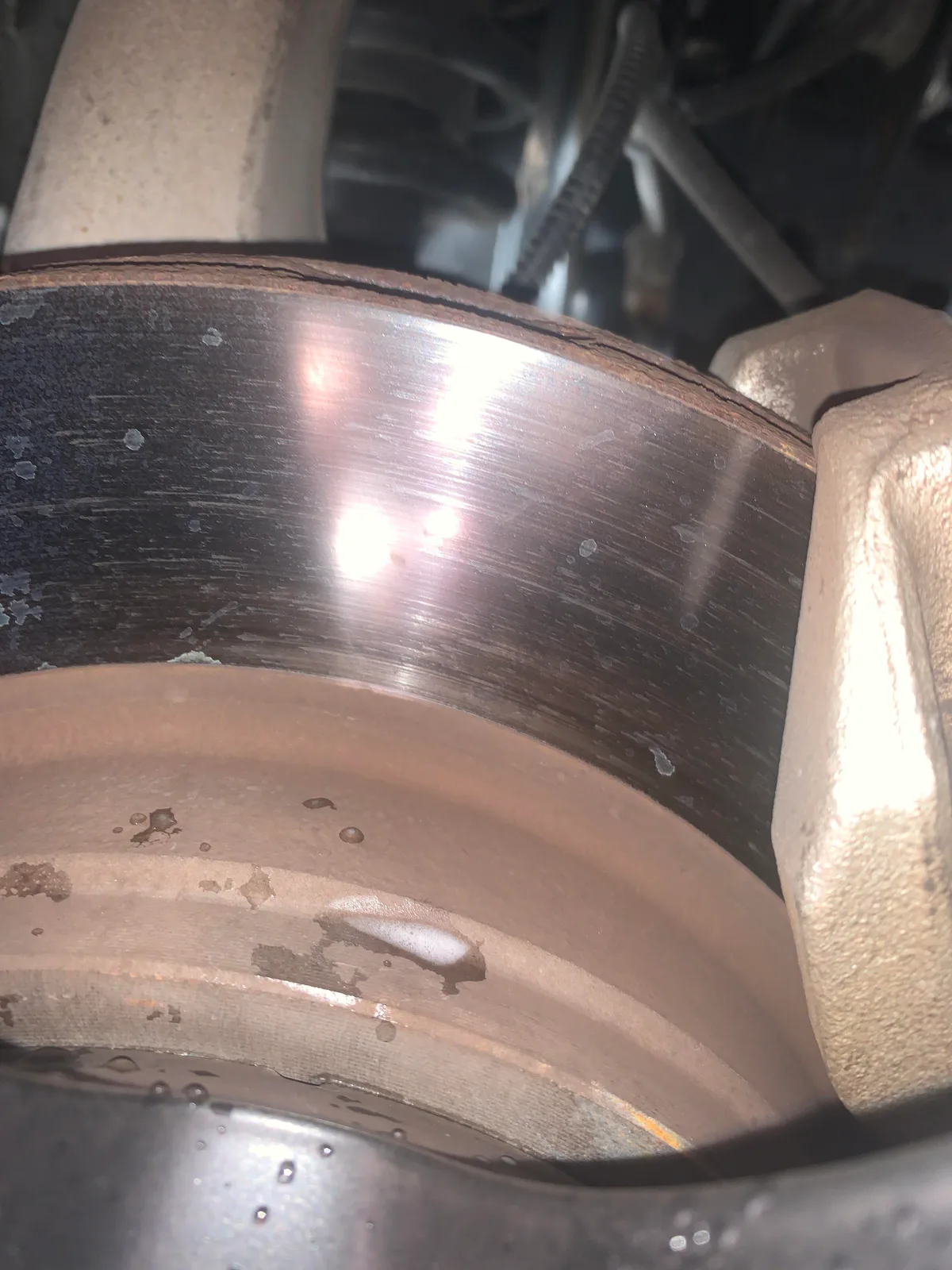

Squeal: Contamination vs. Glazing
Image source: Bing (Web (fair-use with source credit))
A loud, piercing squeal is the most common Chameleon brake complaint. Nine times out of ten, it's not the rotor, it's the brake pads. Two main causes stand out.
Contamination happens when oil, chain lube, or brake fluid gets on the pad surface. Even a tiny splash of fork oil or a fingerprint can ruin a pad. Glazing happens when you overheat the pads through long, hard descents, which hardens the surface and makes it slick. Both produce that same ear-splitting scream.
Here's how to tell them apart. Look at the pad surface through the caliper opening.
| Symptom | Cause | Fix |
|---|---|---|
| Pads look dark, shiny, glassy | Glazing | Sand with coarse grit to expose fresh material |
| Pads look clean but still squeal | Contamination | Sand lightly; if it persists, replace the pads |
| Pads have less than 1mm of material | Worn out | Replace immediately |
Most riders solve the squeal issue by replacing the pads entirely. Trying to degrease a contaminated pad rarely works long-term. Brake pads are cheap compared to the hassle, so don't be stingy when they're truly soaked in oil.
Grind or Pulse: Warped Rotor vs. Pad Wear
If you hear a low grind, or if the brake lever pulsates when you squeeze it, you've moved past a pad surface problem. That points to either a warped rotor or significantly worn pads.
A warped rotor isn't bent like a pretzel. It means the disc has a slight wobble, usually a few thousandths of an inch. As it spins, it hits the pads unevenly, creating that pulsing sensation.
To check, spin the wheel and look at the gap between the rotor and the brake pads. You should see a consistent, even gap all the way around. If the rotor kisses the pad in one spot and pulls away in another, it's warped.
You can try truing it with a rotor truing fork. But if the wobble is severe, or the rotor is below its minimum thickness rating (usually stamped on the rotor itself), replace it. Rotors are wear items, not lifetime parts.
Worn pads also cause grinding, but that sounds different. If you hear metal-on-metal scraping, your pads are down to the backing plate. Check the pad thickness through the caliper opening.
If there's less than 1mm of material left, swap them out now, riding on bare metal backing plates damages the rotor.
Constant Rub: Caliper Alignment vs. Axle Issues
A steady, rhythmic rub that never goes away while the wheel spins points straight at the caliper or the axle. It's not the pads. It's usually because the caliper isn't perfectly centered over the rotor, or because the wheel isn't seated properly.
Caliper alignment is the easiest fix.
- Loosen the two mounting bolts just enough so the caliper can wiggle side to side.
- Squeeze the brake lever hard and hold it. This self-centers the caliper over the rotor.
- While still holding the lever, tighten the bolts back up.
- Release the lever, spin the wheel, and check.
If the rub persists, the issue might be the wheel axle. The Chameleon uses a 148x12mm rear thru-axle and a 110x15mm front. If the axle isn't torqued to spec, or the end caps aren't clean, the wheel can sit slightly crooked in the frame.
That shifts the rotor relative to the caliper.
Pull the wheel, clean the contact surfaces, and re-seat it before retightening to the torque spec printed on the axle or frame.

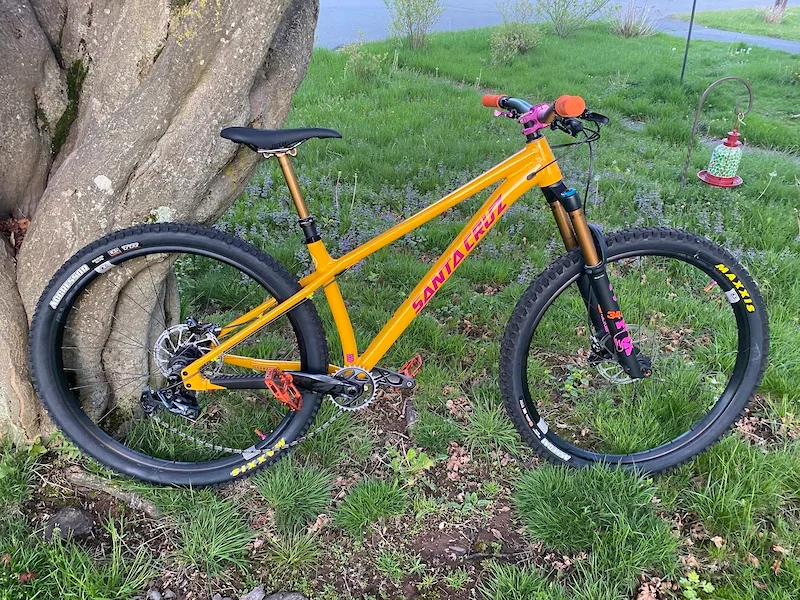

The Chameleon-Specific Wildcard: Sliding Dropouts and Cables
Image source: Bing (Web (fair-use with source credit))
Here's where the Chameleon throws you a curveball that generic guides miss. The frame uses a sliding dropout system in the rear. That's great for adjusting wheelbase or running singlespeed.
But if the dropout isn't perfectly aligned, the rotor sits at a weird angle relative to the caliper. That causes a phantom rub that refuses to go away no matter how many times you align the caliper.
Check the dropout adjustment bolts. Both sides need to be set to the exact same measurement, usually verified with a ruler or caliper. If one side is a millimeter off, the wheel tilts.
The dropout alignment marks should match on both sides. Loosen the adjustment bolts, align the marks, and retighten to spec.
Another Chameleon-specific quirk is internal cable routing. The rear brake hose runs through the frame. If it's routed loosely near the rear triangle, it can flap against the rotor or frame during rides.
That sounds like a scrape, but it's not a brake issue at all. Zip-tie the hose securely to the frame, away from the rotor path, and see if the noise disappears.
When to Just Take It to a Shop
Not every fix is a driveway job. If you've gone through all the steps above and the noise persists, or if you're not comfortable working with hydraulic brake fluid, take it to a local bike shop. A professional bleed, rotor replacement, or caliper overhaul costs a fraction of what a crashed bike costs if your brakes fail mid-descent.
Also, if you're riding metallic sintered pads, expect them to be noisier than organic resin pads. That's not a defect, it's a tradeoff. Sintered pads last longer and brake harder in wet conditions, but they squeal more.
If the noise is constant and you've ruled out every mechanical issue, switching to resin pads might be the simple fix you need.
Final Thoughts
Chameleon brake noise is rarely a mystery once you break it down by sound. Match the symptom to the cause, work through the fixes in order, and you'll solve it without throwing money at parts you don't need. Keep the pads clean, the caliper centered, and the axle seated properly, and you'll get back to quiet, confident stopping.
