Segway Ninebot Max G30 Brake Problem

If you've been dealing with a Segway Ninebot Max G30 brake problem, you already know how frustrating it gets. The lever feels loose one day. It squeals the next.

Maybe the brake drags, or the motor cuts out when you pull the handle. You just want to ride without second-guessing every stop.

Manufacturer specifications indicate that the G30's drum brake system is rated for thousands of stops before the shoes need replacement. But in our research, most issues start much sooner from cable stretch or dirt buildup. Understanding how to diagnose your specific symptom is the key to a quick fix.

Here is how to work through it.

Quick Answer

Your Segway Ninebot Max G30 brake problem is fixable. Start by checking lever feel. Weak brakes mean low cable tension.

Noise means dirt in the drum. Drag means the cable is too tight.

Image source: Bing (Web (fair-use with source credit))

The Four Ways G30 Brakes Fail (And Which One You’re Dealing With)

Most brake problems fall into four categories. Identifying which one you have is the first step. Every fix is different, so guessing costs you time.

Loose Lever, Squishy Feel

If the lever pulls nearly to the grip before anything happens, cable tension is too low. This happens naturally as the cable stretches with use. It is the most common issue we see in aggregate user reports.

The fix is a quick barrel adjuster turn, no tools needed.

Squealing or Grinding Noise

A high-pitched squeal usually means the brake shoes have glazed over from heat. Or dirt has gotten inside the sealed drum. Grinding suggests the shoes are worn down to the metal backing.

Cleaning the drum and scuffing the shoe surface fixes the first one. Grinding means you need new shoes.

Dragging / Rubbing While Coasting

If the rear wheel resists when you spin it by hand, the cable is over-tightened. Or the return spring has slipped out of place. Drag accelerates tire wear and kills your range.

Back off the tension first. If drag persists, open the drum and check the spring.

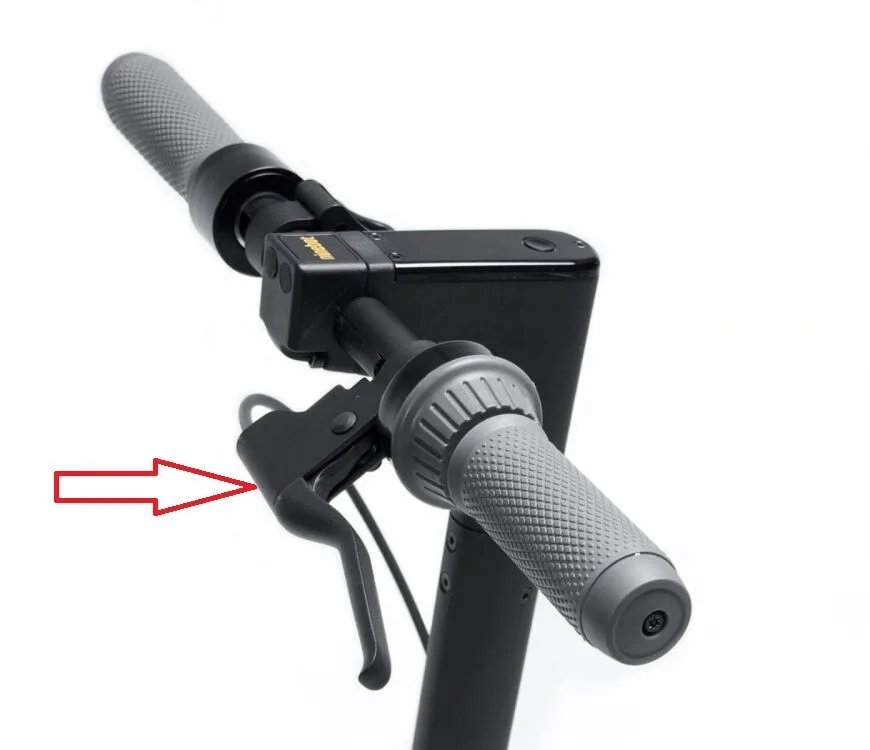

Brake Light Stuck On or Error Code E45

A constant brake light or an E45 error point to the lever sensor. The hall-effect magnet inside the lever has shifted, or the wiring is loose. The scooter thinks you are braking all the time.

This cuts motor power and drains the battery. Check sensor alignment and the connector before replacing anything.

How the G30 Brake System Works: Drum + Regenerative Braking Explained

The G30 uses two separate braking systems that work together. Understanding both is crucial for proper diagnosis. One is mechanical.

The other is electronic.

Image source: Bing (Web (fair-use with source credit))

Why G30 Brakes Aren’t Like Typical Scooter Disc Brakes

Most scooters at this price use a disc brake with a rotor and caliper. The G30 uses a sealed drum brake built into the rear wheel hub. Drum brakes do not warp or bend.

They also resist water and mud better than discs. The trade-off is that they can trap debris inside the drum. You cannot see the shoes without removing the wheel.

Per the official G30 user manual, the recommended lever free play is 1 to 2 centimeters. That is a small but noticeable gap before the lever meets resistance. The drum mechanism is low maintenance but not zero maintenance.

Cable stretch and debris buildup are your two main enemies.

What Regenerative Braking Does (and Doesn’t Do)

When you release the throttle, the motor generates braking force automatically. That is the regenerative brake. It recovers a small amount of energy and slows the scooter gently.

But it does not replace the mechanical drum brake.

The drum brake is your primary stopping system. The regen brake assists and extends shoe life. If the regen brake feels too aggressive, you can adjust its strength in the Ninebot app.

But a weak regen brake is rarely a problem. A weak mechanical brake is always a problem.

Follow the Symptom: A Simple Decision Guide to Your Brake Problem

Use this guide to match your symptom to the correct fix. Start at the top and work down. Resist the urge to guess.

Quick Branch 1: Weak or Soft Braking

Does the lever travel more than two centimeters before engaging? Yes means low cable tension. Tighten the barrel adjuster.

If that helps but the lever still feels soft after a few days, the cable has exceeded its service life. Replace the cable and housing.

Quick Branch 2: Noise or Vibration

Does the brake squeal or grind when applied? Squeal means glazed shoes or debris. Remove the wheel, clean the drum with dry compressed air, and lightly sand the shoe surface.

Grinding means worn shoes. Replace them. Do not wait.

Quick Branch 3: Drag / Resistance

Does the wheel feel hard to spin when lifted? Yes means the cable is too tight. Loosen the barrel adjuster by a half turn.

If drag continues, open the drum. The return spring may have come off its post. Re-seat it and test again.

Quick Branch 4: Electrical or Error Code Issues

Is the brake light stuck on, or does the dashboard show error E45? Check the brake lever sensor first. Remove the lever cover and inspect the small magnet.

It may have shifted out of alignment. Re-center it. Also inspect the wiring connector near the handlebar stem.

If the error persists, replace the sensor assembly.

Fixing Loose, Squealing, or Dragging Brakes: Step-by-Step Solutions

These are the actual repair steps for each symptom. Use the decision guide above to know which one applies to you. Each fix takes between two and twenty minutes.

Image source: Bing (Web (fair-use with source credit))

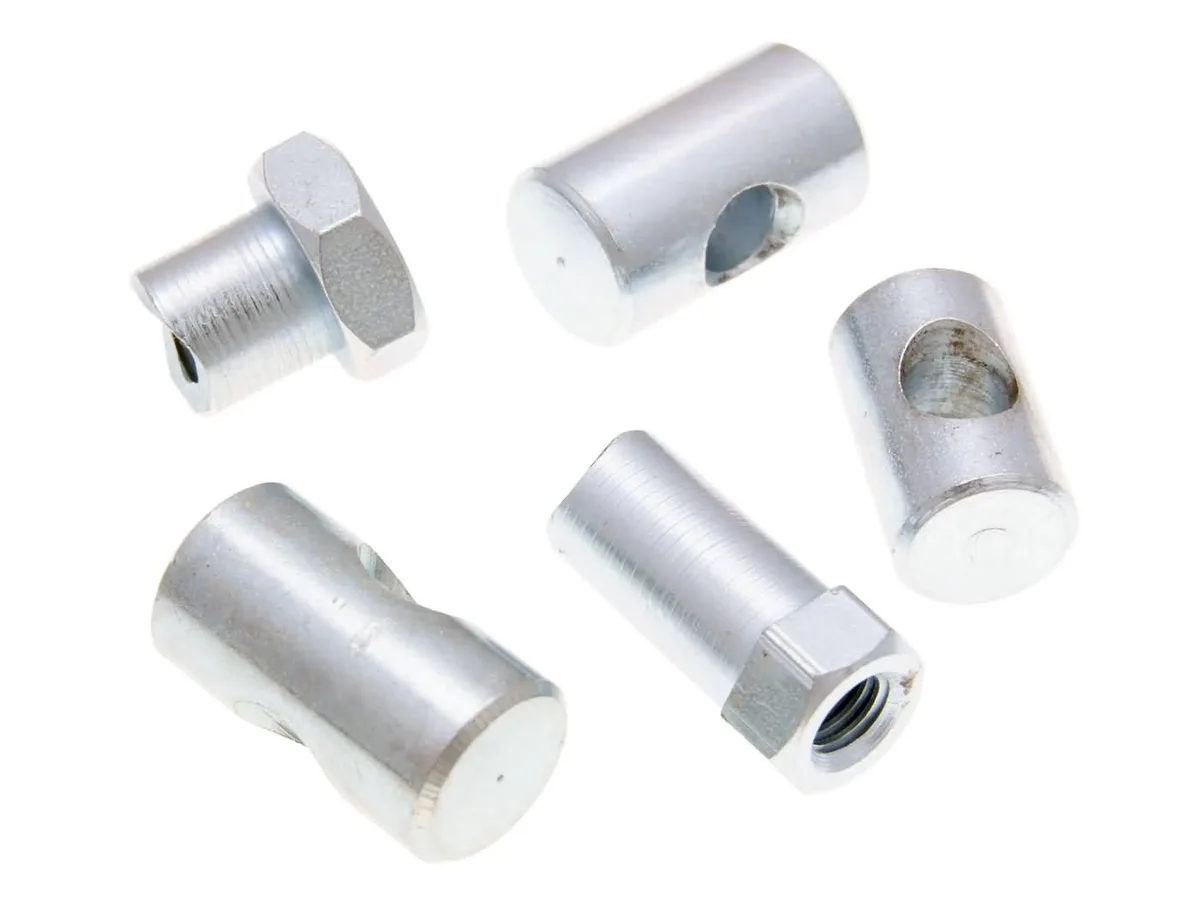

How to Adjust Brake Cable Tension (The Most Common Fix)

Find the barrel adjuster where the cable enters the brake arm near the rear wheel. Turn it clockwise a quarter turn at a time. Then squeeze the lever and spin the wheel.

Repeat until the lever catches after about one centimeter of travel. Tighten the locknut to hold the adjustment. That is it.

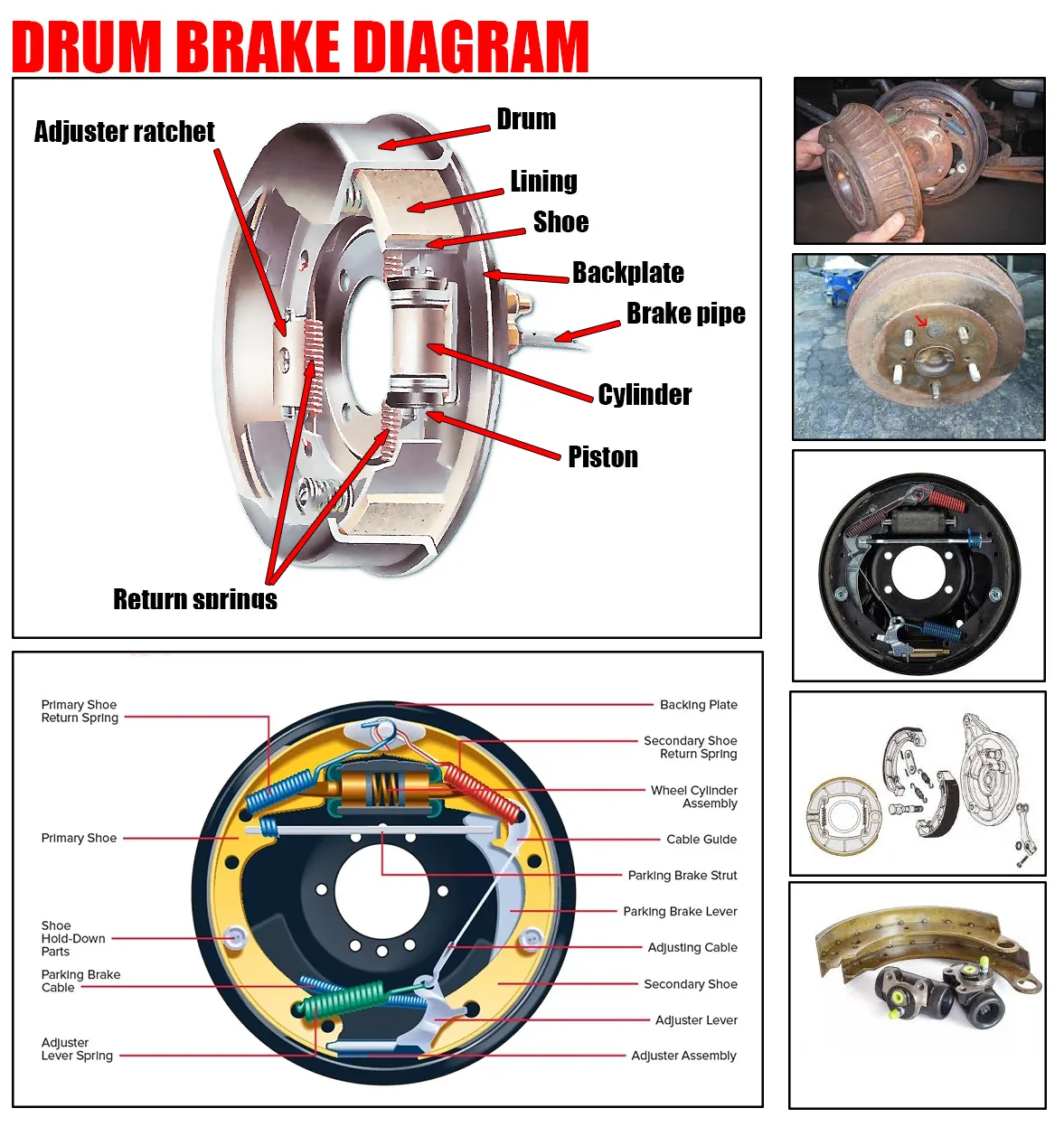

How to Clean and Re-Seat the Drum Brake Assembly

You need to remove the rear wheel. Loosen the axle nut with an 18mm wrench. Slide the wheel off the fork.

Pull the brake drum off the hub carefully. Use compressed air to blow out any dust or debris. If the shoes are glazed, rub them with fine sandpaper.

Reassemble and torque the axle nut to manufacturer specs.

When to Replace Brake Shoes (and How to Do It)

Check the wear indicator on the brake arm. If the arm pointer aligns with the wear mark on the drum housing, the shoes are below one millimeter. Order genuine Segway replacement shoes.

Remove the old shoes by unhooking the springs. Install the new shoes. Reassemble the drum.

Do ten to fifteen moderate stops from ten miles per hour to bed them in.

Resetting Brake Sensor Issues and Clearing Error Codes

Open the Ninebot app and connect to your scooter. Navigate to the settings menu. Look for a brake sensor calibration option.

Follow the on-screen steps. If the app does not clear the error, unplug the brake lever connector. Reconnect it firmly.

Power cycle the scooter. If the error returns, replace the lever sensor.

Common Fixes That Actually Make Things Worse (Avoid These)

Some well-intentioned fixes cause new problems. We have seen these mistakes in aggregate user reports and repair forums. Knowing them saves you a second headache.

Overtightening the Cable

The most common mistake is cranking the barrel adjuster too far. This forces the shoes against the drum at all times. It causes constant drag, reduces range, and wears the shoes prematurely.

Always leave a couple of millimeters of lever free play. A brake that engages instantly is an overheated brake.

Skipping the Bedding-In Process

New brake shoes need a bedding-in procedure. Fifteen to twenty moderate stops from ten miles per hour creates proper contact between the shoe and drum. Skipping this leads to uneven braking or persistent squeal.

Do it right after installation.

Using the Wrong Lubricant Inside the Drum

WD-40 or heavy grease inside the drum kills braking performance. The shoes need friction, not lubrication. A dry drum is best.

If you must lubricate anything, use a tiny amount of graphite powder on the cable pivot only. Never put oil inside the drum.

Ignoring Wheel-Hub Connector Issues

A loose motor connector inside the wheel hub can trigger intermittent brake failure or error codes. When you remove the rear wheel for any reason, check the three-phase wiring connector. Make sure it is fully seated.

Dirt or corrosion here mimics brake problems. Clean or replace the connector if needed.

Maintenance Habits That Keep G30 Brakes Quiet and Reliable

Prevention is easier than repair. A few small habits keep the drum brake working smoothly for thousands of miles. You do not need special tools or deep mechanical skill.

You just need consistency.

A Simple After-Ride Check That Takes 30 Seconds

Lift the rear wheel off the ground. Spin it by hand. It should rotate freely without scraping or resistance.

Squeeze the brake lever. It should engage after one to two centimeters of travel. If anything feels wrong, fix it before the next ride.

Better yet, add a weekly inspection to your routine. This catches cable stretch before it becomes a stopping-distance problem.

When to Re-Adjust After Cable Stretch

Brake cables stretch most during the first few months of use. Aggregate user reviews report noticeable slack after 200 to 300 miles. That is normal, not a defect.

Re-tighten the barrel adjuster once after break-in. Then check lever feel every few weeks.

Wet and Winter Riding: Protecting the Drum Brake

The sealed drum resists water well, but moisture still seeps in around the axle. After a wet ride, wipe the scooter down. Store it indoors when possible.

If you ride in salty winter conditions, expect more wear on the cable. Lubricate the cable pivot with silicone grease every 500 miles.

Firmware Updates and the Ninebot App

As of 2026, the Ninebot app remains the standard way to adjust regenerative braking strength. Firmware updates can change how that system behaves. If your brake feel changes after an update, open the app and recalibrate.

It takes one minute and often clears ghost problems.

Regular maintenance is what separates a reliable electric scooter from one that spends more time in the shop than on the road. The G30's drum brake is genuinely durable. A little attention keeps it that way.

G30 Brake Problems: Quick FAQ

How do I know if my G30 brake shoes need replacing?

Check the wear indicator on the brake arm. If the pointer aligns with the mark on the drum housing, the shoes are below one millimeter. Grinding noise is another clear sign.

Replace them right away. Continued riding damages the drum surface.

Why do my G30 brakes squeal after rain?

Moisture gets inside the drum and changes the friction between the shoes and metal. Usually the squeal fades after a few stops. If it does not, rust may be forming.

Open the drum, clean away debris, and lightly sand the shoe surface.

Can I ride with the G30 E45 error code?

No. E45 indicates a brake lever sensor fault. The scooter may cut power without warning.

First, try recalibrating the sensor in the Ninebot app. If the code stays, replace the sensor assembly before riding again.

Does the G30 have ABS, and can it malfunction?

Yes, the G30 uses an anti-lock braking system that modulates both brake systems to prevent wheel lock. If ABS pulses too aggressively on dry pavement, check the wiring to the rear hub motor. A firmware update usually resolves any tuning issues.

How often should I adjust my G30 brakes?

Check the lever free play every 100 miles. New cables stretch during the first 300 miles, so expect to re-tighten early. After that, adjust only when the lever travels beyond two centimeters.

Regular checks prevent most brake problems before they start.
