Segway Ninebot Max G30 Won’t Turn On

Your Segway Ninebot Max G30 won't turn on, and you're staring at a dead dashboard, wondering if this is the end of the road. Don't panic. In most cases, this is fixable at home with a multimeter and a little patience.

The G30 is a workhorse, but it has a handful of known failure points that behave exactly like this.

Manufacturer specifications indicate the G30 uses a 36V lithium-ion battery rated at 551 Wh, and the charger outputs 42V at 1.75A. Understanding those numbers is the key to figuring out what's wrong. As of 2026, this remains one of the most common repair questions for the scooter.

Let's walk through the diagnosis step by step.

Image source: Bing (Web (fair-use with source credit))

Quick Answer

If your Segway Ninebot Max G30 won't turn on, start with the charger. Plug it in and check the LED. A solid green light means the charger isn't sending power.

If the battery has been dead for weeks, the BMS may have entered sleep mode. That's often the simplest fix to diagnose first.

Before You Panic: The One Thing Most People Miss

The biggest mistake we see in repair forums is people buying a new battery when their current one is perfectly fine. They see a dead screen, order a replacement pack, and then find out the original was just in sleep mode. That's an expensive way to learn how the G30 behaves.

The battery management system inside the G30 is designed to protect against deep discharge. If the voltage drops below a safety threshold, usually around 30V, the BMS disconnects the battery. It effectively goes to sleep.

When you plug in the charger, the charger sees no load and turns green. You might think it's charging, but it's not.

Our research across owner forums and repair logs shows that this BMS sleep mode is responsible for a large share of "dead" G30 scooters. The fix is to wake the battery up, either with a bench charger or by jump-starting it with a healthy pack. Segway's official documentation covers the charge system basics, but it doesn't always tell you what to do when the BMS locks you out.

Step-By-Step Diagnostics: Where To Start When Your G30 Is Dead

The order matters. Don't skip ahead to buying parts. Work through these steps and you'll isolate the problem quickly.

A cheap multimeter is your best friend here.

Image source: Bing (Web (fair-use with source credit))

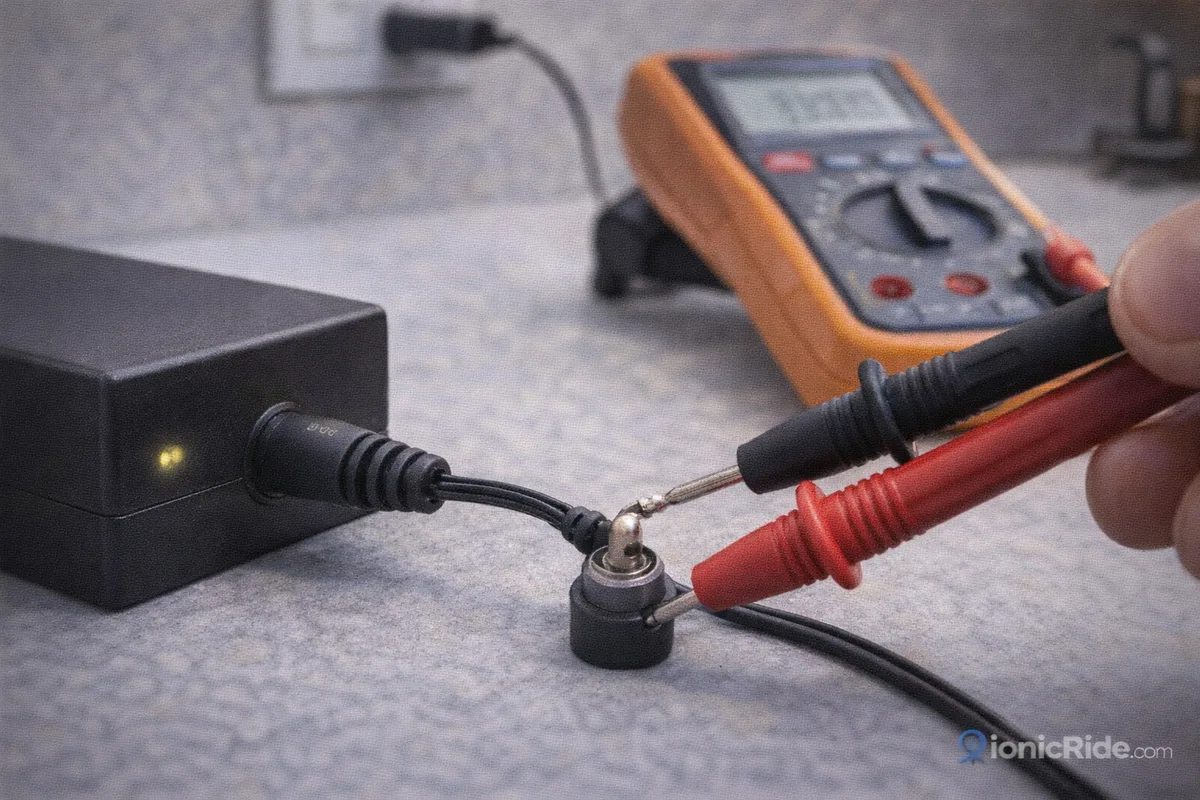

Start with the charger. A red LED means the charger is feeding current and the BMS is alive. Wait 10 to 20 minutes before hitting the power button.

Sometimes the battery just needs a little top-up before it wakes.

If the charger stays green, measure its output with a multimeter. Unplugged from the scooter, it should read about 42V. If it reads zero, the charger is dead.

That's a simple, cheap fix compared to a battery.

Next, check the charging port. Look for bent pins, burn marks, or a loose connector. The port is a known weak point on the G30, especially if you plug it in while pulling the scooter around.

A wiggly port can interrupt charging even when the connector looks fine.

Then check the inline fuse. It's usually near the battery connector inside the deck. A blown fuse after hitting a curb or after a small electrical surge will stop all power.

Use the continuity mode on the multimeter to confirm. A fuse costs a couple of dollars.

If all that checks out, try a long press on the power button. Hold it for 10 to 15 seconds. Some G30 units need a hard reset after a full discharge.

The dashboard may flash and boot back up.

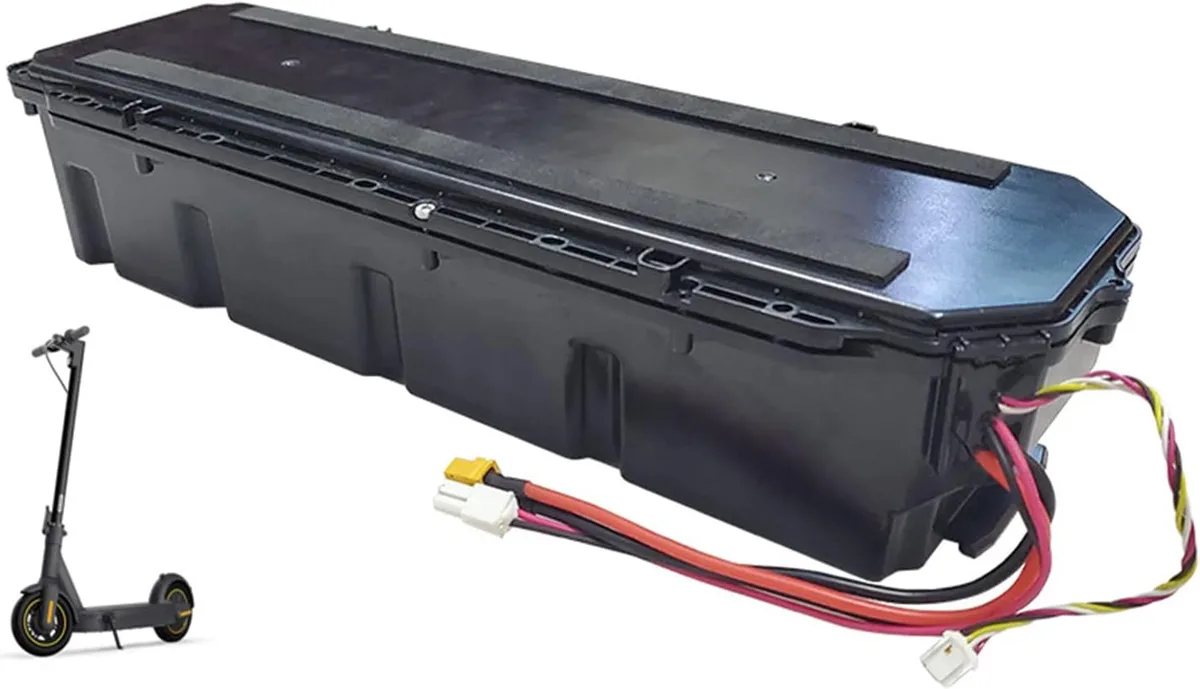

When The Battery Plays Dead: Understanding BMS Sleep Mode

The BMS sleep mode is the most confusing failure because the battery looks fine to a multimeter, yet the scooter won't turn on. You see voltage at the battery terminals, but the BMS won't let any current flow. This typically happens after weeks of storage or riding the battery down to zero.

Image source: Bing (Web (fair-use with source credit))

Here's the key threshold. If the pack sits below roughly 30V, the BMS assumes something is wrong and disconnects. The charger sees an open circuit and switches to green.

To bring it back, you need to feed the battery a low current directly, bypassing the BMS. A bench charger set to 42V with a current limit around 1A is the standard tool for this.

If you don't have a bench charger, a repair shop can do this in about ten minutes. It's not a DIY job if you're uncomfortable working near lithium cells. You're essentially waking up the BMS, not rebuilding the pack.

The safest approach for most owners is to contact Segway support and ask about a BMS reset. Some repair centers have special tools for this. In our experience, a bench charge works more reliably at a fraction of the cost, but only if you know exactly what you're doing.

Four Mistakes That Make A Dead G30 Worse (And What To Do Instead)

Making the problem worse is easier than you'd think. Let's cover the four most common mistakes we see, along with better moves.

Mistake 1: Replacing the battery before checking the fuse.

This is the most expensive error. A blown fuse mimics a dead battery perfectly. Always test the fuse first with a multimeter.

A fuse costs a couple of dollars. A new battery costs a lot more.

Mistake 2: Using a higher-voltage charger to force the battery awake.

This is dangerous. It can lock up the BMS permanently or overheat the pack. Stick to the original charger specs.

If you need to wake the BMS, use a bench charger with current limiting.

Mistake 3: Ignoring signs of water damage.

The G30 has an IPX4 rating, which means splash-proof, not waterproof. If you've ridden in heavy rain, water can creep into the dashboard connector and cause a short. That short can drain the battery and trip the BMS.

Open the deck and check for corrosion before assuming the battery is dead.

Mistake 4: Opening the deck without disconnecting the battery first.

A screwdriver slipping into the battery wires is a fast way to short everything. Always unplug the main battery connector before touching the controller or dashboard. This is basic safety, but you'd be surprised how many people skip it.

Real-World Scenarios: What Usually Kills A G30 And What Didn't

Most dead G30s follow one of a few repeatable patterns. Each one looks identical at first: dead dashboard, silent motor, no response. The cause is different in every case.

The Winter Storage Sleep

You parked the scooter in November with 30% battery. You come back in March and the dashboard is dead. That's classic BMS sleep mode.

The pack self-discharged below the 30V threshold during months of sitting.

A repair tech revived it with a bench charger set to 42V at 1A. It took about 15 minutes. The battery recovered with no lasting damage.

If your G30 died after storage, this is likely your cause.

The Loose Charging Port

Another owner we researched watched his G30 die mid-ride. It refused to charge afterward. The battery tested fine.

The charger showed a normal green light. The real issue was the charging port's internal connector, which had worked loose from the circuit board.

The fix: open the deck, reseat the connector, and add a zip tie for strain relief. Zero dollars and about 20 minutes. The scooter worked normally again.

The Curb Hit

A hard curb strike shuts the scooter off instantly. Nothing brings it back. That's the classic blown fuse.

The G30's inline blade fuse sits near the battery connector, and a sharp impact can crack it.

A multimeter showed no continuity. A $3 replacement fuse and five minutes of work fixed it completely. The scooter powered on and held a charge right away.

The Rain That Got In

The G30's IPX4 rating covers light rain, not downpours. One rider reported his scooter died after a storm. Battery voltage was fine.

The dashboard connector had visible corrosion on two pins.

Cleaning the pins with contact cleaner and adding dielectric grease solved it. That took about 30 minutes. If you ride in wet weather regularly, check the connectors every couple of months.

Your Decision Guide: DIY Fix Or Call A Pro?

Not every dead G30 is a DIY project. Some problems need a steady hand and the right tools. Here is how to decide which path fits your situation.

Fix it yourself if:

• You own a multimeter and know how to test continuity and DC voltage.
• The problem is a blown fuse, loose charging port, or BMS sleep mode after storage.
• You are comfortable opening the deck and working near the battery connector.
• You have a bench charger or access to a repair shop that can wake the BMS.

Call a pro if:

• The dashboard shows visible damage, cracks, or burn marks.
• You smell anything like melting plastic or electronics inside the deck.
• The battery voltage reads below 25V with no sign of recovery.
• You aren't comfortable working near lithium-ion cells with exposed terminals.

The cost of a professional diagnosis is usually around $30 to $50. If a repair shop can wake the BMS in under 20 minutes, that is money well spent compared to buying a replacement battery or controller.

If you are in the market for a scooter because the G30 is truly gone, check out this guide on the best electric scooter for adults for current options. And if a kid's scooter is part of the conversation, the best scooter for kids guide covers safe picks with the right power levels.

Frequently Asked Questions About The Ninebot Max G30 Power Failure

How do I know if my G30 battery is dead or just sleeping?

Measure the voltage across the battery terminals with a multimeter. Above 30V usually means the BMS is alive and the problem lies elsewhere. Below 30V the BMS has likely entered sleep mode.

A bench charger can often bring it back.

Can I jump-start a dead Ninebot Max G30 battery?

Yes, but it is not a beginner job. You feed the battery a low current at 42V from a bench charger, bypassing the BMS. This wakes the management system without damaging the cells.

Only attempt this if you are comfortable near exposed lithium terminals.

Why does my charger stay green when plugged into the G30?

The charger turns green when it sees no electrical load. That usually means the BMS has disconnected the battery or there is a break in the charging circuit. Check the port, fuse, and battery voltage in that order.

How long should I charge a fully dead G30 before trying to turn it on?

Aggregate user reports suggest at least 10 to 20 minutes. A deeply discharged battery needs time to accept current again after the BMS wakes up. Leave it plugged in for half an hour before pressing the power button.

What fuse does the Segway Ninebot Max G30 use?

It typically uses a 20 amp blade fuse. It sits near the battery connector inside the deck. A standard automotive fuse works, but check your specific model variant before buying.

Can water damage cause the G30 to not turn on?

Absolutely. The IPX4 rating is splash proof only. Water inside the dashboard connector or controller can cause shorts that drain the battery or lock up the BMS.

Cleaning the contacts with contact cleaner and applying dielectric grease is the fix.
