Segway Ninebot S Hoverboard Red Light Problem

That blinking or steady red light on your Segway Ninebot S hoverboard is a serious warning. The Segway Ninebot S hoverboard red light problem means the internal battery management system (BMS) has detected an abnormal condition. It's not something to ignore or hope goes away on its own.

The BMS is designed to cut power before a lithium cell becomes dangerous.

Per UL 2272 testing standards, a compliant hoverboard must safely shut down when the battery or controller hits certain thresholds. That's what you're seeing when the red light stays on: a built-in failsafe at work. In our research, the most common triggers are a deeply discharged battery, a misaligned gyro sensor after a crash, or a shorted MOSFET on the controller board.

Let's figure out which one you're dealing with.

Image source: Bing (Web (fair-use with source credit))

Hold Up, That Red Light Isn't Normal (And Here's Why)

That red light is your Ninebot's version of a check-engine light. A mild issue may just need a reset. A severe one could end with a damaged battery that vents smoke.

Knowing which is which saves you money and keeps the board safe.

The battery management system inside the Ninebot S monitors each cell constantly. When voltage drops below its safety threshold, the BMS isolates the pack. The red light is your clue that a real fault exists.

The U.S. Consumer Product Safety Commission has documented hoverboard fire incidents tied to battery faults. That's exactly why this failsafe exists.

When you see a solid red light, don't keep powering the board on. Forcing it to work when the BMS has cut power can damage cells further. That's when you risk permanent battery loss or a swollen pack.

Always unplug the charger and let the board sit before you start diagnosing.

One exception: if the red light appears only while charging, it can mean a single bad cell in the pack. That's not a firmware glitch. It's a physical failure.

Replacement is the correct move, not further resets. As of 2026, replacement batteries for this model are widely available between $40 and $80. That cost is worth comparing against the time you'll spend hacking the old pack back to life.

The Quick Answer: What That Red Light Is Actually Telling You

The Segway Ninebot S hoverboard red light problem is a safety signal. A solid red light usually means the battery management system cut power. Blinking patterns point to controller, gyro, or motor faults.

Count the blinks, then follow the decision tree below.

How the Ninebot S Talks to You: Understanding the Red Light System

The red light doesn't work alone. It's connected to three main components: the battery management system, the controller board, and the gyro sensor. Each can trigger a different warning pattern.

The BMS handles battery safety. It watches for under-voltage, over-current, and cell imbalance. The controller board interprets the BMS signals and drives the motors.

The gyro sensor keeps the board balanced. If it detects an angle the firmware considers impossible, it flags an error.

Here's how to read the patterns in practice:

This map follows the diagnostic logic used in Ninebot firmware. The exact blink count varies by version, so treat it as a starting point, not a bible. The 36V nominal battery is the heart of most red light triggers.

With 42V at full charge and 30V at cutoff, the range is narrow.

The Decision Tree: Pinpointing Your Exact Red Light Problem

Follow the symptom that matches your board. If/then logic isolates the fault fast.

Solid Red Light (No Blinking, No Beeps)

If the red light stays lit and the board won't turn on, the BMS is in battery-protection mode. This happens when the pack dropped below its cutoff voltage, usually around 30V for a 36V system. If the board responds to the charger, leave it charging for several hours.

Some BMS units wake up once the cells reach a usable voltage.

Blinking Red Light (Count the Blinks)

If the light blinks after you press the power button, count the pattern. One blink means low battery. Two to three blinks signal a motor or controller problem.

Three or more blinks on a crashed unit point to the gyro sensor. Repeating this cycle after a power cycle narrows the list further.

Red Light Only on One Side

If only the left or right LED shows red, the fault likely sits in the motor hall sensors, phase wires, or the controller stage for that wheel. Swap the controller inputs to test it. If the problem moves to the other side, the controller is the culprit.

If it stays, the motor has an internal open.

Red Light Shows Up After a Crash or Fall

The gyro sensor gets knocked out of alignment easily. A hard bump on the fender or wheel can shift the sensor board slightly. The firmware reads a non-zero angle at rest, shows the red light, and locks the motors.

The fix is a calibration procedure on a flat floor.

Red Light Flashes While Charging

If the charge brick shows red and the board flashes a red light in sync, the BMS and charger are disputing voltage. Sometimes the charger output is too high or too low. Measure it with a multimeter.

You want 42V across the terminals. A mismatched charger is a cheap fix. A dead cell is not.

Step-by-Step Fixes for Each Red Light Condition

Here are the fixes in the order you should try them. Start with the reset, then move to calibration, then check voltage.

Hard Reset / Power Cycle

Turn the board off. Unplug the charger completely. Wait 30 seconds.

Then hold the power button for 10 seconds and release. Plug the board back in and power on. This resets the BMS and controller logic.

Most transient blink codes vanish here.

Tilt Sensor Calibration (Floor-Leveling Procedure)

Place the board on a perfectly flat surface. A glass table or porcelain tile floor works well. Power the board off for 10 seconds.

Then press and hold the power button for 5 to 8 seconds. The red light should flash, then turn green. This re-centers the gyro.

If the light doesn't change, try again with the board charging. That forces a different boot mode.

Image source: Bing (Web (fair-use with source credit))

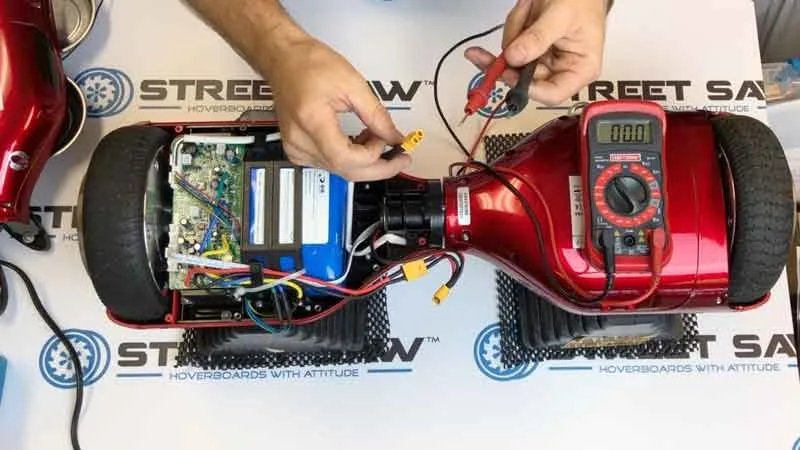

Battery Voltage Check (The Multimeter Test)

You'll need a digital multimeter for this step. Set it to DC voltage in the 50V range. Probe the charging port's center pin and the outer shell.

A healthy 36V pack reads between 36V and 42V off the charger. Below 30V means the BMS is in protection mode. Below 25V means the pack likely needs cell-level testing.

Don't open the battery case unless you're comfortable handling lithium cells. A short across the terminals is a real hazard.

Image source: Bing (Web (fair-use with source credit))

If the pack reads below 25V, skip the internal test and consider replacement. A replacement battery is simpler than reviving cells that have been sitting at dangerous voltages.

Three Common Mistakes That Can Turn a Red Light Into a Dead Board

The biggest mistake is ignoring the red light and riding anyway. Pushing past a BMS cutoff forces the battery to deliver current from an already stressed pack. That's how cells overheat and swell.

Aggregate owner feedback reports this as a leading cause of permanent battery failure on the Ninebot S.

Another common error is jumping straight to buying a new battery without checking the controller first. In many cases, the issue traces back to a shorted MOSFET on the controller board instead of a dead pack. A $30 replacement board can fix what looked like a battery issue.

Test the charger output before opening your wallet.

The third mistake is using the wrong charger. The Ninebot S needs a 42V output charger with a 1.5A to 2A current rating. A generic hoverboard charger from an unbranded unit may push a different voltage.

Per UL 2272 safety documentation, mismatched charging voltage is a primary cause of BMS lockout. Always confirm the charger label before plugging it in.

One more thing. Don't store a board with a solid red light for weeks thinking you'll fix it later. Lithium cells self-discharge below the BMS cutoff if left too long.

Letting a pack sit below 25V for more than a month can cause irreversible cell damage. That board goes from fixable to a recycling case.

When to Call It Quits: Repair vs. Replace Decision Guide

Not every red light deserves a full repair effort. Some problems cost more in time and parts than the board is worth. Use this guide to decide quickly.

If the board is over three years old and both the battery and controller show faults, the math usually favors replacement. A new Ninebot S or a comparable UL 2272 certified hoverboard runs between $250 and $400 as of 2026. Spending half that on parts for an aging unit only makes sense if you enjoy the project.

If it's for a younger rider, our best hoverboards for kids list covers certified options.

For single-side motor failures, check the hall sensor connectors first. They are known to loosen over time. A simple reseat has fixed many red light conditions without a single part purchase.

That's a five minute test with zero cost.

Frequently Asked Questions About the Ninebot S Red Light Problem

Can I ride my Ninebot S with a red light showing?

No. A red light means the BMS or controller has detected a fault. Riding with an active warning risks further damage to the battery or electronics.

Stop using the board until you diagnose and fix the specific issue.

Why does my red light go away after I unplug the charger?

That behavior typically means the BMS recovered its voltage reading once the charge circuit opened. The battery may be right at the cutoff threshold. Test the pack voltage with a multimeter.

If it reads between 34V and 36V, the BMS is borderline. A full charge cycle may stabilize it.

How do I know if my battery is completely dead versus just in protection mode?

Measure the voltage at the charging port. A reading above 30V means the BMS can likely be reset. A reading below 25V usually means cells are damaged.

Below 20V, the BMS has locked the pack permanently. Replacement is the only safe option at that point.

Will a factory reset fix the red light every time?

No. A factory reset re-centers the gyro sensor and clears transient controller faults. It cannot fix a physically damaged battery, a shorted MOSFET, or a burnt motor winding.

If the red light returns after a reset, you have a hardware fault.

Is it safe to open the battery case on my Ninebot S?

Only if you have experience handling lithium ion cells and a multimeter. The internal cells can deliver high current if shorted. A short across a charged 36V pack can cause fire or burns.

If you are not comfortable, pay a repair shop or replace the battery entirely.

How long can I expect a replacement battery to last?

A new OEM or compatible 36V pack for the Ninebot S typically lasts 300 to 500 full charge cycles. That translates to roughly one to two years of regular use. Proper storage at partial charge (around 50%) and cool temperatures extends the life significantly.

If you're comparing models for a child, our best hoverboard for 10-year-old guide notes expected battery life across brands.
