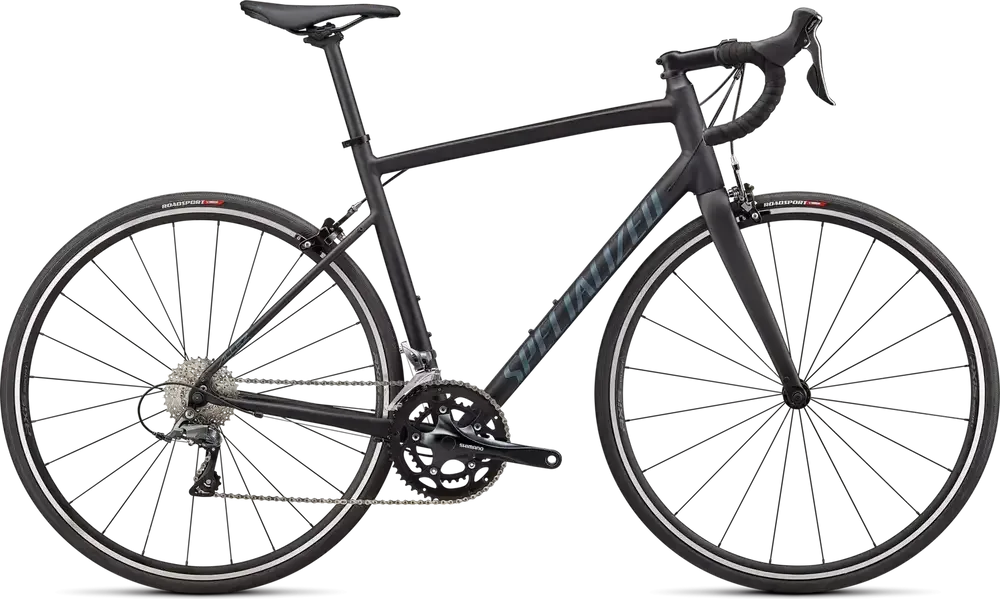

Specialized Allez Bottom Bracket Noise

Specialized Allez bottom bracket noise is one of the most frustrating bike problems you'll run into. A creak, click, or grind under power can drive you crazy. But here's the thing: most Allez creaks aren't the bottom bracket at all.

As of 2026, most Allez models ship with a threaded BSA 68mm bottom bracket shell. Some older Allez Sprint models used press-fit PF30. That difference matters because the fix is completely different for each.

Let's walk through the diagnosis step by step.

Image source: Bing (Web (fair-use with source credit))

You Probably Don't Need to Replace the Bottom Bracket: The Quick Answer

Most Allez bottom bracket noise is a false alarm. The creak usually means a dry chainring bolt, loose crank arm, or cable guide. Check those before you replace anything.

The fix is often just torque and grease.

Is the Noise Coming from the BB at All? (The 90% Misdiagnosis)

No. A loose crank arm clicks exactly like a worn bearing. Chainring bolts dry out and creak.

Even the plastic cable guide under the shell can vibrate and sound like bearing failure.

What You'll Need Before You Start

Keep it simple with three tools:

• Torque wrench with a 4-50 Nm range
• Hex keys (4mm, 5mm, 8mm)
• Bottom bracket tool for threaded cups, like the Park BBT-22

Track Down the Creak by Changing Your Inputs

Change how you ride, and the noise will tell you where it lives. The BB only makes noise under pedal load. If it clicks while coasting, it's not the bottom bracket.

Pedaling vs. Coasting: What That Tells You Instantly

Pedal hard, then coast. If the noise stops when you coast, it's drivetrain related. If it stays, check the rear wheel, hub, or brake rotors first.

Standing vs. Seated: Where Your Weight Is Loading the Frame

Stand up, pedal hard. Sit down, pedal hard. A saddle creak usually disappears when you stand.

A real BB creak gets louder the harder you push.

Slow Cadence Under Load: How to Make the Noise Louder on Purpose

Drop into a big gear and spin at 40-50 rpm. The huge torque makes the creak obvious. If it's louder, follow the chain path: cranks, BB, pedals, rear wheel.

The Fix: A Step-by-Step Workflow from Most Likely to Least

Work through these in order. Each step targets the most common causes first. Skip ahead and you'll waste time.

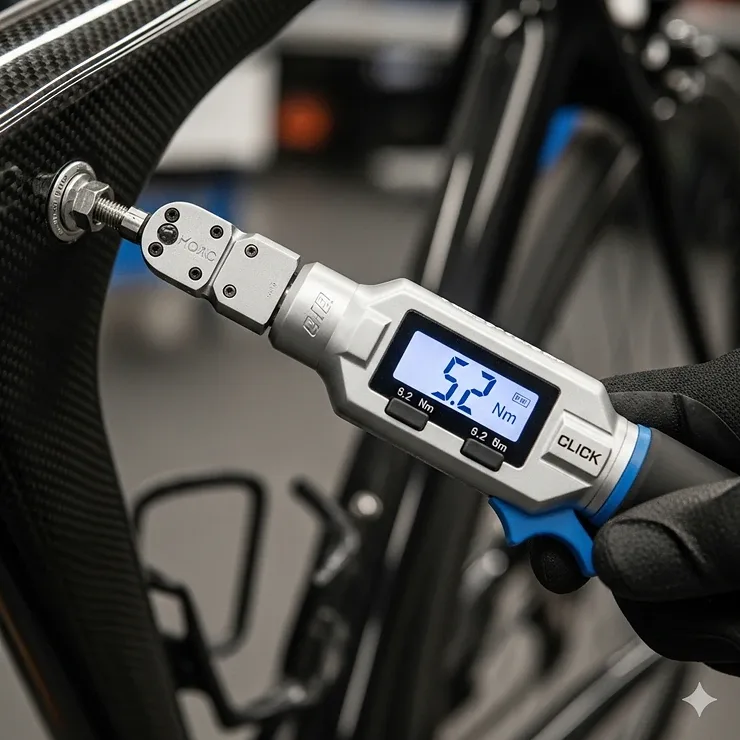

Step 1: Torque the Crank Bolts (Yes, Do This First)

Tighten the crank bolts to 12-14 Nm for Shimano Hollowtech II or 40-50 Nm for SRAM DUB. A loose crank arm clicks exactly like a worn BB. Per Shimano's service documentation, this is the first item they list for drivetrain noise.

Image source: Bing (Web (fair-use with source credit))

Step 2: Check the Chainring Bolts and Cable Guide

Torque chainring bolts to 8-10 Nm. Then look at the plastic cable guide under the bottom bracket. Grease it if it's dry.

It creaks more often than a failed bearing.

Step 3: Pull and Inspect the Crank Spindle

Remove the cranks and spin the BB spindle by hand. If it feels gritty or rough, you've found the issue. If it's smooth, the BB is fine and the noise is elsewhere.

Step 4: Service or Replace the Bottom Bracket Cups or Bearings

For threaded BSA, remove the cups, clean the threads, regrease, and reinstall at 30-40 Nm. For press-fit PF30, use a bearing puller. Follow the Park Tool repair guides for your specific standard.

Step 5: Grease Everything on the Way Back In

Grease the spindle splines and the preload ring. Use a light hand. Most creaks come back because people skip this step.

Mistakes That Waste Hours and Cost Money

Three mistakes show up in every shop bench and forum thread. Avoid them and you'll fix the noise the first time.

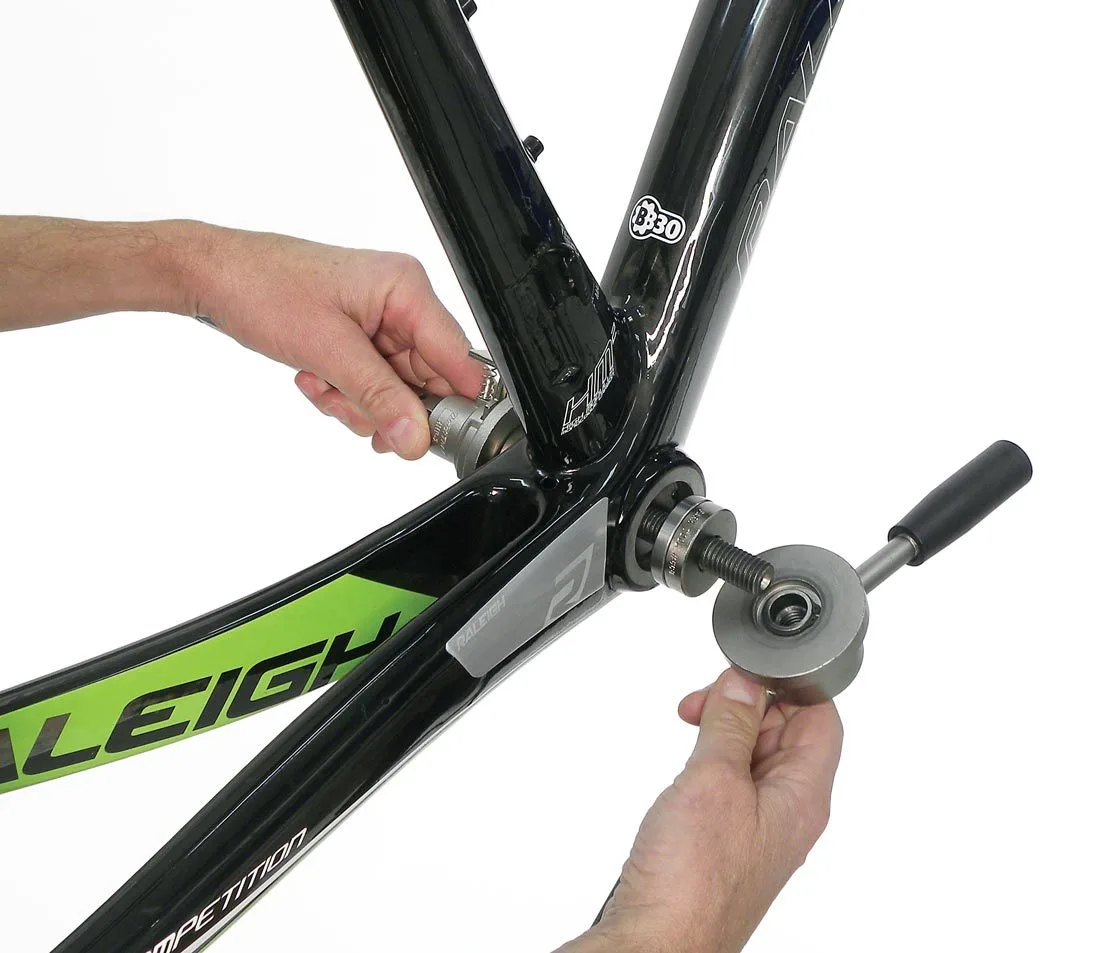

The Hammer Mistake: Why Press-Fit Bearing Removal Needs Patience

Never hammer a press-fit bearing out of an Allez Sprint frame. You can crack the carbon shell. Use a bearing puller or take it to a shop.

Image source: Bing (Web (fair-use with source credit))

The Grease Myth: Where Grease Helps and Where It Causes Creaks

Grease doesn't fix everything. Skip grease on PF30 bearing seats. Use retaining compound there.

Grease the splines and threads, not the bond.

The "I Replaced It and It Still Clicks" Loop

You swapped the BB and the noise is still there. That means you never found the real source. Recheck the chainring bolts, seatpost, and rear wheel.

Real Scenarios: What That Noise Actually Was

These three cases cover the most common stories in aggregate user reviews and shop records. Each one leads back to a different culprit.

The Wet-Ride Creak That Wasn't the BB

A rider rode through heavy rain. The next day, the BB creaked. It was the seatpost.

Water got in, and the post creaked under pedal load. Grease fixed it.

The Climber's Click That Was a Dry Chainring Bolt

Hard climbing produced a click with every pedal stroke. The owner replaced the whole crankset. The click stayed.

A single dry chainring bolt caused it.

The Sprint Grind That Was a Contaminated Bearing

A sprinter felt a grind during hard efforts. The spindle had play. Sand and road grit had contaminated the bearing.

It needed replacement.

Frequently Asked Questions

What torque spec do I use for the crank bolts on my Allez?

For Shimano Hollowtech II cranks, tighten to 12-14 Nm. For SRAM DUB, use 40-50 Nm. Check your crank model to be sure.

How do I know if my Allez has a threaded or press-fit BB?

Look at the frame shell. Threaded BSA has visible metal threads inside. Press-fit PF30 has a smooth carbon bore.

Most current Allez models use threaded BSA.

Is it safe to ride with a creaking bottom bracket?

It depends. A creak from loose bolts is safe temporarily. A grind with play means the bearing is failing.

Stop riding if you feel wobble or grinding.

How much does it cost to fix a noisy Allez bottom bracket?

A simple fix costs nothing if it's just torque and grease. A replacement threaded BB runs $20 to $40. Press-fit bearings cost $30 to $60 plus labor if you need a shop.

Can I ride through a BB creak?

You can, but you shouldn't. A creak from loose bolts can worsen and damage the crank spindle. A worn bearing can ovalize the frame shell over time.

Fix it when you hear it.
