Subaru Forester Engine Overheating

If you own a Subaru Forester and the temperature gauge has ever crept past the halfway mark, you already know that sinking feeling. Subaru Forester engine overheating is one of the most discussed problems in the owner community, and for good reason. It can happen suddenly, it can ruin your day, and if you ignore it, it can destroy the engine entirely.

As of 2026, the root causes have remained remarkably consistent across generations. The good news? Most of them are diagnosable before catastrophic damage occurs.

This guide walks you through what's actually happening under the hood, how to identify the culprit, what repairs cost, and which mistakes send these SUVs to the junkyard early.

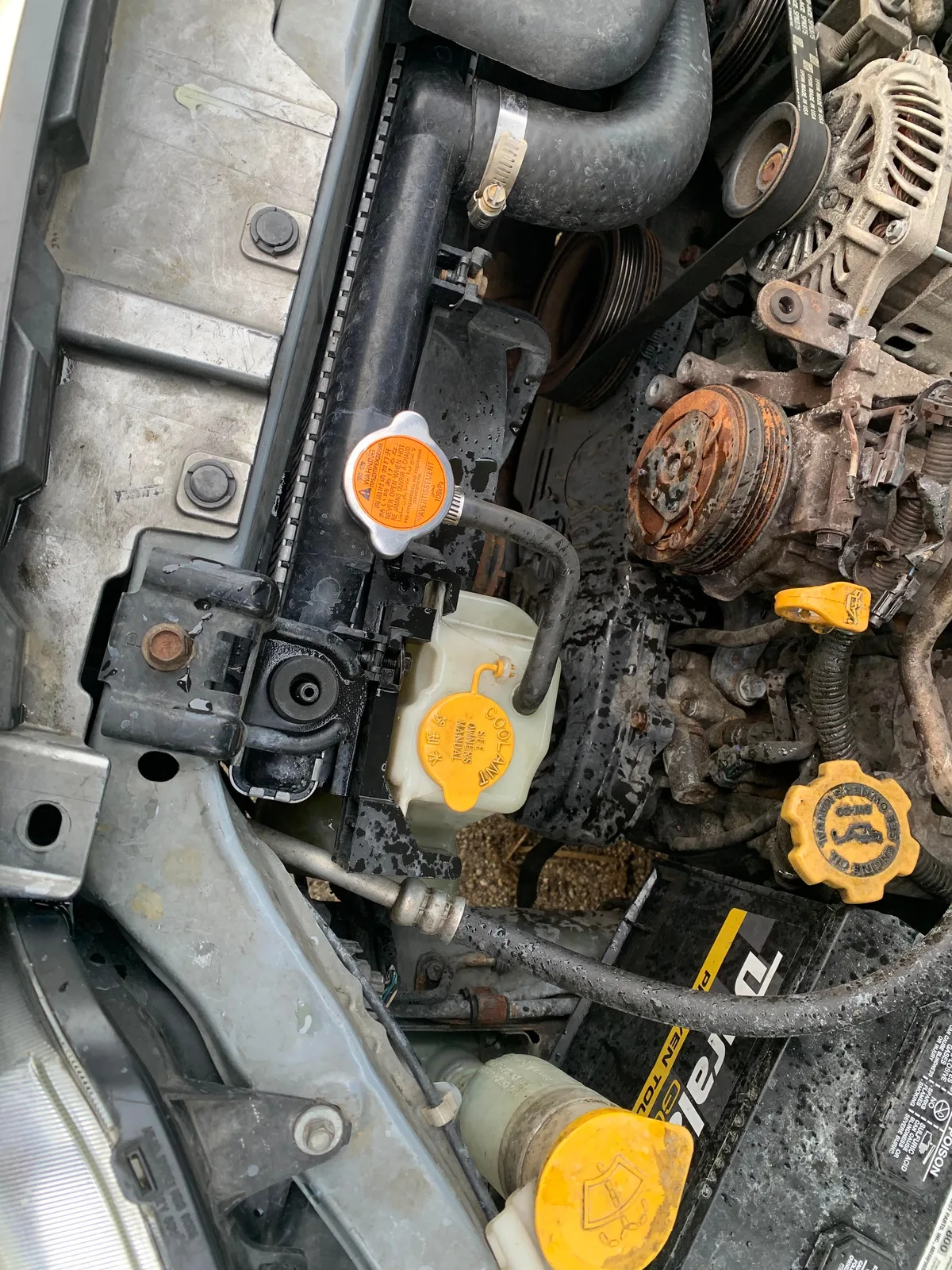

Image source: Bing (Web (fair-use with source credit))

---

Why a Hot Forester Is a Ticking Clock

What Overheating Actually Does to a Boxer Engine

The Subaru Forester uses a horizontally opposed "boxer" engine. Its flat layout places the cylinder heads far from the centerline, which puts extra stress on the head gaskets. When the cooling system loses pressure or flow, hot spots form quickly.

The aluminum heads warp faster than you'd think, and once they warp, the head gasket seals are compromised.

Manufacturer specifications indicate a healthy boxer runs at roughly 195 to 220 degrees Fahrenheit. Anything beyond that stresses the metal. At 240 degrees, the oil degrades.

At 250 degrees and up, the heads risk cracking. That's not a slow burn. That's a matter of minutes.

The flat geometry also means the head gasket has a lot of surface area to seal. Heat and pressure hit it from every direction. When it fails, coolant mixes with oil, exhaust gas pushes into the cooling system, and white smoke pours from the tailpipe.

The First Signs That Matter (and the Subtle Ones People Miss)

Obvious symptoms like a pegged temperature gauge or steam under the hood are hard to ignore. But the quieter clues are just as important.

Watch for a sweet smell inside the cabin when the heater runs. That's coolant passing through a leaky heater core or a failed crossover pipe O-ring. Notice the temperature gauge at highway speed.

If it reads fine on the road but creeps up when you stop, your electric fans, relay, or fuse are likely at fault.

Coolant disappearing from the overflow bottle without an obvious drip usually means an internal leak. That points to a head gasket or a cracked radiator end tank. When the coolant level drops without an external puddle, the engine is burning it or pushing it out as steam.

---

The Usual Suspects: Common Forester Cooling Failures

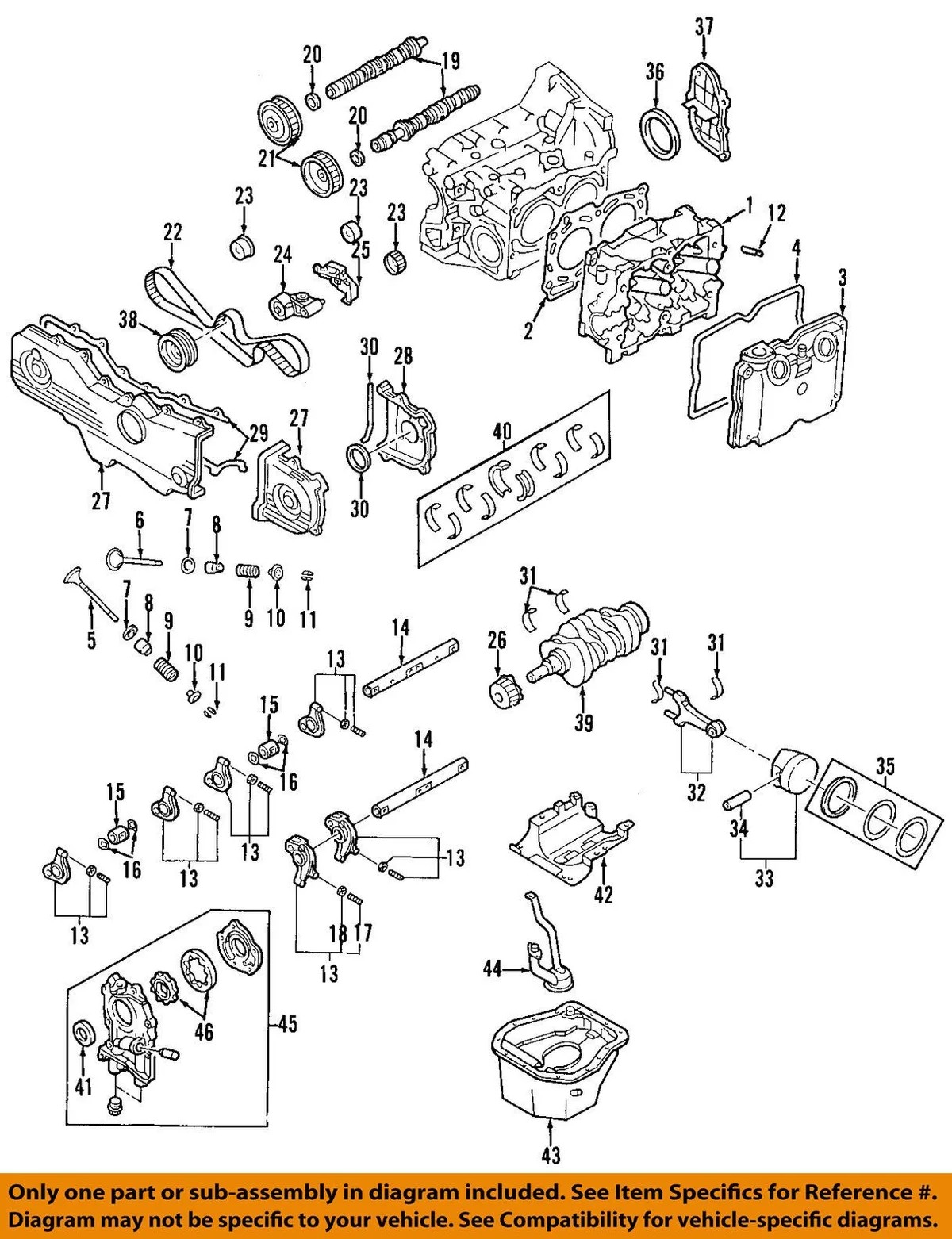

Head Gasket Failure (EJ25 and Turbo Models)

Image source: Bing (Web (fair-use with source credit))

This is the big one, and it's earned its reputation. The EJ25 engine, especially in early 2000s Foresters, is notorious for head gasket failures. The OEM gaskets simply didn't hold up under constant thermal cycling.

If you see bubbles in the coolant reservoir during idle, or a milky film on the oil dipstick, that's a head gasket failure. Some owners catch it early because the overflow tank shows discolored coolant or an oily sheen. Others get the classic symptoms: white smoke from the exhaust and a persistent misfire code.

Turbocharged models, like the Forester XT with the EJ255, have their own failure modes. Heat is the enemy. A turbo engine produces more under-hood heat, and if the cooling system has any weakness, the head gaskets pay for it first.

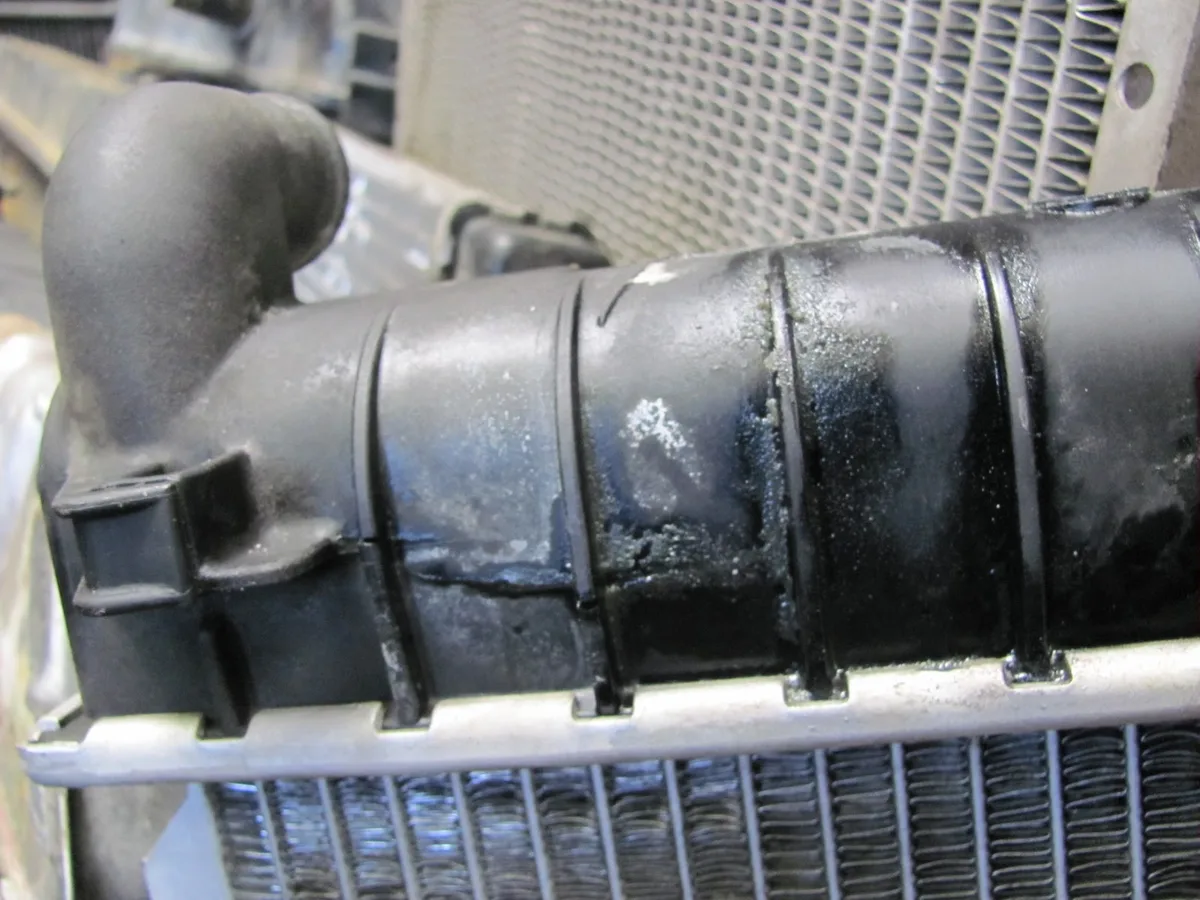

Cracked Radiator End Tanks and the O-Ring Problem

Many Forester radiators feature plastic end tanks crimped onto an aluminum core. That design works fine when new, but plastic becomes brittle after years of heat cycling. Cracks form along the seam where the tank meets the metal, usually starting as a slow seep.

You'll find dried coolant residue on the top of the radiator or a thin film on the underside.

Image source: Bing (Web (fair-use with source credit))

There's also the coolant crossover pipe on the EJ25, which runs along the top of the engine block. Two small O-rings seal it. When they harden and fail, you get an external coolant leak that drips onto the exhaust manifold.

That produces a sweet steam smell. It's a cheap fix if caught early, and a confusing leak if you don't know where to look. Use OEM-grade parts for these reseals.

Thermostat, Water Pump, and Fan/Relay Failures

The thermostat is a small valve that controls coolant flow. When it sticks closed, the engine has no way to shed heat. The gauge climbs fast.

Replacing a thermostat is cheap and easy, but only if you use a genuine Subaru part. Aftermarket thermostats often have different opening temperatures, which means poor regulation under load, and they fail quicker.

The water pump is another common failure point. A seized bearing or a failing seal will leak coolant from the weep hole. If you hear a whine from the front of the engine, or you spot coolant pooling under the timing cover, inspect the water pump immediately.

The electric cooling fans are equally important. If they don't kick on when the engine reaches operating temperature, the car overheats at idle. Listen for the fans cycling after a warm drive.

If they stay silent, check the fuse, relay, and thermoswitch before assuming the motor is dead.

Coolant Loss Without a Visible Leak

This one frustrates owners the most. The coolant level drops, but there's no puddle under the car. It could be an internal head gasket leak where coolant burns in the cylinders.

It could also be a leak into the oil galleries, or a pressurized system pushing coolant out of the overflow once the radiator cap's seal weakens.

A failed radiator cap can also let coolant escape as steam at high pressure. That lowers the boiling point and makes overheating worse. The cap is a cheap first replacement, and it's one of the easiest diagnostic parts you can swap.

---

Safe First Moves: How to Check Things Without Making It Worse

Pull Over, Shut It Down, and Let It Cool

Your first instinct might be to open the hood the moment you notice steam. Stop yourself. The cooling system is under pressure when hot, and the fluid inside is boiling.

One mistake with the radiator cap can send a fountain of scalding coolant into your face. Subaru's own warnings repeat this for a reason: a serious burn can happen in less than a second.

The correct move is simple. Signal, pull over, put the car in park, and kill the engine. Set the parking brake and wait at least 30 to 45 minutes.

Let the temperature gauge drop fully to the cold position before touching anything.

Reading the Signs: Smoke, Smells, and Leak Locations

Once the engine is cool, take a slow walk around the car. Look for steam rising from specific spots. A leak at the rear of the engine, near the heater hoses, or a trail of dried crust on the block, can tell you a lot.

Sniff the air near the hood. A sweet smell means coolant is present.

If the oil dipstick shows a milky tan or chocolate-like residue, coolant is mixing into the oil system. That's an internal head gasket failure, and it's critical.

The Correct Way to Check Coolant (and Why Timing Matters)

Always check coolant only when the engine is cold. Coolant expands as it heats, so a low reading on a cool engine is the only accurate reading. If you must top up, use a 50/50 mix of Subaru Super Coolant and distilled water.

Never use plain tap water. Tap water contains minerals that can corrode aluminum heads and accelerate block deposits.

Simple Tests: Pressure Tester, Block Tester, and Compression Test

A cooling system pressure tester is one of the best investments a DIY Forester owner can make. It pumps the system to the radiator cap's rated pressure and holds it steady. If the pressure drops over 10 minutes, you have a leak somewhere.

You can narrow it down by listening for hissing or looking for drips.

For internal head gasket leaks, a block tester is the tool. It changes color when exhaust gases are present in the coolant. This single test separates a simple thermostat failure from a head gasket repair.

A compression test is another excellent diagnostic. It tells you the condition of each cylinder individually, and it helps identify a blown gasket between two adjacent cylinders.

---

Head Gasket or Minor Issue? How to Tell Before Paying

Bubbles, Milky Oil, and White Smoke: What Each One Points To

If you see bubbles in the coolant reservoir at idle, that's exhaust gas pushing into the cooling system. That's a head gasket failure. A compression leak from the cylinder is forcing combustion gases through the gasket and into the coolant passages.

Milky oil is another smoking gun. Coolant mixing with oil turns the oil into a light brown or tan sludge that looks like a chocolate milkshake inside the crankcase. This is a severe failure.

Running the engine even briefly can damage bearings and clog oil galleries.

White smoke from the tailpipe that smells sweet is coolant burning in the combustion chamber. A small puff on startup isn't always a problem. A continuing plume, or one that increases with throttle, points directly to a head gasket breach.

When a Thermostat Swap Fixes Everything

If the car overheats within a few minutes of starting but the coolant level is full, and the lower radiator hose stays cold while the upper hose is hot, the thermostat is likely stuck shut. No flow equals no heat exchange. A new genuine thermostat and a fresh gasket is one of the cheapest repairs on this list.

It's also one of the easiest DIY jobs, so this diagnostic step costs just a few dollars.

When to Stop Diagnosing and Call a Subaru Specialist

You can perform several diagnostics on your own, including a pressure test and a block test. But once those confirm an internal leak, further diagnosing is about confirming damage, not fixing it. If you're seeing bubbles, milky oil, or white smoke, stop driving the car and call a Subaru specialist.

Keep driving, and the risks compound quickly. A minor head gasket fix can turn into a complete engine replacement.

Why Misdiagnosis Wastes Money and Damages the Engine

Replacing a radiator when the real issue is a failed water pump won't fix the overheating. Parts swapping is the most expensive lesson you can learn. If you replace the thermostat and radiator fans but the head gasket is the culprit, you've spent several hundred dollars and gained nothing.

The engine still overheats, and now you're back to square one with a shorter timeline for damage. That's why a methodical diagnostic order matters. Start with the coolant level, then the pressure test, then the block test, then compression.

Only after those are ruled out do you start spending money on parts.

---

What Repairs Really Cost: Parts, Labor, and Timelines

Quick Fixes: Thermostat and Water Pump Replacement

A thermostat swap runs roughly $100 to $250 for parts and labor at an independent shop. That includes the genuine thermostat, a new gasket, and coolant to top off. DIY costs about $50.

A water pump replacement varies. On the EJ25, the pump sits behind the timing belt, so labor is more involved. Expect $400 to $700 at a shop.

If you're already doing a timing belt service, the water pump is an extra $100 to $150 in parts, and the labor is effectively free. Don't skip it. Per manufacturer maintenance guidance, the water pump and timing belt share a service interval.

Doing them together saves you a second labor bill.

Radiator Replacement and Coolant Flush Pricing

A new OEM-style radiator costs between $150 and $300 for the part. Labor adds another $200 to $400, putting a shop visit at $350 to $700. A coolant flush alone runs $80 to $120.

When the radiator's plastic end tanks crack, this is the fix. Many owners upgrade to an all-aluminum radiator for about $400 to $600. That eliminates the plastic tank failure mode entirely.

The Head Gasket Repair Reality Check

This is the big bill. An EJ25 head gasket replacement at a reputable independent Subaru specialist runs $1,500 to $2,500. That includes new head gaskets, resurfacing the heads, fresh coolant, oil, filters, and often a new timing belt kit.

Dealerships charge more, frequently $2,500 to $3,500. It's an eight-to-twelve-hour job, so much of the cost is labor. If you catch it early, before the heads warp, this repair gives you a solid engine for years.

Engine Replacement: When It Becomes the Honest Choice

When an overheated engine has been driven too long, the heads crack, the block warps, or the oil system fills with sludge. A used engine replacement runs $3,000 to $6,000, plus installation labor, often $1,500 to $2,500 more. A low-mileage JDM engine can be a budget option, but there are hidden risks.

You don't know the history, and shipping damage can add costs.

The honest advice is to weigh the replacement cost against the car's value. A 2005 Forester with 180,000 miles simply isn't worth a $7,000 engine swap. Check for open recalls on the NHTSA recall website before you decide.

---

Mistakes That Send These Engines to the Junkyard

Adding Stop-Leak Instead of Fixing the Root Problem

Stop-leak products promise a miracle, but they're a gamble. For a tiny radiator pinhole, they might buy you a week. For a head gasket failure, they guarantee a bigger bill later.

The particles clog the narrowest cooling passages, especially the heater core and the crossover pipe.

Aggregate reviews show it time and again. The engine overheats worse, and the eventual repair costs more.

Replacing Parts Without Bleeding Air From the System

Air pockets are the silent killer after cooling system work. Swap the thermostat without bleeding, and hot spots form immediately. The gauge spikes even though the coolant level is full.

Every Subaru cooling system needs a proper bleed. Use the factory bleed screw, raise the front end, and burp the system with a spill-proof funnel. Skip this step, and a new thermostat won't help.

Ignoring a Barely-Running Cooling Fan

A fan that spins slowly or cycles erratically is failing. The one that "sometimes works" will eventually stop. A weak fan motor draws more current, heats up the relay, and blows the fuse.

If the engine only overheats in traffic, that's your fan. Test it directly by jumping the thermoswitch or pulling the connector at the sensor. When you verify the issue, replace the fan motor, relay, and fuse together.

Using the Wrong Coolant or Water-Diluted Mixes

Subaru Super Coolant is phosphate-free and formulated for the aluminum boxer. Generic green coolant isn't a direct substitute. Mixed coolants react, gel up, and clog the heater core.

Water alone is even worse. It boils earlier and corrodes the aluminum. Always run a 50/50 mix of approved fluid and distilled water.

Tap water adds minerals that deposit inside the block.

Skipping the Water Pump During Timing Belt Service

If you're already paying for timing belt labor, the water pump is only an extra hour on many Forester models. It's driven by the same belt and aged with the original.

A water pump failure after a belt service means paying full labor all over again. That's an expensive lesson about preventive maintenance. Do it while the timing cover is off.

---

Quick Answers: FAQ on Forester Overheating

Is It Safe to Drive a Few Miles to the Shop?

No. Even a short drive with the needle in the red can warp the cylinder heads. Let it cool completely, top up, and run the heater on high if you must move it.

Drive gently. Watch the gauge.

Should I Use a Block Sealer to Get Home?

Block sealer is a temporary rescue, not a repair. It can plug a small gap and get you home. But it often blocks the heater core or radiator instead.

Per Subaru's service guidance, the only proper fix is replacing the head gasket.

Why Does My Temp Gauge Spike Only Under Load?

Under load, the engine makes more heat, and airflow through the radiator drops. If the gauge climbs on the highway or up a grade, the radiator is likely clogged. The fans might be failing, or the head gasket leaks under pressure.

How Often Should a Forester's Coolant Be Flushed?

Subaru's OEM coolant is rated for roughly 11 years or 100,000 miles. If you've topped up with water, flush sooner. A safe practice for older vehicles is every 50,000 to 60,000 miles.

Sediment in the flush offers clues about the head gasket.

Does the Subaru Coolant Conditioner Actually Help?

The conditioner is a band-aid for slow external head gasket seepage. It's not a fix. It swells the gasket material slightly to reduce minor leaks.

Many owners buy a few thousand miles, but extended use delays the inevitable. Plan the real repair. The conditioner is a stopgap.
