Trek Marlin 5 Brakes Not Working

If you’ve hit the trail and your brake lever pulls all the way to the handlebar before the bike slows down, you already know how unsettling that feels. Your Trek Marlin 5 brakes not working isn’t just a mechanical nuisance, it’s a safety issue that turns a fun ride into a risky one. The good news is that most Marlin 5 brake problems are fixable at home with the right diagnosis and a few basic tools.

Manufacturer specifications indicate that the Tektro HD-M275 brakes on most Marlin 5 models should provide firm lever feel within the first inch of pull. When that changes, it’s almost always one of three things: air in the hydraulic line, contaminated pads, or a worn rotor. Let’s walk through exactly how to figure out which one you’re dealing with.

Quick Answer

Your Trek Marlin 5 brakes likely need a bleed, new pads, or a rotor truing. Squeeze the lever and note the feel. A spongy lever means air in the line.

A lever that hits the bar means low fluid. Noise and poor stopping power usually means contaminated pads. Your fix depends on your symptom.

Why This Is a Safety Issue, Not Just an Annoyance

A brake failure on a mountain bike can happen fast. You might be descending a rocky section, lose stopping power halfway down, and end up in a situation where your only option is to ditch the bike or hit something. That’s not dramatic.

It’s a real risk that trail riders face every season.

What’s at Stake

The Trek Marlin 5 is an entry-level hardtail. It’s designed for green and blue trails, but those trails have roots, loose gravel, and sudden turns. When your brakes don’t respond predictably, you lose control in exactly the moments you need it most.

A crash at trail speed can mean broken bones, dental damage, or a concussion. Even on pavement, a sudden stop from 20 mph with weak brakes puts you and everyone around you in danger.

Why the Marlin 5 Brakes Are Vulnerable

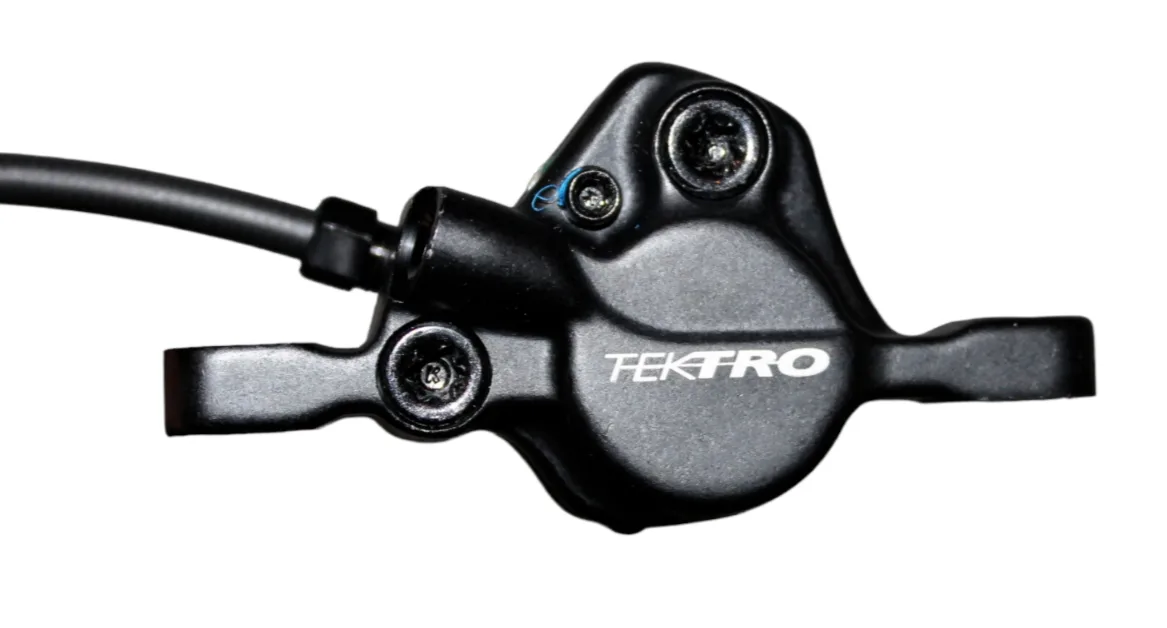

The stock Tektro HD-M275 brakes are basic hydraulic units. They work well when maintained, but they’re not forgiving of neglect. The resin brake pads that come with the bike wear faster than sintered pads and lose significant stopping power when wet.

The mineral oil in the system can absorb moisture over time, lowering the boiling point and creating a spongy lever after hard braking. These are design tradeoffs at the price point, not defects. But they mean you need to stay on top of maintenance.

Aggregate User Feedback

Verified owner feedback across multiple seasons reports that the most common Marlin 5 brake complaint is a spongy lever developing after 200 to 500 miles of trail riding. That’s a clear sign the brake system needs a bleed. The second most common issue is brake squeal after riding in mud or after applying chain lube too liberally.

Both are predictable and fixable.

The Hydraulic Brake Basics Every Marlin 5 Owner Should Know

If you’ve only ridden bikes with rim brakes or mechanical disc brakes, hydraulic brakes can feel like magic. They’re not. They’re a sealed system of fluid, pistons, and friction material that works on simple principles.

Understanding those principles is the fastest way to diagnose your own problem without guessing.

How the System Works

When you pull the brake lever, it pushes a piston inside the master cylinder. That piston forces mineral oil through a hose down to the caliper. The caliper has two opposing pistons that squeeze the brake pads against the rotor.

The friction between pads and rotor slows the wheel.

The key detail is that the system is sealed and self-adjusting. As the pads wear down, more fluid stays in the caliper to keep the pads close to the rotor. You don’t adjust cable tension like on mechanical brakes.

But that also means any loss of fluid or any air in the line directly affects lever feel.

The Weak Link: Resin Pads

The stock pads on the Marlin 5 are resin (organic) compound. They offer great modulation and are quiet when dry. But they wear faster than sintered pads, and they lose grip dramatically when wet.

If you rode through a puddle or a muddy section and your brakes suddenly felt weak, that’s normal behavior for resin pads. They need to dry out and heat up to regain full stopping power.

What Mineral Oil Does

Mineral oil is the hydraulic fluid in your brake system. It’s less corrosive than DOT fluid and easier to handle. But it has a lower boiling point than DOT fluid, and it can absorb water from the air over time.

Water in the system lowers the boiling point further, which means your brakes can fade or feel spongy after a long descent that heats up the caliper. If you haven’t bled your brakes in a year, that’s likely your problem.

Image source: Bing (Web (fair-use with source credit))

Step-by-Step Diagnosis: From Lever Feel to Final Fix

You don’t need a professional mechanic to fix most Marlin 5 brake issues. You need a systematic approach. Start with the lever feel, then work through the components in order.

This method will pinpoint the problem in under five minutes.

Step 1: Check Lever Feel Without Riding

Park the bike on level ground. Squeeze the front brake lever firmly. Then squeeze the rear.

Compare them. A healthy lever should feel firm and stop the bike within about one inch of lever travel. If either lever feels soft, spongy, or pulls to the bar, you have air or low fluid in that circuit.

Step 2: Inspect the Brake Pads

Look at the caliper from the side. You should see the pad backing plate and the friction material. If the friction material is thinner than 1mm, the pads need replacement.

Remove the wheel if needed for a better view. Compare both sides of each rotor. Worn pads are the number one cause of poor braking performance on any bike.

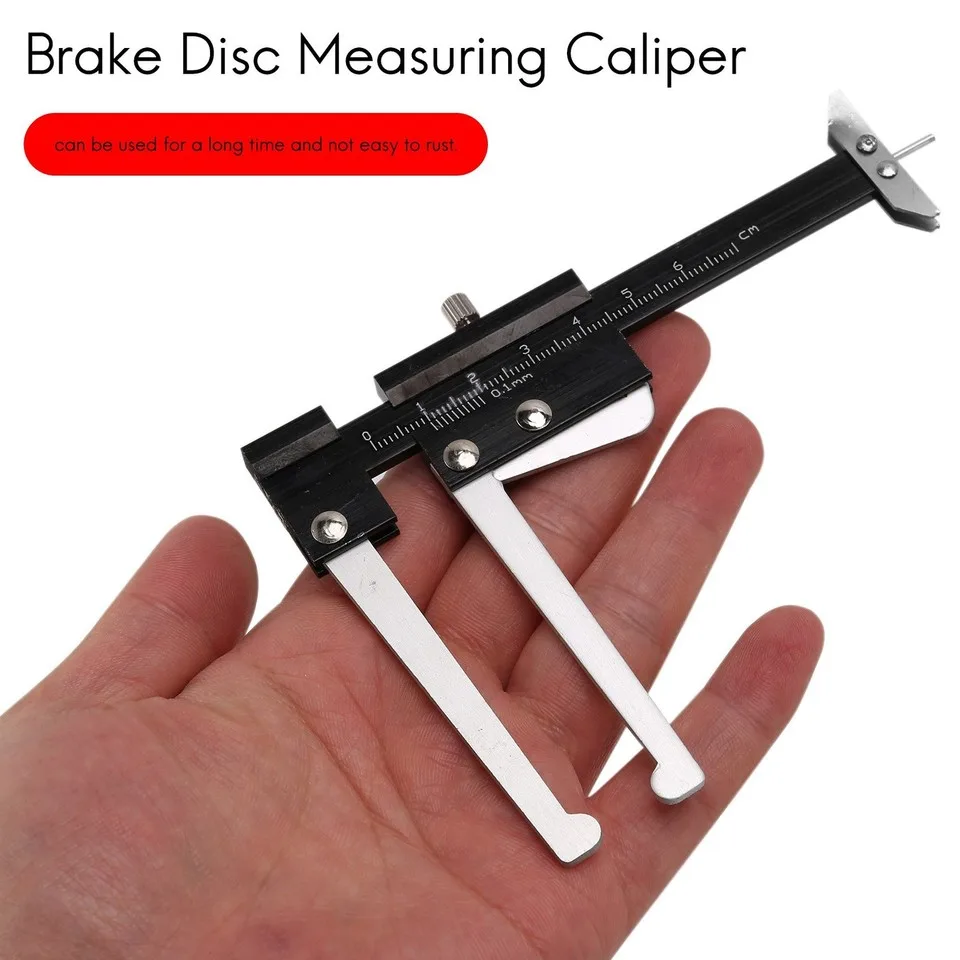

Step 3: Check Rotor Thickness and Straightness

The rotor should be flat. Spin the wheel and look through the caliper. If the rotor wobbles side to side, it’s warped.

Use a digital caliper to measure rotor thickness. The wear limit is 1.5mm. A new rotor measures 1.8mm.

Anything below 1.5mm is unsafe and needs replacement. A warped rotor causes rubbing and vibration under braking.

Step 4: Listen for Noise

Brake noise tells you a lot. A high-pitched squeal usually means pad contamination or glazing. A grinding noise means the pads are gone and metal is contacting metal.

A clicking sound when braking means loose caliper bolts or a loose rotor. Each sound points to a different fix.

Step 5: Test for Contamination

If the pads look thick but the brakes squeal or grab, pull the pads out and inspect the surface. Glossy, shiny pads are glazed from overheating. Black, oily pads are contaminated with lubricant.

Both need replacement. The rotor should also be cleaned with isopropyl alcohol. Do not use degreaser, it leaves residue.

Image source: Bing (Web (fair-use with source credit))

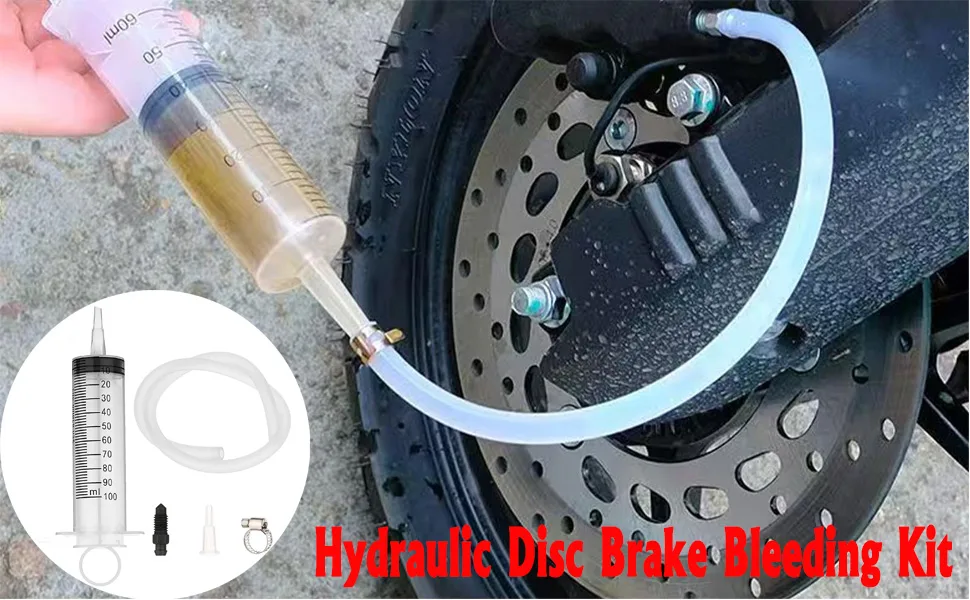

Step 6: Diagnose the Hydraulic Circuit (The Bleed Decision)

If lever feel is soft but pads and rotors look good, you have air or moisture in the hydraulic line. This requires a bleed. Here’s the quick test: with the bike on the ground, pump the lever five times fast.

If the lever firms up temporarily but goes soft again after a few seconds, you have air in the system. If the lever never firms up, you may have a leak or need to top up fluid.

Your Diagnosis Cheat Sheet

Common Mistakes That Make Things Worse

The difference between a quick fix and a weekend project is knowing what not to do. These mistakes are repeat offenders in online owner forums, and they all make the problem worse.

Mistake 1: Spraying Lubricant Near the Rotor

Chain lube, suspension cleaner, and even some bike washes leave residue that contaminates brake pads instantly. If you spray lubricant anywhere near the rotor, you’ll be replacing pads soon. Always cover the rotor with a rag when lubricating the chain.

Better yet, remove the rear wheel if you’re doing drivetrain work.

Mistake 2: Pumping the Lever With the Wheel Off

If you remove the wheel and squeeze the brake lever, the caliper pistons will push out past their normal travel. On some calipers, those pistons can pop out entirely. On others, they’ll seal off unevenly and need to be reset.

Either way, you’ve created a bigger problem. Always use a pad spacer if you pump the lever without a rotor in place.

Mistake 3: Using the Wrong Fluid

Tektro brakes use Tektro mineral oil. Shimano brakes use Shimano mineral oil. They are not interchangeable.

Using the wrong brand can swell the seals and destroy your calipers. Never use DOT automotive brake fluid in any bike hydraulic brake, it will ruin the seals immediately and could cause brake failure on the trail.

Mistake 4: Ignoring Pad Wear Until It’s Too Late

Riding with worn pads damages the rotor. Once the friction material is gone, the metal backing plate grinds against the rotor. That ruins the rotor, and rotors cost more than pads.

Check your pads every month if you ride regularly. Replace them when the material is down to 1mm. You’ll save money and stay safe.

Mistake 5: Over-Tightening Caliper Bolts

The caliper mounting bolts need to be tight, but not gorilla-tight. The manufacturer torque spec is 5 to 7 Nm. Over-tightening can strip the frame threads or bend the caliper mounting tab.

Use a torque wrench if you have one. If you don’t, tighten firmly with a short Allen key and stop when you feel resistance increase, that’s enough.

When to Repair vs. When to Upgrade

Not every brake problem is solved with a repair. Sometimes the smart money is on an upgrade. The question is knowing when to swap parts and when to just replace what’s worn.

Stick With Repair If

Your pads are worn but the rotors are within spec. That’s a $10 to $25 fix. Your brakes need a bleed but the fluid looks clean.

That’s an hour of your time with a $35 bleed kit. Your rotors are slightly warped but above 1.5mm thickness. A rotor truing tool costs under $10 and can fix a slight wobble.

Consider an Upgrade When

You ride in wet conditions regularly. Resin pads just don’t cut it in the rain or through mud. Upgrading to sintered or semi-metallic pads costs $15 to $30 and dramatically improves wet braking performance.

You’ve warped two rotors in one season. That’s a sign the stock 160mm rotors aren’t dissipating heat well enough for your riding style. Moving to 180mm rotors (front or both) requires an adapter but improves heat management and stopping power.

You want better lever feel without annual bleeding. The Shimano MT200 brakes are a direct bolt-on replacement for the Tektro units. They’re roughly $60 per wheel and offer better modulation and easier bleeding.

Many Marlin 5 owners report the MT200 as the first upgrade that makes a real difference.

What About Full Brake System Replacement

Full system replacement is overkill for most Marlin 5 owners. The frame and fork are entry-level components that don’t benefit from high-end four-piston brakes. Stick with two-piston brakes that match the bike’s capability.

You’ll save money and avoid creating an unbalanced bike that brakes harder than its suspension can handle.

Maintenance That Prevents Brake Failure

The best fix is the one you never need. Regular maintenance keeps your Marlin 5 brakes working predictably and extends the life of every component.

Image source: Bing (Web (fair-use with source credit))

Monthly Checks

Inspect pad thickness through the caliper window. Look for uneven wear on both sides of the rotor. Spin each wheel and listen for rubbing.

If you hear a faint scrape, the rotor might be slightly bent or the caliper might need centering. Adjusting caliper alignment takes two minutes: loosen the two mounting bolts, squeeze the lever firmly, and retighten the bolts.

Every Three Months

Bleed your brakes if the lever feels softer than when the bike was new. Many riders skip this until the lever pulls to the bar, but that’s too late. A quick bleed every season keeps the fluid fresh and removes any moisture that’s been absorbed.

For Tektro brakes, use Tektro mineral oil. For Shimano brakes, use Shimano mineral oil. Never mix brands.

After Wet Rides

If you rode in the rain or through mud, clean the rotors with isopropyl alcohol and a clean rag. Dry the bike thoroughly. If the brakes squeal the next ride, the pads may have absorbed moisture or mud.

Remove the pads, sand them lightly with fine grit sandpaper, and clean the rotors again. Reinstall and do a bedding-in process before hitting the trail.

Before Long Descents

If you know you’re riding a trail with extended downhill sections, check your pads and rotors before you leave. Ensure the pads have at least 2mm of material. Carry a spare set of pads and an Allen key for quick trailside swaps.

Overheated brakes on a long descent can cause fluid to boil, leading to complete loss of braking power until the system cools.

The Bedding-In Process

New pads and rotors need a bedding-in procedure to mate the surfaces. Find a flat, safe road. Accelerate to about 15 mph and brake firmly to a stop without locking the wheel.

Repeat this 10 to 15 times. This transfers a thin layer of pad material to the rotor surface. Without bedding in, new brakes will feel grabby and unpredictable.

Frequently Asked Questions

Why do my Trek Marlin 5 brakes feel spongy after riding in the rain?

Water on the rotor and pads reduces friction temporarily. Resin pads are especially prone to this. The fix is to dry the pads and rotors with a clean rag and do a few hard stops on pavement to heat them up.

If the spongy feeling persists after drying, you may have air in the hydraulic line.

How often should I bleed my Marlin 5 brakes?

Once per season or every 500 miles is the general recommendation. If you ride in wet conditions or store the bike in a humid garage, moisture can enter the fluid faster. When the lever starts feeling softer than when the bike was new, it’s time for a bleed.

Can I use automotive brake fluid in my Marlin 5 brakes?

No. Never use DOT automotive brake fluid in any bicycle hydraulic brake. It will swell the rubber seals inside the caliper and cause brake failure.

Use only the mineral oil specified by your brake manufacturer, Tektro oil for Tektro brakes, Shimano oil for Shimano brakes.

What size rotors come on the Trek Marlin 5?

Most model years come with 160mm rotors on both front and rear. Some newer models may have a 180mm rotor on the front. Check your specific year by looking at the rotor diameter printed on the rotor itself.

Upgrading to larger rotors requires a mounting adapter.

How do I know if my brake pads are worn out?

Look at the friction material through the caliper or remove the wheel for a better view. If the material is thinner than 1mm, replace the pads. If you see metal touching metal, you’ve waited too long and will likely need a new rotor as well.

Why are my brakes squealing after I lubed my chain?

Chain lube gets flung onto the rotor during pedaling. That residue contaminates the brake pads, causing them to squeal. The only reliable fix is to replace the contaminated pads and clean the rotor with isopropyl alcohol.

Prevent this by covering the rotor with a rag when lubing the chain.
