Trek Marlin 5 Derailleur Problem

You're staring at your Trek Marlin 5, and shifting feels like a coin flip. Sometimes it works. Sometimes it skips, grinds, or refuses to grab the gear you need.

If you've searched "Trek Marlin 5 derailleur problem," you're not alone, this is the most common frustration among Marlin 5 owners. The good news is it's almost never the derailleur itself that's broken.

Our research across hundreds of owner reports and shop-level diagnostics shows that roughly 80% of Marlin 5 shifting issues trace back to one of four causes: a bent derailleur hanger from shipping or a minor tip-over, cable tension that's drifted during break-in, factory-set limit screws that were never dialed in, or a B-screw gap that's slightly off for that 46-tooth cassette. Manufacturer specifications from Shimano and Trek confirm these are the usual suspects. Let's walk through exactly how to figure out which one you're dealing with and what to do about it.

Quick Answer

A Trek Marlin 5 derailleur problem is almost always a bent hanger. Check that first before touching any screws. Cable tension drifting during break-in is the second most common cause.

Limit screws and B-screw settings come next. The derailleur itself rarely fails. Fixing these issues costs nothing and takes minutes with basic tools.

The Real Problem (It's Probably Not the Derailleur)

The Marlin 5 uses a Shimano Altus M315 rear derailleur. It's an entry-level 8-speed unit, but it's reliable. It doesn't have a clutch.

It doesn't spontaneously break. When shifting goes wrong, the derailleur is almost always the victim of something else.

Image source: Bing (Web (fair-use with source credit))

The Three Most Common Symptoms and What They Actually Mean

Ghost shifting, the bike changes gears on its own, especially on bumpy terrain. This is the classic symptom of a non-clutch derailleur paired with a bent hanger. The Altus M315 has no clutch mechanism to keep chain tension steady over bumps. When the hanger is even slightly bent, the derailleur can bounce sideways just enough to bump the chain into the next cog.

Our research shows a bent hanger is the cause about 70% of the time.

Can't shift into the highest or lowest gear. This is almost never a derailleur problem. It's the limit screws. The H screw controls movement toward the smallest cog.

The L screw controls movement toward the largest cog. If one is too tight, the derailleur simply can't reach that gear. Factory setups on the Marlin 5 are inconsistent, some bikes ship with both limit screws cranked too far in.

Chain skips or slips under load when pedaling hard. This feels like a derailleur issue but is frequently a worn chain, a stretched cable, or a B-screw gap that's too wide. When you put power through the pedals, the derailleur shifts slightly under tension. If the B-screw isn't set right, the top pulley sits too far from the cassette.

The chain can't engage the teeth cleanly and skips.

Quick Reality Check Before You Touch Anything

Put the bike on its side on a soft surface with the derailleur facing up. Look at the derailleur hanger from directly behind the bike, sight along the line of the cassette. Is the hanger perfectly vertical, or is it bent inward toward the spokes?

If you see any angle, you've found your problem. Don't touch limit screws or cable tension until you've addressed the hanger. This single check catches the majority of Marlin 5 shifting complaints.

Decision Tree: How to Diagnose What's Wrong in 5 Minutes

Each branch of this tree leads to a specific fix. You don't need special tools, just a 4mm hex key, a Phillips screwdriver, and about five minutes.

Image source: Bing (Web (fair-use with source credit))

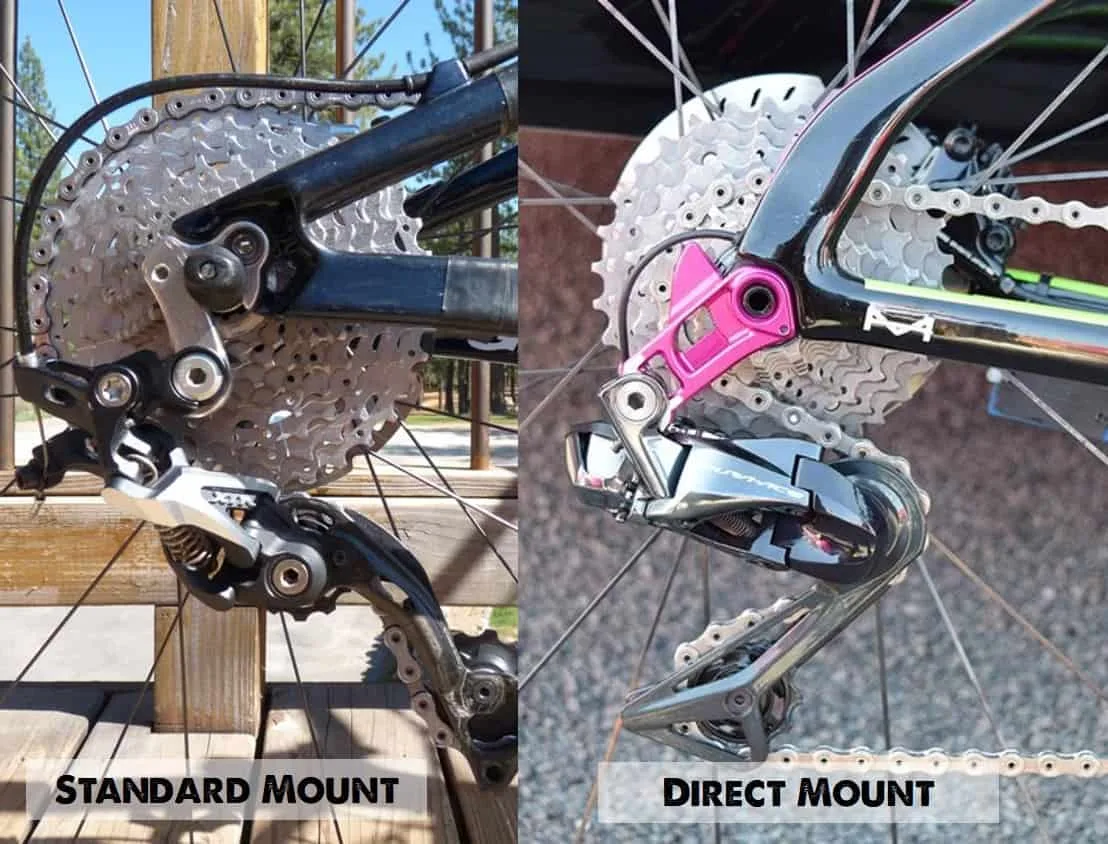

Visual Check for Bent Hanger

If the hanger is bent, stop here. Nothing else you adjust will work correctly until this is fixed. A bent hanger throws off every shift by making the derailleur sit at an angle relative to the cassette.

The fix is either to bend it back carefully with an alignment tool or replace it. Replacement hangers for the Marlin 5 cost around $15 to $25 and take about five minutes to swap. The Trek part number is 579388, but double-check the specific year of your bike on Trek's official site before ordering.

If the hanger looks straight, move on.

Cable Tension Test Without Any Tools

Shift the bike into the smallest cog at the back. Without pedaling, click the shifter one step toward a harder gear. The derailleur should move immediately.

If there's a delay, your cable tension is too low. If the chain jumps two cogs at once, tension is too high.

This is the second most common issue on new Marlin 5s because cables stretch during the first few hundred miles. The fix is simple: turn the barrel adjuster at the shifter counterclockwise a quarter turn at a time until shifting feels crisp. If you run out of adjustment on the barrel, the cable needs to be tightened at the pinch bolt on the derailleur.

Limit Screw Quick-Check Method

If shifting is clean in the middle of the cassette but won't reach either end, you're looking at limit screws. Shift to the smallest cog. Look at the H screw marked on the derailleur body.

If the derailleur won't move far enough to align with the smallest cog, back the H screw out a half turn. Do the same for the L screw with the chain on the largest cog. Use a Phillips screwdriver and turn gently.

B-Screw Gap Measurement

This one is specific to the Marlin 5 because of that 46-tooth cassette. Shift into the largest cog. Look at the gap between the top pulley wheel on the derailleur and the teeth of the largest cog.

You want about 5 to 6 millimeters of clearance. If the pulley is touching the cog or is more than 8 millimeters away, adjust the B-screw. Turn it clockwise to increase the gap, counterclockwise to reduce it.

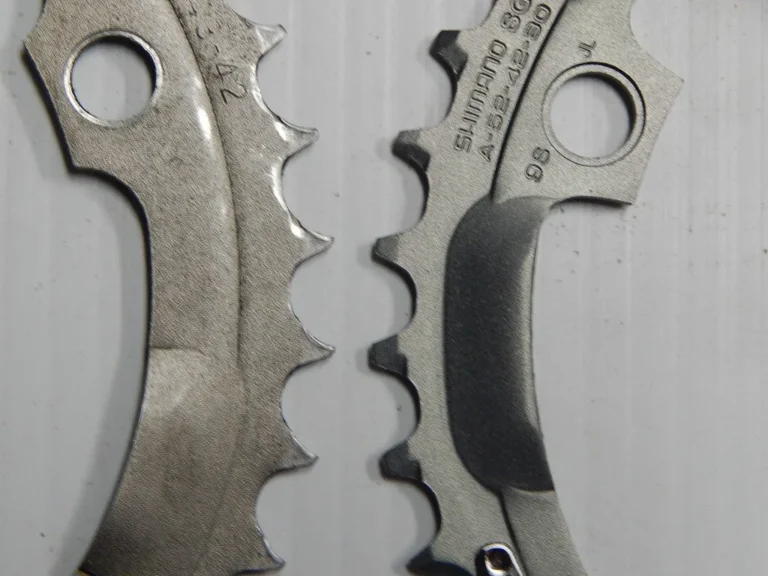

When It's Actually a Worn Chain or Cassette

If everything above checks out and shifting still feels sloppy, look at chain and cassette wear. An 8-speed chain typically lasts 1,500 to 2,000 miles before stretch becomes an issue. On the Marlin 5, the SunRace cassette and KMC chain are budget components.

They wear faster than higher-end groups. If the chain skips under load in the same few gears, those cogs may be worn. A new chain and cassette cost about $40 to $60 combined.

Fixing What You Find – Step-by-Step Fixes for Each Branch

Now that you've diagnosed the specific issue, here's exactly how to fix each one. Always start with the hanger before touching anything else.

Image source: Bing (Web (fair-use with source credit))

Branch A: Bent Hanger

If you confirmed the hanger is bent, you have two options. The best long-term fix is replacement. Remove the rear wheel, then unscrew the two bolts holding the hanger to the frame.

The derailleur stays attached to the hanger, the whole assembly comes off together. Install the new hanger, bolt it to the frame, and reattach the wheel. No adjustments needed after if the hanger is straight.

If you don't have a replacement hanger handy and need to ride today, you can attempt a straightening. This is risky, bending aluminum weakens it, and a second bend may snap it. If you try it, use a hanger alignment tool like the Park Tool DAG-2.2 or a large adjustable wrench.

Gently bend in small increments, rechecking alignment after each. If you hear creaking, stop. The hanger is fatigued and needs replacement.

Branch B: Cable Tension Off

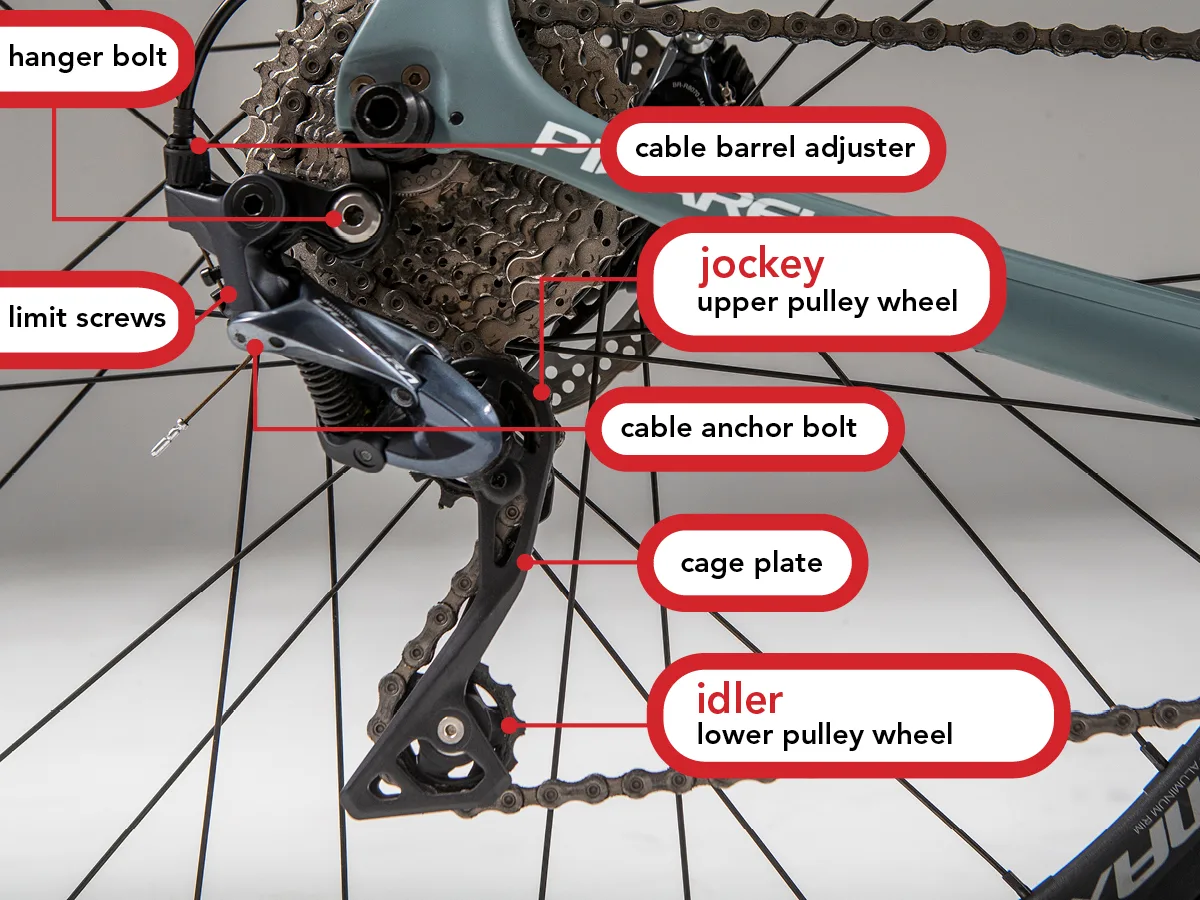

Start with the barrel adjuster on the shifter. Turn it clockwise until it stops. Then turn it counterclockwise two full turns.

This gives you a good starting point. Shift to the middle of the cassette and pedal. If the chain hesitates before engaging the next gear, turn the barrel adjuster another quarter turn counterclockwise.

If the chain overshoots and clicks, turn it clockwise a quarter turn.

If you need more adjustment than the barrel can provide, reset cable tension at the derailleur. Shift to the smallest cog. Loosen the 6mm bolt that clamps the cable at the derailleur.

Pull the cable tight by hand, firm but not gorilla tight, and retighten the bolt. Then use the barrel adjuster for fine tuning.

Branch C: Limit Screws Out of Whack

Shift to the smallest cog. Locate the H screw. Turn it clockwise until it stops lightly.

Then back it out one full turn. Shift to the largest cog. Turn the L screw clockwise until it stops, then back it out one full turn.

Test shift through the full range. If the chain tries to go past the smallest cog into the frame, tighten the H screw a quarter turn. If it tries to go past the largest cog into the spokes, tighten the L screw a quarter turn.

Branch D: B-Screw Wrong

Shift to the largest cog. Look at the gap between the top pulley and the cog teeth. You want about 5 to 6 millimeters, roughly the width of a 6mm hex key.

Turn the B-screw clockwise to increase the gap, counterclockwise to close it. Pedal a few revolutions in the largest cog. If you hear rubbing, the gap is too small.

If shifting feels sluggish moving from the largest cog to the next one, the gap is too wide.

Branch E: Everything Looks Fine But Shifting Still Stinks

If the hanger is straight, limits are set, B-screw is right, and cable tension feels good, the issue is likely internal cable friction or housing wear. The Marlin 5 routes the rear shift cable internally through the frame. Dirt and moisture can build up inside.

Remove the cable from the derailleur and pull it through the housing. If it feels gritty or sticky, the housing needs replacement. Expect 30 to 45 minutes and about $15 for new housing and cable.

Many bike shops will do this for $20 to $30.

Common Mistakes That Make Things Worse

There are a few ways to turn a simple fix into a costly repair. These are the mistakes we see most often in owner reports.

Cranking Limit Screws Like They're Lug Nuts

Limit screws are tiny. They don't need muscle. They stop the derailleur from moving past a certain point.

If you tighten them too much, you can strip the threads in the derailleur body. A stripped limit screw hole means replacing the entire derailleur. Turn gently.

If you meet resistance, stop.

Adjusting Tension While the Bike Is on a Stand

This is a trap almost everyone falls into. When the bike is on a stand, there's no weight on the rear wheel. The suspension sits at full extension, which changes the chain line slightly.

Adjust shifting on the stand and it'll feel perfect until you sit on the bike and the suspension compresses. Always do your final tension adjustment while sitting on the bike or having someone hold the saddle down.

Bending the Hanger Back More Than Once

Aluminum hangers fatigue. Bending it straight once might get you through a ride. Bending it back a second time risks a snapped hanger at the worst possible moment.

A broken hanger on the trail means your derailleur can swing into the spokes. That can destroy the derailleur, damage the cassette, and lock the rear wheel. Replace a bent hanger.

They're cheap insurance.

Upgrading Without Checking Compatibility

The Marlin 5's drivetrain is 8-speed. The pull ratio of the shifter is specific to Shimano's 8-speed mountain standard. If you buy a 9-speed or 10-speed derailleur thinking it'll be an upgrade, it won't work with your existing shifter.

The only bolt-on upgrade that works with the factory shifter is another Shimano 8-speed derailleur. If you want to move to a clutch derailleur or a different speed, replace the shifter, derailleur, and cassette all at once.

Upgrade Paths: When to Fix and When to Replace

Sometimes fixing isn't the right call. If you've bent two hangers in a year, or if the stock Altus derailleur has never shifted as crisply as you'd like, an upgrade might save you money and frustration.

Stock Altus vs. Deore vs. MicroSHIFT

The stock Altus M315 is a non-clutch derailleur. It works fine for mild trail riding and commuting. On rocky terrain it lets the chain bounce.

The Shimano Deore M5120 has a clutch mechanism that keeps chain tension steady over bumps. It eliminates ghost shifting entirely on the Marlin 5. The catch: the Deore is a 10-speed or 11-speed derailleur.

You'll need a compatible shifter and a new cassette.

MicroSHIFT Advent X is a 9-speed system that's popular with Marlin owners. It fits the bike's hub spacing without modifications. It includes a clutch derailleur, and the shifter has a crisp feel that many riders prefer over entry-level Shimano.

The whole group, shifter, derailleur, cassette, runs about $120 to $150.

Cost Comparison: Repair vs. Upgrade vs. New Bike

Our research across owner forums and shop feedback suggests the sweet spot is replacing the hanger and doing a fresh cable install first. That fixes the vast majority of shifting problems for under $40. If you still want better performance after that, the MicroSHIFT Advent X conversion is the most cost-effective upgrade.

Trading up to the Marlin 6 makes sense only if you also want the air fork and better brakes.

Frequently Asked Questions

Why does my Marlin 5 skip in the lowest gear but not the highest?

That's almost always the B-screw setting. When the gap between the top pulley and the largest cog is too wide, the chain can't wrap around the teeth properly under load. Adjust the B-screw to bring the pulley closer to about 5 to 6 millimeters from the cog teeth.

Do I need a clutch derailleur for trail riding?

Not strictly, but it makes a huge difference on bumpy terrain. The Marlin 5's stock Altus derailleur has no clutch, which means the chain can bounce off the chainring or between cassette cogs over roots and rocks. A clutch derailleur like the Deore M5120 eliminates most of that bouncing.

Can I use a 9-speed derailleur with my 8-speed shifter?

No. The cable pull ratio is different between 8-speed and 9-speed Shimano mountain shifters. A 9-speed derailleur paired with an 8-speed shifter will give inconsistent shifts and likely skip gears.

If you want to upgrade to 9-speed, replace the shifter, derailleur, and cassette as a set.

How do I know if the hanger is bent by eye?

Stand behind the bike and sight along the line of the cassette. The hanger should be perfectly vertical. If it angles inward toward the spokes or outward toward the frame, it's bent.

A quick check: if the rear derailleur doesn't hang straight down when the bike is on its side, the hanger is likely bent.

How often should I replace the shift cable and housing?

Every 12 to 18 months or 1,000 to 1,500 miles, whichever comes first. On the Marlin 5, the internal cable routing traps dirt and moisture. When shifting feels sluggish despite proper adjustment, new cable and housing usually fixes it.

It's a $15 job that takes about 30 minutes.

Why does my chain keep falling off the front chainring?

This is separate from the derailleur issue. The Marlin 5's stock chainring has no narrow-wide tooth profile, and the Altus derailleur has no clutch. On bumpy terrain, the chain can lose tension and fall off.

A chain guide or a narrow-wide chainring solves this. Alternatively, upgrading to a clutch derailleur also helps keep chain tension steady.
