Razor A4 Brake Problem

Image source: Bing (Web (fair-use with source credit))

Having an issue with your Razor A4 brake can be frustrating, especially when you expect your scooter to stop on a dime. A malfunctioning brake isn't just an inconvenience; it's a safety concern. Our research indicates that issues can range from a completely unresponsive brake to one that's too stiff or constantly rubbing.

This guide focuses on diagnosing and fixing common problems with the Razor A4's braking system. Per manufacturer specifications, the effective stopping distance for a scooter like the A4 relies heavily on properly functioning brake components. We’ll walk you through simple checks and adjustments you can make at home to get your scooter stopping reliably again.

Quick Answer

The most common Razor A4 brake problems involve worn brake pads, misaligned cables, or improper cable tension, leading to slipping, rubbing, or failure to stop. Fixing it often requires inspecting the brake pad, adjusting cable tension, and ensuring proper alignment. For persistent issues beyond simple adjustments, part replacement may be necessary.

Is Your Razor A4 Brake Not Working Right?

It’s a bummer when your Razor A4 scooter’s brake isn’t doing its job. You push down on the fender brake, expecting it to slow you down, but maybe nothing happens, or it feels weak. Perhaps the brake is so stiff you can barely press it, or it seems to be constantly dragging on the wheel, making your ride sluggish.

These are all signs that something’s not quite right with the braking system.

Common Symptoms of a Faulty Brake

When your Razor A4 brake acts up, you’ll typically notice one of a few things:

• Brake Not Engaging: You press the brake lever (the fender part), but it doesn't make contact with the rear wheel, or the contact is so light it barely slows you down. This is the most critical issue, as it compromises your ability to stop safely.
• Brake Slipping: The brake might engage, but it doesn't provide enough friction to slow the scooter effectively, almost as if it's slipping on the wheel's surface. This can be due to worn pads or grease on the contact surfaces.
• Brake Rubbing: You might hear a constant scraping sound, or notice that the wheel feels harder to spin by hand because the brake pad is always touching the tire, even when you're not braking. This causes unnecessary friction and wear.
• Stiff Brake Lever: The physical act of pressing the brake feels unusually difficult, requiring a lot of force. This often points to issues within the cable or the brake mechanism itself being bound up.
• Loose Brake Cable: The brake lever might feel loose or have excessive play before it starts to engage the wheel. This means the initial push doesn't translate to effective braking pressure.

How the Razor A4 Brake System Works

The Razor A4 uses a simple, yet effective, fender brake system. It’s a type of friction brake that directly interacts with the rear wheel. When you press down on the flexible fender at the back of the scooter, it pivots and presses a rubber or plastic brake pad against the tire.

This friction slows the rotation of the wheel, bringing the scooter to a halt.

The effectiveness of this system relies on a few key components: the brake pad’s material and condition, the tension of the brake cable that connects the fender to the pad, and the alignment of the pad with the wheel. Manufacturer specifications often highlight the importance of these simple mechanics for user safety as of 2026.

Step 1: Inspecting the Brake Pad and Wheel

The first and most crucial step in troubleshooting your Razor A4 brake problem is a thorough visual inspection. You're looking for obvious signs of wear or damage on the parts that actually do the stopping. Get down low and take a good, close look at the brake pad and the area of the wheel it contacts.

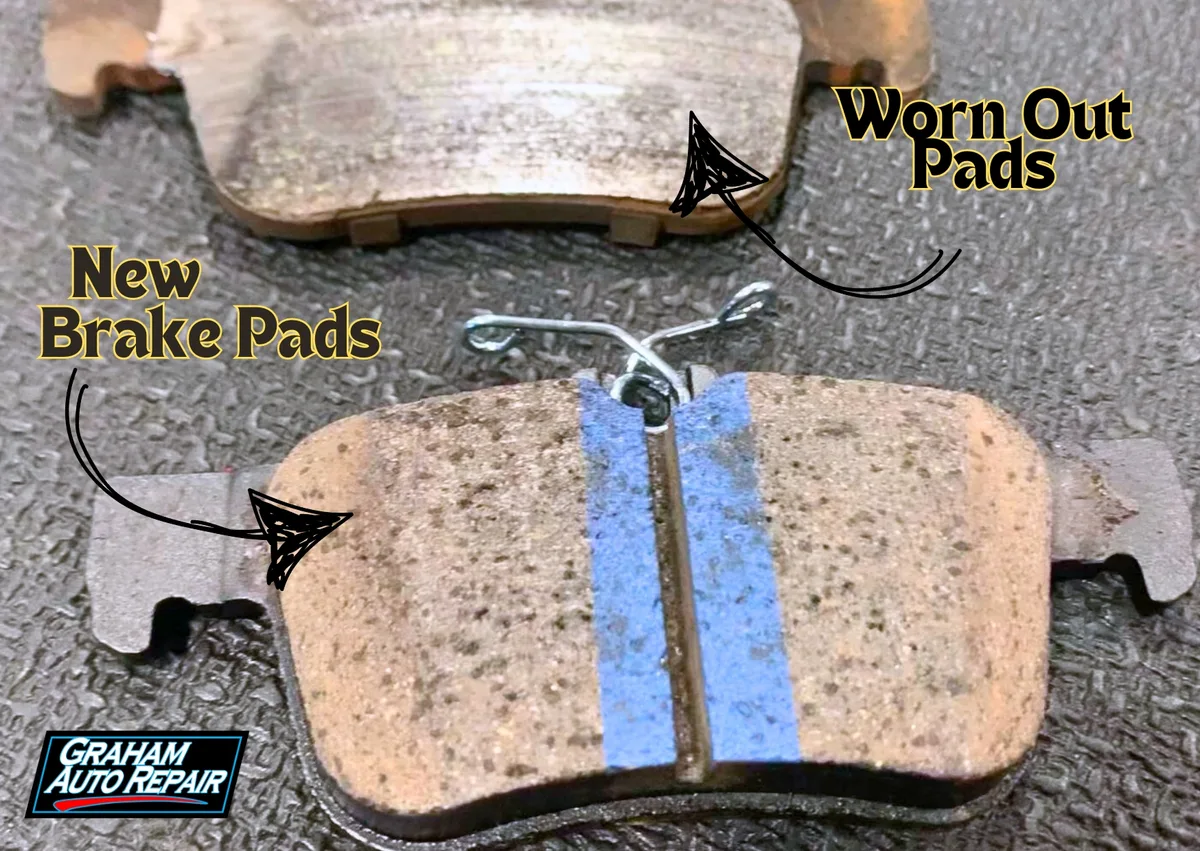

• Check the Brake Pad: The brake pad is the rubber or plastic piece that presses against the tire.
  • Wear: Is the pad worn down to a thin sliver? Does it look cracked, chunked, or unevenly worn? If the pad is significantly diminished, it simply won't have enough material to create the friction needed to stop. Replacement is likely necessary.
  • Damage: Look for any cuts, tears, or melted spots on the pad.
  • Alignment: Is the pad hitting the tire squarely and evenly? If it's hitting at an angle or only making contact with one edge, it won't brake efficiently and could cause premature wear.

Image source: Bing (Web (fair-use with source credit))

• Examine the Wheel: While you’re inspecting the pad, also check the surface of the tire where the pad makes contact.
  • Debris: Is there any dirt, gravel, or sticky residue on the tire that might be preventing the brake from gripping? Clean it off with a damp cloth.
  • Damage: Look for any deep cuts or bulges in the tire that could affect braking.

This initial check can often reveal the root cause of your braking issues immediately. If the pad is visibly worn or damaged, you've found your culprit.

Step 2: Checking the Brake Cable Tension

The brake cable connects the fender brake lever to the actual brake pad. Its tension is critical, too loose, and the brake won't engage; too tight, and it might rub constantly. Adjusting this tension is usually a straightforward process.

• Locate the Adjustment Point: On most Razor A4 scooters, the brake cable adjustment is near where the cable attaches to the fender brake mechanism. You'll typically see a barrel adjuster or a nut and bolt setup.

Image source: Bing (Web (fair-use with source credit))

• How to Adjust:

  • If the brake is too loose: You’ll need to increase the cable tension. This usually involves turning a barrel adjuster counter-clockwise, or loosening a lock nut and tightening the cable through the clamping bolt. The goal is to pull the cable taut enough so that when you press the fender, the brake pad makes firm contact with the wheel without excessive lever travel.
  • If the brake is too tight (rubbing): You’ll need to decrease the tension. Turn the barrel adjuster clockwise, or loosen the clamping bolt and allow a bit more slack in the cable. You want the pad to clear the wheel completely when not engaged, with just a tiny bit of initial play in the lever before engagement begins.

• Test the Adjustment: After making an adjustment, press down on the fender brake and check if it engages the wheel properly. Spin the wheel to see if the brake pad is rubbing. You're aiming for a balance where the brake engages firmly with a moderate press and disengages completely when released. If you find yourself needing to overtighten or loosen the cable significantly, it might indicate underlying issues like a stretched cable or a damaged mechanism.

Step 3: Diagnosing Stiff or Slipping Brakes

Sometimes, the brake pad looks okay, and the cable tension seems right, but the brake still feels off. This is where we look at stiffness and slipping. These issues often point to friction points or contamination.

• Stiff Brake Lever: A brake that’s hard to press usually means something is binding.

  • Cable Friction: The brake cable might be kinked, dirty, or corroded inside its housing. This increased friction makes it difficult for the cable to move freely. You might need to lubricate the cable or, in more severe cases, replace it.
  • Mechanism Binding: Check where the brake pad arm pivots. Is there dirt or rust buildup preventing smooth movement? A quick clean and a drop of lubricant on the pivot point can sometimes fix this.
  • Bent Components: In rare cases, the fender brake lever or the arm that holds the pad might be slightly bent, causing it to rub against the frame or wheel in an awkward way that resists movement.

• Brake Slipping: If the brake engages but doesn't grab effectively, it’s likely a friction problem.

  • Contamination: The most common culprit here is grease, oil, or other slippery substances on either the brake pad or the tire surface. Our research indicates that even a small amount of contamination can drastically reduce braking effectiveness. Thoroughly clean both the brake pad and the tire where they make contact with a degreaser or isopropyl alcohol and a clean cloth.
  • Worn Pad Material: Even if the pad isn’t completely worn down, if its surface has become glazed or hardened from heat and friction over time, it might lose its grip. Sometimes, lightly scuffing the pad surface with fine-grit sandpaper can help restore some grip, but replacement is often the better long-term solution.

Step 4: Cleaning and Lubricating for Smooth Operation

A clean and well-lubricated brake system performs best. Over time, dirt, dust, and grime can accumulate, impeding the smooth movement of the brake cable and pad. Performing a basic cleaning and lubrication routine can resolve many minor stiffness or rubbing issues.

• Cleaning the Brake Pad and Wheel:

  • First, ensure the brake isn’t actively rubbing by loosening the cable tension slightly if needed.
  • Use a clean, damp cloth to wipe down the brake pad and the section of the tire it contacts.
  • For any stubborn grime or residue, a mild soap and water solution or a degreaser like isopropyl alcohol can be effective. Make sure to wipe away all residue thoroughly with a clean, dry cloth afterwards. You want a clean, dry surface for optimal friction.

• Lubricating the Brake Cable and Pivot:

  • Cable: If your brake cable feels stiff or jerky, it might need lubrication. You can try a silicone-based lubricant or a light bike chain lube. Apply it sparingly at the entry and exit points of the cable housing, and work the brake lever back and forth to help the lubricant penetrate. Avoid over-lubricating, as excess can attract dirt.
  • Pivot Points: The arm that the brake pad is attached to usually pivots on a bolt or pin. Apply a single drop of lubricant (like a light machine oil or bicycle grease) to this pivot point. Again, work the lever a few times to distribute the lubricant.
  • Frame Rub Points: If you notice any parts of the brake mechanism rubbing against the scooter’s frame, ensure those areas are clean. A tiny amount of lubricant might help if the rubbing is due to metal-on-metal contact, but often, the issue is misalignment that needs to be addressed in Step 2 or 3.

Step 5: Identifying When to Replace Parts

Sometimes, no amount of adjustment or cleaning will fix a Razor A4 brake problem. At this point, it’s time to consider replacing worn-out components. The most common part needing replacement is the brake pad itself, but the cable can also wear out over time.

• Replacing the Brake Pad:

  • When: If your brake pad is significantly worn down (less than 2-3mm thick), cracked, or unevenly damaged, it’s time for a new one. You can often find replacement pads designed for Razor scooters online or at local bike shops.
  • How: Typically, the brake pad is held onto its arm by a screw or bolt. You'll need to loosen or remove this fastener, take off the old pad, and install the new one, ensuring it’s properly aligned. Manufacturer sites often provide specific diagrams for part replacement.

• Replacing the Brake Cable:

  • When: If the brake cable appears frayed, corroded, kinked, or if lubrication doesn't free up a stiff lever, the cable likely needs replacement. A stretched cable that can no longer be properly tensioned is another indicator.
  • How: This is a bit more involved. You'll need to disconnect the old cable from the brake mechanism and the fender lever. Thread the new cable through the housing and reattach it securely at both ends. Proper tensioning (as described in Step 2) is crucial after replacement. For a visual guide, you might look for generic scooter brake cable replacement tutorials, as the principle is similar across many models.

• Assessing Overall Scooter Condition: While not directly a brake part, if the scooter frame where the brake attaches is bent or damaged, it can also cause brake issues. Similarly, if the wheel itself is warped, it will affect brake performance. In such cases, the cost and effort of repairing the scooter might outweigh its value, especially for older models. You can explore resources on keeping your scooter in top shape for general maintenance advice.

Mistakes to Avoid When Fixing Your Brake

Even with the best intentions, sometimes simple fixes can create new problems. When working on your Razor A4 brake, being aware of common mistakes can save you time and prevent further damage. These errors often stem from rushing the process or not understanding how the brake system works.

• Over-tightening the Cable: It's tempting to crank the brake cable tight to ensure it stops well. However, overtightening can put too much stress on the components, making the lever incredibly stiff and causing the brake pad to rub constantly. This friction wears down the pad and tire prematurely. Always aim for firm, but not excessive, tension.
• Ignoring Contamination: Many users assume a slipping brake is just worn out. However, grease or oil on the brake pad or tire is a frequent cause of poor grip. Failing to thoroughly clean these surfaces after any repair or adjustment can lead to a brake that still slips, even with new parts.
• Forgetting About Alignment: The brake pad needs to hit the tire squarely. If it's at an angle, it won't stop effectively and will wear out much faster on one edge. Ensure the pad is flush with the tire surface when engaged. Misalignment can sometimes be due to bent components, which might need more than a simple adjustment.
• Using the Wrong Tools: While the A4's brake system is simple, using incorrect tools can strip screws or damage plastic parts. Always use tools that fit the fasteners properly. For instance, using pliers on a hex bolt can round off the edges, making it impossible to tighten or loosen later.

When to Call it Quits (Or Seek Professional Help)

While many Razor A4 brake problems are fixable with basic tools and a bit of patience, some situations require more expertise or component replacement beyond simple adjustments. Knowing when to stop tinkering and seek help is crucial for safety and efficiency. If you've gone through the steps above and the brake still isn't right, it’s time to consider other options.

• Persistent Rubbing or Sticking: If the brake pad continues to rub against the wheel even after adjusting cable tension and cleaning pivot points, there might be a bent component in the fender brake assembly. Straightening these parts precisely can be difficult without specialized tools. For example, if the arm holding the brake pad is bent inward towards the wheel, it will always be too close.

• Compromised Frame or Wheel: If your inspection revealed that the scooter's frame where the brake attaches is bent, cracked, or damaged, this can fundamentally affect brake alignment and function. Likewise, a severely warped or damaged tire or wheel itself will hamper any brake's effectiveness. These types of structural issues often mean the scooter is no longer safe for use.

• Stretched or Damaged Cable Housing: Beyond just the cable itself, the outer housing can get damaged, kinked, or compressed. This prevents the cable inside from sliding smoothly, leading to stiff braking or failure to release. Replacing the entire cable and housing is usually the solution, which can be fiddly work.

• Lack of Confidence or Tools: If you're not comfortable performing mechanical adjustments or if you don't have the basic tools needed, it’s always safer to have a professional look at it. Many local bike shops or scooter repair services can diagnose and fix brake issues relatively quickly, especially for simpler scooter models like the A4.

Frequently Asked Questions About Razor A4 Brakes

Why does my Razor A4 brake feel weak?

A weak brake usually means the brake pad isn't making enough contact with the wheel. This could be due to worn-out brake pads, the cable being too loose, or contamination (like grease or dirt) on the pad or tire surface. Start by checking the pad's condition and then adjust the cable tension.

How often should I check my Razor A4's brake?

It's a good idea to give your brake a quick visual check before each ride, looking for obvious wear or damage. A more thorough inspection of the pad and cable tension should be done at least once a month, or more frequently if you ride your scooter often or in rough conditions. Regular maintenance is key to preventing sudden brake failures.

Can I use a different type of brake pad on my Razor A4?

While some aftermarket parts exist, it’s generally best to use brake pads specifically designed for the Razor A4 or compatible scooter models. Using a pad made for a different system might not fit correctly, could cause misalignment, or could even damage the wheel or braking mechanism. Always check compatibility.

My brake is making a loud squealing noise. What's wrong?

Squealing brakes are often caused by vibrations between the brake pad material and the tire surface. This can happen if the pad is worn unevenly, is contaminated, or if its material has hardened over time. Cleaning the pad and tire, ensuring proper alignment, or replacing a glazed brake pad can usually resolve squealing.

How do I know if my brake cable is stretched?

If you've adjusted the brake cable to its maximum tension and the brake still feels too loose or doesn't engage firmly, the cable has likely stretched beyond its useful limit. Cables can stretch over time due to constant use and tension. In such cases, replacing the entire brake cable is the recommended solution.
